Toyota COROLLA AXIO/FIELDER — FOG LAMP

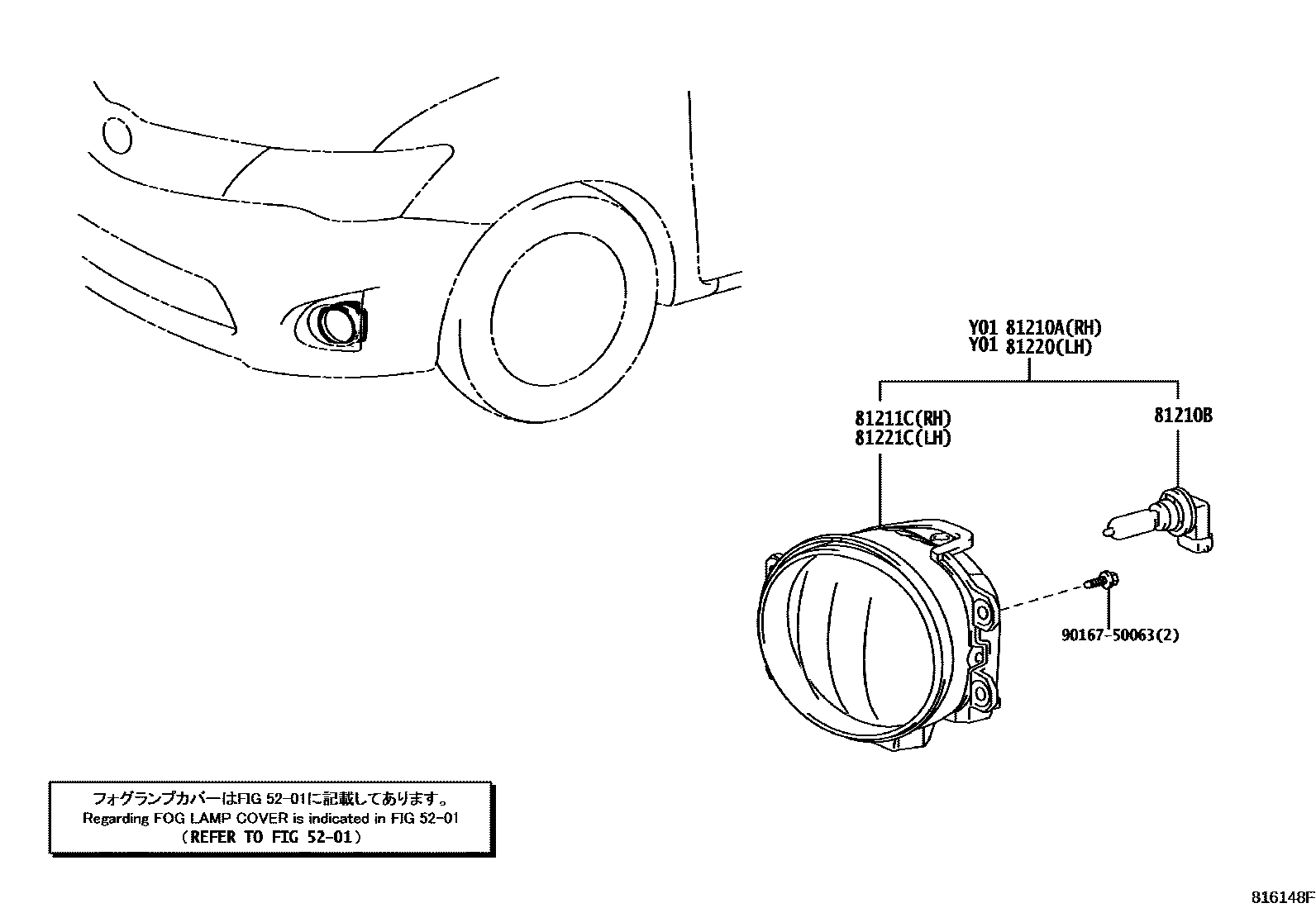

Parts diagram

5201

81210ALAMP ASSY, FOG, RH

main81210-12230i¥11,900201204-201409

main81210-12230i¥11,900201204-201409

main81210-47010i¥8,900201410-201503

main81210-47010i¥8,900201410-201503

main81210-47010i¥8,900201410-201503

81210BBULB, FOG LAMP

main90981-13090i¥2,000201204-201503

main90981-13090i¥2,000201204-201503

main90981-13090i¥2,000201204-201503

81211CLAMP UNIT, FOG LAMP, RH

main81211-12230i¥9,600201204-201409

main81211-12230i¥9,600201204-201409

main81211-47010i¥7,200201410-201503

main81211-47010i¥7,200201410-201503

main81211-47010i¥7,200201410-201503

81220LAMP ASSY, FOG, LH

main81220-12230i¥11,900201204-201409

main81220-12230i¥11,900201204-201409

main81220-47010i¥8,900201410-201503

main81220-47010i¥8,900201410-201503

main81220-47010i¥8,900201410-201503

81221CLAMP UNIT, FOG LAMP, LH

main81221-12230i¥9,600201204-201409

main81221-12230i¥9,600201204-201409

main81221-47010i¥7,200201410-201503

main81221-47010i¥7,200201410-201503

main81221-47010i¥7,200201410-201503

9016750063

main90167-50063¥60

7 parts on this diagram · 2 diagrams in section
