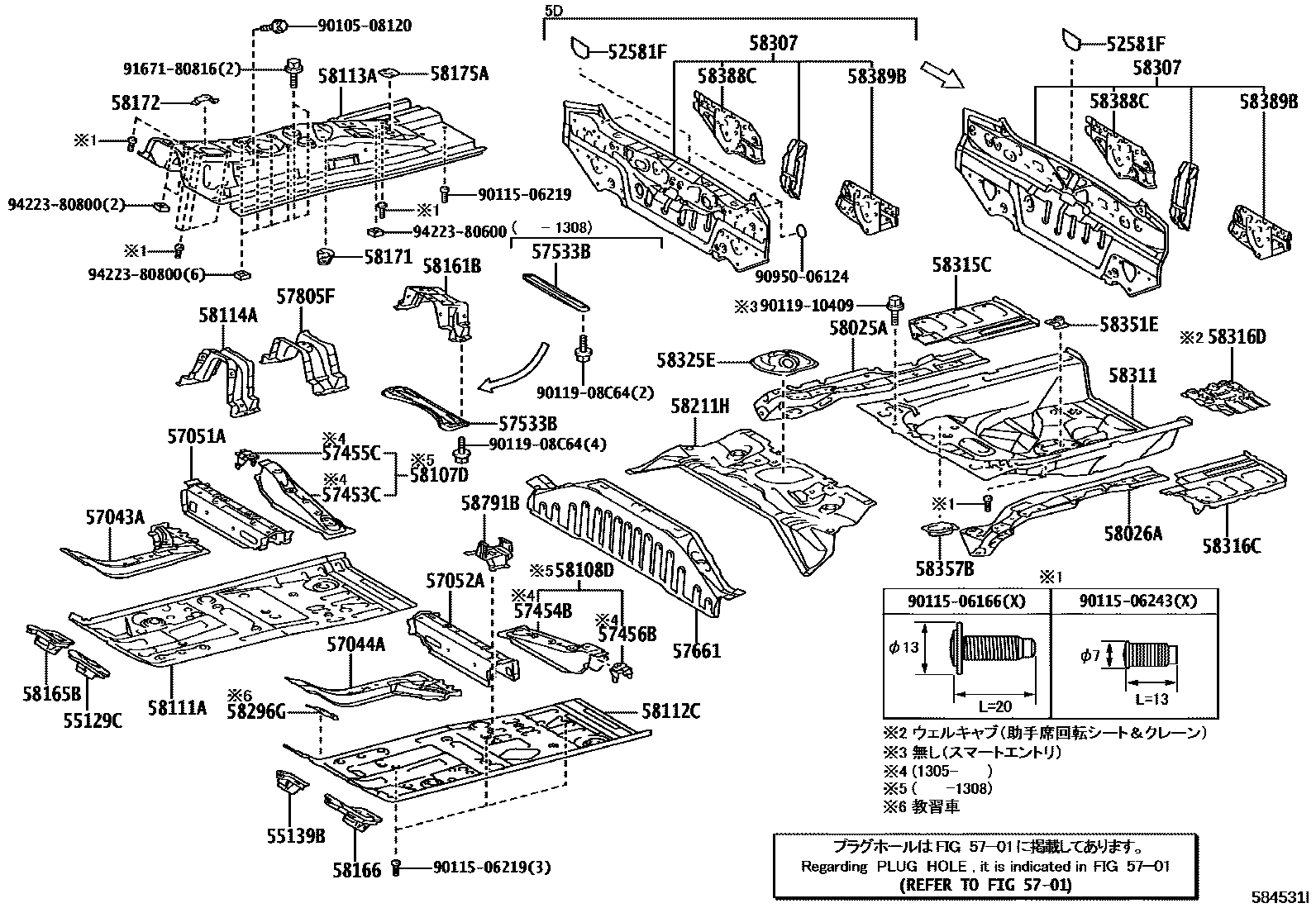

Toyota COROLLA AXIO/FIELDER — FLOOR PAN & LOWER BACK PANEL

0001 1 0002 1 0003 1

52581FPROTECTOR, REAR BUMPER

main52581-12140iNKE165,NRE160,NZE16#,ZRE162¥140201304-201503

main52581-12140iNKE165,NRE16#,NZE16#,ZRE162¥140201710

main52581-12140iNKE165,NRE16#,NZE16#,ZRE162¥140201503-201710

main52581-13030iNRE160,NZE16#,ZRE162¥290201204-201303

55129CCOVER, DASH PANEL HOLE

main55129-52051iNKE165,NRE161,NZE16#..HBD,X¥780201710

main55129-52051iNKE165,NRE160,NZE16#,ZRE162¥780201204-201503

main55129-52051iNKE165,NRE16#,NZE16#,ZRE162¥780201503-201710

main55129-52051iNRE161,NZE16#..G;NKE165,NRE160,ZRE162..HBDG,S,X¥780201710-201908

55139BCOVER, DASH PANEL HOLE, LH

main55139-52021iNRE161,NZE16#..G;NKE165,NRE160,ZRE162..HBDG,S,X¥780201710-201908

main55139-52021iNKE165,NRE160,NZE16#,ZRE162¥780201204-201503

main55139-52021iNKE165,NRE16#,NZE16#,ZRE162¥780201503-201710

main55139-52021iNKE165,NRE161,NZE16#..HBD,X¥780201710

5701

57043AREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR RH

main57043-52021iNRE160,NZE16#,ZRE162¥7,100201204-201305

sub57043-52022¥7,100

main57043-52022iNKE165,NRE160,NZE16#,ZRE162¥7,100201305-201503

sub57043-52023¥4,420

main57043-52023iNKE165,NRE16#,NZE16#,ZRE162¥4,420201503-201710

main57043-52023iNKE165..HBD¥4,420201710-201910

main57043-52023iNKE165,NRE16#,NZE16#,ZRE162..G,HBDG,S,X¥4,420201710

main57043-52023iNKE165¥4,420201910

57044AREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR LH

main57044-52041iNRE160,NZE16#,ZRE162¥7,100201204-201305

sub57044-52042¥7,100

main57044-52042iNKE165,NRE160,NZE16#,ZRE162¥7,100201305-201503

sub57044-52043¥4,420

main57044-52043iNKE165,NRE16#,NZE16#,ZRE162..G,HBDG,S,X¥4,420201710

main57044-52043iNKE165,NRE16#,NZE16#,ZRE162¥4,420201503-201710

main57044-52043iNKE165..HBD¥4,420201710-201909

main57044-52043iNKE165¥4,420201909

57051AMEMBER SUB-ASSY, FRONT FLOOR CROSS, RH

main57051-52010iNKE165,NRE160,NZE16#,ZRE162¥6,700201204-201503

main57051-52010iNKE165,NRE16#,NZE16#,ZRE162¥6,700201503-201710

main57051-52010iNKE165..HBD¥6,700201710-201910

main57051-52010iNKE165,NRE16#,NZE16#,ZRE162..G,HBDG,S,X¥6,700201710

main57051-52010iNKE165¥6,700201910

57052AMEMBER SUB-ASSY, FRONT FLOOR CROSS, LH

main57052-52010iNKE165,NRE160,NZE16#,ZRE162¥6,700201204-201503

main57052-52010iNKE165,NRE16#,NZE16#,ZRE162¥6,700201503-201710

main57052-52010iNKE165..HBD¥6,700201710-201909

main57052-52010iNKE165,NRE16#,NZE16#,ZRE162..G,HBDG,S,X¥6,700201710

main57052-52010iNKE165¥6,700201909

57453CMEMBER, FRONT FLOOR CROSS SIDE, RH

main57453-52022iNKE165,NRE160,NZE16#,ZRE162¥4,060201305-201503

main57453-52022iNKE165,NRE16#,NZE16#,ZRE162¥4,060201503-201710

main57453-52022iNKE165..HBD¥4,060201710-201910

main57453-52022iNKE165,NRE16#,NZE16#,ZRE162..G,HBDG,S,X¥4,060201710

main57453-52022iNKE165¥4,060201910

57454BMEMBER, FRONT FLOOR CROSS SIDE, LH

main57454-52012iNKE165,NRE160,NZE16#,ZRE162¥4,060201305-201503

main57454-52012iNKE165,NRE16#,NZE16#,ZRE162¥4,060201503-201710

main57454-52012iNKE165..HBD¥4,060201710-201909

main57454-52012iNKE165,NRE16#,NZE16#,ZRE162..G,HBDG,S,X¥4,060201710

main57454-52012iNKE165¥4,060201909

57455CBRACKET, FRONT SEAT MOUNTING, OUTSIDE RH

main57455-52040iNKE165,NRE160,NZE16#,ZRE162¥550201305-201503

main57455-52040iNKE165,NRE16#,NZE16#,ZRE162¥550201503-201710

main57455-52040iNKE165..HBD¥550201710-201910

main57455-52040iNKE165,NRE16#,NZE16#,ZRE162..G,HBDG,S,X¥550201710

main57455-52040iNKE165¥550201910

57456BBRACKET, FRONT SEAT MOUNTING, OUTSIDE LH

main57456-52040iNKE165,NRE160,NZE16#,ZRE162¥550201305-201503

main57456-52040iNKE165,NRE16#,NZE16#,ZRE162¥550201503-201710

main57456-52040iNKE165..HBD¥550201710-201909

main57456-52040iNKE165,NRE16#,NZE16#,ZRE162..G,HBDG,S,X¥550201710

main57456-52040iNKE165¥550201909

57533BBRACE, FRONT FLOOR, CENTER

main57533-52011iNRE160,NZE161,ZRE162¥1,700201204-201308

main57533-52030iNKE165¥2,470201307-201503

main57533-52030iNRE160,NZE161,ZRE162¥2,470201308-201503

main57533-52030iNKE165,NRE16#,NZE161,ZRE162¥2,470201503-201710

main57533-52030iNRE161,NZE161..G;NKE165,NRE160,ZRE162..HBDG,S,X¥2,470201710-201908

main57533-52030iNKE165,NRE161,NZE161..HBD,X¥2,470201710

57661PANEL, REAR FLOOR SIDE, FRONT RH

main57661-52110iNRE160,NZE161,ZRE162¥8,100201204-201503

main57661-52110iNRE16#,NZE161,ZRE162¥8,100201503-201710

main57661-52110iNRE160,ZRE162;NRE161,NZE161..G¥8,100201710-201908

main57661-52110iNRE161,NZE161..X¥8,100201710

57805FREINFORCEMENT SUB-ASSY, BELT ANCHOR, NO.1

main57805-52131iNKE165,NRE160,NZE161,ZRE162¥4,120201204-201503

main57805-52131iNKE165,NRE16#,NZE161,ZRE162¥4,120201503-201710

main57805-52131iNKE165,NRE16#,NZE161,ZRE162¥4,120201710

main57805-52141iNZE164¥4,120201503-201710

main57805-52141iNZE164¥4,120201710

main57805-52141iNZE164¥4,120201204-201503

58025APANEL SUB-ASSY, FLOOR SIDE RAIL, FR RH

main58025-12050iNKE165,NRE16#,NZE16#,ZRE162¥6,000201503-201710

�E�F���L���u�i���������]�V�[�g�j

main58025-12050iNKE165,NRE16#,NZE16#,ZRE162¥6,000201503-201710

�E�F���L���u�i���������]�V�[�g�@���@�N���[���j

main58025-12050iNKE165,NRE160,NZE16#,ZRE162¥6,000201204-201503

main58025-12050iNRE161,NZE16#..G;NKE165,NRE160,ZRE162..HBDG,S,X¥6,000201710-201908

main58025-12050iNKE165,NRE161,NZE16#..HBD,X¥6,000201710

�E�F���L���u�i���������]�V�[�g�j

main58025-12050iNKE165,NRE161,NZE16#..HBD,X¥6,000201710

�E�F���L���u�i���������]�V�[�g�@���@�N���[���j

58026APANEL SUB-ASSY, FLOOR SIDE RAIL, FR LH

main58026-12020iNKE165,NRE160,NZE16#,ZRE162¥6,000201204-201503

main58026-12020iNKE165,NRE16#,NZE16#,ZRE162¥6,000201503-201710

�E�F���L���u�i���������]�V�[�g�j

main58026-12020iNKE165,NRE16#,NZE16#,ZRE162¥6,000201503-201710

�E�F���L���u�i���������]�V�[�g�@���@�N���[���j

main58026-12020iNRE161,NZE16#..G;NKE165,NRE160,ZRE162..HBDG,S,X¥6,000201710-201908

main58026-12020iNKE165,NRE161,NZE16#..HBD,X¥6,000201710

�E�F���L���u�i���������]�V�[�g�j

main58026-12020iNKE165,NRE161,NZE16#..HBD,X¥6,000201710

�E�F���L���u�i���������]�V�[�g�@���@�N���[���j

58107DREINFORCE SUB-ASSY, FRONT CROSS TO FRONT PANEL, RH

main58107-52050iNRE160,NZE16#,ZRE162¥7,000201204-201305

sub58107-52051¥7,000

main58107-52051iNKE165,NRE160,NZE16#,ZRE162¥7,000201305-201308

58108DREINFORCE SUB-ASSY, FRONT CROSS TO FRONT PANEL, LH

main58108-52030iNRE160,NZE16#,ZRE162¥7,000201204-201305

sub58108-52031¥7,000

main58108-52031iNKE165,NRE160,NZE16#,ZRE162¥7,000201305-201308

58111APAN, FRONT FLOOR, RH

main58111-52170iNRE160,NZE16#,ZRE162¥18,400201204-201308

main58111-52170iNKE165¥18,400201307-201308

main58111-52280iNRE160,NZE16#,ZRE162¥18,400201308-201411

sub58111-52281¥11,600

main58111-52281iNKE165..HBD¥11,600201710-201910

main58111-52281iNKE165,NRE160,NZE16#,ZRE162¥11,600201411-201503

main58111-52281iNKE165,NRE16#,NZE16#,ZRE162¥11,600201503-201710

main58111-52281iNKE165,NRE16#,NZE16#,ZRE162..G,HBDG,S,X¥11,600201710

main58111-52281iNKE165¥11,600201910

58112CPAN, FRONT FLOOR, LH

main58112-52904iNRE160,NZE16#,ZRE162¥12,800201204-201308

sub58112-52921¥11,400

main58112-52916iNRE160,NZE16#,ZRE162¥18,200201308-201501

sub58112-52921¥11,400

main58112-52917iNKE165¥18,200201307-201501

sub58112-52926¥11,400

main58112-52921iNRE160,NZE16#,ZRE162¥11,400201501-201503

main58112-52921iNRE16#,NZE16#,ZRE162¥11,400201710

main58112-52921iNRE16#,NZE16#,ZRE162¥11,400201503-201710

main58112-52926iNKE165¥11,400201501-201503

main58112-52926iNKE165¥11,400201503-201710

main58112-52926iNKE165¥11,400201710

58113APANEL, FRONT FLOOR, CENTER

main58113-52914iNZE164¥23,100201204-201503

main58113-52914iNZE164..G¥23,100201710-201908

main58113-52914iNZE164¥23,100201503-201710

main58113-52914iNZE164..X¥23,100201710

main58113-52915iNRE160,NZE161,ZRE162¥36,600201204-201305

sub58113-52924¥23,000

main58113-52924iNKE165,NRE160,NZE161,ZRE162¥23,000201305-201503

main58113-52924iNKE165,NRE16#,NZE161,ZRE162¥23,000201503-201710

main58113-52924iNRE161,NZE161..G;NKE165,NRE160,ZRE162..HBDG,S,X¥23,000201710-201908

main58113-52924iNKE165,NRE161,NZE161..HBD,X¥23,000201710

58114AREINFORCEMENT, FRONT FLOOR PANEL

main58114-52071iNKE165,NRE160,NZE161,ZRE162¥2,740201204-201503

main58114-52071iNKE165,NRE16#,NZE161,ZRE162¥2,740201710

main58114-52071iNKE165,NRE16#,NZE161,ZRE162¥2,740201503-201710

main58114-52081iNZE164¥2,820201204-201503

main58114-52081iNZE164¥2,820201503-201710

main58114-52081iNZE164¥2,820201710

58161BREINFORCEMENT, BELT ANCHOR TO FLOOR PAN

main58161-52070iNKE165,NRE160,NZE161,ZRE162¥3,450201204-201503

main58161-52070iNKE165,NRE16#,NZE161,ZRE162¥3,450201503-201710

main58161-52070iNKE165,NRE16#,NZE161,ZRE162¥3,450201710

58165BCOVER, FRONT FLOOR, RH

main58165-52011iNKE165,NRE16#,NZE16#,ZRE162¥1,110201503-201710

main58165-52011iNKE165,NRE160,NZE16#,ZRE162¥1,110201204-201503

main58165-52011iNRE161,NZE16#..G;NKE165,NRE160,ZRE162..HBDG,S,X¥1,110201710-201908

main58165-52011iNKE165,NRE161,NZE16#..HBD,X¥1,110201710

58166COVER, FRONT FLOOR, LH

main58166-52011iNKE165,NRE160,NZE16#,ZRE162¥1,110201204-201503

main58166-52011iNKE165,NRE16#,NZE16#,ZRE162¥1,110201503-201710

main58166-52011iNRE161,NZE16#..G;NKE165,NRE160,ZRE162..HBDG,S,X¥1,110201710-201908

main58166-52011iNKE165,NRE161,NZE16#..HBD,X¥1,110201710

58171REINFORCEMENT, PARKING BRAKE BASE

main58171-52090iNKE165,NRE160,NZE161,ZRE162¥840201204-201503

main58171-52090iNKE165,NRE16#,NZE161,ZRE162¥840201710

main58171-52090iNKE165,NRE16#,NZE161,ZRE162¥840201503-201710

main58171-52120iNZE164¥840201204-201503

main58171-52120iNZE164¥840201503-201710

main58171-52120iNZE164¥840201710

58172BRACKET, COMPUTER MOUNTING, NO.3

main58172-52020iNKE165,NRE16#,NZE161,ZRE162¥500201503-201710

main58172-52020iNKE165,NRE16#,NZE161,ZRE162¥500201710

main58172-52020iNKE165,NRE160,NZE161,ZRE162¥500201204-201503

main58172-52030iNZE164¥400201710

main58172-52030iNZE164¥400201204-201503

main58172-52030iNZE164¥400201503-201710

58175AREINFORCEMENT, PARKING BRAKE BASE, NO.1

main58175-52020iNKE165,NRE16#,NZE16#,ZRE162¥220201503-201710

main58175-52020iNKE165,NRE160,NZE16#,ZRE162¥220201204-201503

main58175-52020iNKE165,NRE16#,NZE16#,ZRE162¥220201710

58211HPAN, CENTER FLOOR

main58211-12942iNKE165¥22,900201503-201709

sub58211-12944¥17,300

main58211-12942iNKE165¥22,900201307-201503

sub58211-12944¥17,300

main58211-12944iNKE165¥17,300201709-201710

main58211-12944iNKE165..HBDG¥17,300201710-201908

main58211-12944iNKE165..HBD¥17,300201710

main58211-52170iNZE164..G¥14,500201710-201908

main58211-52170iNZE164¥14,500201503-201710

main58211-52170iNZE164..X¥14,500201710

main58211-52170iNZE164¥14,500201204-201503

main58211-52271iNRE161,NZE161..X¥8,500201710

main58211-52271iNRE16#,NZE161,ZRE162¥8,500201503-201710

main58211-52271iNRE160,ZRE162;NRE161,NZE161..G¥8,500201710-201908

main58211-52271iNRE160,NZE161,ZRE162¥8,500201204-201503

58296GBRACKET, FRONT FLOOR BRACE MOUNTING

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-12B60iNKE165..4D¥22,000201204-201308

sub58307-12B61¥13,800

main58307-12B60iNRE160,NZE161..4D¥22,000201204-201307

sub58307-12B61¥13,800

main58307-12B61iNKE165,NRE16#,NZE161..4D¥13,800201503-201612

sub58307-12B62¥18,300

main58307-12B61iNKE165,NRE160,NZE161..4D¥13,800201308-201503

sub58307-12B62¥18,300

main58307-12B62iNKE165,NRE16#,NZE161..4D¥18,300201701-201710

main58307-12B70iNZE164..4D¥21,300201204-201307

sub58307-12B71¥13,400

main58307-12B71iNZE164..4D¥13,400201503-201612

sub58307-12B72¥17,700

main58307-12B71iNZE164..4D¥13,400201308-201503

sub58307-12B72¥17,700

main58307-12B72iNZE164..4D¥17,700201701-201710

main58307-12C60iNKE165,NRE161,NZE161..4D..(HBD,X)¥13,800201710

main58307-12C60iNRE161,NZE161..4D..G;NKE165,NRE160..4D..(HBDG,X)¥13,800201710-201908

main58307-12C70iNZE164..4D..X¥13,400201710

main58307-12C70iNZE164..4D..G¥13,400201710-201908

main58307-13200iNZE161,ZRE162..5D¥22,000201204-201307

sub58307-13201¥13,800

main58307-13200iNKE165..5D¥22,000201204-201308

sub58307-13201¥13,800

main58307-13201iNKE165,NRE161,NZE161,ZRE162..5D¥13,800201503-201612

sub58307-13202¥18,300

main58307-13201iNKE165,NZE161,ZRE162..5D¥13,800201308-201503

sub58307-13202¥18,300

main58307-13202iNKE165,NRE161,NZE161,ZRE162..5D¥18,300201701-201710

main58307-13210iNZE164..5D¥22,000201204-201307

sub58307-13211¥13,800

main58307-13211iNZE164..5D¥13,800201308-201503

sub58307-13212¥18,300

main58307-13211iNZE164..5D¥13,800201503-201612

sub58307-13212¥18,300

main58307-13212iNZE164..5D¥18,300201701-201710

main58307-13220iNKE165,NRE161,NZE161,ZRE162..5D..(G,HBDG,S)¥13,800201710-201908

main58307-13220iNKE165,NRE161,NZE161..5D..(HBD,X)¥13,800201710

main58307-13230iNZE164..5D..X¥13,800201710

main58307-13230iNZE164..5D..G¥13,800201710-201908

58311PAN, REAR FLOOR

main58311-52210iNRE161..4D..X¥17,400201710

�E�F���L���u�i���������]�V�[�g�@���@�N���[���j

main58311-52210iNRE161..4D..X¥17,400201710

�E�F���L���u�i���������]�V�[�g�j

main58311-52210iNRE161,NZE161..G;NKE165,NRE160,ZRE162..HBDG,S,X¥17,400201710-201908

main58311-52210iNKE165,NRE160,NZE161,ZRE162¥17,400201204-201503

main58311-52210iNKE165,NRE16#,NZE161,ZRE162¥17,400201503-201710

�E�F���L���u�i���������]�V�[�g�j

main58311-52210iNKE165,NRE16#,NZE161,ZRE162¥17,400201503-201710

�E�F���L���u�i���������]�V�[�g�@���@�N���[���j

main58311-52220iNZE164..4D..X¥11,600201710

�E�F���L���u�i���������]�V�[�g�@���@�N���[���j

main58311-52220iNZE164¥11,600201204-201503

main58311-52220iNZE164¥11,600201503-201710

�E�F���L���u�i���������]�V�[�g�j

main58311-52220iNZE164¥11,600201503-201710

�E�F���L���u�i���������]�V�[�g�@���@�N���[���j

main58311-52220iNZE164..G¥11,600201710-201908

main58311-52220iNZE164..X¥11,600201710

�E�F���L���u�i���������]�V�[�g�j

58315CEXTENSION, REAR FLOOR SIDE PANEL, RH

main58315-52170iNKE165,NRE16#,NZE16#,ZRE162¥2,660201503-201710

�E�F���L���u�i���������]�V�[�g�@���@�N���[���j

main58315-52170iNKE165,NRE161,NZE164..4D..(G,HBDG,X)¥2,660201503-201710

�E�F���L���u�i���������]�V�[�g�j

main58315-52170iNKE165,NRE160,NZE16#,ZRE162¥2,660201204-201503

main58315-52170iNRE161,NZE16#..G;NKE165,NRE160,ZRE162..HBDG,S,X¥2,660201710-201908

main58315-52170iNKE165,NRE161,NZE16#..HBD,X¥2,660201710

�E�F���L���u�i���������]�V�[�g�j

main58315-52170iNKE165,NRE161,NZE16#..HBD,X¥2,660201710

�E�F���L���u�i���������]�V�[�g�@���@�N���[���j

58316CEXTENSION, REAR FLOOR SIDE PANEL, LH

main58316-52190iNKE165,NRE161,NZE164,ZRE162..G,HBDG,S,X¥2,660201503-201710

�E�F���L���u�i���������]�V�[�g�@���@�N���[���j

main58316-52190iNKE165,NRE160,NZE16#,ZRE162¥2,660201204-201503

main58316-52190iNKE165,NRE16#,NZE16#,ZRE162¥2,660201503-201710

�E�F���L���u�i���������]�V�[�g�j

main58316-52190iNRE161,NZE16#..G;NKE165,NRE160,ZRE162..HBDG,S,X¥2,660201710-201908

main58316-52190iNKE165,NRE161,NZE16#..HBD,X¥2,660201710

�E�F���L���u�i���������]�V�[�g�j

main58316-52190iNKE165,NRE161,NZE16#..HBD,X¥2,660201710

�E�F���L���u�i���������]�V�[�g�@���@�N���[���j

58316DEXTENSION, REAR FLOOR PAN, LH

58325ECOVER, REAR FLOOR SERVICE HOLE

main58325-52050iNRE160,NZE161,ZRE162¥1,450201204-201503

main58325-52050iNRE16#,NZE161,ZRE162¥1,450201503-201710

main58325-52050iNRE160,ZRE162;NRE161,NZE161..G¥1,450201710-201908

main58325-52050iNRE161,NZE161..X¥1,450201710

main58325-52060iNZE164..X¥1,450201710

main58325-52060iNZE164¥1,450201204-201503

main58325-52060iNZE164..G¥1,450201710-201908

main58325-52060iNZE164¥1,450201503-201710

main58325-52080iNKE165..HBD¥1,320201710

main58325-52080iNKE165¥1,320201503-201710

main58325-52080iNKE165..HBDG¥1,320201710-201908

main58325-52080iNKE165¥1,320201307-201503

58351EBRACKET, SPARE WHEEL CLAMP

main58351-52070iNKE165,NRE16#,NZE16#,ZRE162¥500201503-201710

�E�F���L���u�i���������]�V�[�g�j

main58351-52070iNKE165,NRE16#,NZE16#,ZRE162¥500201503-201710

�E�F���L���u�i���������]�V�[�g�@���@�N���[���j

main58351-52070iNRE161,NZE16#..G;NKE165,NRE160,ZRE162..HBDG,S,X¥500201710-201908

main58351-52070iNKE165,NRE161,NZE16#..HBD,X¥500201710

�E�F���L���u�i���������]�V�[�g�j

main58351-52070iNKE165,NRE161,NZE16#..HBD,X¥500201710

�E�F���L���u�i���������]�V�[�g�@���@�N���[���j

main58351-52070iNKE165,NRE160,NZE16#,ZRE162¥500201204-201503

58357BBRACKET, ACTUATOR COVER, NO.3 RH

main58357-52041iNRE161..4D..X¥670201710

�E�F���L���u�i���������]�V�[�g�j

main58357-52041iNKE165,NRE160,NZE16#,ZRE162¥670201204-201503

main58357-52041iNKE165,NRE16#,NZE16#,ZRE162¥670201503-201710

�E�F���L���u�i���������]�V�[�g�j

main58357-52041iNKE165,NRE16#,NZE16#,ZRE162¥670201503-201710

�E�F���L���u�i���������]�V�[�g�@���@�N���[���j

main58357-52041iNRE161,NZE16#..G;NKE165,NRE160,ZRE162..HBDG,S,X¥670201710-201908

main58357-52041iNKE165,NRE161,NZE16#..HBD,X¥670201710

�E�F���L���u�i���������]�V�[�g�@���@�N���[���j

58388CPLATE, BODY LOWER BACK REINFORCEMENT, RH

main58304-12080iNRE161,NZE16#..G;NKE165,NRE160,ZRE162..HBDG,S,X¥2,620201710-201908

main58304-12080iNKE165,NRE161,NZE16#..HBD,X¥2,620201710

main58388-12040iNKE165,NRE16#,NZE16#,ZRE162¥4,080201503-201612

sub58388-12041¥3,400

main58388-12040iNKE165,NRE160,NZE16#,ZRE162¥4,080201204-201503

sub58388-12041¥3,400

main58388-12041iNKE165,NRE16#,NZE16#,ZRE162¥3,400201701-201710

58389BPLATE, BODY LOWER BACK REINFORCEMENT, LH

main58389-12030iNRE161,NZE16#..G;NKE165,NRE160,ZRE162..HBDG,S,X¥2,470201710-201908

main58389-12030iNKE165,NRE160,NZE16#,ZRE162¥2,470201204-201503

main58389-12030iNKE165,NRE16#,NZE16#,ZRE162¥2,470201503-201710

main58389-12030iNKE165,NRE161,NZE16#..HBD,X¥2,470201710

58791BCARRIER, JACK

main58791-52060iNKE165,NRE160,NZE16#,ZRE162¥1,310201204-201503

main58791-52060iNKE165,NRE16#,NZE16#,ZRE162¥1,310201503-201710

main58791-52060iNKE165..HBD¥1,310201710-201909

main58791-52060iNKE165,NRE16#,NZE16#,ZRE162..G,HBDG,S,X¥1,310201710

main58791-52060iNKE165¥1,310201909

9010508120

main90105-08120¥90

9011506166

main90115-06166¥90

9011506219

main90115-06219¥80

9011506243

main90115-06243¥80

9011908C64

main90119-08C64¥90

9011910409

main90119-10409¥110

9095006124

main90950-06124¥90

9167180816

main91671-80816¥80

9422380600

main94223-80600¥70

9422380800

main94223-80800¥90

52 parts on this diagram · 3 diagrams in section
