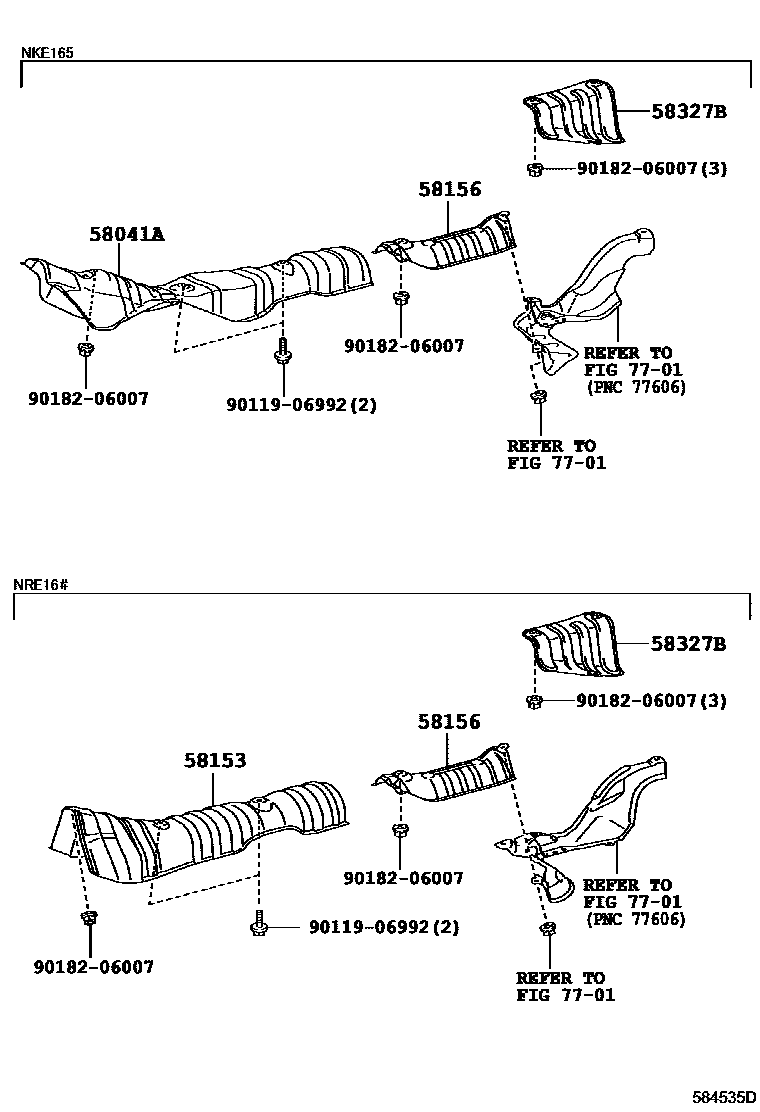

Toyota COROLLA AXIO/FIELDER — FLOOR INSULATOR

0001 1 0002 1

58041AINSULATOR SUB-ASSY, FRONT FLOOR HEAT, NO.1

main58041-52010iNKE165..HBDG¥3,350201307-201908

58153INSULATOR, FRONT FLOOR HEAT, NO.2

main58153-52091iNRE160;NRE161..G¥2,880201204-201908

58156INSULATOR, FRONT FLOOR HEAT, NO.4

main58156-52020iNKE165,NRE16#,NZE161,ZRE162¥1,070201204-201908

58327BINSULATOR, MAIN MUFFLER HEAT

main58327-52121iNKE165,NRE16#,NZE161,ZRE162¥970201204-201908

main58327-52151iNZE164..X¥1,690201204-201908

7701

9011906992

main90119-06992¥60

9018206007

main90182-06007¥60

7 parts on this diagram · 2 diagrams in section
