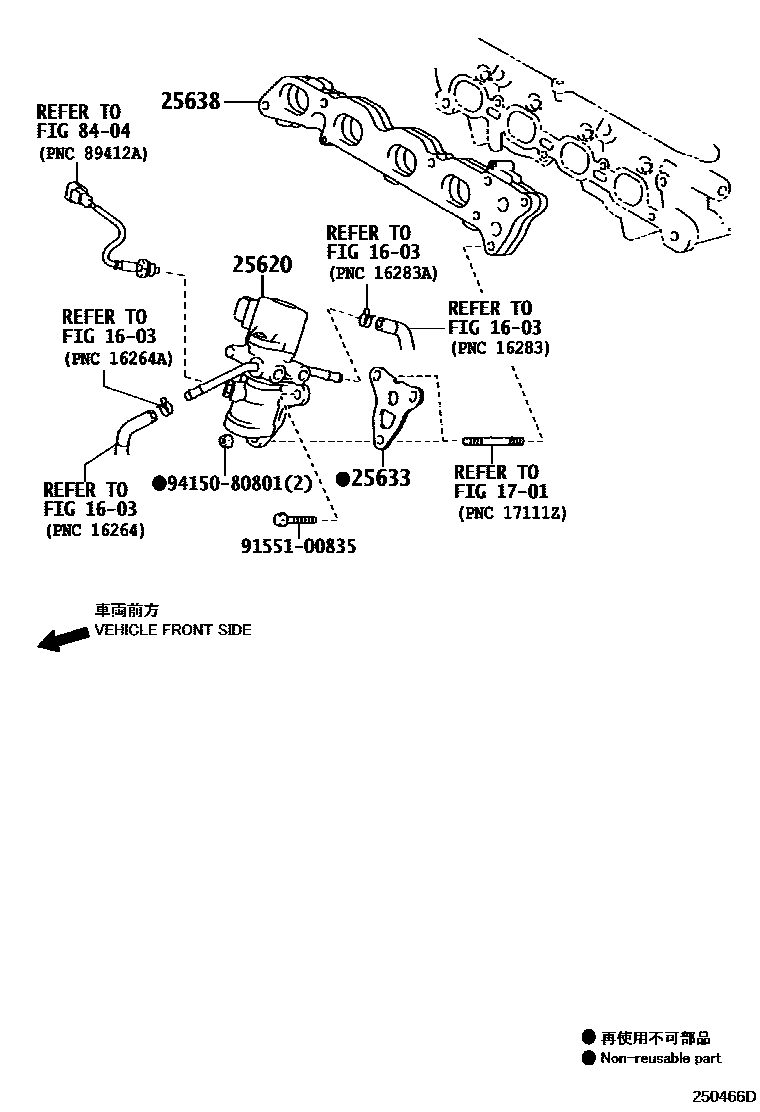

Toyota COROLLA AXIO/FIELDER — EXHAUST GAS RECIRCULATION SYSTEM

0001 1 0002 1 0003 1 0004 1

1603

1701

25620VALVE ASSY, EGR

main25620-21010i1NZFE..NZE16#¥18,400201204-201908

main25620-21020i1NZFXE..NKE165¥29,200201307-201606

sub25620-21021¥18,400

main25620-21021i1NZFXE..NKE165..HBDG¥18,400201607-201908

main25620-21030i1NZFE..NZE161..CVT¥18,400201206-201503

main25620-47020i1NRFE..NRE160¥18,400201204-201908

main25620-47030i2NRFKE..NRE161¥24,300201503-201906

sub25620-47060¥18,400

main25620-47060i2NRFKE..NRE161..X¥18,400201907-201908

25633GASKET, EGR VALVE

main25633-21010i1NZFXE..NKE165..HBDG¥340201307-201908

main25633-21020i1NZFE..NZE16#¥270201204-201908

main25633-47010i1NRFE..NRE160¥160201204-201908

main25633-47020i2NRFKE..NRE161..G¥270201503-201908

25638CHAMBER, EGR DELIVERY

main25638-21020i1NZFE..NZE16#¥6,400201204-201908

8404

9155100835

main91551-00835¥80

9415080801

main94150-80801¥80

8 parts on this diagram · 4 diagrams in section
