Toyota COROLLA AXIO/FIELDER — ENGINE OVERHAUL GASKET KIT

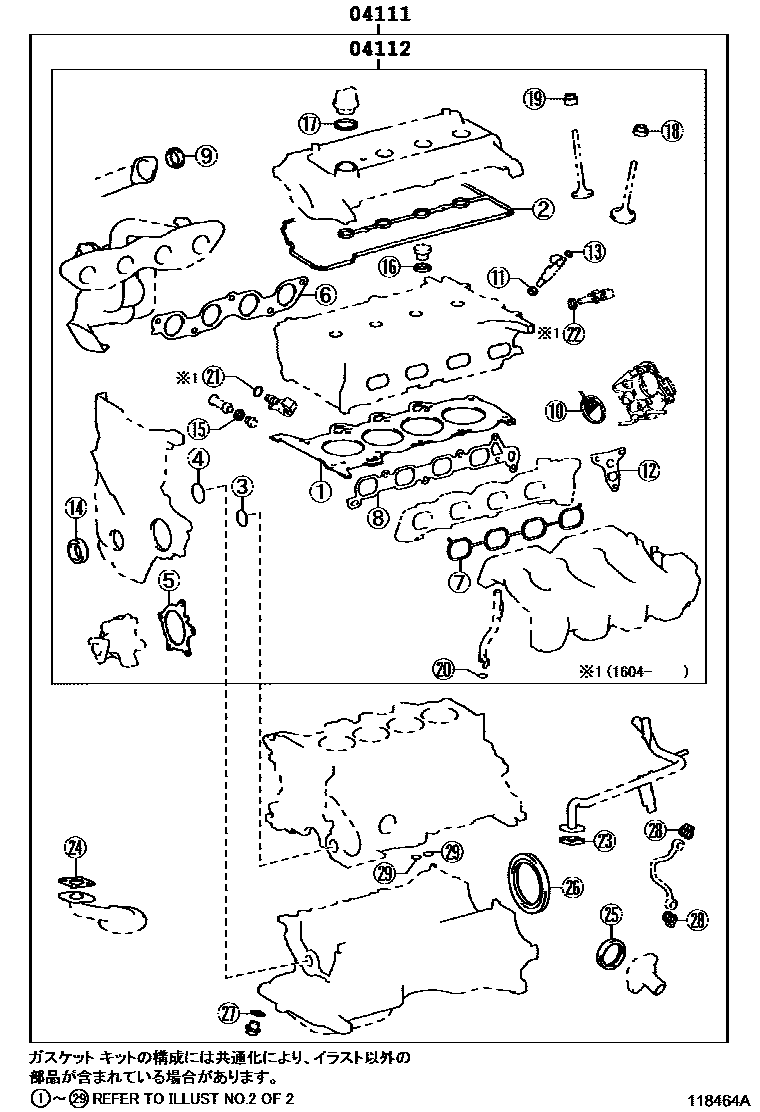

Parts diagram

04111GASKET KIT, ENGINE OVERHAUL

main04111-21247i¥27,100201204-201311

sub04111-21248¥27,100

main04111-21248i¥27,100201311-201604

sub04111-21249¥17,100

main04111-21249i¥17,100201604-201710

main04111-21322i¥29,600201307-201311

sub04111-21323¥29,600

main04111-21323i¥29,600201311-201402

sub04111-21324¥29,600

main04111-21324i¥29,600201402-201604

sub04111-21325¥24,700

main04111-21325i¥24,700201604-201811

sub04111-21326¥18,600

main04111-21326i¥18,600201811

main04111-37431i¥34,200201204-201502

sub04111-37432¥23,700

main04111-37432i¥23,700201502-201908

sub04111-37433¥23,700

main04111-47131i¥34,000201204-201205

sub04111-47132¥34,000

main04111-47132i¥34,000201205-201206

sub04111-47133¥34,000

main04111-47133i¥34,000201206-201303

sub04111-47134¥34,000

main04111-47134i¥34,000201303-201311

main04111-47240i¥21,000201312-201908

main04111-47260i¥27,100201503-201806

sub04111-47261¥27,100

main04111-47261i¥27,100201806-202002

sub04111-47262¥20,600

main04111-47262i¥20,600202002

04112GASKET KIT, ENGINE VALVE GRIND

main04112-21245i¥22,600201204-201311

sub04112-21246¥22,600

main04112-21246i¥22,600201311-201604

sub04112-21247¥14,200

main04112-21247i¥14,200201604-201710

main04112-21321i¥25,000201307-201311

sub04112-21322¥25,000

main04112-21322i¥25,000201311-201402

sub04112-21323¥25,000

main04112-21323i¥25,000201402-201604

sub04112-21324¥20,800

main04112-21324i¥20,800201604-201811

sub04112-21325¥15,700

main04112-21325i¥15,700201811

main04112-37341i¥27,600201204-201502

sub04112-37342¥19,000

main04112-37342i¥19,000201502-201908

sub04112-37343¥19,100

main04112-47081i¥25,500201204-201205

sub04112-47082¥25,500

main04112-47082i¥25,500201205-201206

sub04112-47083¥25,500

main04112-47083i¥25,500201206-201311

main04112-47150i¥20,800201312-201903

sub04112-47151¥15,700

main04112-47151i¥15,700201903-201908

main04112-47170i¥23,700201503-201806

sub04112-47171¥23,700

main04112-47171i¥23,700201806-202002

sub04112-47172¥17,900

main04112-47172i¥17,900202002

2 parts on this diagram · 12 diagrams in section
