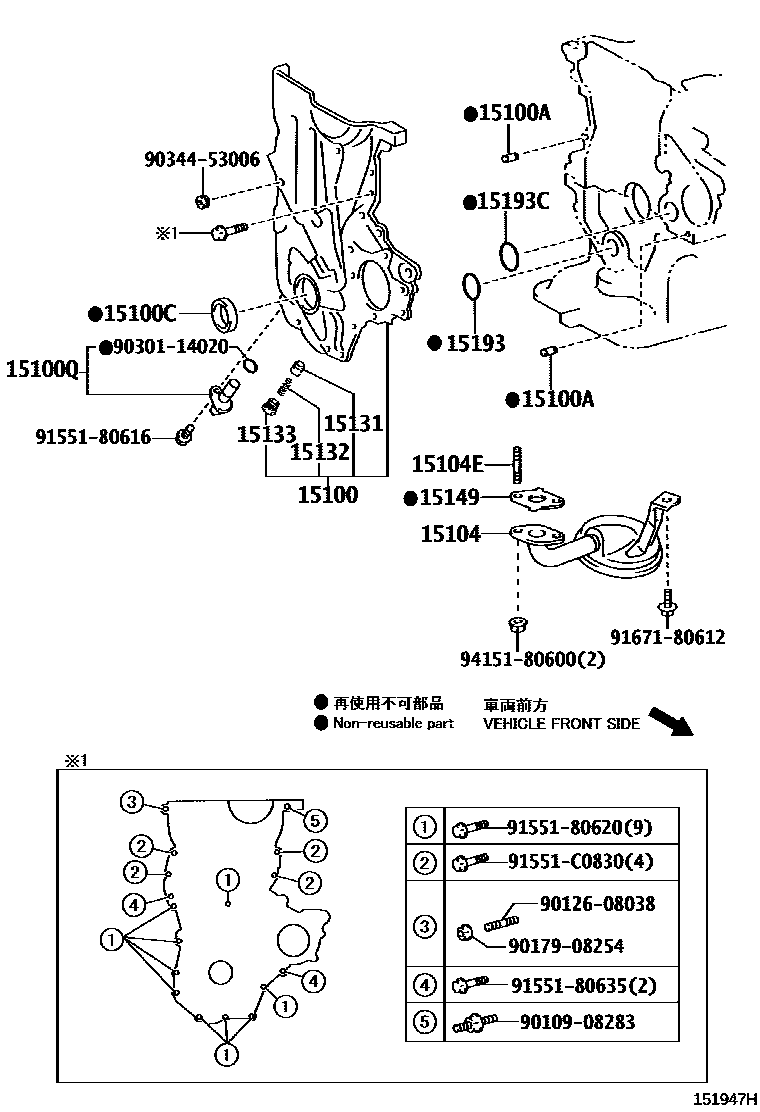

Toyota COROLLA AXIO/FIELDER — ENGINE OIL PUMP

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

15100PUMP ASSY, OIL

main15100-21062i1NZFE..NZE16#¥10,400201204-201908

main15100-21071i1NZFXE..NKE165¥16,700201307-201310

sub15100-21072¥10,400

main15100-21072i1NZFXE..NKE165..HBD¥10,400201310-201908

main15100-21080i1NZFE..NZE161..CVT¥10,400201206-201503

main15100-37020i2ZRFAE..ZRE162¥18,700201204-201309

sub15100-37021¥11,800

main15100-37021i2ZRFAE..ZRE162¥11,800201309-201908

15100APIN, RING(FOR OIL PUMP SET)

main90253-08003i1NZFE..NZE16#..X¥80201204-201908

15100CSEAL(FOR OIL PUMP)

main90311-25032i1NZ#..NKE165,NZE16#¥310201204-201310

main90311-25033i1NZ#..NKE165,NZE16#¥310201311-201710

15100QSENSOR, CRANK POSITION

main90919-05081i1NZFE..NZE16#¥4,390201204-201305

sub90919-05087¥2,760

main90919-05087i1NZ#..NKE165,NZE16#¥2,760201305-201908

15104STRAINER SUB-ASSY, OIL

main15104-21022i1NZ#..NKE165,NZE16#..HBD,X¥1,960201204-201908

main15104-47040i1NRFE..NRE160¥1,480201204-201908

main15104-47060i2NRFKE..NRE161..X¥170201503-201908

15104EBOLT, STUD(FOR OIL STRAINER)

main90126-06021i1NZ#..NKE165,NZE16#¥80201204-201908

15131VALVE, OIL PUMP RELIEF

main15131-21020i1NZFE..NZE161..5F;1NZ#..NKE165,NZE164¥340201204-201908

15132SPRING, OIL PUMP RELIEF VALVE

main15132-21050i1NZFXE..NKE165¥200201307-201908

main15132-21060i1NZFE..NZE16#..G¥180201204-201908

15133PLUG, OIL PUMP RELIEF VALVE

main15133-21030i1NZFE..NZE161..5F;1NZ#..NKE165,NZE164¥220201204-201908

15149GASKET, OIL STRAINER FLANGE

main16258-21030i1NZ#..NKE165,NZE16#..HBD,X¥270201204-201908

15193GASKET, OIL PUMP

main12151-21010i1NZ#..NKE165,NZE16#¥80201204-201908

15193CGASKET, OIL PUMP NO.2

main11497-21010i1NZ#..NKE165,NZE16#¥340201204-201908

9010908283

main90109-08283¥80

9012608038

main90126-08038¥210

9017908254

main90179-08254¥80

9030114020

main90301-14020¥190

9034453006

main90344-53006¥130

9155180616

main91551-80616¥60

9155180620

main91551-80620¥60

9155180635

main91551-80635¥80

91551C0830

main91551-C0830¥80

9167180612

main91671-80612¥60

9415180600

main94151-80600¥60

23 parts on this diagram · 6 diagrams in section
