Toyota COROLLA AXIO/FIELDER — ENGINE OIL COOLER

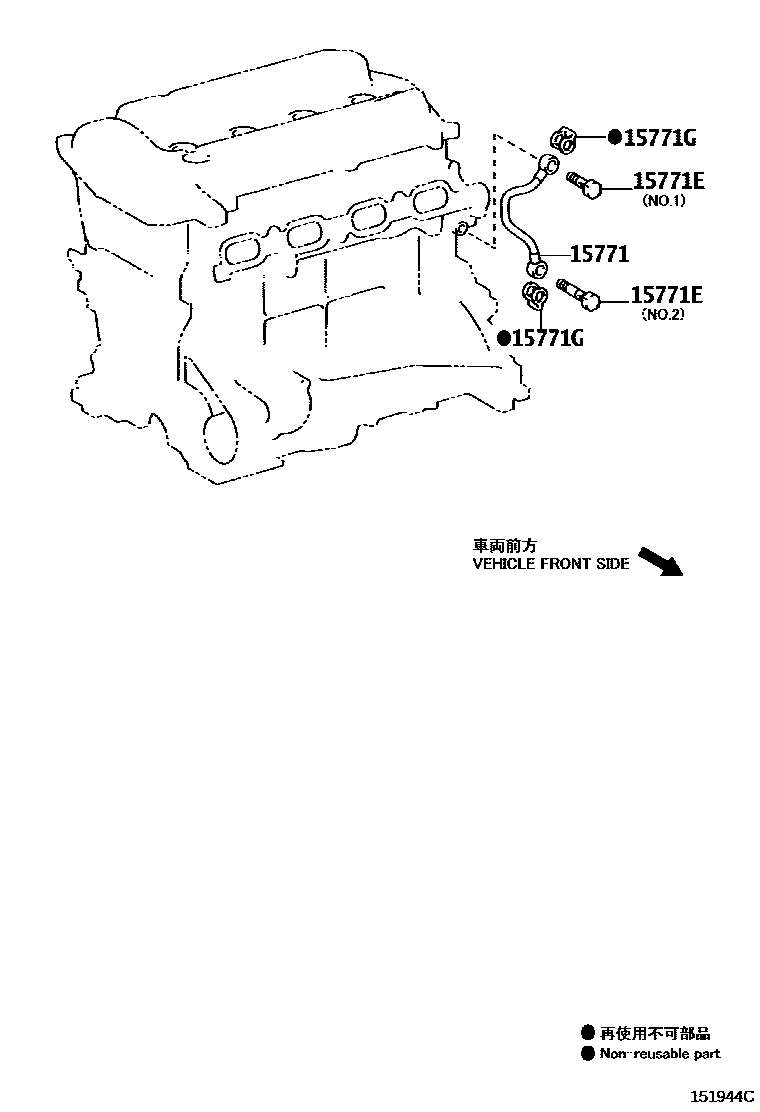

Parts diagram

15771PIPE, OIL, NO.1

main15771-21010i¥2,540201204-201908

15771EBOLT, UNION(FOR OIL PIPE)

main90401-12009i¥260201204-201908

main90401-12037i¥310201204-201908

15771GGASKET

main90430-12037i¥80201204-201908

3 parts on this diagram · 1 diagram in section
