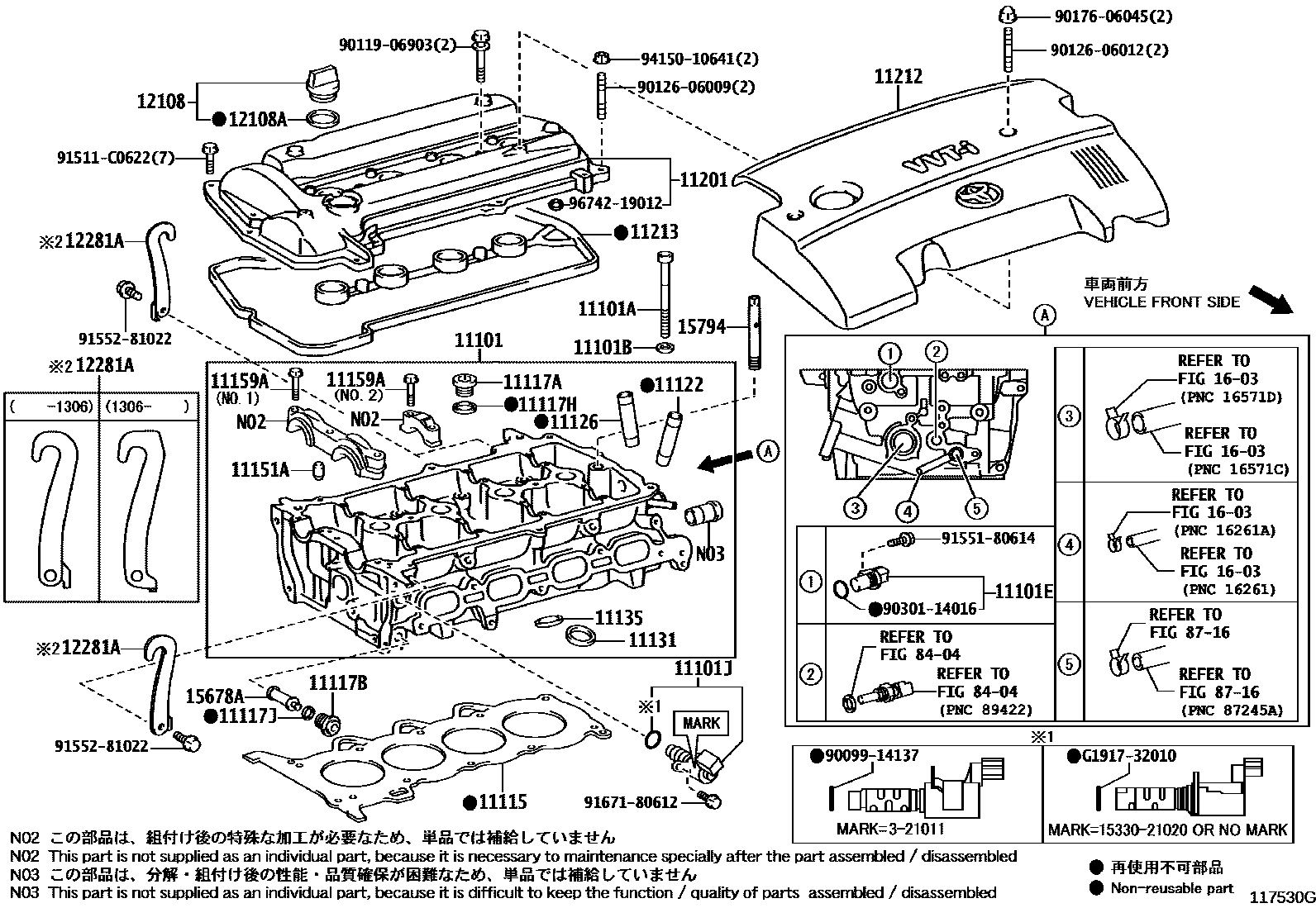

Toyota COROLLA AXIO/FIELDER — CYLINDER HEAD

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1

11101HEAD SUB-ASSY, CYLINDER

main11101-21051i1NZFE..NZE164;1NZFE..NZE161..5F¥101,000201204-201803

sub11101-21052¥75,700

main11101-21052i1NZFE..NZE164;1NZFE..NZE161..5F¥75,700201804

main11101-21080i1NZFXE..NKE165¥83,400201307-201710

main11101-21090i1NZFE..NZE161..CVT¥101,000201206-201803

sub11101-21091¥75,700

main11101-21091i1NZFE..NZE161..CVT¥75,700201804

main11101-21120i1NZFXE..NKE165¥75,700201710

main11101-39675i2ZRFAE..ZRE162¥83,100201204-201908

main11101-47063i2NRFKE..NRE161202006

main11101-49465i1NRFE..NRE160¥93,600201204-201708

sub11101-49466¥70,800

main11101-49466i1NRFE..NRE160¥70,800201708-201908

main11101-49506i2NRFKE..NRE161¥113,000201503-201701

sub11101-49507¥93,600

main11101-49507i2NRFKE..NRE161¥93,600201701-201703

sub11101-49508¥93,600

main11101-49508i2NRFKE..NRE161¥93,600201703-202003

sub11101-49545¥70,800

main11101-49545i2NRFKE..NRE161¥70,800202003

11101ABOLT(FOR CYLINDER HEAD SET)

main90910-02166i2ZRFAE..ZRE162¥240201204-201908

main90910-02170i1NZ#..NKE165,NZE16#..G,HBDG¥240201204-201908

main90910-02174i1NRFE..NRE160¥240201204-201908

11101BWASHER, PLATE(FOR CYLINDER HEAD SET)

main90201-09024i1NZ#..NKE165,NZE16#¥110201204-201908

main90201-10344i1NRFE..NRE160¥110201204-201908

11101ESENSOR, CAM POSITION

main90919-05024i1NZFE..NZE161..5F;1NZ#..NKE165,NZE164¥4,130201204-201908

main90919-05060i2ZRFAE..ZRE162¥4,130201204-201908

11101JVALVE ASSY, CAMSHAFT TIMING OIL CONTROL

main15330-21011i1NZFE..NZE16#¥7,300201204-201710

main15330-21030i1NZFXE..NKE165¥7,400201701-201710

main15330-21040i1NZFXE..NKE165¥11,800201307-201612

sub15330-21030¥7,400

main15330-37010i2ZRFAE..ZRE162¥7,300201204-201908

main15330-37020i2ZRFAE..ZRE162¥7,300201204-201908

main15330-47010i1NRFE..NRE160¥7,400201204-201908

main15330-47020i1NRFE..NRE160¥7,400201204-201908

main15330-47020i2NRFKE..NRE161¥7,400201710

11115GASKET, CYLINDER HEAD

main11115-21090i1NZ#..NKE165,NZE16#¥4,800201204-201504

sub11115-21091¥3,030

main11115-21091i1NZ#..NKE165,NZE16#..HBD,X¥3,030201504-201908

main11115-37060i2ZRFAE..ZRE162¥7,100201204-201406

sub11115-37061¥4,820

main11115-37061i2ZRFAE..ZRE162¥4,820201407-201908

sub11115-37062¥4,380

main11115-47050i1NRFE..NRE160¥3,030201204-201908

main11115-47080i2NRFKE..NRE161..G¥3,030201503-201908

11117APLUG, W/HEAD TAPER SCREW, NO.1

main90341-20002i1NZFXE..NKE165..HBDG¥180201307-201908

main90341-24011i1NZFE..NZE16#¥240201501-201908

main90341-24013i1NZFE..NZE16#¥610201204-201412

sub90341-24011¥240

11117BPLUG, W/HEAD TAPER SCREW, NO.2

main90341-14013i1NZ#..NKE165,NZE16#..HBD,X¥120201204-201908

main90341-20002i2ZRFAE..ZRE162¥180201204-201908

11117HGASKET(FOR WATER HOLE)

main90430-20004i1NZFXE..NKE165..HBDG¥200201204-201908

main90430-24246i1NZFE..NZE16#..X¥160201204-201908

11117JGASKET(FOR CYLINDER HEAD SCREW PLUG)

main90430-14009i1NZ#..NKE165,NZE16#..HBD,X¥80201204-201908

11122BUSH, INTAKE VALVE GUIDE

main11122-21010i1NZFXE..NKE165¥500201307-201908

main11122-31041i1NRFE..NRE160¥610201204-201707

sub11122-47010¥550

main11122-31050i2ZRFAE..ZRE162¥610201204-201904

sub11122-31090¥550

main11122-31090i2ZRFAE..ZRE162¥550201904-201908

main11122-47020i1NRFE..NRE160;2NRFKE..NRE161..G¥550201703-201908

main11122-75020i1NZFE..NZE16#..X¥550201204-201908

main11123-21010i1NZFXE..NKE165..HBD¥500201307-201908

main11123-31041i1NRFE..NRE160¥620201204-201707

sub11123-47010¥550

main11123-31050i2ZRFAE..ZRE162¥610201204-201904

main11123-31090i2ZRFAE..ZRE162¥550201904-201908

main11123-47020i2NRFKE..NRE161..X¥550201703-201908

main11123-75020i1NZFE..NZE16#..G¥550201204-201908

11126BUSH, EXHAUST VALVE GUIDE

main11122-21010i1NZFXE..NKE165¥500201307-201908

main11122-31041i1NRFE..NRE160¥610201204-201707

sub11122-47010¥550

main11122-47020i2NRFKE..NRE161..X¥550201703-201908

main11122-75020i1NZFE..NZE16#¥550201204-201908

main11123-21010i1NZFXE..NKE165¥500201307-201908

main11123-31041i2NRFKE..NRE161¥620201204-201707

sub11123-47010¥550

main11123-47020i1NRFE..NRE160;2NRFKE..NRE161..G¥550201703-201908

main11123-75020i1NZFE..NZE16#..X¥550201204-201908

main11126-31030i2ZRFAE..ZRE162¥610201204-201904

sub11126-31040¥550

main11126-31040i2ZRFAE..ZRE162¥550201904-201908

main11127-31030i2ZRFAE..ZRE162¥610201204-201904

sub11127-31040¥550

main11127-31040i2ZRFAE..ZRE162¥550201904-201908

11131SEAT, INTAKE VALVE

main11131-21020i1NZFE..NZE161..5F;1NZ#..NKE165,NZE164¥1,240201204-201703

sub11131-21021¥770

main11131-21021i1NZFE..NZE164;1NZFE..NZE161..5F¥770201604-201710

main11131-21060i1NZFE..NZE161..CVT¥1,030201206-201503

main11131-21070i1NZ#..NKE165,NZE161..CVT¥770201710

main11131-37020i2ZRFAE..ZRE162¥1,240201206-201502

sub11131-37040¥770

main11131-37040i2ZRFAE..ZRE162¥770201502-201908

main11131-47010i1NRFE,2NRFKE..NRE16#¥460201204-201710

main11132-21020i1NZFE..NZE16#¥1,240201204-201703

sub11132-21021¥770

main11132-21021i1NZFE..NZE164;1NZFE..NZE161..5F¥770201604-201710

main11132-21060i1NZFE..NZE161..CVT¥1,030201206-201503

sub11132-21070¥770

main11132-21070i1NZ#..NKE165,NZE161..CVT¥770201710

main11132-37020i2ZRFAE..ZRE162¥1,240201204-201211

sub11132-37040¥770

main11132-37040i2ZRFAE..ZRE162¥770201211-201908

main11132-47010i1NRFE,2NRFKE..NRE16#¥710201204-201710

11135SEAT, EXHAUST VALVE

main11135-21020i1NZFE..NZE16#¥860201204-202203

sub11135-21041¥770

main11135-21040i1NZFXE..NKE165¥860201307-202203

sub11135-21041¥770

main11135-21041i1NZ#..NKE165,NZE16#¥770202203

main11135-37020i2ZRFAE..ZRE162¥770201206-201908

main11135-47010i1NRFE..NRE160¥460201204-201710

main11135-47010i2NRFKE..NRE161¥460202003

main11135-47040i2NRFKE..NRE161¥460201710

main11135-47040i2NRFKE..NRE161¥460201701-201710

main11136-21020i1NZFE..NZE16#¥850201204-202203

main11136-21040i1NZFXE..NKE165¥850201307-202203

main11136-37020i2ZRFAE..ZRE162¥770201204-201211

main11136-37040i2ZRFAE..ZRE162¥770201211-201908

main11136-47010i1NRFE..NRE160¥340201204-201908

main11136-47040i2NRFKE..NRE161¥340201701-201710

11151APIN, RING(FOR CAMSHAFT BEARING CAP SETTING)

main90250-06001i1NZ#..NKE165,NZE16#¥100201204-201908

main90253-13005i2NRFKE..NRE161..X¥50201204-201908

11159ABOLT(FOR HEAD TO CAMSHAFT BEARING CAP)

main90105-06360i1NRFE,2NRFKE..NRE16#¥90201611-201705

sub91551-80635¥80

main90105-T0347i1NRFE,2NRFKE..NRE16#¥60201606-201610

main90109-06080i1NZFXE..NKE165¥140201503-201710

main90109-06080i1NZFE..NZE16#¥140201204-201908

main90119-08A29i1NZFXE..NKE165¥100201204-201908

main90119-08A29i1NZFXE..NKE165¥100201503-201710

main91551-80635i2NRFKE..NRE161¥80201204-201908

11201COVER SUB-ASSY, CYLINDER HEAD

main11201-21070i1NZFE..NZE164..X;1NZFE..NZE161..5F..X¥16,600201204-201908

main11201-21080i1NZFXE..NKE165..HBD¥15,100201307-201908

main11201-21090i1NZFE..NZE161..CVT¥16,600201206-201503

main11201-37050i2ZRFAE..ZRE162¥18,300201204-201908

main11201-47101i1NRFE..NRE160¥19,400201204-201407

sub11201-47130¥12,100

main11201-47130i1NRFE..NRE160¥12,100201407-201908

main11201-47150i2NRFKE..NRE161..X¥12,100201503-201908

11212COVER, CYLINDER HEAD, NO.2

main11212-21040i1NZFE..NZE164..X;1NZFE..NZE161..5F..X¥5,400201204-201908

main11212-21070i1NZFE..NZE161..CVT¥6,200201206-201503

main11212-37140i2ZRFAE..ZRE162¥7,600201204-201908

11213GASKET, CYLINDER HEAD COVER

main11213-21011i1NZFXE..NKE165¥1,030201307-201908

main11213-21020i1NZFE..NZE16#..G¥1,010201204-201908

main11213-37030i2ZRFAE..ZRE162¥1,450201204-201507

sub11213-37031¥990

main11213-37031i2ZRFAE..ZRE162¥990201508-201908

main11213-47020i1NRFE..NRE160¥790201204-201908

main11213-47040i2NRFKE..NRE161..G¥900201503-201908

12108CAP SUB-ASSY, OIL FILLER

main12180-38010i2ZRFAE..ZRE162¥640201204-201908

12108AGASKET(FOR OIL FILLER CAP)

main90430-35001i1N#..NKE165,NRE160,NZE16#¥120201204-201908

12281AHANGER, ENGINE, NO.1

main12281-21010i1NZFE..NZE16#¥2,800201204-201306

main12281-21090i1NZ#..NKE165,NZE16#¥1,020201306-201908

main12281-37021i2ZRFAE..ZRE162¥1,170201204-201710

main12281-37021i2ZRFAE..ZRE162¥1,170201710-201908

main12281-37050i2ZRFAE..ZRE162¥1,860201204-201503

sub12281-37021¥1,170

main12281-37070i2ZRFAE..ZRE162¥1,170201801-201908

main12281-47022i1NRFE..NRE160¥3,490201204-201404

sub12281-47023¥2,910

main12281-47023i1NRFE..NRE160¥2,910201404-201908

15678AFILTER, OIL CONTROL VALVE

main15678-21010i1NZ#..NKE165,NZE16#¥540201204-201908

main15678-31020i2NRFKE..NRE161..X¥360201311-201908

15794NOZZLE, CYLINDER HEAD OIL

main15794-21010i1NZFE..NZE16#..X¥340201204-201908

1603

8404

8716

9009914137

main90099-14137¥0

9011906903

main90119-06903¥80

9012606009

main90126-06009¥130

9012606012

main90126-06012¥130

9017606045

main90176-06045¥80

9030114016

main90301-14016¥0

91511C0622

main91511-C0622¥60

9155180614

main91551-80614¥60

9155281022

main91552-81022¥100

9167180612

main91671-80612¥60

9415010641

main94150-10641¥60

9674219012

main96742-19012¥130

G191732010

mainG1917-32010¥180

40 parts on this diagram · 9 diagrams in section
