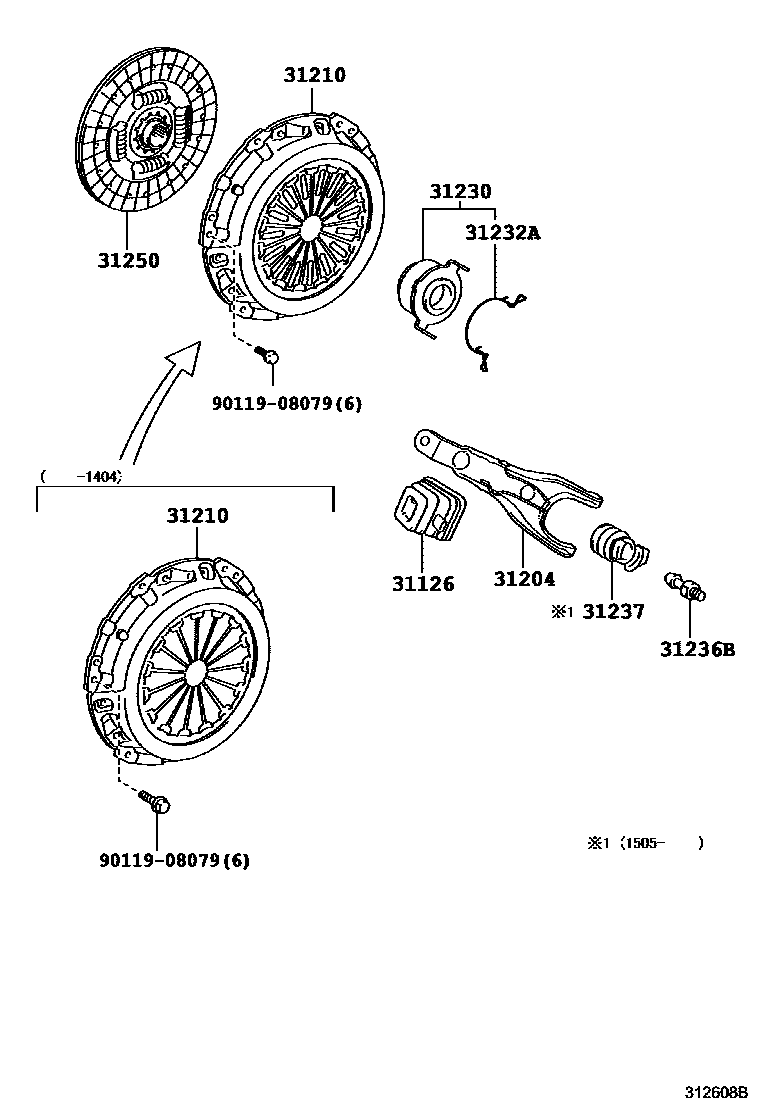

Toyota COROLLA AXIO/FIELDER — CLUTCH & RELEASE FORK

31126BOOT, CLUTCH RELEASE FORK

main31126-12051iNZE161..5F¥570201204-201908

31204FORK SUB-ASSY, CLUTCH RELEASE

main31204-52010iNZE161..5F¥1,290201204-201908

31210COVER ASSY, CLUTCH

main31210-52053iNZE161..5F¥9,600201204-201404

main31210-52180iNZE161..5F¥9,700201404-201908

31230BEARING ASSY, CLUTCH RELEASE

main31230-12181iNZE161..5F¥3,520201204-201908

31232ACLIP, RELEASE BEARING HUB

main31232-12080iNZE161..5F¥110201204-201908

31236BSUPPORT, RELEASE FORK

main31236-12020iNZE161..5F¥460201204-201908

31237BOOT, CLUTCH RELEASE FORK SUPPORT

main31237-52010iNZE161¥370201505-201908

31250DISC ASSY, CLUTCH

main31250-52050iNZE161..5F¥15,500201204-201908

9011908079

main90119-08079¥120

9 parts on this diagram · 1 diagram in section
