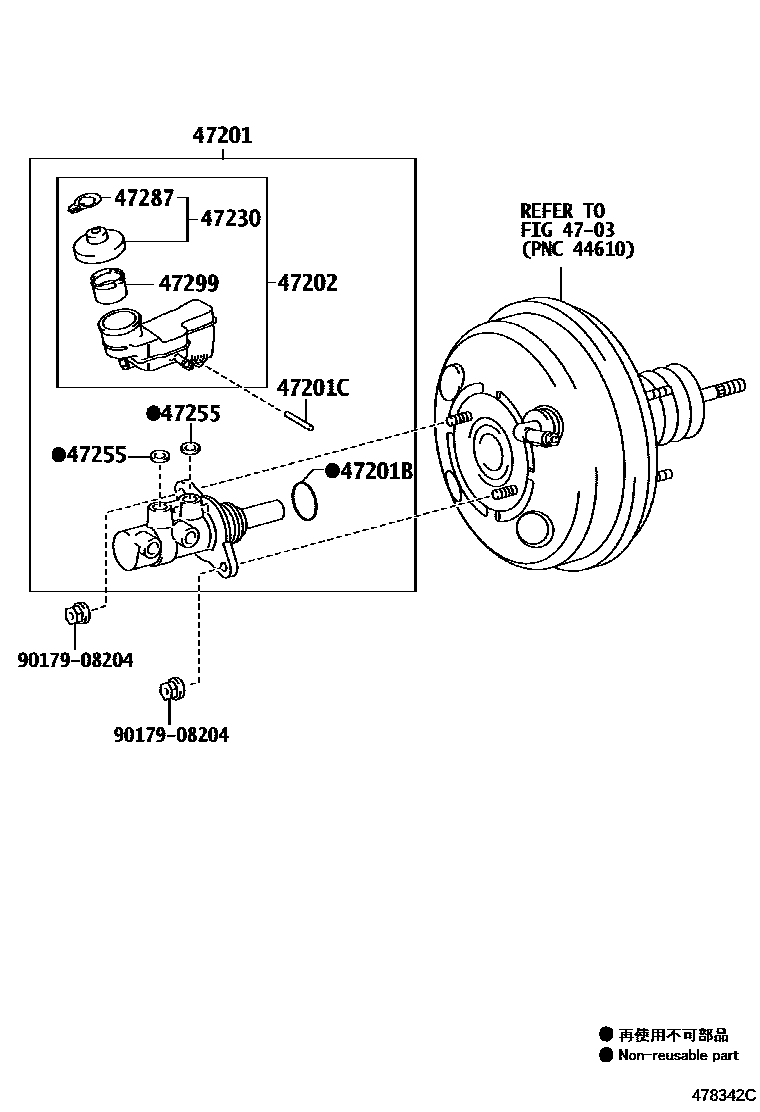

Toyota COROLLA AXIO/FIELDER — BRAKE MASTER CYLINDER

0001 1 0002 1 0003 1 0004 1 0005 1

4703

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-12B91iZRE162¥28,900201204-201205

sub47201-12B92¥26,900

main47201-12B92iZRE162¥26,900201205-201908

main47201-52491iNZE164;NZE161..5D¥32,300201204-201205

sub47201-52492¥20,300

main47201-52492iNZE164;NRE161,NZE161..5D¥20,300201205-201908

main47201-52590iNRE160;NRE161,NZE161..4D..G¥18,200201204-201908

47201BRING, O(FOR BRAKE MASTER CYLINDER)

main90015-AH002iNRE160,NZE16#,ZRE162¥200201204-201908

47201CRING PIN, BRAKE MASTER CYLINDER

main90029-15803iNRE160,ZRE162;NRE161,NZE16#..G¥130201204-201908

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47220-12290iZRE162¥8,000201204-201908

main47220-52260iNRE16#,NZE16#¥6,000201204-201908

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-20140iNKE165¥530201204-201809

main47230-47110iNKE165¥770201809-201810

47255GROMMET, MASTER CYLINDER RESERVOIR

main90029-48001iNRE160,NZE16#,ZRE162¥360201204-201908

47287LABEL, BRAKE FLUID INFORMATION

main47287-02360iNRE160,ZRE162;NRE161,NZE16#..G¥480201710-201908

main47287-20010iNRE160,NZE16#,ZRE162¥130201204-201710

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-25010iNRE160,NZE16#,ZRE162¥410201204-201908

9017908204

main90179-08204¥140

10 parts on this diagram · 5 diagrams in section
