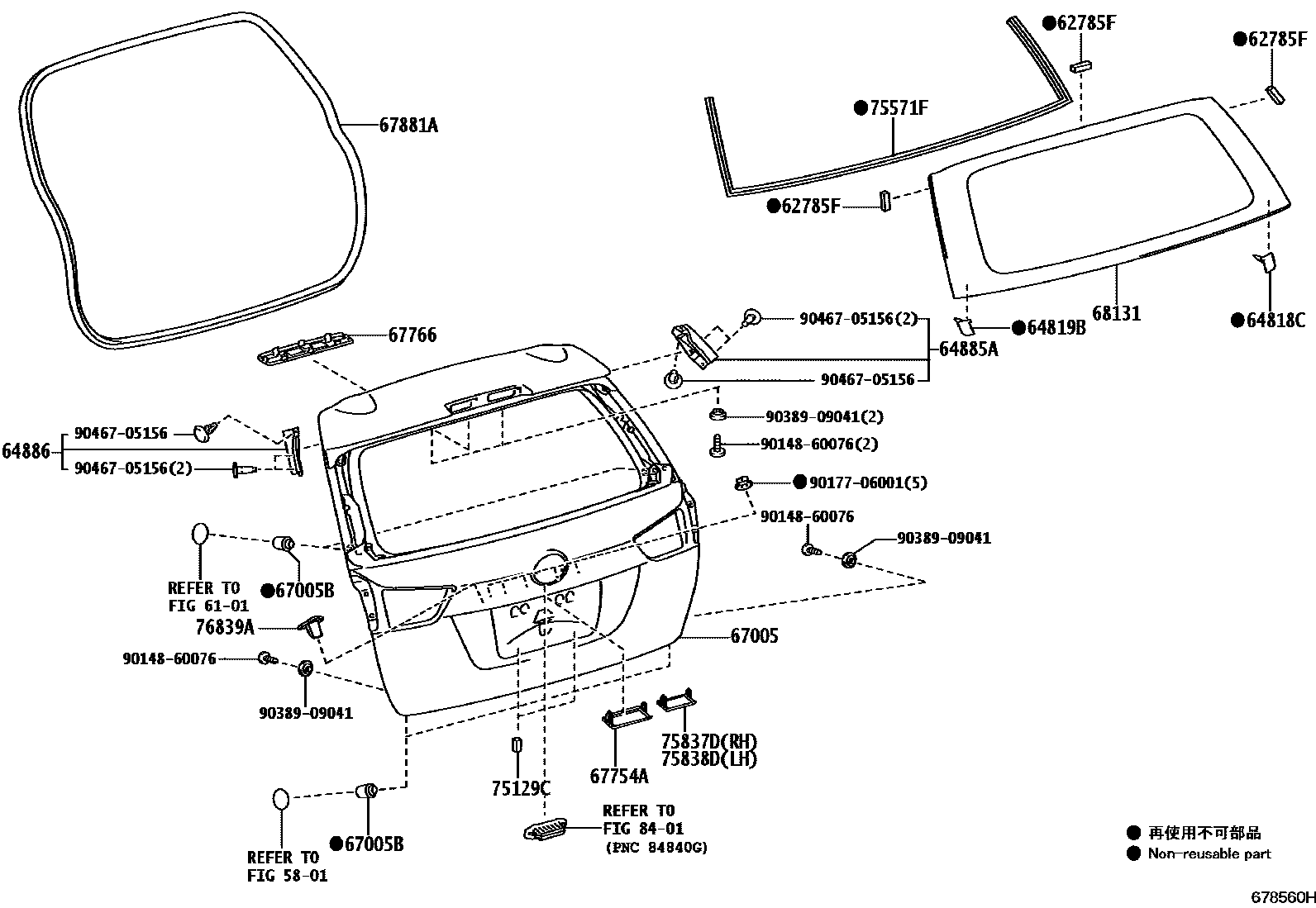

Toyota COROLLA AXIO/FIELDER — BACK DOOR PANEL & GLASS

0001 1������� 0002 1������

5801

6101

62785FSPACER, BACK DOOR GLASS

main62785-60030iNKE165,NZE16#,ZRE162..5D¥200201204-201908

64818CSPACER, BACK WINDOW GLASS, NO.1

main64818-13080iNKE165,NRE161,NZE16#,ZRE162..5D¥190201204-201908

64819BSPACER, BACK WINDOW GLASS, NO.2

main64819-13060iNKE165,NRE161,NZE16#,ZRE162..5D¥190201204-201908

64885ACHANNEL, BACK WINDOW GLASS, RH

main64885-13020iNKE165,NRE161,NZE16#,ZRE162..5D¥800201204-201710

64886CHANNEL, BACK WINDOW GLASS, LH

main64886-13020iNKE165,NZE16#,ZRE162..5D¥800201204-201710

67005PANEL SUB-ASSY, BACK DOOR

main67005-13D20-A0iNKE165,NRE161,NZE16#,ZRE162..5D201503-201605

SUPER WHITE 2,040

sub67005-13D21¥123,000

main67005-13D20-A1iNKE165,NRE161,NZE16#,ZRE162..5D201503-201605

WHITE PEARL CS.,070

sub67005-13D21¥123,000

main67005-13D20-B0iNKE165,NRE161,NZE16#,ZRE162..5D201503-201605

SILVER ME.,1F7

sub67005-13D21¥123,000

main67005-13D20-C0iNKE165,NRE161,NZE16#,ZRE162..5D201503-201605

BLACK MC.,209

sub67005-13D21¥123,000

main67005-13D20-D0iNKE165,NRE161,NZE16#,ZRE162..5D201503-201605

SUPER RED 5,3P0

sub67005-13D21¥123,000

main67005-13D20-D2iNKE165,NRE161,NZE164,ZRE162..5D..(G,HBDG,S)201503-201605

COOL BORDEAUX GF.,3T9

sub67005-13D21¥123,000

main67005-13D20-E0iNKE165,NRE161,NZE16#,ZRE162..5D201503-201605

ORANGE ME.,4R8

sub67005-13D21¥123,000

main67005-13D20-J0iNKE165..5D201503-201605

BLUE ME.,8N0

sub67005-13D21¥123,000

main67005-13D20-J1iNKE165,NRE161,NZE16#,ZRE162..5D201503-201605

BLUE ME.,8T7

sub67005-13D21¥123,000

main67005-13D21-A0iNKE165,NRE161,NZE16#,ZRE162..5D201606-201708

SUPER WHITE 2,040

sub67005-13D22¥56,000

main67005-13D21-A1iNKE165,NRE161,NZE16#,ZRE162..5D201606-201708

WHITE PEARL CS.,070

sub67005-13D22¥56,000

main67005-13D21-B0iNKE165,NRE161,NZE16#,ZRE162..5D201606-201708

SILVER ME.,1F7

sub67005-13D22¥56,000

main67005-13D21-C0iNKE165,NRE161,NZE16#,ZRE162..5D201606-201708

BLACK MC.,209

sub67005-13D22¥56,000

main67005-13D21-D0iNKE165,NRE161,NZE16#,ZRE162..5D201606-201708

SUPER RED 5,3P0

sub67005-13D22¥56,000

main67005-13D21-D2iNKE165,NRE161,NZE164,ZRE162..5D..(G,HBDG,S)201606-201708

COOL BORDEAUX GF.,3T9

sub67005-13D22¥56,000

main67005-13D21-E0iNKE165,NRE161,NZE16#,ZRE162..5D201606-201708

ORANGE ME.,4R8

sub67005-13D22¥56,000

main67005-13D21-J0iNKE165..5D201606-201708

BLUE ME.,8N0

sub67005-13D22¥56,000

main67005-13D21-J1iNKE165,NRE161,NZE16#,ZRE162..5D201606-201708

BLUE ME.,8T7

sub67005-13D22¥56,000

main67005-13D22iNKE165,NRE161,NZE16#,ZRE162..5D¥56,000201709-201908

main67005-13E00-A0iNKE165,NZE16#,ZRE162..5D201204-201403

SUPER WHITE 2,040

sub67005-13E01¥149,000

sub76835-13011¥430

main67005-13E00-A1iNKE165,NZE16#,ZRE162..5D..CVT..(G,HBD,HBDG,S)201212-201403

WHITE PEARL CS.,070

sub67005-13E01¥149,000

sub76835-13011¥430

main67005-13E00-B0iNKE165,NZE16#,ZRE162..5D201204-201403

SILVER ME.,1F7

sub67005-13E01¥149,000

sub76835-13011¥430

main67005-13E00-C0iNKE165,NZE16#,ZRE162..5D201204-201403

BLACK MC.,209

sub67005-13E01¥149,000

sub76835-13011¥430

main67005-13E00-D0iNKE165,NZE16#,ZRE162..5D201204-201403

SUPER RED 5,3P0

sub67005-13E01¥149,000

sub76835-13011¥430

main67005-13E00-E0iNKE165,NZE16#,ZRE162..5D201204-201403

BRONZE M.M.,4T3

sub67005-13E01¥149,000

sub76835-13011¥430

main67005-13E00-J0iNKE165,NZE16#,ZRE162..5D201204-201403

BLUE ME.,8T7

sub67005-13E01¥149,000

sub76835-13011¥430

main67005-13E00-J1iNKE165,NZE16#..5D..(HBD,HBDG,X)201307-201403

BLUE ME.,8N0

sub67005-13E01¥149,000

sub76835-13011¥430

main67005-13E00-K0iNKE165,NZE16#,ZRE162..5D201204-201403

DK.VIOLET M.M.,9AF

sub67005-13E01¥149,000

sub76835-13011¥430

main67005-13E01-A0iNKE165,NZE16#,ZRE162..5D201403-201503

SUPER WHITE 2,040

sub67005-13E02¥88,900

main67005-13E01-A1iNKE165,NZE16#,ZRE162..5D..CVT..(G,HBD,HBDG,S)201403-201503

WHITE PEARL CS.,070

sub67005-13E02¥88,900

main67005-13E01-B0iNKE165,NZE16#,ZRE162..5D201403-201503

SILVER ME.,1F7

sub67005-13E02¥88,900

main67005-13E01-C0iNKE165,NZE16#,ZRE162..5D201403-201503

BLACK MC.,209

sub67005-13E02¥88,900

main67005-13E01-D0iNKE165,NZE16#,ZRE162..5D201403-201503

SUPER RED 5,3P0

sub67005-13E02¥88,900

main67005-13E01-E0iNKE165,NZE16#,ZRE162..5D201403-201503

BRONZE M.M.,4T3

sub67005-13E02¥88,900

main67005-13E01-J0iNKE165,NZE16#,ZRE162..5D201403-201503

BLUE ME.,8T7

sub67005-13E02¥88,900

main67005-13E01-J1iNKE165..5D201403-201503

BLUE ME.,8N0

sub67005-13E02¥88,900

main67005-13E01-K0iNKE165,NZE16#,ZRE162..5D201403-201503

DK.VIOLET M.M.,9AF

sub67005-13E02¥88,900

67005BCUSHION(FOR BACK DOOR PANEL)

main90541-09147iNKE165,NRE161,NZE16#,ZRE162..5D¥100201204-201710

main90541-10043iNKE165,NRE161,NZE16#,ZRE162..5D¥100201204-201710

67754ACOVER, BACK DOOR HOLE

main76835-13010iNKE165,NZE16#,ZRE162..5D¥680201204-201402

main76835-13011iNKE165,NZE16#,ZRE162..5D¥430201403-201710

67766COVER, BACK DOOR SERVICE HOLE, NO.2

main67766-13010-C0iNKE165,NZE16#,ZRE162..5D201204-201710

BLACK,TRIM2#

67881AWEATHERSTRIP, BACK DOOR

main67881-13270iNKE165,NZE16#,ZRE162..5D¥7,200201204-201710

68131GLASS, BACK DOOR

main68131-13710iNKE165,NRE161,NZE16#..5D..(HBD,X)¥41,200201204-201710

sub68131-13740¥31,100

main68131-13720iNKE165,NRE161,NZE16#..5D..(HBD,X)¥46,300201204-201710

sub68131-13750¥34,900

main68131-13740iNKE165,NRE161,NZE16#..5D..(HBD,X)¥31,100201710

main68131-13750iNKE165,NRE161,NZE16#,ZRE162..5D..(G,HBDG,S)¥34,900201710-201908

75129CCUSHION, REAR LICENCE PLATE

main75129-13020iNZE16#,ZRE162..5D¥80201204-201303

main75129-30010iNKE165,NRE161,NZE16#,ZRE162..5D¥190201304-201710

75571FMOULDIMG, BACK DOOR WINDOW

main75573-13100iNKE165,NZE16#,ZRE162..5D¥2,330201204-201503

main75573-13110iNKE165,NRE161,NZE16#,ZRE162..5D¥600201503-201908

75837DCOVER, BACK DOOR FINISH, RH

main76831-13010iNKE165,NZE16#,ZRE162..5D¥250201204-201710

75838DCOVER, BACK DOOR FINISH, LH

main76831-13010iNKE165,NZE16#,ZRE162..5D¥250201204-201710

76839ACOVER, BACK DOOR GARNISH

main76827-13010iNKE165,NZE16#,ZRE162..5D¥530201204-202403

8401

9014860076

main90148-60076¥60

9017706001

main90177-06001¥60

9038909041

main90389-09041¥100

9046705156

main90467-05156¥80

23 parts on this diagram · 2 diagrams in section
