Toyota COROLLA AXIO/FIELDER — AIR CLEANER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

1708

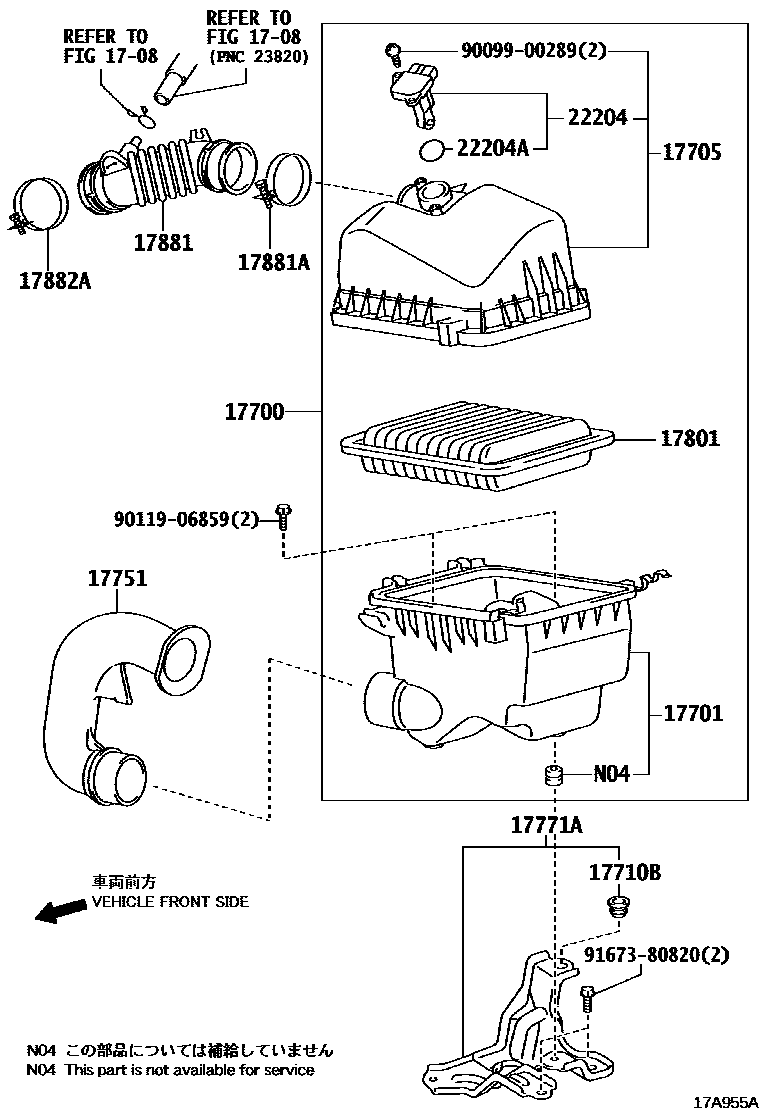

17700CLEANER ASSY, AIR

main17700-21120i1NZFE..NZE16#¥15,700201204-202009

main17700-21200i1NZFXE..NKE165¥15,700201307-201710

main17700-47160i2NRFKE..NRE161¥15,700201503-201710

17701CASE SUB-ASSY, AIR CLEANER

main17701-21100i1NZFE..NZE16#201204-201908

main17701-21140i1NZFXE..NKE165¥0201307-201710

main17701-47061i1NRFE..NRE160201204-201908

17705CAP SUB-ASSY, AIR CLEANER

main17705-21090i1NZFE..NZE164..X;1NZFE..NZE161..5F..X¥0201204-202009

main17705-21170i1NZFXE..NKE165201307-201710

main17705-37181i1NZFE..NZE164;1NZFE..NZE161..5F201204-201908

main17705-47102i1NRFE..NRE160201204-201908

main17705-47130i2NRFKE..NRE161201503-201710

17710BGROMMET

main90480-15036i1NZFXE..NKE165..HBD¥100201307-201908

main90480-18006i1NZFE..NZE16#¥130201204-201908

17751INLET, AIR CLEANER, NO.1

main17751-21160i2ZRFAE..ZRE162¥2,840201204-201908

main17751-21220i1NZFXE..NKE165..HBD¥1,810201307-201908

main17751-21230i1NZFE..NZE161..CVT¥2,480201206-201503

main17751-47060i1NRFE..NRE160¥2,460201204-201908

main17751-47080i2NRFKE..NRE161..X¥2,230201503-201908

17771ABRACKET, AIR CLEANER

main17771-21050i1NZFE,2NRFKE..NRE161,NZE16#..X¥2,150201204-201908

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-21030i1NRFE..NRE160¥2,200201204-201908

main17801-21050i1NZFE..NZE16#¥3,050201204-201908

main17801-21060i1NZFXE..NKE165¥2,600201307-201710

17881HOSE, AIR CLEANER, NO.1

main17880-21091i1NZFE..NZE164..X;1NZFE..NZE161..5F..X¥2,070201204-201908

main17881-21130i1NZFXE..NKE165¥1,550201307-201908

main17881-21140i1NZFE..NZE161..CVT¥2,070201206-201503

main17881-37230i2ZRFAE..ZRE162¥1,710201204-201908

main17881-47060i1NRFE..NRE160¥2,070201204-201908

main17881-47070i2NRFKE..NRE161¥1,300201503-201908

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main96111-10600i1NZFXE..NKE165..HBD¥110201307-201908

main96111-10690i2NRFKE..NRE161¥160201503-201908

main96111-10690i2ZRFAE..ZRE162¥160201204-201503

main96111-10730i2NRFKE..NRE161¥160201503-201908

17882HOSE, AIR CLEANER, NO.2

main17882-47050i2NRFKE..NRE161¥1,820201503-201908

17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)

main90466-54002i1NZFXE..NKE165¥320201307-201908

main90466-62002i1NRFE..NRE160¥320201503-201908

main90466-62002i1NRFE..NRE160¥320201204-201503

main96111-10690i1NZFE..NZE16#¥160201204-201908

main96111-10730i2NRFKE..NRE161¥160201503-201908

main96111-10750i2ZRFAE..ZRE162¥190201204-201908

22204METER SUB-ASSY, INTAKE AIR FLOW

main22204-0C020i1NZFE..NZE16#¥12,400201204-202009

main22204-0T040i1NZFXE,1NRFE,2NRFKE..NKE165,NRE16#¥16,500201204-201908

sub22204-28010¥12,400

main22204-0V010i2ZRFAE..ZRE162¥16,500201204-201908

main22204-0V020i1NZFXE,1NRFE..NKE165,NRE160¥16,500201204-201908

main22204-22010i1NZFE..NZE16#¥12,400201204-202009

main22204-28010i1NZFXE,1NRFE..NKE165,NRE160¥12,400201204-201908

22204ARING, O(FOR INTAKE AIR FLOW METER)

main90099-14141i1NZFE..NZE164..X;1NZFE..NZE161..5F..X¥120201204-202009

9009900289

main90099-00289¥60

9011906859

main90119-06859¥130

9167380820

main91673-80820¥80

17 parts on this diagram · 7 diagrams in section
