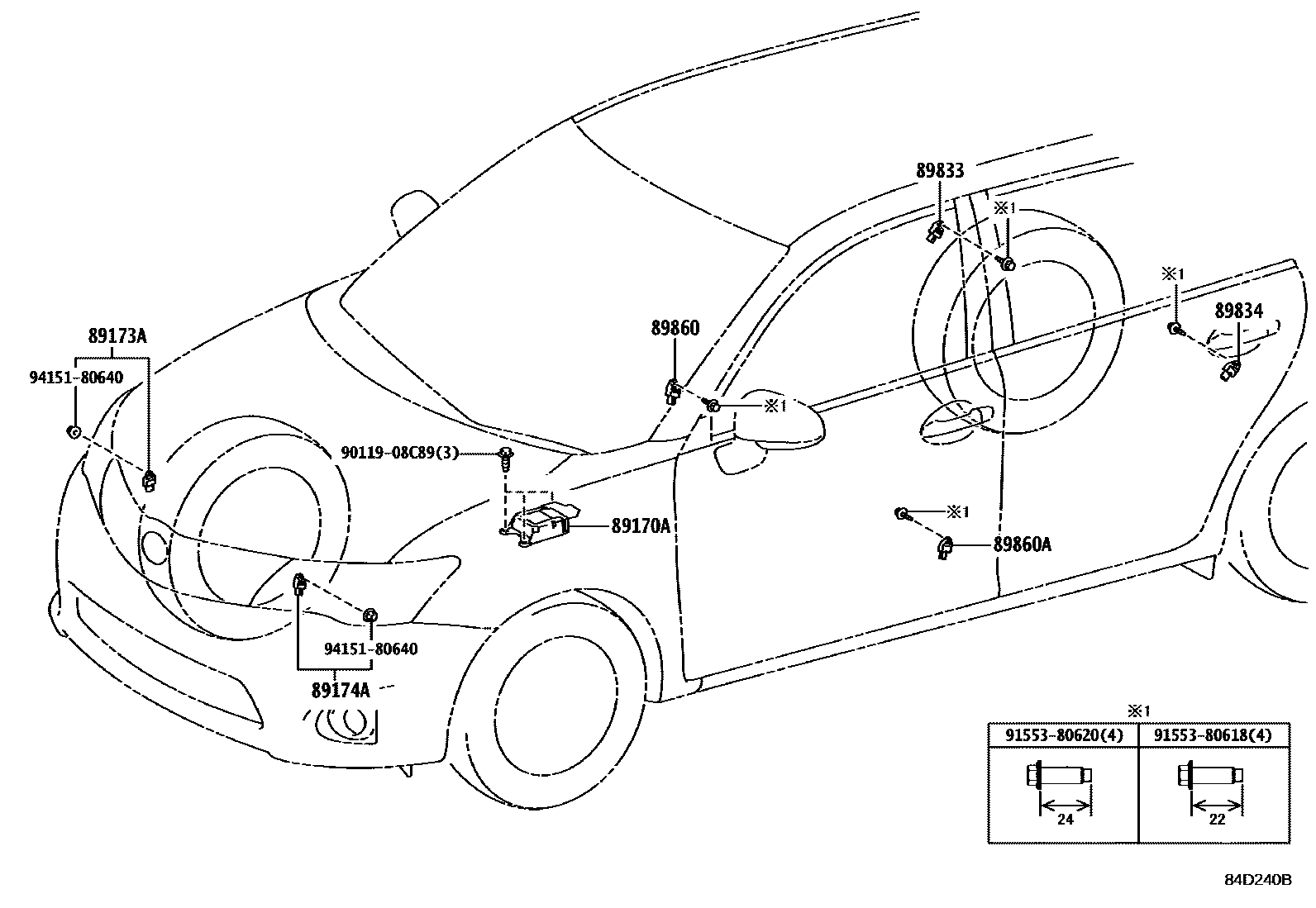

Toyota COROLLA AXIO/FIELDER — AIR BAG

89170ACOMPUTER ASSY, AIRBAG

main89170-12850iNRE160,NZE16#,ZRE162¥65,700201204-201309

main89170-12C70iNRE160,NZE16#,ZRE162¥65,700201309-201503

main89170-12D00iNKE165¥65,700201307-201503

main89170-12D40iNRE16#,NZE16#,ZRE162¥54,700201503-201710

main89170-12D50iNKE165¥54,700201503-201710

main89170-12F20iNZE161..KYO¥41,300201802

main89170-12F30iNRE16#,NZE16#,ZRE162..SED,WG¥41,300201710

main89170-12F40iNKE165¥41,300201710

89173ASENSOR, AIRBAG, FRONT RH

main89173-19455iNKE165,NRE160,NZE16#,ZRE162¥11,000201204-201710

main89173-59305iNRE161,NZE16#..G;NKE165,NRE160,ZRE162..HBDG,S,X¥8,200201710-201908

89174ASENSOR, AIRBAG, FRONT LH

main89173-19455iNKE165,NRE160,NZE16#,ZRE162¥11,000201204-201710

main89173-59305iNRE161,NZE16#..G;NKE165,NRE160,ZRE162..HBDG,S,X¥8,200201710-201908

89833SENSOR, AIRBAG, REAR RH

main89831-12040iNKE165¥8,200201307-201503

main89831-12040iNKE165,NRE16#,NZE16#,ZRE162¥8,200201503-201710

main89831-28060iNRE161,NZE16#..G;NKE165,NRE160,ZRE162..HBDG,S,X¥8,200201710-201908

89834SENSOR, AIRBAG, REAR LH

main89831-12040iNKE165¥8,200201307-201503

main89831-12040iNKE165,NRE16#,NZE16#,ZRE162¥8,200201503-201710

main89831-28060iNRE161,NZE16#..G;NKE165,NRE160,ZRE162..HBDG,S,X¥8,200201710-201908

89860SENSOR ASSY, SIDE AIRBAG, RH

main89831-12040iNKE165¥8,200201307-201503

main89831-12040iNKE165,NRE16#,NZE16#,ZRE162¥8,200201503-201710

main89831-28060iNRE161,NZE16#..G;NKE165,NRE160,ZRE162..HBDG,S,X¥8,200201710-201908

89860ASENSOR ASSY, SIDE AIRBAG, LH

main89831-12040iNKE165¥8,200201307-201503

main89831-12040iNKE165,NRE16#,NZE16#,ZRE162¥8,200201503-201710

main89831-28060iNRE161,NZE16#..G;NKE165,NRE160,ZRE162..HBDG,S,X¥8,200201710-201908

9011908C89

main90119-08C89¥80

9155380618

main91553-80618¥60

9155380620

main91553-80620¥60

9415180640

main94151-80640¥60

11 parts on this diagram · 1 diagram in section
