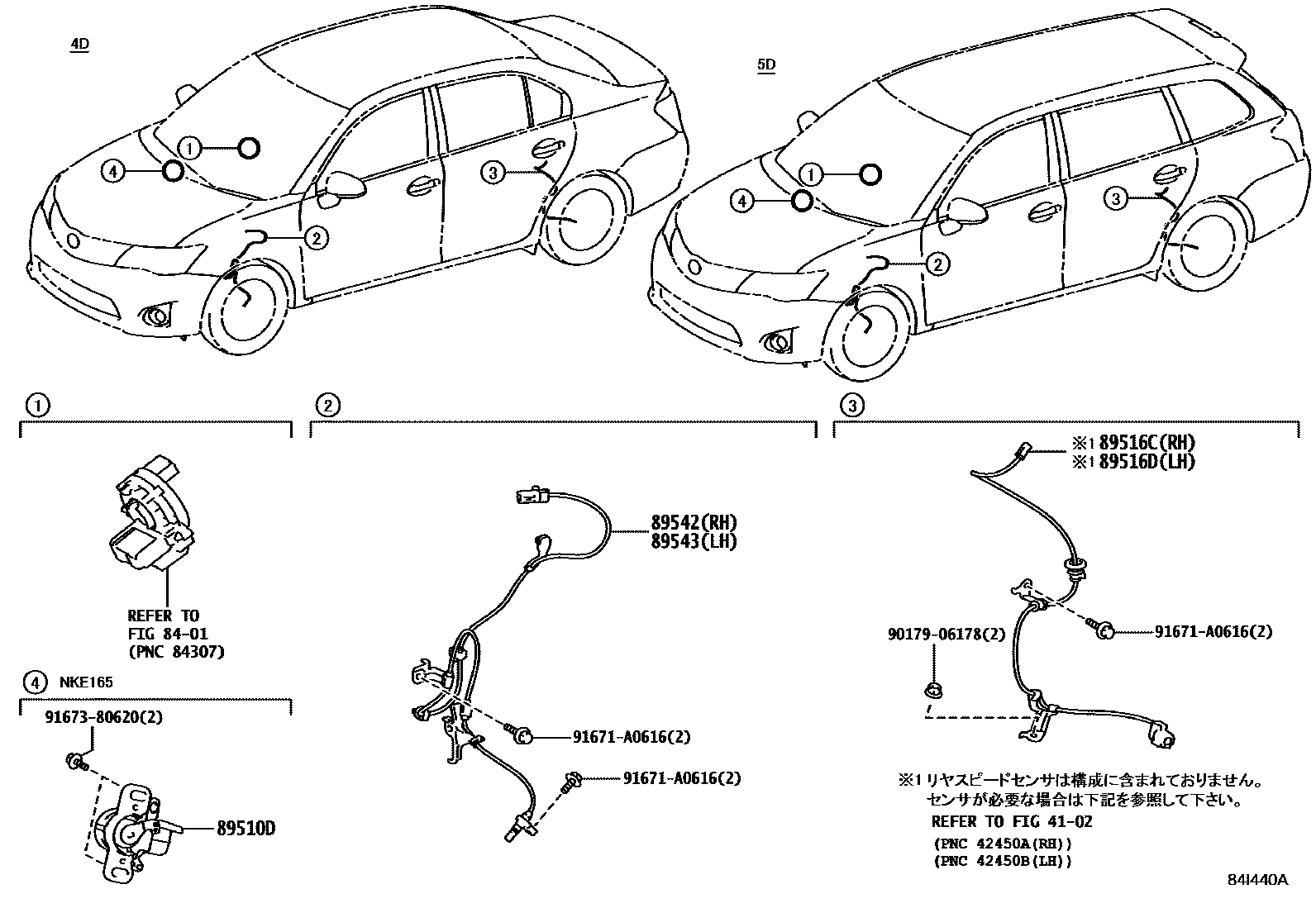

Toyota COROLLA AXIO/FIELDER — ABS & VSC

0001 1 0002 1

4102

8401

89510DSENSOR ASSY, BRAKE PEDAL STROKE

main89510-33020iNKE165¥7,900201307-201503

main89510-33020iNKE165¥7,900201503-201710

main89510-33020iNKE165..HBDG¥7,900201710-201908

main89510-33020iNKE165..HBD¥7,900201710

89516CWIRE, SKID CONTROL SENSOR, RH

main89516-52130iNKE165,NRE160,NZE161,ZRE162¥1,430201204-201503

main89516-52130iNKE165,NRE16#,NZE161,ZRE162¥1,430201503-201710

main89516-52130iNRE161,NZE161..G;NKE165,NRE160,ZRE162..HBDG,S,X¥1,430201710-201908

main89516-52130iNKE165,NRE161,NZE161..HBD,X¥1,430201710

89516DWIRE, SKID CONTROL SENSOR, LH

main89516-52140iNKE165,NRE160,NZE161,ZRE162¥1,430201204-201503

main89516-52140iNKE165,NRE16#,NZE161,ZRE162¥1,430201503-201710

main89516-52140iNRE161,NZE161..G;NKE165,NRE160,ZRE162..HBDG,S,X¥1,430201710-201908

main89516-52140iNKE165,NRE161,NZE161..HBD,X¥1,430201710

89542SENSOR, SPEED, FRONT RH

main89542-52100iNKE165,NRE160,NZE16#,ZRE162¥13,600201204-201503

main89542-52100iNKE165,NRE16#,NZE16#,ZRE162¥13,600201503-201710

main89542-52130iNRE161,NZE16#..G;NKE165,NRE160,ZRE162..HBDG,S,X¥8,100201710-201908

main89542-52130iNKE165,NRE161,NZE16#..HBD,X¥8,100201710

89543SENSOR, SPEED, FRONT LH

main89543-52100iNKE165,NRE160,NZE16#,ZRE162¥13,600201204-201503

main89543-52100iNKE165,NRE16#,NZE16#,ZRE162¥13,600201503-201710

main89543-52130iNRE161,NZE16#..G;NKE165,NRE160,ZRE162..HBDG,S,X¥8,100201710-201908

main89543-52130iNKE165,NRE161,NZE16#..HBD,X¥8,100201710

9017906178

main90179-06178¥100

91671A0616

main91671-A0616¥60

9167380620

main91673-80620¥60

10 parts on this diagram · 2 diagrams in section
