Toyota COROLLA/ALTIS — WIRING & CLAMP

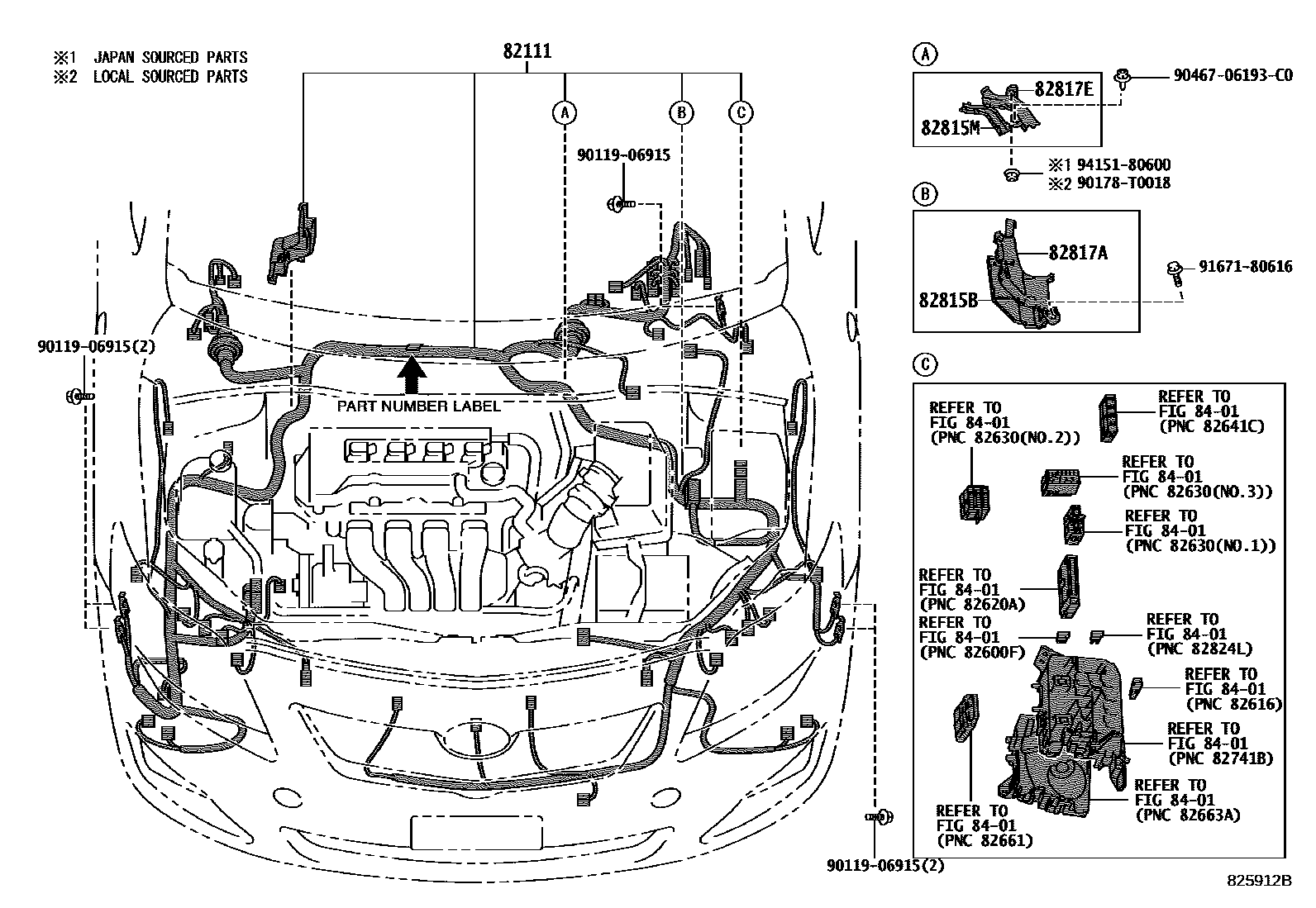

Parts diagram
82111WIRE, ENGINE ROOM MAIN
main82111-0Z550i201105-201207
main82111-0Z551i201207-201301
main82111-0Z560i201105-201207
main82111-0Z561i201207-201302
main82111-0Z562i201302-201312
main82111-0Z570i201105-201207
main82111-0Z571i201207-201302
main82111-0Z572i201302-201312
main82111-0Z770i200802-200812
main82111-0Z771i200812-200906
main82111-0Z772i200906-201005
main82111-0Z773i201005-201010
main82111-0Z780i200802-201004
main82111-0Z781i201004-201008
main82111-0Z790i200802-200812
main82111-0Z800i200712-200811
GRADE MARK : 1.6J OR WITH OUT MARK
main82111-0Z810i200712-200901
main82111-0Z811i200901-201004
main82111-0Z812i201004-201007
main82111-0Z820i200712-200901
main82111-0Z821i200901-201004
main82111-0Z822i201004-201007
main82111-0Z830i200712-200811
Z AEROTOURER&WIRELESS DOOR LOCK-WITH(SMART ENTRY)
main82111-0Z830i200712-200811
GRADE MARK : 1.6J OR WITH OUT MARK
main82111-0Z840i200712-200811
main82111-0Z850i200801-201004
SRS AIR BAG-WITHOUT
main82111-0Z850i200811-201004
GASOLINE SPEC&SRS AIR BAG-WITHOUT
main82111-0Z851i201004-201008
SRS AIR BAG-WITHOUT
main82111-0Z851i201004-201008
GASOLINE SPEC&SRS AIR BAG-WITHOUT
main82111-0Z860i200801-201008
main82111-0Z860i200811-201008
GASOLINE SPEC
main82111-0Z870i200801-201004
SRS AIR BAG-WITHOUT
main82111-0Z870i200801-200812
GRADE MARK : 1.8J,1.8G OR 1.8E(THAILAND)
main82111-0Z871i201004-201008
SRS AIR BAG-WITHOUT
main82111-0Z880i200801-200905
main82111-0Z880i200801-200812
GRADE MARK : 1.8J,1.8G OR 1.8E(THAILAND)
main82111-0Z881i200905-201004
main82111-0Z882i201004-201008
main82111-0Z890i200801-201004
FFV SPEC
main82111-0Z890i200801-200812
main82111-0Z890i200801-201004
FFV SPEC&SRS AIR BAG-WITHOUT
main82111-0Z891i201004-201008
FFV SPEC
main82111-0Z891i201004-201008
FFV SPEC&SRS AIR BAG-WITHOUT
main82111-0ZA00i200801-200911
SINGAPORE SPEC
main82111-0ZA10i200801-200812
main82111-0ZA20i200808
main82111-0ZA30i200808-201104
main82111-0ZA31i201104-201206
main82111-0ZA32i201206-201406
main82111-0ZA40i200808-201104
main82111-0ZA50i200808-201104
main82111-0ZA51i201104-201206
main82111-0ZA52i201206-201406
main82111-0ZA60i200808-201104
main82111-0ZA70i200808-201105
main82111-0ZF30i200808-201105
main82111-0ZF40i200801-200812
main82111-0ZF50i200801-201004
GRADE MARK : 1.6E OR 1.8E(TAIWAN)
main82111-0ZF51i201004-201008
GRADE MARK : 1.6E OR 1.8E(TAIWAN)
main82111-0ZF60i200801-201004
main82111-0ZF61i201004-201008
main82111-0ZF70i200808-201105
main82111-0ZU20i200811-200901
main82111-0ZU21i200901-201004
main82111-0ZU22i201004-201007
main82111-0ZU40i200811-200901
main82111-0ZU41i200901-201004
main82111-0ZU42i201004-201007
main82111-0ZU50i200906-201005
main82111-0ZU51i201005-201010
main82111-0ZU60i200812-201004
main82111-0ZU61i201004-201008
main82111-0ZU70i200905-201004
main82111-0ZU71i201004-201008
main82111-0ZU80i200812-201004
main82111-0ZU81i201004-201008
main82111-0ZU90i200905-201004
main82111-0ZU91i201004-201008
main82111-0ZV00i200901-201004
main82111-0ZV01i201004-201007
main82111-0ZV10i200901-201004
HEAD LAMP LEVELING DEVICE-WITH(MANUAL)
main82111-0ZV11i201004-201007
HEAD LAMP LEVELING DEVICE-WITH(MANUAL)
main82111-0ZV20i200901-201004
ABS-WITH
main82111-0ZV21i201004-201007
ABS-WITH
main82111-0ZV30i200901-201004
ABS-WITH&HEAD LAMP LEVELING DEVICE-WITH(MANUAL)
main82111-0ZV30i200901-201004
HEAD LAMP LEVELING DEVICE-WITH(MANUAL)
main82111-0ZV31i201004-201007
ABS-WITH&HEAD LAMP LEVELING DEVICE-WITH(MANUAL)
main82111-0ZV31i201004-201007
HEAD LAMP LEVELING DEVICE-WITH(MANUAL)
main82115-02T50i200811-200901
main82115-02T51i200901-201004
main82115-02T52i201004-201007
main82115-0ZA40i201101-201104
main82115-0ZA42i201104-201205
main82115-0ZA43i201205-201306
main82115-0ZA44i201306-201311
main82115-0ZY20i201205-201211
SRS AIR BAG-WITHOUT
main82115-0ZY30i201205-201211
main82115-0ZY31i201211-201306
main82115-0ZY32i201306-201311
main82116-02K20i201006-201207
GRADE MARK : J
main82116-02K21i201207-201312
GRADE MARK : J
main82116-02K30i201006-201207
main82116-02K31i201207-201312
main82116-02K40i200911-201004
SINGAPORE SPEC
main82116-02K41i201004-201008
SINGAPORE SPEC
main82116-02N30i201105-201207
main82116-02N31i201207-201302
main82116-02N32i201302-201312
main82116-02N50i201211-201311
main82116-02N60i201008-201105
main82116-02N62i201104-201205
main82116-02N63i201205-201304
main82116-02N64i201301-201306
main82116-02N65i201306-201311
main82116-02N70i201008-201104
main82116-02N72i201104-201205
main82116-02N73i201205-201306
main82116-02N74i201306-201311
main82116-02N80i201008-201104
main82116-02N82i201104-201205
main82116-02N83i201205-201306
main82116-02N84i201306-201311
main82116-02N90i201007-201101
main82116-02N91i201101-201104
main82116-02N92i201104-201205
main82116-02N93i201205-201212
main82116-02N94i201212-201305
main82116-02N95i201305-201310
main82116-02P00i201007-201101
main82116-02P01i201101-201104
main82116-02P02i201104-201205
main82116-02P03i201205-201212
main82116-02P04i201212-201305
main82116-02P05i201305-201310
main82116-02P10i201007-201104
HEAD LAMP LEVELING DEVICE-WITH(MANUAL)
main82116-02P12i201104-201205
HEAD LAMP LEVELING DEVICE-WITH(MANUAL)
main82116-02P13i201205-201305
HEAD LAMP LEVELING DEVICE-WITH(MANUAL)
main82116-02P14i201305-201310
HEAD LAMP LEVELING DEVICE-WITH(MANUAL)
main82116-02P20i201007-201101
ABS-WITH&HEAD LAMP LEVELING DEVICE-WITH(MANUAL)
main82116-02P20i201007-201101
HEAD LAMP LEVELING DEVICE-WITH(MANUAL)
main82116-02P21i201101-201104
HEAD LAMP LEVELING DEVICE-WITH(MANUAL)
main82116-02P21i201101-201104
ABS-WITH&HEAD LAMP LEVELING DEVICE-WITH(MANUAL)
main82116-02P22i201104-201205
HEAD LAMP LEVELING DEVICE-WITH(MANUAL)
main82116-02P22i201104-201205
ABS-WITH&HEAD LAMP LEVELING DEVICE-WITH(MANUAL)
main82116-02P23i201205-201305
ABS-WITH&HEAD LAMP LEVELING DEVICE-WITH(MANUAL)
main82116-02P23i201205-201305
HEAD LAMP LEVELING DEVICE-WITH(MANUAL)
main82116-02P24i201305-201310
ABS-WITH&HEAD LAMP LEVELING DEVICE-WITH(MANUAL)
main82116-02P24i201305-201310
HEAD LAMP LEVELING DEVICE-WITH(MANUAL)
main82116-02P30i201008-201101
main82116-02P32i201101-201104
main82116-02P34i201104-201205
main82116-02P35i201205-201211
main82116-02P35i201211-201311
WITHOUT(SRS AIR BAG)
main82116-02P40i201008-201101
SRS AIR BAG-WITHOUT
main82116-02P42i201101-201104
SRS AIR BAG-WITHOUT
main82116-02P44i201104-201205
SRS AIR BAG-WITHOUT
main82116-02P50i201008-201101
main82116-02P52i201101-201104
main82116-02P54i201104-201205
main82116-02P55i201205-201306
main82116-02P56i201306-201311
main82116-02P60i201008-201104
main82116-02P62i201104-201205
main82116-02P63i201205-201306
main82116-02P64i201306-201311
main82116-02P70i201008-201104
SINGAPORE SPEC
main82116-02P72i201104-201205
SINGAPORE SPEC
main82116-02P73i201211-201311
main82116-02P73i201205-201211
SINGAPORE SPEC
main82116-02P80i201008-201104
main82116-02P82i201104-201205
main82116-02P90i201008-201101
GRADE MARK : 1.6E OR 1.8E
main82116-02P92i201101-201104
GRADE MARK : 1.6E OR 1.8E
main82116-02P94i201104-201205
GRADE MARK : 1.6E OR 1.8E
main82116-02P95i201205-201306
GRADE MARK : 1.6E OR 1.8E
main82116-02P96i201306-201311
GRADE MARK : 1.6E OR 1.8E
main82116-02Q00i201008-201101
main82116-02Q02i201101-201104
main82116-02Q04i201104-201205
main82116-02Q05i201205-201306
main82116-02Q06i201306-201311
main82116-02Q10i201008-201101
main82116-02Q12i201101-201104
main82116-02Q14i201104-201205
main82116-02Q15i201205-201306
main82116-02Q16i201306-201311
main82116-02S90i201006-201105
main82116-02U91i201104-201206
main82116-02U92i201206-201406
main82116-02V01i201104-201206
main82116-02V02i201206-201406
main82116-02V10i201010-201104
main82116-02V12i201104-201206
main82116-02V13i201206-201304
main82116-02V14i201304-201407
main82116-02V20i201008-201105
main82116-02V22i201104-201205
main82116-02V23i201205-201304
main82116-02V24i201301-201306
main82116-02V25i201306-201311
main82116-02V30i201008-201101
main82116-02V32i201101-201104
main82116-02V34i201104-201206
main82116-02V35i201206-201211
main82116-02V40i201008-201101
main82116-02V50i201105-201207
main82116-02V51i201207-201302
main82116-02V52i201302-201312
main82116-02V60i201105-201207
main82116-02V61i201207-201302
main82116-02V62i201302-201312
main82116-02V71i201104-201206
main82116-02V72i201206-201406
main82116-02W60i201008-201101
main82116-02W62i201101-201104
main82116-02W64i201104-201205
main82116-02W65i201205-201211
main82116-02W65i201211-201311
WITHOUT(SRS AIR BAG)
main82116-02W70i201008-201101
main82116-02W72i201101-201104
main82116-02W74i201104-201205
main82116-02W75i201205-201211
main82116-02W76i201211-201311
main82116-02W81i201104-201206
main82116-02W82i201206-201406
main82116-02X01i201104-201206
main82116-02X02i201206-201406
main82116-02X10i201007-201101
main82116-02X11i201101-201104
main82116-02X12i201104-201205
main82116-02X13i201205-201305
main82116-02X14i201305-201310
main82116-02X20i201007-201101
ABS-WITH
main82116-02X21i201101-201104
ABS-WITH
main82116-02X22i201104-201205
ABS-WITH
main82116-02X23i201205-201305
ABS-WITH
main82116-02X24i201305-201310
ABS-WITH
main82116-0Z030i201211-201311
main82116-0Z040i201304-201407
main82116-0Z050i201304-201407
82815BCOVER, WIRING HARNESS PROTECTOR
main82815-12250i¥660201007-201304
82815MCOVER, WIRING HARNESS PROTECTOR, NO.10
main82815-12260i¥650201008-201211
main82815-12270i201007-201304
82817PROTECTOR, WIRING HARNESS, NO.1
main82817-12G40i201007-201211
82817APROTECTOR, WIRING HARNESS, NO.2
main82817-12D50i¥880201007-201304
82817EPROTECTOR, WIRING HARNESS, NO.6
main82817-12D60i¥730201008-201211
main82817-12D70i201007-201304
8401
9011906915
main90119-06915¥60
90178T0018
main90178-T0018¥70
9046706193C0
main90467-06193C0
9167180616
main91671-80616¥60
9415180600
main94151-80600¥60

12 parts on this diagram · 21 diagrams in section
