Toyota COROLLA/ALTIS — WIRELESS DOOR LOCK

0001 1W/O(SMART ENTRY) 0003 1W(SMART ENTRY)

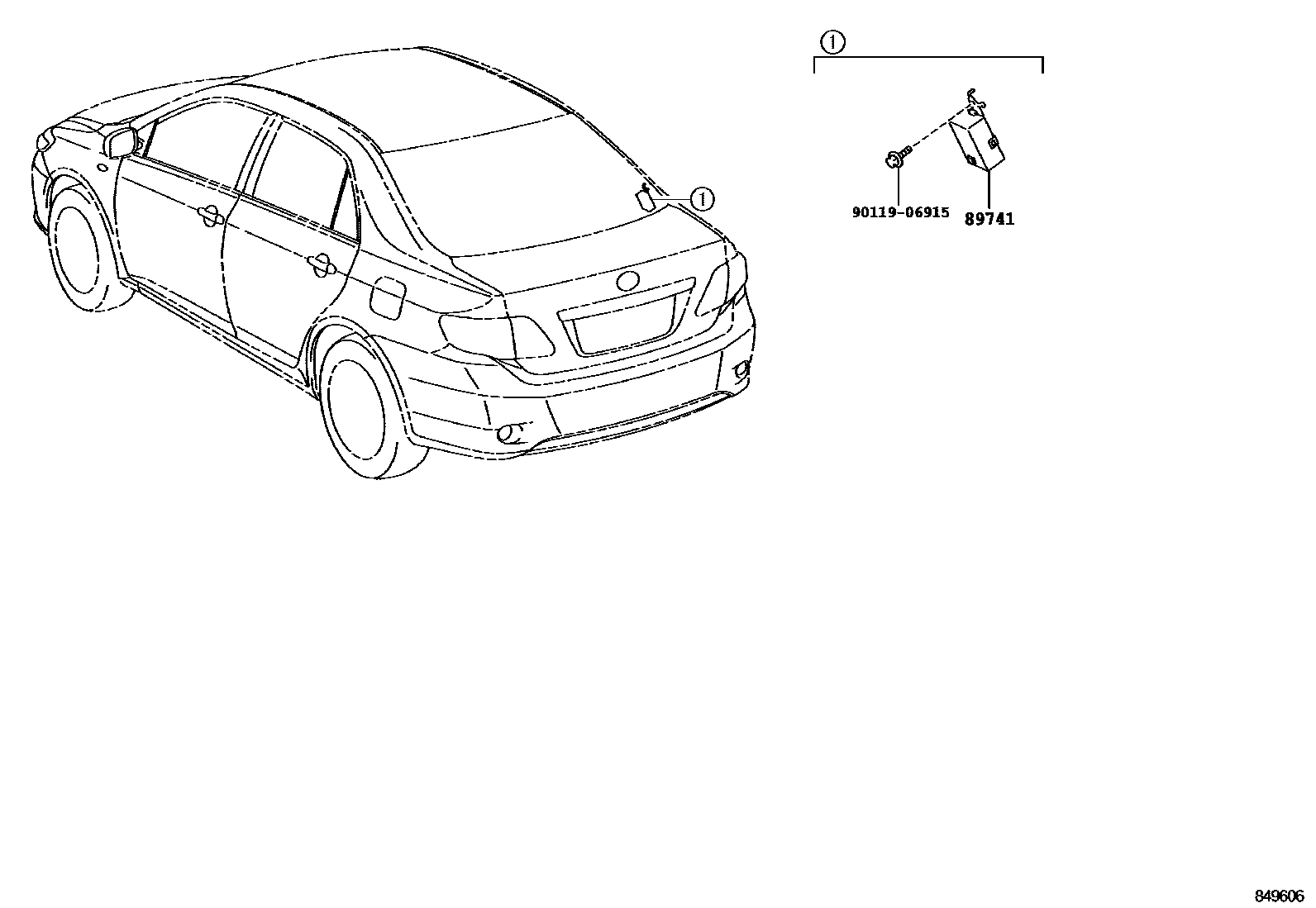

89741RECEIVER, DOOR CONTROL

main89740-12090iZZE142..(18G,18V)..TAIW200712-200811

Z AEROTOURER&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&STARTING SYSTEM-PUSH BUTTON

sub89740-12091

main89740-12090iZRE143..(20G,20V)..TAIW200712-201311

sub89740-12091

main89740-12150iZRE143..20V..(PHL,TH)200812-201008

main89741-02160iZZE142..18G..TH200801-200804

WIRELESS DOOR LOCK-WITH(SMART ENTRY)

sub89741-02161

main89741-02161iZZE142..PHL200805-201211

sub89741-02162

main89741-02161iZRE143,ZZE142..(18E,18G,20G)..TH;ZZE14#..(16G,16V,18J)..(IDN,PHL)200805-201008

WIRELESS DOOR LOCK-WITH(SMART ENTRY)

sub89741-02162

main89741-02180iZZE142..18E..TAIW200712-201007

WIRELESS DOOR LOCK-WITH(SMART ENTRY)&STARTING SYSTEM-PUSH BUTTON

main89741-02180iZZE142..18E..TAIW200712-201007

Z AEROTOURER&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&STARTING SYSTEM-PUSH BUTTON

main89741-02180iZRE142..TAIW201007-201310

main89741-12240iZZE142..(18G,18V,G)..IND¥18,600200808-201005

main89741-12560iZRE142..18J..IND201301-201312

main89741-12560iNDE140,ZZE142..(18G,18V,E,G)..IND201006-201312

GRADE MARK : J

9011906915

main90119-06915¥60

2 parts on this diagram · 2 diagrams in section
