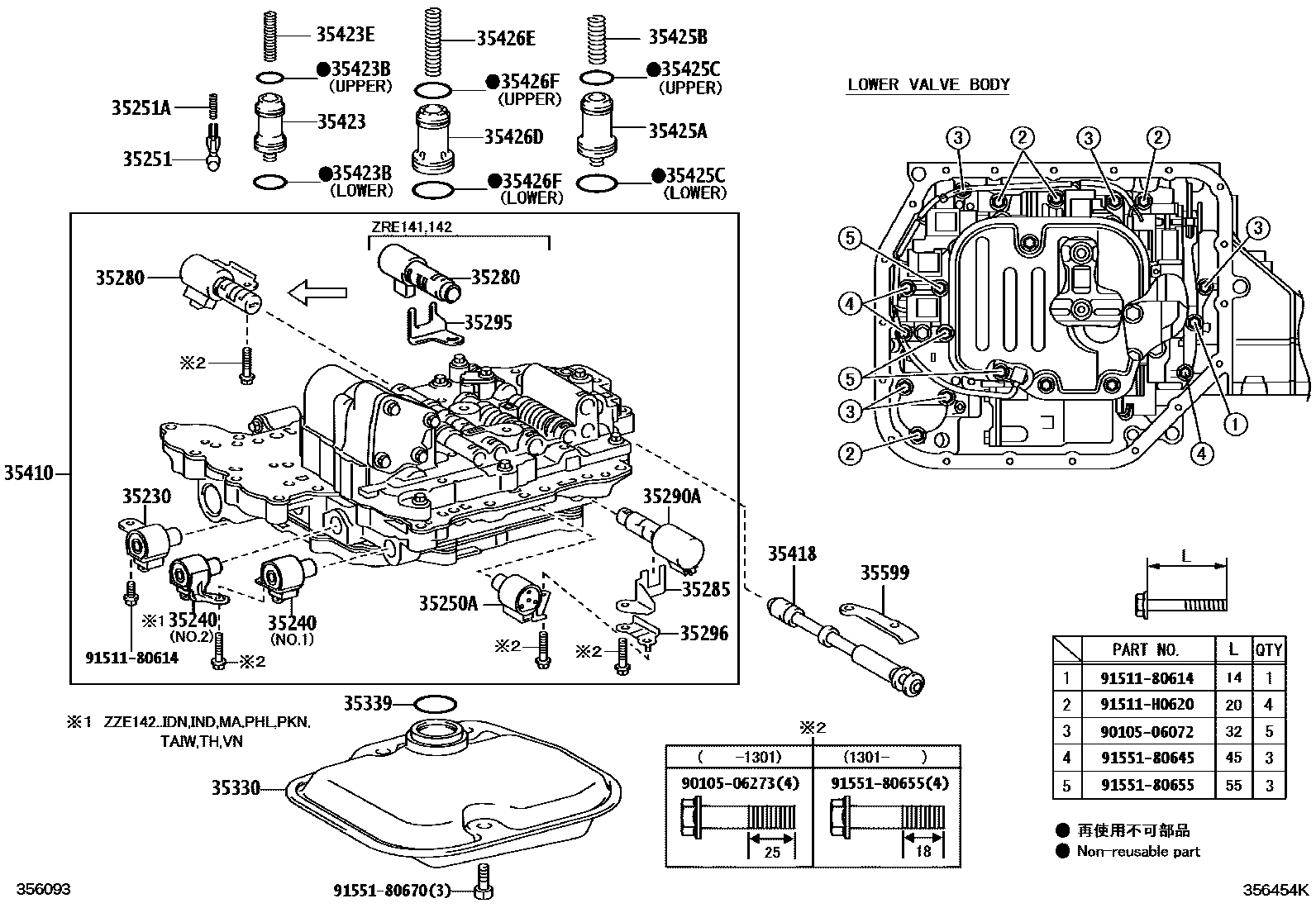

Toyota COROLLA/ALTIS — VALVE BODY & OIL STRAINER (ATM)

0001 1U340E,U341E 0002 1U241E 0003 1U340E,U341E 0004 1U241E

35230SOLENOID ASSY, TRANSMISSION 3WAY, NO.2

main35230-33030iZRE143..TAIW¥13,400200811-201007

main35230-33030iZRE143..VN¥13,400200811-201010

main35230-33030iZRE143..IDN,PHL,TH¥13,400200811-201008

main35230-52020iZZE142..18V..(IDN,PHL)¥16,000200712-200812

sub35230-52021¥11,100

main35230-52020iZZE14#..(16J,18G,18V)..TAIW¥16,000200712-200811

sub35230-52021¥11,100

main35230-52020iZZE14#..LHD..(18E,18J,GLI,XLI)¥16,000200712-201007

sub35230-52021¥11,100

main35230-52020iZZE14#..4FC..(16E,16G,16J,16V,18E,18G)..(IDN,MA,PHL,TH)¥16,000200712-201008

sub35230-52021¥11,100

main35230-52020iZZE142..4FC..VN¥16,000200712-201010

sub35230-52021¥11,100

main35230-52020iZZE142..4FC..(IND,PKN)¥16,000200712

sub35230-52021¥11,100

main35230-52020iZRE141,142..4FC;ZZE141..16G..TH¥16,000201007-201201

sub35230-52021¥11,100

main35230-52021iZRE141..4FC..16J¥11,100201201-201211

main35230-52021iZRE141,142,ZZE141..4FC..(16E,16G,16V,D,GLI,N,XLI)¥11,100201201

35240SOLENOID ASSY, AUTOMATIC TRANSMISSION 3WAY

main35240-21010iZRE143..VN¥13,400200811-201010

main35240-21010iZRE143..TAIW¥13,400200811-201007

main35240-21010iZRE143..IDN,PHL,TH¥13,400200811-201008

main35240-52050iZRE141,142..4FC;ZZE141..16G..TH¥16,000201007-201201

NO.1

sub35240-52051¥11,100

main35240-52050iZZE14#..(16J,18G,18V)..TAIW¥16,000200712-200811

NO.1

sub35240-52051¥11,100

main35240-52050iZZE142..18V..(IDN,PHL)¥16,000200712-200812

NO.1

sub35240-52051¥11,100

main35240-52050iZZE14#..LHD..(18E,18J,GLI,XLI)¥16,000200712-201007

NO.1

sub35240-52051¥11,100

main35240-52050iZZE14#..4FC..(16E,16G,16J,16V,18E,18G)..(IDN,MA,PHL,TH)¥16,000200712-201008

NO.1

sub35240-52051¥11,100

main35240-52050iZZE142..4FC..VN¥16,000200712-201010

NO.1

sub35240-52051¥11,100

main35240-52050iZZE142..4FC..(IND,PKN)¥16,000200712

NO.1

sub35240-52051¥11,100

main35240-52051iZRE141,142,ZZE141..4FC..(16E,16G,16V,D,GLI,N,XLI)¥11,100201201

NO.1

main35240-52051iZRE141..4FC..16J¥11,100201201-201211

NO.1

main35260-52010iZZE142..(18E,18J)..TAIW¥5,400200712-201007

NO.2

main35260-52010iZZE142..4FC..(IND,PKN)¥5,400200712

NO.2

main35260-52010iZZE142..(18E,18G)..(IDN,MA,TH)¥5,400200712-201008

NO.2

main35260-52010iZZE142..(18G,18V)..TAIW¥5,400200712-200811

NO.2

main35260-52010iZZE142..4FC..VN¥5,400200712-201010

NO.2

main35260-52010iZZE142..18V..(IDN,PHL)¥5,400200712-200812

NO.2

35250ASOLENOID ASSY, TRANSMISSION, NO.3

main35250-52080iZZE141..16G..TH;ZRE141,142..4FC..(16E,16G,16V,D,GLI,N,XLI)¥11,100201007

main35250-52080iZZE14#..(16J,18G,18V)..TAIW¥11,100200712-200811

main35250-52080iZZE142..18V..(IDN,PHL)¥11,100200712-200812

main35250-52080iZZE14#..LHD..(18E,18J,GLI,XLI)¥11,100200712-201007

main35250-52080iZZE14#..4FC..(16E,16G,16J,16V,18E,18G)..(IDN,MA,PHL,TH)¥11,100200712-201008

main35250-52080iZZE142..4FC..VN¥11,100200712-201010

main35250-52080iZZE142..4FC..(IND,PKN)¥11,100200712

main35250-52080iZRE141..4FC..16J¥11,100201007-201211

35251BODY, CHECK BALL

main35251-30020iZZE14#..(16J,18G,18V)..TAIW¥1,020200712-200811

main35251-30020iZZE142..18V..(IDN,PHL)¥1,020200712-200812

main35251-30020iZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)¥1,020200712-201007

main35251-30020iZRE143,ZZE14#..4FC..(16E,16G,16J,16V,18E,18G,20G,20V)..(IDN,MA,PHL,TH)¥1,020200712-201008

main35251-30020iZRE143,ZZE142..4FC..VN¥1,020200712-201010

main35251-30020iZZE142..4FC..(IND,PKN)¥1,020200712

main35251-30020iZRE141..4FC..16J¥1,020201007-201211

main35251-30020iZZE141..16G..TH;ZRE141,142..4FC..(16E,16G,16V,D,GLI,N,XLI)¥1,020201007

35251ASPRING, COMPRESSION (FOR CHECK BALL BODY)

main90501-03005iZZE14#..(16J,18G,18V)..TAIW¥90200712-200811

main90501-03005iZZE142..18V..(IDN,PHL)¥90200712-200812

main90501-03005iZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)¥90200712-201007

main90501-03005iZRE143,ZZE14#..4FC..(16E,16G,16J,16V,18E,18G,20G,20V)..(IDN,MA,PHL,TH)¥90200712-201008

main90501-03005iZRE143,ZZE142..4FC..VN¥90200712-201010

main90501-03005iZZE142..4FC..(IND,PKN)¥90200712

main90501-03005iZRE141..4FC..16J¥90201007-201211

main90501-03005iZZE141..16G..TH;ZRE141,142..4FC..(16E,16G,16V,D,GLI,N,XLI)¥90201007

35280SOLENOID ASSY, LOCK UP CONTROL

main35270-52011iZZE142..18V..(IDN,PHL)¥3,790200712-200812

main35270-52011iZZE14#..(16J,18G,18V)..TAIW¥3,790200712-200811

main35270-52011iZZE14#..LHD..(18E,18J,GLI,XLI)¥3,790200712-201007

main35270-52011iZZE14#..4FC..(16E,16G,16J,16V,18E,18G)..(IDN,MA,PHL,TH)¥3,790200712-201008

main35270-52011iZZE142..4FC..VN¥3,790200712-201010

main35270-52011iZZE142..4FC..(IND,PKN)¥3,790200712

main35270-52011iZZE141..16G¥3,790201008-201311

main35280-52040iZRE141,142..4FC..(16E,16G,16V,D,GLI,N,XLI)¥7,700201007

main35280-52040iZRE141..4FC..16J¥7,700201007-201211

35285PLATE, SOLENOID LOCK

main35285-33060iZRE143..IDN,PHL,TH200811-201008

main35285-33060iZRE143..VN200811-201010

main35285-33060iZRE143..TAIW200811-201007

main35285-52030iZZE142..4FC..VN¥260200712-201010

main35285-52030iZZE14#..(16J,18G,18V)..TAIW¥260200712-200811

main35285-52030iZZE142..18V..(IDN,PHL)¥260200712-200812

main35285-52030iZZE14#..LHD..(18E,18J,GLI,XLI)¥260200712-201007

main35285-52030iZZE14#..4FC..(16E,16G,16J,16V,18E,18G)..(IDN,MA,PHL,TH)¥260200712-201008

main35285-52030iZZE142..4FC..(IND,PKN)¥260200712

main35285-52030iZRE141..4FC..16J¥260201007-201211

main35285-52030iZZE141..16G..TH;ZRE141,142..4FC..(16E,16G,16V,D,GLI,N,XLI)¥260201007

35290ASOLENOID ASSY, LINE PRESSURE CONTROL

main35290-52040iZZE14#..(16J,18G,18V)..TAIW¥7,700200712-200811

main35290-52040iZZE142..18V..(IDN,PHL)¥7,700200712-200812

main35290-52040iZZE14#..LHD..(18E,18J,GLI,XLI)¥7,700200712-201007

main35290-52040iZZE14#..4FC..(16E,16G,16J,16V,18E,18G)..(IDN,MA,PHL,TH)¥7,700200712-201008

main35290-52040iZZE142..4FC..VN¥7,700200712-201010

main35290-52040iZZE142..4FC..(IND,PKN)¥7,700200712

main35290-52040iZRE141..4FC..16J¥7,700201007-201211

main35290-52040iZZE141..16G..TH;ZRE141,142..4FC..(16E,16G,16V,D,GLI,N,XLI)¥7,700201007

35295PLATE, SOLENOID LOCK, NO.2

main35295-33040iZRE143..VN200811-201010

main35295-33040iZRE143..TAIW200811-201007

main35295-33040iZRE143..IDN,PHL,TH200811-201008

main35295-52020iZRE141..4FC..16J¥220201007-201211

main35295-52020iZRE141,142..4FC..(16E,16G,16V,D,GLI,N,XLI)¥220201007

35296PLATE, SOLENOID LOCK, NO.3

main35296-12010iZZE14#..(16J,18G,18V)..TAIW¥130200712-200811

main35296-12010iZZE142..18V..(IDN,PHL)¥130200712-200812

main35296-12010iZZE14#..LHD..(18E,18J,GLI,XLI)¥130200712-201007

main35296-12010iZZE142..4FC..(IND,PKN)¥130200712

main35296-12010iZZE14#..4FC..(16E,16G,16J,16V,18E,18G)..(IDN,MA,PHL,TH)¥130200712-201008

main35296-12010iZZE141..16G..TH;ZRE141,142..4FC..(16E,16G,16V,D,GLI,N,XLI)¥130201007

main35296-12010iZZE142..4FC..VN¥130200712-201010

main35296-12010iZRE141..4FC..16J¥130201007-201211

main35296-33040iZRE143..IDN,PHL,TH200811-201008

main35296-33040iZRE143..TAIW200811-201007

main35296-33040iZRE143..VN200811-201010

35330STRAINER ASSY, VALVE BODY OIL

main35330-06010iZRE143..VN¥4,730200811-201010

main35330-06010iZRE143..IDN,PHL,TH¥4,730200811-201008

main35330-06010iZRE143..TAIW¥4,730200811-201007

main35330-0W020iZZE14#..4FC..(16E,16G,16J,16V,18E,18G)..(IDN,MA,PHL,TH)¥4,390200712-201008

sub35330-0W021¥3,040

main35330-0W020iZZE142..4FC..VN¥4,390200712-201010

sub35330-0W021¥3,040

main35330-0W020iZZE142..4FC..(IND,PKN)¥4,390200712

sub35330-0W021¥3,040

main35330-0W020iZRE141,142..4FC;ZZE141..16G..TH¥4,390201007-201203

sub35330-0W021¥3,040

main35330-0W020iZZE14#..(16J,18G,18V)..TAIW¥4,390200712-200811

sub35330-0W021¥3,040

main35330-0W020iZZE142..18V..(IDN,PHL)¥4,390200712-200812

sub35330-0W021¥3,040

main35330-0W020iZZE14#..LHD..(18E,18J,GLI,XLI)¥4,390200712-201007

sub35330-0W021¥3,040

main35330-0W021iZRE141..4FC..16J¥3,040201203-201211

main35330-0W021iZRE141,142,ZZE141..4FC..(16E,16G,16V,D,GLI,N,XLI)¥3,040201203

35339GASKET, OIL STRAINER

main90301-32010iZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)¥230200712-201007

main90301-32010iZZE14#..(16J,18G,18V)..TAIW¥230200712-200811

main90301-32010iZZE142..18V..(IDN,PHL)¥230200712-200812

main90301-32010iZRE143,ZZE14#..4FC..(16E,16G,16J,16V,18E,18G,20G,20V)..(IDN,MA,PHL,TH)¥230200712-201008

main90301-32010iZRE143,ZZE142..4FC..VN¥230200712-201010

main90301-32010iZZE142..4FC..(IND,PKN)¥230200712

main90301-32010iZRE141..4FC..16J¥230201007-201211

main90301-32010iZZE141..16G..TH;ZRE141,142..4FC..(16E,16G,16V,D,GLI,N,XLI)¥230201007-201307

main90301-32015iZRE141,142,ZZE141..4FC¥190201307

35410BODY ASSY, TRANSMISSION VALVE

main35410-12790iZRE141..4FC..16J¥116,000201007-201211

sub35410-12791¥80,100

sub35330-0W021¥3,040

main35410-12790iZRE141,142..4FC..(16E,16G,16V,D,GLI,N,XLI)¥116,000201007-201301

sub35410-12791¥80,100

sub35330-0W021¥3,040

main35410-12791iZRE141,142..4FC¥80,100201301

main35410-12850iZZE142..18V..(IDN,PHL)200712-200812

sub35410-12851

sub35330-0W021¥3,040

main35410-12850iZZE142..4FC..(IND,PKN)200712

sub35410-12851

sub35330-0W021¥3,040

main35410-12850iZZE142..(18E,18J)..TAIW200712-201007

sub35410-12851

sub35330-0W021¥3,040

main35410-12850iZZE142..4FC..VN200712-201010

sub35410-12851

sub35330-0W021¥3,040

main35410-12850iZZE142..(18G,18V)..TAIW200712-200811

sub35410-12851

sub35330-0W021¥3,040

main35410-12850iZZE142..(18E,18G)..(IDN,MA,TH)200712-201008

sub35410-12851

sub35330-0W021¥3,040

main35410-33190iZRE143..TAIW200811-201007

sub35410-33180¥96,200

main35410-33190iZRE143..IDN,PHL,TH200811-201008

sub35410-33180¥96,200

main35410-33190iZRE143..VN200811-201010

sub35410-33180¥96,200

main35410-52160iZZE141..TAIW200712-200811

sub35410-52161

sub35330-0W021¥3,040

main35410-52160iZZE14#..GCC200712-201007

sub35410-52161

sub35330-0W021¥3,040

main35410-52160iZZE141..4FC..(MA,PHL,TH)200712-201008

sub35410-52161

sub35330-0W021¥3,040

main35410-52160iZZE141..16G201008-201301

sub35410-52161

sub35330-0W021¥3,040

main35410-52161iZZE141..16G201301-201311

35418VALVE, MANUAL

main35418-21011iZRE143..IDN,PHL,TH¥2,720200811-201008

main35418-21011iZRE143..TAIW¥2,720200811-201007

main35418-21011iZRE143..VN¥2,720200811-201010

main35418-52020iZRE141..4FC..16J¥1,950201007-201211

main35418-52020iZZE14#..4FC..(16E,16G,16J,16V,18E,18G)..(IDN,MA,PHL,TH)¥1,950200712-201008

main35418-52020iZZE14#..(16J,18G,18V)..TAIW¥1,950200712-200811

main35418-52020iZZE142..4FC..VN¥1,950200712-201010

main35418-52020iZZE141..16G..TH;ZRE141,142..4FC..(16E,16G,16V,D,GLI,N,XLI)¥1,950201007

main35418-52020iZZE142..4FC..(IND,PKN)¥1,950200712

main35418-52020iZZE142..18V..(IDN,PHL)¥1,950200712-200812

main35418-52020iZZE14#..LHD..(18E,18J,GLI,XLI)¥1,950200712-201007

35423PISTON, B-2 ACCUMULATOR

main35403-52020iZZE142..4FC..(IND,PKN)¥820200712

main35403-52020iZZE14#..(16J,18G,18V)..TAIW¥820200712-200811

main35403-52020iZZE142..18V..(IDN,PHL)¥820200712-200812

main35403-52020iZZE14#..LHD..(18E,18J,GLI,XLI)¥820200712-201007

main35403-52020iZZE14#..4FC..(16E,16G,16J,16V,18E,18G)..(IDN,MA,PHL,TH)¥820200712-201008

main35403-52020iZZE142..4FC..VN¥820200712-201010

main35403-52020iZRE141..4FC..16J¥820201007-201211

main35403-52020iZZE141..16G..TH;ZRE141,142..4FC..(16E,16G,16V,D,GLI,N,XLI)¥820201007

35423BRING, O (FOR B-2 ACCUMULATOR PISTON)

main90301-20010iZZE14#..(16J,18G,18V)..TAIW¥190200712-200811

UPPER

main90301-20010iZZE142..18V..(IDN,PHL)¥190200712-200812

UPPER

main90301-20010iZZE14#..LHD..(18E,18J,GLI,XLI)¥190200712-201007

UPPER

main90301-20010iZZE14#..4FC..(16E,16G,16J,16V,18E,18G)..(IDN,MA,PHL,TH)¥190200712-201008

UPPER

main90301-20010iZZE142..4FC..VN¥190200712-201010

UPPER

main90301-20010iZZE142..4FC..(IND,PKN)¥190200712

UPPER

main90301-20010iZRE141..4FC..16J¥190201007-201211

UPPER

main90301-20010iZZE141..16G..TH;ZRE141,142..4FC..(16E,16G,16V,D,GLI,N,XLI)¥190201007

UPPER

main90301-29011iZZE141..16G..TH;ZRE141,142..4FC..(16E,16G,16V,D,GLI,N,XLI)¥190201007

LOWER

main90301-29011iZZE142..18V..(IDN,PHL)¥190200712-200812

LOWER

main90301-29011iZZE142..4FC..VN¥190200712-201010

LOWER

main90301-29011iZZE14#..(16J,18G,18V)..TAIW¥190200712-200811

LOWER

main90301-29011iZRE141..4FC..16J¥190201007-201211

LOWER

main90301-29011iZZE14#..LHD..(18E,18J,GLI,XLI)¥190200712-201007

LOWER

main90301-29011iZZE142..4FC..(IND,PKN)¥190200712

LOWER

main90301-29011iZZE14#..4FC..(16E,16G,16J,16V,18E,18G)..(IDN,MA,PHL,TH)¥190200712-201008

LOWER

35423ESPRING, COMPRESSION (FOR B-2 ACCMULATOR PISTON)

main90501-18119iZZE14#..LHD..(18E,18J,GLI,XLI)¥220200712-201007

main90501-18119iZZE14#..(16J,18G,18V)..TAIW¥220200712-200811

main90501-18119iZZE142..18V..(IDN,PHL)¥220200712-200812

main90501-18119iZZE14#..4FC..(16E,16G,16J,16V,18E,18G)..(IDN,MA,PHL,TH)¥220200712-201008

main90501-18119iZZE142..4FC..VN¥220200712-201010

main90501-18119iZZE142..4FC..(IND,PKN)¥220200712

main90501-18119iZRE142,ZZE141..(16G,GLI,XLI)..(GCC,TH)¥220201007-201311

main90501-20158iZRE141..4FC..(16E,16G,16V,D,N,XLI)¥180201007

main90501-20158iZRE141..4FC..16J¥180201007-201211

35425APISTON, C-2 ACCUMULATOR

main35405-52020iZZE14#..4FC..(16E,16G,16J,16V,18E,18G)..(IDN,MA,PHL,TH)¥880200712-201008

main35405-52020iZZE14#..(16J,18G,18V)..TAIW¥880200712-200811

main35405-52020iZZE142..18V..(IDN,PHL)¥880200712-200812

main35405-52020iZZE14#..LHD..(18E,18J,GLI,XLI)¥880200712-201007

main35405-52020iZZE142..4FC..VN¥880200712-201010

main35405-52020iZZE142..4FC..(IND,PKN)¥880200712

main35405-52020iZRE141..4FC..16J¥880201007-201211

main35405-52020iZZE141..16G..TH;ZRE141,142..4FC..(16E,16G,16V,D,GLI,N,XLI)¥880201007

35425BSPRING, COMPRESSION (FOR C-2 ACCUMULATOR PISTON)

main90501-24036iZZE14#..(16J,18G,18V)..TAIW¥200200712-200811

main90501-24036iZZE142..18V..(IDN,PHL)¥200200712-200812

main90501-24036iZRE141..4FC..16J¥200201007-201211

main90501-24036iZZE14#..LHD..(18E,18J,GLI,XLI)¥200200712-201007

main90501-24036iZZE142..4FC..(IND,PKN)¥200200712

main90501-24036iZZE14#..4FC..(16E,16G,16J,16V,18E,18G)..(IDN,MA,PHL,TH)¥200200712-201008

main90501-24036iZZE141..16G..TH;ZRE141,142..4FC..(16E,16G,16V,D,GLI,N,XLI)¥200201007

main90501-24036iZZE142..4FC..VN¥200200712-201010

35425CRING, O (FOR C-2 ACCUMULATOR PISTON)

main90301-22010iZZE14#..(16J,18G,18V)..TAIW¥190200712-200811

UPPER

main90301-22010iZZE142..4FC..(IND,PKN)¥190200712

UPPER

main90301-22010iZRE141..4FC..16J¥190201007-201211

UPPER

main90301-22010iZZE141..16G..TH;ZRE141,142..4FC..(16E,16G,16V,D,GLI,N,XLI)¥190201007

UPPER

main90301-22010iZZE142..4FC..VN¥190200712-201010

UPPER

main90301-22010iZZE142..18V..(IDN,PHL)¥190200712-200812

UPPER

main90301-22010iZZE14#..LHD..(18E,18J,GLI,XLI)¥190200712-201007

UPPER

main90301-22010iZZE14#..4FC..(16E,16G,16J,16V,18E,18G)..(IDN,MA,PHL,TH)¥190200712-201008

UPPER

main90301-35004iZZE142..4FC..VN¥190200712-201010

LOWER

main90301-35004iZZE14#..(16J,18G,18V)..TAIW¥190200712-200811

LOWER

main90301-35004iZZE142..18V..(IDN,PHL)¥190200712-200812

LOWER

main90301-35004iZZE14#..LHD..(18E,18J,GLI,XLI)¥190200712-201007

LOWER

main90301-35004iZZE14#..4FC..(16E,16G,16J,16V,18E,18G)..(IDN,MA,PHL,TH)¥190200712-201008

LOWER

main90301-35004iZZE142..4FC..(IND,PKN)¥190200712

LOWER

main90301-35004iZRE141..4FC..16J¥190201007-201211

LOWER

main90301-35004iZZE141..16G..TH;ZRE141,142..4FC..(16E,16G,16V,D,GLI,N,XLI)¥190201007

LOWER

35426DPISTON, C-3 ACCUMULATOR

main35406-21010iZRE143..IDN,PHL,TH¥1,830200811-201008

main35406-21010iZRE143..TAIW¥1,830200811-201007

main35406-21010iZRE143..VN¥1,830200811-201010

main35426-52020iZZE14#..4FC..(16E,16G,16J,16V,18E,18G)..(IDN,MA,PHL,TH)¥2,170200712-201008

main35426-52020iZZE142..4FC..VN¥2,170200712-201010

main35426-52020iZZE142..4FC..(IND,PKN)¥2,170200712

main35426-52020iZRE141..4FC..16J¥2,170201007-201211

main35426-52020iZZE14#..(16J,18G,18V)..TAIW¥2,170200712-200811

main35426-52020iZZE141..16G..TH;ZRE141,142..4FC..(16E,16G,16V,D,GLI,N,XLI)¥2,170201007

main35426-52020iZZE142..18V..(IDN,PHL)¥2,170200712-200812

main35426-52020iZZE14#..LHD..(18E,18J,GLI,XLI)¥2,170200712-201007

35426ESPRING, COMPRESSION (FOR C-3 ACCUMULATOR PISTON)

main90501-23149iZZE14#..LHD..(18E,18J,GLI,XLI)¥290200712-201007

main90501-23149iZZE14#..(16J,18G,18V)..TAIW¥290200712-200811

main90501-23149iZZE142..18V..(IDN,PHL)¥290200712-200812

main90501-23149iZZE14#..4FC..(16E,16G,16J,16V,18E,18G)..(IDN,MA,PHL,TH)¥290200712-201008

main90501-23149iZZE142..4FC..VN¥290200712-201010

main90501-23149iZZE142..4FC..(IND,PKN)¥290200712

main90501-23149iZRE142,ZZE141..(16G,GLI,XLI)..(GCC,TH)¥290201007-201311

main90501-25057iZRE141..4FC..16J¥200201007-201211

main90501-25057iZRE141..4FC..(16E,16G,16V,D,N,XLI)¥200201007

main90905-01035iZRE143..IDN,PHL,TH¥270200811-201008

main90905-01035iZRE143..VN¥270200811-201010

main90905-01035iZRE143..TAIW¥270200811-201007

35426FRING, O (FOR C-3 ACCUMULATOR PISTON)

main90301-24016iZZE142..4FC..(IND,PKN)¥190200712

UPPER

main90301-24016iZZE14#..(16J,18G,18V)..TAIW¥190200712-200811

UPPER

main90301-24016iZZE142..18V..(IDN,PHL)¥190200712-200812

UPPER

main90301-24016iZZE14#..LHD..(18E,18J,GLI,XLI)¥190200712-201007

UPPER

main90301-24016iZZE14#..4FC..(16E,16G,16J,16V,18E,18G)..(IDN,MA,PHL,TH)¥190200712-201008

UPPER

main90301-24016iZZE142..4FC..VN¥190200712-201010

UPPER

main90301-24016iZRE141..4FC..16J¥190201007-201211

UPPER

main90301-24016iZZE141..16G..TH;ZRE141,142..4FC..(16E,16G,16V,D,GLI,N,XLI)¥190201007

UPPER

main90301-29011iZZE141..16G..TH;ZRE141,142..4FC..(16E,16G,16V,D,GLI,N,XLI)¥190201007

LOWER

main90301-29011iZRE141..4FC..16J¥190201007-201211

LOWER

main90301-29011iZZE142..18V..(IDN,PHL)¥190200712-200812

LOWER

main90301-29011iZZE14#..4FC..(16E,16G,16J,16V,18E,18G)..(IDN,MA,PHL,TH)¥190200712-201008

LOWER

main90301-29011iZZE142..4FC..VN¥190200712-201010

LOWER

main90301-29011iZZE14#..(16J,18G,18V)..TAIW¥190200712-200811

LOWER

main90301-29011iZZE142..4FC..(IND,PKN)¥190200712

LOWER

main90301-29011iZZE14#..LHD..(18E,18J,GLI,XLI)¥190200712-201007

LOWER

main90301-30007iZRE143..IDN,PHL,TH¥230200811-201008

main90301-30007iZRE143..TAIW¥230200811-201007

main90301-30007iZRE143..VN¥230200811-201010

35599COVER, MANUAL DETENT SPRING

main35599-21010iZRE143..IDN,PHL,TH¥320200811-201008

main35599-21010iZRE143..TAIW¥320200811-201007

main35599-21010iZRE143..VN¥320200811-201010

main35599-52010iZZE14#..4FC..(16E,16G,16J,16V,18E,18G)..(IDN,MA,PHL,TH)¥260200712-201008

main35599-52010iZZE142..4FC..VN¥260200712-201010

main35599-52010iZZE142..4FC..(IND,PKN)¥260200712

main35599-52010iZRE141..4FC..16J¥260201007-201211

main35599-52010iZZE141..16G..TH;ZRE141,142..4FC..(16E,16G,16V,D,GLI,N,XLI)¥260201007

main35599-52010iZZE142..18V..(IDN,PHL)¥260200712-200812

main35599-52010iZZE14#..LHD..(18E,18J,GLI,XLI)¥260200712-201007

main35599-52010iZZE14#..(16J,18G,18V)..TAIW¥260200712-200811

9010506072

main90105-06072¥110

9010506273

main90105-06273¥170

9151180614

main91511-80614¥100

91511H0620

main91511-H0620¥110

9155180645

main91551-80645¥130

9155180655

main91551-80655¥80

9155180670

main91551-80670¥80

31 parts on this diagram · 4 diagrams in section
