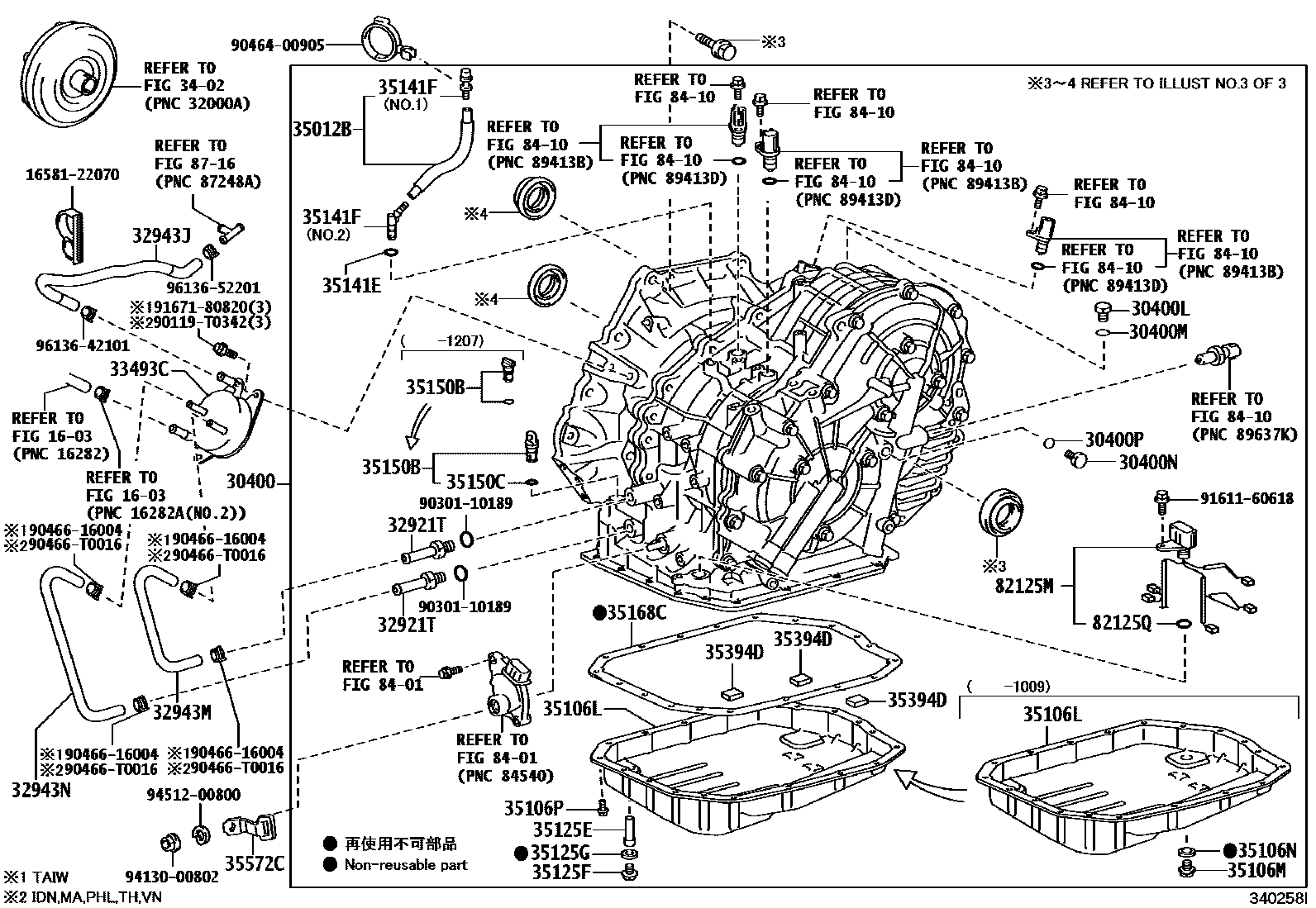

Toyota COROLLA/ALTIS — TRANSAXLE ASSY(CVT)

0001 1K111 0002 1K111 0003 1K111 0004 1K311 0005 1K311 0006 1K311

1603

30400TRANSAXLE ASSY, CONTINUOUSLY VARIABLE

main30400-12240iZRE142..18G..TH¥504,000201007-201211

K311

main30400-12240iZRE142..HTWCF;ZRE142..18E..TH..HTWC;ZRE142..CVFC..(IDN,IND,MA,TAIW,VN)¥504,000201007

K311

main30400-20030iZRE143..CVFC¥419,000201007

K111

30400LPLUG , FILLER(CVT)

main90341-12025iZRE142..CVFC¥190201007-201407

main90341-18061iZRE143..CVFC¥310201007-201212

main90341-18077iZRE143¥190201212-201407

30400MGASKET, FILLER PLUG(CVT)

main90430-12221iZRE142..CVFC¥200201007-201407

main90430-18008iZRE143..CVFC¥110201007-201407

30400NPLUG, REFILL(CVT)

main90341-18061iZRE142..CVFC¥310201007-201203

main90341-18061iZRE143..CVFC¥310201007-201212

main90341-18077iZRE143¥190201212-201407

main90341-18077iZRE142..CVFC¥190201203-201407

30400PGASKET, REFILL PLUG(CVT)

main90430-18008iZRE142,143..CVFC¥110201007-201407

32921TCONNECTOR, TUBE

main90404-13004iZRE143..CVFC¥500201007

sub90404-13010¥310

32943JHOSE, TRANSMISSION OIL COOLER

main16261-37060iZRE143..CVFC..(TAIW,VN)¥1,350201007

32943MHOSE, TRANSMISSION OIL COOLER, NO.1

main32943-02450iZRE143..CVFC..(IDN,MA,PHL,TH,VN)201008

main32943-02470iZRE143..TAIW201007-201310

32943NHOSE, TRANSMISSION OIL COOLER, NO.2

main32943-02460iZRE143..CVFC..(IDN,MA,PHL,TH,VN)201008

main32943-02480iZRE143..TAIW201007-201310

33493CCOOLER, TRANSMISSION OIL

main33493-12040iZRE142..CVFC¥16,900201007-201407

main33493-28040iZRE143..CVFC¥12,400201007-201407

3402

35012BHOSE SUB-ASSY, TRANSMISSION BREATHER

main3510A-44010iZRE143..CVFC¥1,280201007-201201

sub3510A-44011¥1,280

main3510A-44011iZRE143¥1,280201201-201204

sub3510A-44012¥1,060

main3510A-44012iZRE143¥1,060201204

35106LPAN SUB-ASSY, TRANSAXLE OIL(CVT)

main35106-20030iZRE143..CVFC201007-201009

sub35106-20031¥7,700

main35106-20031iZRE143..CVFC¥7,700201009

sub35106-20032¥6,400

sub35125-44071¥260

main35106-20040iZRE142..18G..TH201007-201211

main35106-20040iZRE142..HTWCF;ZRE142..18E..TH..HTWC;ZRE142..CVFC..(IDN,IND,MA,TAIW,VN)201007

35106MPLUG SUB-ASSY, DRAIN(CVT)

main90341-18016iZRE143..CVFC¥190201007-201009

35106NGASKET, DRAIN PLUG(CVT)

main90430-18008iZRE143..CVFC¥110201007-201009

35106PBOLT(FOR TRANSAXLE OIL PAN)

main90119-06173iZRE142..18G..TH¥80201007-201211

main90119-06173iZRE142..HTWCF;ZRE142..18E..TH..HTWC;ZRE142..CVFC..(IDN,IND,MA,TAIW,VN)¥80201007

35125ETUBE, OVERFLOW(CVT)

main35125-20490iZRE142..CVFC¥160201007-201407

main35125-44070iZRE143..CVFC¥310201007-201407

sub35125-44071¥260

35125FPLUG, OVERFLOW(CVT)

main90341-12034iZRE142,143..CVFC¥190201007-201407

35125GGASKET, OVERFLOW PLUG(CVT)

main90430-12008iZRE142,143..CVFC¥90201007-201407

35141ERING, O(FOR BREATHER PLUG)

main90301-06005iZRE143..CVFC;ZRE142..HTWCF;ZRE142..18E..TH..HTWC;ZRE142..CVFC..(IDN,IND,MA,TAIW,VN)¥170201007

main90301-06005iZRE142..18G..TH¥170201007-201211

35141FPLUG, BREATHER, NO.1(CVT)

main90930-03149iZRE143..CVFC¥220201007

NO.1

main90930-03149iZRE142..CVFC¥220201007-201204

NO.1

main90930-03164iZRE143..CVFC¥360201007

NO.2

main90930-03191iZRE142..HTWCF;ZRE142..18E..TH..HTWC;ZRE142..CVFC..(IDN,IND,MA,TAIW,VN)¥260201007

NO.2

main90930-03191iZRE142..18G..TH¥260201007-201211

NO.2

main90930-03216iZRE142..18G..TH¥260201204-201211

NO.1

main90930-03216iZRE142..HTWCF;ZRE142..18E..TH..HTWC;ZRE142..CVFC..(IDN,IND,MA,TAIW,VN)¥260201204

NO.1

35150BPLUG ASSY, TRANSMISSION CASE

main35150-44010iZRE142,143..CVFC¥340201007-201207

main35150-48010iZRE142..18G..TH¥280201207-201211

main35150-48010iZRE143;ZRE142..HTWCF;ZRE142..18E..TH..HTWC;ZRE142..CVFC..(IDN,IND,MA,TAIW,VN)¥280201207

35150CRING, O (FOR TRANSMISSION CASE PLUG)

main90301-09173iZRE142..18G..TH¥140201207-201211

main90301-09173iZRE143;ZRE142..HTWCF;ZRE142..18E..TH..HTWC;ZRE142..CVFC..(IDN,IND,MA,TAIW,VN)¥140201207

35168CGASKET, TRANSAXLE OIL PAN(CVT)

main35168-12090iZRE142..18G..TH¥620201007-201211

sub35168-12091¥370

main35168-12090iZRE142..HTWCF;ZRE142..18E..TH..HTWC;ZRE142..CVFC..(IDN,IND,MA,TAIW,VN)¥620201007-201402

sub35168-12091¥370

main35168-12091iZRE142..CVFC¥370201402

main35168-20010iZRE143..CVFC¥920201007

35394DMAGNET, OIL CLEANER(CVT)

main35394-30011iZRE142..18G..TH¥360201007-201211

main35394-30011iZRE143..CVFC;ZRE142..HTWCF;ZRE142..18E..TH..HTWC;ZRE142..CVFC..(IDN,IND,MA,TAIW,VN)¥360201007

35572CLEVER, TRANSMISSION CONTROL SHAFT

main35572-12160iZRE142..CVFC¥390201007-201407

main35572-42030iZRE143..CVFC¥930201007-201407

82125MWIRE, TRANSMISSION

main82125-12400iZRE142..CVFC¥1,790201007-201407

main82125-44020iZRE143..CVFC¥1,900201007-201407

82125QRING, O(FOR TRANSMISSION WIRE)

main90301-21009iZRE142..18G..TH¥170201007-201211

main90301-21009iZRE143..CVFC;ZRE142..HTWCF;ZRE142..18E..TH..HTWC;ZRE142..CVFC..(IDN,IND,MA,TAIW,VN)¥170201007

8401

8410

8716

1658122070CLAMP, HOSE(FOR WATER HOSE)

main16581-22070¥960

90119T0342

main90119-T0342

9030110189

main90301-10189¥170

9046400905

main90464-00905¥230

9046616004

main90466-16004¥180

90466T0016

main90466-T0016

9161160618

main91611-60618¥120

9167180820

main91671-80820¥80

9413000802

main94130-00802¥90

9451200800

main94512-00800¥80

9613642101

main96136-42101¥240

9613652201

main96136-52201¥180

44 parts on this diagram · 6 diagrams in section
