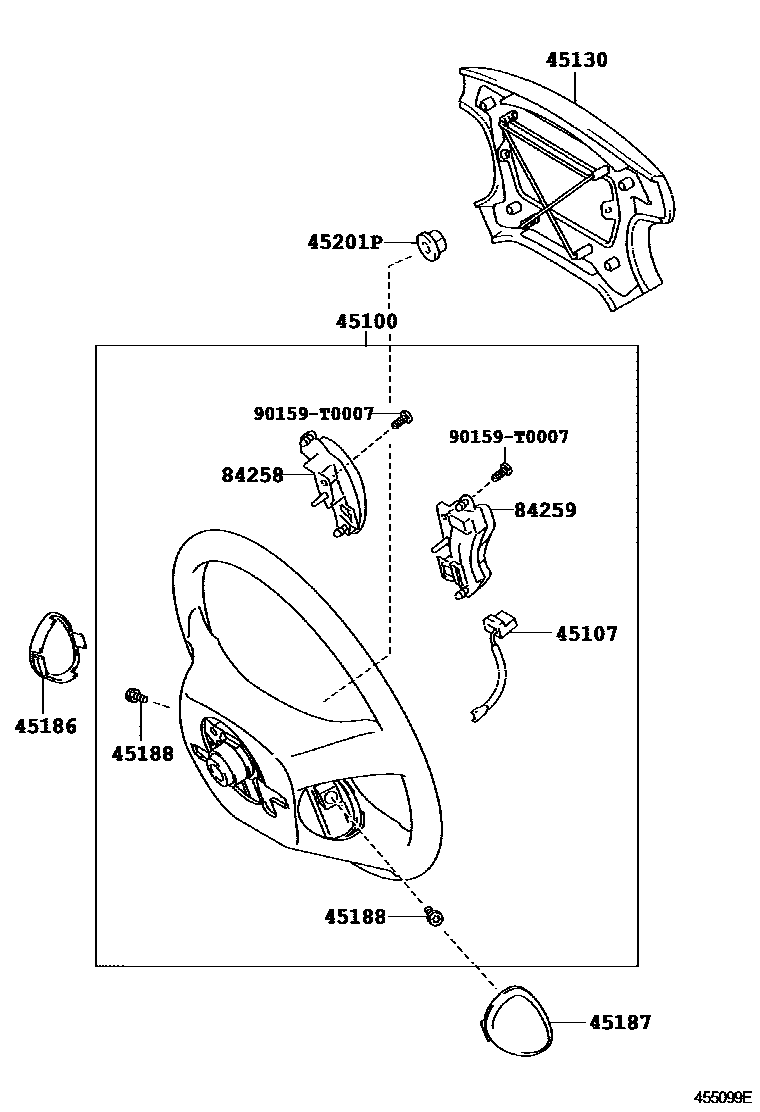

Toyota COROLLA/ALTIS — STEERING WHEEL

0001 14-SPOKE,W/O(AIR BAG) 0003 14-SPOKE 0008 14-SPOKE,W(AUDIO SWICH) 0012 13-SPOKE 0014 13-SPOKE 0015 14-SPOKE,W(AUDIO SWITCH) 0016 13-SPOKE 0017 13-SPORKE

45100WHEEL ASSY, STEERING

main45100-02680-B0iZZE141..16E..(MA,PHL);ZZE141..(16J,LIMO)..TH200801-201008

4-SPOKE,URETHANE,DK.GRAY,TRIM1#

sub45100-02U10

main45100-02680-E0iZZE142..18E..TH200812-201008

4-SPOKE,URETHANE,ASH BROWN,TRIM4#

sub45100-02U10

main45100-02680-E0iZZE142..18J..IDN;ZZE141..RHD..4FC..(16E,16G)200801-201008

4-SPOKE,URETHANE,ASH BROWN,TRIM4#

sub45100-02U10

main45100-02680-E0iZZE141..16E..TH200801-200812

4-SPOKE,URETHANE,ASH BROWN,TRIM4#

sub45100-02U10

main45100-02F60-B0iZZE14#..(16G,18G)..(PHL,VN)200802-201008

4-SPOKE,LEATHER,DK.GRAY,TRIM1#

sub45100-02U20

main45100-02F60-E0iZZE141..16G..TH200801-201008

4-SPOKE,LEATHER,GRADE MARK : 1.6E OR 1.8E(TAIWAN),ASH BROWN,TRIM4#

sub45100-02U20

main45100-02F60-E0iZZE142..MA200801-201008

4-SPOKE,LEATHER,SINGAPORE SPEC,ASH BROWN,TRIM4#

sub45100-02U20

main45100-02F60-E0iZZE142..18G..TH200812-201008

4-SPOKE,LEATHER,ASH BROWN,TRIM4#

sub45100-02U20

main45100-02F60-E0iZZE142..G;NDE140,ZZE142..(4FC,6F)..(18G,E)..IND200801-201105

4-SPOKE,LEATHER,ASH BROWN,TRIM4#

sub45100-02U20

main45100-02F60-E0iZZE142..VN200801-201010

4-SPOKE,LEATHER,ASH BROWN,TRIM4#

sub45100-02U20

main45100-02F60-E0iZZE142..18E..TH200812-201008

4-SPOKE,LEATHER,SINGAPORE SPEC,ASH BROWN,TRIM4#

sub45100-02U20

main45100-02F60-E0iZZE142..18E..TH200801-200812

4-SPOKE,LEATHER,ASH BROWN,TRIM4#

sub45100-02U20

main45100-02F60-E0iZZE142..18G..IDN200801-201008

4-SPOKE,LEATHER,ASH BROWN,TRIM4#

sub45100-02U20

main45100-02G10-E0iZZE142..18G..TH200801-200812

4-SPOKE,LEATHER,ASH BROWN,TRIM4#

main45100-02G30-B0iZRE143,ZZE142..(18E,20E)..TAIW200712-201007

4-SPOKE,LEATHER,DK.GRAY,TRIM1#

main45100-02G30-E0iZRE143,ZZE142..(18E,20E)..TAIW200712-201007

4-SPOKE,LEATHER,ASH BROWN,TRIM4#

main45100-02G40-E1iZZE142..PHL200801-200812

4-SPOKE,WOOD&LEATHER,ASH BROWN,TRIM4#

main45100-02G40-E1iZZE14#..(16V,18G)..(MA,PHL)200801-201008

4-SPOKE,WOOD&LEATHER,ASH BROWN,TRIM4#

main45100-02G40-E1iNDE140..G;ZZE142..5F..18G..IND200801-201105

4-SPOKE,WOOD&LEATHER,ASH BROWN,TRIM4#

main45100-02G50-E1iZZE142..18V..IDN200801-200812

4-SPOKE,WOOD&LEATHER,ASH BROWN,TRIM4#

main45100-02G50-E1iZZE142..18V..IND200801-201105

4-SPOKE,WOOD&LEATHER,ASH BROWN,TRIM4#

main45100-02J40-B0iZRE143..20G..TAIW200712-201007

4-SPOKE,WOOD&LEATHER,DK.GRAY,TRIM1#

main45100-02J40-B0iZZE142..18G..TAIW200712-200811

4-SPOKE,WOOD&LEATHER,DK.GRAY,TRIM1#

main45100-02J40-E0iZRE143..20G..TAIW200712-201007

4-SPOKE,WOOD&LEATHER,ASH BROWN,TRIM4#

main45100-02J40-E0iZZE142..18G..TAIW200712-200811

4-SPOKE,WOOD&LEATHER,ASH BROWN,TRIM4#

main45100-02J60-B0iZZE141..16G201008-201209

4-SPOKE,URETHANE,DK.GRAY,TRIM1#

sub45100-02J60

main45100-02J60-B0iZRE141..16G..TH201008-201211

4-SPOKE,URETHANE,SRS AIR BAG-WITHOUT,DK.GRAY,TRIM4#

sub45100-02J60

main45100-02J60-B0iZRE141..16G..TH201008-201211

4-SPOKE,URETHANE,DK.GRAY,TRIM1#

sub45100-02J60

main45100-02J60-B0iZRE141,ZZE141..MTM..TH201008-201209

4-SPOKE,URETHANE,DK.GRAY,TRIM4#

sub45100-02J60

main45100-02J90-E0iZZE142..5F..PKN200808

4-SPOKE,URETHANE,ASH BROWN,TRIM4#

main45100-02J90-E0iCE140..20DSA200808-201104

4-SPOKE,URETHANE,ASH BROWN,TRIM4#

main45100-02K00-E0iZZE142..4FC..PKN200808

4-SPOKE,URETHANE,ASH BROWN,TRIM4#

main45100-02K10-B0iZZE142..18V..TAIW200712-200811

4-SPOKE,WOOD&LEATHER,DK.GRAY,TRIM1#

main45100-02K10-B0iZRE143..20V..TAIW200712-201007

4-SPOKE,WOOD&LEATHER,DK.GRAY,TRIM1#

main45100-02K10-E0iZZE142..18V..TAIW200712-200811

4-SPOKE,WOOD&LEATHER,ASH BROWN,TRIM4#

main45100-02K10-E0iZRE143..20V..TAIW200712-201007

4-SPOKE,WOOD&LEATHER,ASH BROWN,TRIM4#

main45100-02K20-B0iCE140,NZE140,ZRE141..(20D,D,GLI,XLI)..PKN201104-201406

3-SPOKE,URETHANE,DK.GRAY,TRIM4#

main45100-02K20-E0iCE140,NZE140..20D,GLI,XLI200808-201104

3-SPOKE,URETHANE,ASH BROWN,TRIM4#

main45100-02Q60-B0iZRE143..VN201010-201407

3-SPOKE,LEATHER,DK.GRAY,TRIM4#

main45100-02Q60-B0iZRE143..20G..TH201008-201311

3-SPOKE,LEATHER,DK.GRAY,TRIM1#,4#

main45100-02Q70-B0iZRE143..20V..(MA,TH)201008-201311

3-SPOKE,LEATHER,DK.GRAY,TRIM4#

main45100-02Q70-B0iZRE143..IDN201008-201311

3-SPOKE,LEATHER,DK.GRAY,TRIM1#,4#

main45100-02T10-B0iZRE143..PHL201008-201311

3-SPOKE,LEATHER,DK.GRAY,TRIM4#

main45100-02U00-B1iZRE141..16V201008-201311

4-SPOKE,WOOD&LEATHER,DK.GRAY,TRIM4#

main45100-02U10-B0iZRE142..18J..IND201301-201312

4-SPOKE,URETHANE,NEW J PACKAGE&AUDIO-RADIO LESS(WITH BOX) 4SPEAKER,DK.GRAY,TRIM4#

main45100-02U10-B0iNDE140..E201301-201312

4-SPOKE,URETHANE,DK.GRAY,TRIM4#

main45100-02U10-B0iZRE142..18E..TH201008-201211

4-SPOKE,URETHANE,DK.GRAY,TRIM1#,4#

main45100-02U10-B0iZRE142..18E..HTWCF201008-201311

4-SPOKE,URETHANE,DK.GRAY,TRIM1#,4#

main45100-02U10-B0iZRE142..18E..HTWCF201008-201311

4-SPOKE,URETHANE,DK.GRAY,TRIM1#

main45100-02U10-B0iZRE141..MA201008-201203

4-SPOKE,URETHANE,DK.GRAY,TRIM4#

main45100-02U10-B0iZRE141,ZZE141..MTM..TH201209-201311

4-SPOKE,URETHANE,DK.GRAY,TRIM1#

main45100-02U10-B0iZZE141..16G201209-201312

4-SPOKE,URETHANE,DK.GRAY,TRIM4#

main45100-02U10-B0iZRE141,142..(16G,18EL,18J)..(IDN,TH)201008-201312

4-SPOKE,URETHANE,DK.GRAY,TRIM4#

main45100-02U20-B0iZRE142..MA201008-201311

4-SPOKE,LEATHER,DK.GRAY,TRIM1#,4#

main45100-02U20-B0iZRE141..16G..PHL201008-201311

4-SPOKE,LEATHER,DK.GRAY,TRIM1#

main45100-02U20-B0iZRE141..16G..PHL201008-201311

4-SPOKE,LEATHER,SINGAPORE SPEC,DK.GRAY,TRIM4#

main45100-02U20-B0iZRE141..16G..PHL201008-201311

4-SPOKE,LEATHER,GRADE MARK : 1.6E OR 1.8E,DK.GRAY,TRIM4#

main45100-02U20-B0iNDE140,ZRE142..(18G,E)..(IDN,IND,VN)201008-201407

4-SPOKE,LEATHER,DK.GRAY,TRIM4#

main45100-02U20-B0iZRE141..MA201203-201407

4-SPOKE,LEATHER,DK.GRAY,TRIM4#

main45100-02U20-B0iZRE142..TH..HTWC201211-201407

4-SPOKE,LEATHER,DK.GRAY,TRIM4#

main45100-02U30-B1iNDE140,ZRE142..G201105-201312

4-SPOKE,WOOD&LEATHER,DK.GRAY,TRIM4#

sub45100-02U20

main45100-02U30-B1iZRE142..MA201008-201311

4-SPOKE,WOOD&LEATHER,DK.GRAY,TRIM1#,4#

sub45100-02U20

main45100-02U40-B1iZRE142..18V201105-201312

4-SPOKE,WOOD&LEATHER,DK.GRAY,TRIM4#

main45100-02U50-B0iZRE142..18J..TAIW201007-201310

4-SPOKE,URETHANE,DK.GRAY,TRIM1#

main45100-02U60-B0iZRE142..18E..TAIW201007-201305

4-SPOKE,URETHANE,DK.GRAY,TRIM1#,4#

main45100-02U90-B0iCE140,ZRE141..MTM..(20DSA,N)201104-201406

4-SPOKE,URETHANE,DK.GRAY,TRIM4#

main45100-02V00-B0iZRE141..4FC..N201104-201406

4-SPOKE,URETHANE,DK.GRAY,TRIM4#

main45100-02Y00-B0iZRE142..18E..TAIW201305-201310

3-SPOKE,URETHANE,DK.GRAY,TRIM1#

main45100-0M070-B0iZZE142..18J..TAIW200712-201007

4-SPOKE,URETHANE,GRADE MARK : 1.6E OR 1.8E(TAIWAN),DK.GRAY,TRIM1#

main45100-0M070-B0iZRE141,142..GCC201007-201310

4-SPOKE,URETHANE,DK.GRAY,TRIM1#,4#

main45100-0M070-B0iZZE142..18J..TAIW200712-201007

4-SPOKE,URETHANE,DK.GRAY,TRIM1#

main45100-0M070-B0iZZE141..TAIW200712-200811

4-SPOKE,URETHANE,DK.GRAY,TRIM1#

main45100-0M070-B1iZZE14#..GCC200901-201007

4-SPOKE,URETHANE,MD.GRAY,TRIM1#

main45100-0M070-E0iZZE14#..4FC..(18J,GLI,XLI)200712-201007

4-SPOKE,URETHANE,GRADE MARK : 1.6E OR 1.8E(TAIWAN),ASH BROWN,TRIM4#

main45100-0M070-E0iZZE14#..4FC..(18J,GLI,XLI)200712-201007

4-SPOKE,URETHANE,ASH BROWN,TRIM4#

main45100-0M160-B0iZRE143..TAIW201007-201310

3-SPOKE,LEATHER,DK.GRAY,TRIM1#,4#

main45100-12A90-B0iZRE142..18J..IND201105-201301

3-SPOKE,URETHANE,DK.GRAY,TRIM4#

main45100-12A90-E0iZZE142..18J..IND200808-201105

3-SPOKE,URETHANE,ASH BROWN,TRIM4#

main45100-12D10-E0iZRE143..PHL;ZRE143..20G..TH200812-201008

3-SPOKE,LEATHER,ASH BROWN,TRIM4#

main45100-12D10-E0iZRE143..VN200812-201010

3-SPOKE,LEATHER,ASH BROWN,TRIM4#

main45100-12E40-E0iZRE143..RHD..20V200812-201008

3-SPOKE,LEATHER,ASH BROWN,TRIM4#

45107WIRE SUB-ASSY, HORN BUTTON

main45107-06031iZRE142..18E..TH201008-201211

main45107-06031iZRE141..16G..TH;ZRE142..(18E,18EL)..HTWCF;CE140,ZRE141,142..MTM..(16E,18J,20DSA,N)..(IDN,PHL,PKN)201008

main45107-06031iZZE141..16E..TH200801-200812

main45107-06031iZZE141;ZRE141..6F..TH201209

main45107-06031iZZE142..5F..PKN200801

main45107-06031iZRE141..MA201008-201203

main45107-06031iZZE141..16E..(MA,PHL);ZZE14#..(16G,16J,18J,LIMO)..(IDN,TH)200801-201008

main45107-06031iZZE142..18E..TH200812-201008

main45107-06031iCE140..20DSA200801-201104

main45107-06031iZRE142..18J..IND201301

main45107-06040iZRE141..16G..TH201008-201211

SRS AIR BAG-WITHOUT

main45107-06040iZZE141;ZRE141..6F..TH201008-201209

main45107-28030iZZE14#..4FC..(18J,GLI,XLI)¥350200712-201007

GRADE MARK : 1.6E OR 1.8E(TAIWAN)

main45107-28030iZZE141..TAIW¥350200712-200811

main45107-28030iZRE141,142..ATM..(18J,GLI,XLI)¥350201007-201310

main45107-52010iCE140,NZE140,ZRE141..(20D,D,GLI,XLI)..PKN¥170201104

main45107-52010iZRE142..18J..IND¥170201104-201301

main45107-52010iZZE142..18J..IND¥170200808-201105

main45107-52010iCE140,NZE140..20D,GLI,XLI¥170200808-201104

45130BUTTON ASSY, HORN

main45130-02440-B0iZRE141,142..(18E,18G,GLI,XLI)..(GCC,MA,TH)201007-201311

DK.GRAY,TRIM1#

sub45130-02440

main45130-02440-B0iZZE141..16G201209-201407

DK.GRAY,TRIM4#

sub45130-02440

main45130-02440-B0iZRE141,142..(18E,18G,GLI,XLI)..(GCC,MA,TH)201007-201311

DK.GRAY,TRIM1#,4#

sub45130-02440

main45130-02440-B0iZZE14#..(16J,18G,18V)..TAIW200712-200811

DK.GRAY,TRIM1#

sub45130-02440

main45130-02440-B0iZZE142..PHL200712-200812

DK.GRAY,TRIM1#

sub45130-02440

main45130-02440-B0iZRE143,ZZE142..(18E,18J,20E,20G,20V)..TAIW200712-201007

DK.GRAY,TRIM1#

sub45130-02440

main45130-02440-B0iZZE141..(16J,LIMO)..TH;ZZE14#..(16E,16G,18G)..(MA,PHL,VN)200712-201008

DK.GRAY,TRIM1#

sub45130-02440

main45130-02440-B0iZRE142..18J..IND201301-201407

DK.GRAY,TRIM4#

sub45130-02440

main45130-02440-B0iZRE142..(18EL,18J)..(IDN,TH);ZRE141,142..(16V,18G,18V,E,G)..(IDN,IND,PHL,VN);CE140,NDE140,ZRE141..RHD..(16E,16G,20DSA,E,G,N)201008-201407

DK.GRAY,TRIM4#

sub45130-02440

main45130-02440-B0iZRE141,ZZE141..MTM..TH201209-201311

DK.GRAY,TRIM1#

sub45130-02440

main45130-02440-B0iZRE142..18E..TAIW201007-201305

DK.GRAY,TRIM1#,4#

sub45130-02440

main45130-02440-B1iZZE14#..GCC200901-201007

MD.GRAY,TRIM1#

sub45130-02440

main45130-02440-E0iZZE142..VN200712-201010

ASH BROWN,TRIM4#

sub45130-02440

main45130-02440-E0iZZE14#..(16J,18G,18V)..TAIW200712-200811

ASH BROWN,TRIM4#

sub45130-02440

main45130-02440-E0iZZE141..16E..TH;ZZE142..18V..(IDN,PHL)200712-200812

ASH BROWN,TRIM4#

sub45130-02440

main45130-02440-E0iZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)200712-201007

ASH BROWN,TRIM4#

sub45130-02440

main45130-02440-E0iZZE141..RHD..4FC..(16E,16G);ZZE14#..(16V,18E,18G,18J)..(IDN,MA,PHL,TH)200712-201008

ASH BROWN,TRIM4#

sub45130-02440

main45130-02440-E0iCE140..20DSA200712-201104

ASH BROWN,TRIM4#

sub45130-02440

main45130-02440-E0iNDE140,ZZE142..(18G,18V,E,G)..IND200712-201105

ASH BROWN,TRIM4#

sub45130-02440

main45130-02440-E0iZZE142..PKN200712

ASH BROWN,TRIM4#

sub45130-02440

main45130-02490-B0iCE140,NZE140,ZRE141..(20D,D,GLI,XLI)..PKN201104-201406

DK.GRAY,TRIM4#

main45130-02490-E0iCE140,NZE140..20D,GLI,XLI200808-201104

ASH BROWN,TRIM4#

main45130-02560-B0iZRE143..CVFC..(MA,TAIW,TH)201007-201311

DK.GRAY,TRIM1#,4#

main45130-02560-B0iZRE143..CVFC..(IDN,PHL,VN)201008-201407

DK.GRAY,TRIM4#

main45130-02560-B0iZRE142..18E..TAIW201305-201310

DK.GRAY,TRIM1#

main45130-06190-B0iZZE141..16G201008-201209

DK.GRAY,TRIM4#

sub45130-06190

main45130-06190-B0iZZE141..16G201008-201209

DK.GRAY,TRIM1#

sub45130-06190

main45130-06190-B0iZRE141..4FC..16J201008-201211

DK.GRAY,TRIM1#

sub45130-06190

main45130-06190-B0iZRE141..4FC..16J201008-201211

SRS AIR BAG-WITHOUT,DK.GRAY,TRIM4#

sub45130-06190

main45130-12A80-B0iZRE142..18J..IND201105-201301

DK.GRAY,TRIM4#

main45130-12A80-E0iZZE142..18J..IND200808-201105

ASH BROWN,TRIM4#

main45130-12B80-E0iZRE143..IDN,PHL,TH200812-201008

ASH BROWN,TRIM4#

main45130-12B80-E0iZRE143..VN200812-201010

ASH BROWN,TRIM4#

45186COVER, STEERING WHEEL, LOWER NO.2

main45186-02190-B0iZRE143..20V..(MA,TH)201008-201311

DK.GRAY,TRIM4#

main45186-02190-B0iZRE143..20V..(MA,TH)201008-201311

DK.GRAY,TRIM1#,4#

main45186-06090-B0iZRE141,ZZE141..MTM..TH201008-201209

DK.GRAY,TRIM4#

sub45186-06090

main45186-06090-B0iZRE141,ZZE141..MTM..TH201008-201209

DK.GRAY,TRIM1#

sub45186-06090

main45186-06090-B0iZRE141..4FC..16J201008-201211

DK.GRAY,TRIM1#

sub45186-06090

main45186-06090-B0iZRE141..4FC..16J201008-201211

SRS AIR BAG-WITHOUT,DK.GRAY,TRIM4#

sub45186-06090

main45186-06140-B0iZRE141,142..ATM..(18V,N)201104-201406

DK.GRAY,TRIM4#

main45186-06140-E0iZZE142..4FC..PKN200801

ASH BROWN,TRIM4#

main45186-06140-E0iZZE142..18V..IND200801-201105

ASH BROWN,TRIM4#

main45186-06140-E0iZZE142..18G..TH;ZZE142..18V..IDN200801-200812

ASH BROWN,TRIM4#

main45186-06150-B0iZZE142..PHL200801-200812

DK.GRAY,TRIM1#

sub45186-06150

main45186-06150-B0iZRE141..16V;ZRE141,142..(16E,16G,18EL,18J)..(IDN,MA,TH);CE140,NDE140,ZRE141,142..(5F,6F,CVFC)..(18G,20DSA,E,G,N)..(IDN,IND,PKN,VN)201008-201407

DK.GRAY,TRIM4#

sub45186-06150

main45186-06150-B0iZZE141..16G201209-201407

DK.GRAY,TRIM4#

sub45186-06150

main45186-06150-B0iZRE142..18J..IND201301-201407

DK.GRAY,TRIM4#

sub45186-06150

main45186-06150-B0iZRE142..(18E,18G)..(MA,TH)201008-201311

DK.GRAY,TRIM1#

sub45186-06150

main45186-06150-B0iZRE141..(16E,16G)..PHL201008-201311

DK.GRAY,TRIM1#,4#

sub45186-06150

main45186-06150-B0iZZE141..(16J,LIMO)..TH;ZZE14#..(16E,16G,18G)..(MA,PHL,VN)200801-201008

DK.GRAY,TRIM1#

sub45186-06150

main45186-06150-B0iZRE141,ZZE141..MTM..TH201209-201311

DK.GRAY,TRIM1#

sub45186-06150

main45186-06150-E0iZZE142..5F..PKN200801

ASH BROWN,TRIM4#

sub45186-06150

main45186-06150-E0iZZE142..PHL;ZZE141..16E..TH200801-200812

ASH BROWN,TRIM4#

sub45186-06150

main45186-06150-E0iZZE142..18G..(IDN,MA);ZZE141..RHD..4FC..(16E,16G);ZZE14#..(16V,18E,18J)..(IDN,PHL,TH)200801-201008

ASH BROWN,TRIM4#

sub45186-06150

main45186-06150-E0iZZE142..18G..TH200812-201008

ASH BROWN,TRIM4#

sub45186-06150

main45186-06150-E0iZZE142..VN200801-201010

ASH BROWN,TRIM4#

sub45186-06150

main45186-06150-E0iCE140..20DSA200801-201104

ASH BROWN,TRIM4#

sub45186-06150

main45186-06150-E0iNDE140,ZZE142..(18G,E,G)..IND200801-201105

ASH BROWN,TRIM4#

sub45186-06150

main45186-06160-B0iZZE142..(18G,18V)..TAIW200712-200811

DK.GRAY,TRIM1#

main45186-06160-B0iZRE142..18E..TAIW201007-201305

DK.GRAY,TRIM1#,4#

main45186-06160-B0iZRE143,ZZE142..(18E,20E,20G,20V)..TAIW200712-201007

DK.GRAY,TRIM1#

main45186-06160-E0iZRE143,ZZE142..(18E,20E,20G,20V)..TAIW200712-201007

ASH BROWN,TRIM4#

main45186-06160-E0iZZE142..(18G,18V)..TAIW200712-200811

ASH BROWN,TRIM4#

main45186-0D010-B0iZRE143..LHD..CVFC..20V201008-201407

DK.GRAY,TRIM4#

main45186-0D010-B0iZRE143..20G..TH201008-201311

DK.GRAY,TRIM1#,4#

main45186-0M020-B0iZRE142..18J..TAIW201007-201310

DK.GRAY,TRIM1#

main45186-0M020-B0iZRE141,142..GCC201007-201310

DK.GRAY,TRIM1#,4#

main45186-0M020-B0iZZE142..18E..TAIW200712-201007

GRADE MARK : 1.6E OR 1.8E(TAIWAN),DK.GRAY,TRIM1#

main45186-0M020-B0iZZE142..18E..TAIW200712-201007

DK.GRAY,TRIM1#

main45186-0M020-B0iZZE141..TAIW200712-200811

DK.GRAY,TRIM1#

main45186-0M020-B1iZZE14#..GCC200901-201007

MD.GRAY,TRIM1#

main45186-0M020-E0iZZE14#..4FC..(18J,GLI,XLI)200712-201007

GRADE MARK : 1.6E OR 1.8E(TAIWAN),ASH BROWN,TRIM4#

main45186-0M020-E0iZZE14#..4FC..(18J,GLI,XLI)200712-201007

ASH BROWN,TRIM4#

main45186-0M020-E0iZZE141..TAIW200712-200811

ASH BROWN,TRIM4#

main45186-0M050-B0iZRE143..TAIW201007-201310

DK.GRAY,TRIM1#,4#

main45186-0M050-B0iZRE142..18E..TAIW201305-201310

DK.GRAY,TRIM1#

main45186-12010-E0iZRE143..RHD..20V200812-201008

ASH BROWN,TRIM4#

sub45186-12010¥320

main45186-12020-B0iZRE142..18J..IND201104-201301

DK.GRAY,TRIM4#

main45186-12020-B0iCE140,NZE140,ZRE141..(20D,D,GLI,XLI)..PKN201104-201406

DK.GRAY,TRIM4#

main45186-12020-E0iZRE143..VN200808-201010

ASH BROWN,TRIM4#

main45186-12020-E0iZRE143..PHL;ZRE143..20G..TH200808-201008

ASH BROWN,TRIM4#

main45186-12020-E0iZZE142..18J..IND200808-201105

ASH BROWN,TRIM4#

main45186-12020-E0iCE140,NZE140..20D,GLI,XLI200808-201104

ASH BROWN,TRIM4#

45187COVER, STEERING WHEEL, LOWER NO.3

main45187-06050-B0iZRE141,ZZE141..MTM..TH201008-201209

DK.GRAY,TRIM4#

sub45187-06050

main45187-06050-B0iZZE141..16G201008-201209

DK.GRAY,TRIM1#

sub45187-06050

main45187-06050-B0iZRE141..16G..TH201008-201211

SRS AIR BAG-WITHOUT,DK.GRAY,TRIM4#

sub45187-06050

main45187-06050-B0iZRE141..16G..TH201008-201211

DK.GRAY,TRIM1#

sub45187-06050

main45187-06090-B0iZZE141..(16J,LIMO)..TH;ZZE14#..(16E,16G,18G)..(MA,PHL,VN)200801-201008

DK.GRAY,TRIM1#

sub45187-06090

main45187-06090-B0iZZE142..PHL200801-200812

DK.GRAY,TRIM1#

sub45187-06090

main45187-06090-B0iZRE141..(16E,16G)..PHL201008-201311

DK.GRAY,TRIM1#

sub45187-06090

main45187-06090-B0iZRE141..(16E,16G)..PHL201008-201311

DK.GRAY,TRIM1#,4#

sub45187-06090

main45187-06090-B0iZRE141,ZZE141..MTM..TH201209-201311

DK.GRAY,TRIM1#

sub45187-06090

main45187-06090-B0iZRE142..(18EL,18J)..(IDN,TH);ZRE141,142..(16V,18G,18V,E,G)..(IDN,IND,PHL,VN);CE140,NDE140,ZRE141..RHD..(16E,16G,20DSA,E,G,N)201008-201407

DK.GRAY,TRIM4#

sub45187-06090

main45187-06090-B0iZZE141..16G201209-201407

DK.GRAY,TRIM4#

sub45187-06090

main45187-06090-B0iZRE142..18J..IND201301-201407

DK.GRAY,TRIM4#

sub45187-06090

main45187-06090-E0iZZE142..VN200801-201010

ASH BROWN,TRIM4#

sub45187-06090

main45187-06090-E0iZZE141..RHD..4FC..(16E,16G);ZZE14#..(16V,18E,18G,18J)..(IDN,MA,PHL,TH)200801-201008

ASH BROWN,TRIM4#

sub45187-06090

main45187-06090-E0iZZE141..16E..TH;ZZE142..18V..(IDN,PHL)200801-200812

ASH BROWN,TRIM4#

sub45187-06090

main45187-06090-E0iCE140..20DSA200801-201104

ASH BROWN,TRIM4#

sub45187-06090

main45187-06090-E0iZZE142..PKN200801

ASH BROWN,TRIM4#

sub45187-06090

main45187-06090-E0iNDE140,ZZE142..(18G,18V,E,G)..IND200801-201105

ASH BROWN,TRIM4#

sub45187-06090

main45187-06100-B0iZRE142..18J..TAIW201007-201310

DK.GRAY,TRIM1#

main45187-06100-B0iZRE142..18J..TAIW201007-201310

DK.GRAY,TRIM1#,4#

main45187-06100-B0iZZE14#..(16J,18G,18V)..TAIW200712-200811

DK.GRAY,TRIM1#

main45187-06100-B0iZRE142..18E..TAIW201007-201305

DK.GRAY,TRIM1#,4#

main45187-06100-B0iZRE143,ZZE142..(18E,18J,20E,20G,20V)..TAIW200712-201007

DK.GRAY,TRIM1#

main45187-06100-B1iZZE14#..GCC200901-201007

MD.GRAY,TRIM1#

main45187-06100-E0iZZE14#..(16J,18G,18V)..TAIW200712-200811

ASH BROWN,TRIM4#

main45187-06100-E0iZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)200712-201007

ASH BROWN,TRIM4#

main45187-0D010-B0iZRE143..MA,TH201008-201311

DK.GRAY,TRIM1#,4#

main45187-0D010-B0iZRE143..CVFC..(IDN,PHL,VN)201008-201407

DK.GRAY,TRIM4#

main45187-0M010-B0iZRE142..18E..TAIW201305-201310

DK.GRAY,TRIM1#

main45187-0M010-B0iZRE143..TAIW201007-201310

DK.GRAY,TRIM1#,4#

main45187-12020-B0iCE140,NZE140,ZRE141..(20D,D,GLI,XLI)..PKN201104-201406

DK.GRAY,TRIM4#

sub45187-12020¥320

main45187-12020-B0iZRE142..18J..IND201104-201301

DK.GRAY,TRIM4#

sub45187-12020¥320

main45187-12020-E0iZRE143..IDN,PHL,TH200808-201008

ASH BROWN,TRIM4#

sub45187-12020¥320

main45187-12020-E0iZZE142..18J..IND200808-201105

ASH BROWN,TRIM4#

sub45187-12020¥320

main45187-12020-E0iCE140,NZE140..20D,GLI,XLI200808-201104

ASH BROWN,TRIM4#

sub45187-12020¥320

main45187-12020-E0iZRE143..VN200808-201010

ASH BROWN,TRIM4#

sub45187-12020¥320

45188SCREW, STEERING WHEEL PAD ATTACHING

main45188-60010iZRE143,ZZE142..VN¥160200712-201010

L=18

main45188-60010iZZE14#..(16J,18G,18V)..TAIW¥160200712-200811

L=18

main45188-60010iZZE141..16E..TH;ZZE142..18V..(IDN,PHL)¥160200712-200812

L=18

main45188-60010iZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)¥160200712-201007

L=18

main45188-60010iZZE141..16E..(MA,PHL);ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20G,20V,LIMO)..(IDN,MA,PHL,TH)¥160200712-201008

L=18

main45188-60010iCE140,NZE140¥160200712-201104

L=18

main45188-60010iNDE140,ZZE142..IND¥160200712-201105

L=18

main45188-60010iZZE142..PKN¥160200712

L=18

main45188-60010iZRE141,142..ATM..(16J,18G)..TH¥160201007-201211

L=18

main45188-60010iZRE142..18E..TAIW¥160201007-201305

L=18

main45188-60010iZRE142..HTWCF;ZZE141..(16G,LIMO)..TH;ZRE141,142..(6F,CVFC)..(16J,18E)..TH..HTWC;ZRE142..(18G,18J,18V,E,G,GLI,XLI)..(GCC,IDN,IND,MA,TAIW,VN);CE140,NDE140,NZE140,ZRE1¥160201007

L=18

45201PNUT, STEERING WHEEL SET

main90179-12071iZZE14#..(16J,18G,18V)..TAIW¥130200712-200811

main90179-12071iZZE141..16E..TH;ZZE142..18V..(IDN,PHL)¥130200712-200812

main90179-12071iZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)¥130200712-201007

main90179-12071iZZE141..16E..(MA,PHL);ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20G,20V,LIMO)..(IDN,MA,PHL,TH)¥130200712-201008

main90179-12071iZRE143,ZZE142..VN¥130200712-201010

main90179-12071iCE140,NZE140¥130200712-201104

main90179-12071iNDE140,ZZE142..IND¥130200712-201105

main90179-12071iZZE142..PKN¥130200712

main90179-12071iZRE141,142..ATM..(16J,18G)..TH¥130201007-201211

main90179-12071iZRE142..HTWCF;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;ZRE142,ZZE141..(16G,18E,LIMO)..TH..HTWC;CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,¥130201007

84258COVER, STEERING PAD, RH

main84258-06010-B0iZRE141..4FC..16J201008-201211

SRS AIR BAG-WITHOUT,DK.GRAY,TRIM4#

sub84258-06010

main84258-06010-B0iZZE141..16G201008-201209

DK.GRAY,TRIM4#

sub84258-06010

main84258-06010-B0iZZE141..16G201008-201209

DK.GRAY,TRIM1#

sub84258-06010

main84258-06010-B0iZRE141..4FC..16J201008-201211

DK.GRAY,TRIM1#

sub84258-06010

84259COVER, STEERING PAD, LH

main84259-06010-B0iZZE141..16G201008-201209

DK.GRAY,TRIM4#

sub84259-06010

main84259-06010-B0iZRE141..16G..TH201008-201211

SRS AIR BAG-WITHOUT,DK.GRAY,TRIM4#

sub84259-06010

main84259-06010-B0iZRE141..16G..TH201008-201211

DK.GRAY,TRIM1#

sub84259-06010

main84259-06010-B0iZRE141,ZZE141..MTM..TH201008-201209

DK.GRAY,TRIM1#

sub84259-06010

90159T0007

main90159-T0007

10 parts on this diagram · 8 diagrams in section
