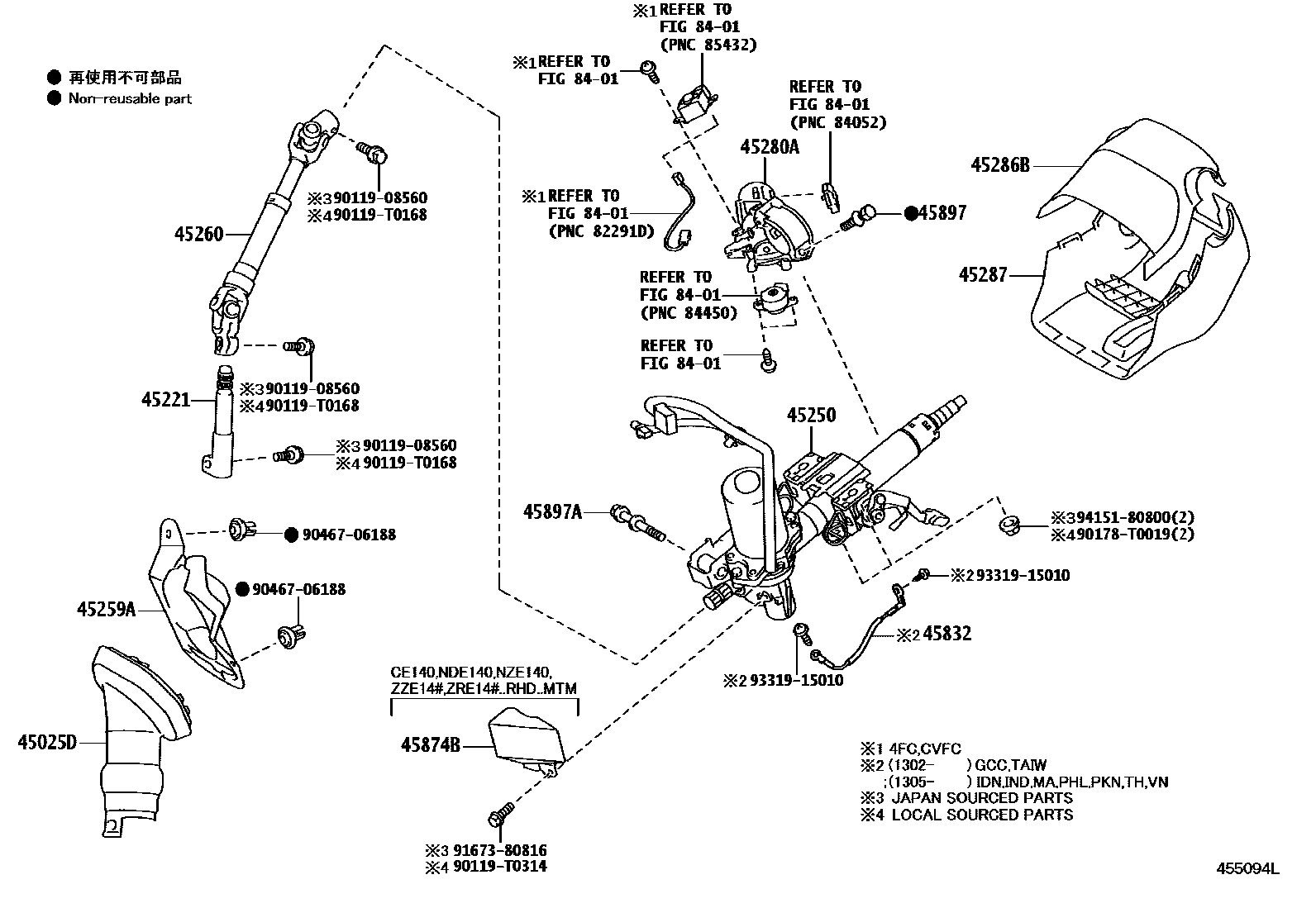

Toyota COROLLA/ALTIS — STEERING COLUMN & SHAFT

0001 1 0004 1W(SMART ENTRY) 0006 1

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-02140iZRE142..HTWCF;ZRE142..IDN,IND,MA;ZRE141,142..(6F,CVFC)..(16J,18E)..TH..HTWC;NDE140,ZRE141,143,ZZE141..RHD..(16E,16G,20G,20V,E,G,LIMO)200801-201312

main45025-02150iZZE14#..(16J,18G,18V)..TAIW200712-201310

main45025-02160iCE140,NZE140,ZRE141..PKN200808-201104

main45025-12250iZRE143,ZZE142..VN¥3,420200802-201010

45221SHAFT, STEERING INTERMEDIATE

main45221-02090iZRE141,142..ATM..(16J,18G)..TH200801-201211

main45221-12350iZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)¥8,800200712-201310

45250COLUMN ASSY, STEERING

main45250-02780iZZE142..PHL200802-201008

sub45250-02C70

main45250-02790iZZE141..16E..TH200801-201008

sub45250-02C50

main45250-02800iZZE142..18V..IDN200801-201008

sub45250-02C60

main45250-02A30iZRE143..PHL200812-201008

sub45250-02C80

main45250-02C50iZZE142..PKN201006-201211

main45250-02C60iZRE142..18G..IDN;ZRE142,143..(18V,20V,G)..(IDN,IND,TH)201008-201312

main45250-02C70iZRE143,ZZE142..VN201008-201010

main45250-02C80iZRE141..16V;ZRE143..LHD..CVFC..20V201008

main45250-12C41iZZE14#..16J,18E,18J200712-200801

sub45250-12C42¥104,000

main45250-12C42iZRE143,ZZE14#..LHD..(18E,18J,20E,GLI,XLI)¥104,000200801-201310

main45250-12D41iZZE142..18E200712-200801

WIRELESS DOOR LOCK-WITH(SMART ENTRY)

sub45250-12D42

main45250-12D42iZRE143..TAIW200801-201310

main45250-12D42iZZE142..(18G,18V)..TAIW200801-200811

WIRELESS DOOR LOCK-WITH(SMART ENTRY)

45259ASHEET, COLUMN HOLE COVER SILENCER

main45259-02130iZZE142..PKN200801-201211

main45259-02140iZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)200712-201310

main45259-12100iZRE141,142..PHL,VN;ZRE143..LHD..CVFC..20V200802-201010

45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2

main45260-02140iZZE142..PHL200802-201010

main45260-02150iZZE141..MA;ZRE143,ZZE14#..(16G,16J,18E,18G,18J,20G,20V,LIMO)..(IDN,MA,TH)200801-201211

main45260-12620iZZE14#..(16J,18G,18V)..TAIW200712-201310

45280ABRACKET ASSY, STEERING COLUMN, UPPER

main45280-02250iZRE143..MA;ZRE142..HTWCF;ZRE142..CVFC..18G..(IND,MA,VN);ZRE14#,ZZE141..ATM..(16E,16G,18E,20G,D,N)..(MA,PHL,PKN,TH)..HTWC200801-201211

main45280-02260iZRE142..6F..(18G,18J,E);CE140,NDE140,NZE140,ZRE141,ZZE141..MTM200801-201105

main45280-02270iZRE143,ZZE14#..LHD..(16J,18E,18J,20E,GLI,XLI)200712-201310

45286COVER, STEERING COLUMN

main45286-12975-E1iZZE142..18G..IDN;ZRE143..20V..(IDN,PHL,TH)200801-201001

ASH BROWN,TRIM4#

sub45286-12975¥4,370

main45286-12993-B0iZRE141,142..(16V,18G)..(IDN,PHL);ZRE142,143..(6F,CVFC)..(18V,20V,G)..(IDN,IND,PHL,VN)201008

DK.GRAY,TRIM4#

sub45286-12993

main45286-12993-B0iZRE143..20V..TH201008-201311

DK.GRAY,TRIM1#

sub45286-12993

main45286-12993-E0iZZE142..18G..IDN;ZRE143..20V..(IDN,PHL,TH)201001-201008

ASH BROWN,TRIM4#

sub45286-12993

45286BCOVER, STEERING COLUMN, UPR

main45286-02320-B0iZRE141..16G..PHL;ZRE141,ZZE141..(16E,16J,LIMO)..(PHL,TH)201008-201311

DK.GRAY,TRIM1#,4#

sub45286-02320

main45286-02320-B0iZZE142..PHL200801-201311

DK.GRAY,TRIM1#

sub45286-02320

main45286-02320-B0iZRE142..VN;ZRE141,142,ZZE141..(16E,16G,18EL,18J)..(IDN,MA,TH)201008-201407

DK.GRAY,TRIM4#

sub45286-02320

main45286-02320-E0iZZE142..PHL;ZZE141..16E..TH200801-201010

ASH BROWN,TRIM4#

sub45286-02320

main45286-02340-B0iZRE141,142..LHD..(18E,GLI,XLI)201007-201310

DK.GRAY,TRIM1#,4#

main45286-02340-B0iZRE143,ZZE142..(18E,18J,20E)..TAIW200712-201310

DK.GRAY,TRIM1#

main45286-02340-B1iZZE14#..GCC200901-201007

MD.GRAY,TRIM1#

main45286-02340-E0iZRE143,ZZE14#..LHD..(18E,18J,20E,GLI,XLI)200712-201007

ASH BROWN,TRIM4#

main45286-02350-B0iZRE143..20V..TAIW200712-201007

DK.GRAY,TRIM1#

main45286-02350-B0iZRE143..TAIW201007-201310

DK.GRAY,TRIM1#,4#

main45286-02350-E0iZRE143..20V..TAIW200712-201007

ASH BROWN,TRIM4#

main45286-02360-B0iCE140,NZE140,ZRE141..PKN201104-201406

DK.GRAY,TRIM4#

main45286-02360-E0iCE140,NZE140200808-201104

ASH BROWN,TRIM4#

main45286-02370-B0iNDE140;ZRE142..(18G,18J,E)..IND201105-201312

DK.GRAY,TRIM4#

main45286-02370-E0iNDE140,ZZE142..IND200808-201105

ASH BROWN,TRIM4#

main45286-02390-B0iZZE142..18E..TAIW200712-200811

Z AEROTOURER&WIRELESS DOOR LOCK-WITH(SMART ENTRY),DK.GRAY,TRIM1#

main45286-02390-B0iZRE143..20G..TAIW200712-201007

DK.GRAY,TRIM1#

main45286-02390-E0iZZE142..18G..TAIW200712-200811

Z AEROTOURER&WIRELESS DOOR LOCK-WITH(SMART ENTRY),ASH BROWN,TRIM4#

main45286-02390-E0iZZE142..18G..TAIW200712-201007

ASH BROWN,TRIM4#

45287COVER, STEERING COLUMN, LWR

main45287-02310-B0iZZE141..(16J,LIMO)..TH;ZZE14#..(16E,16G,18G)..(MA,PHL,VN)200801-201311

DK.GRAY,TRIM1#

sub45287-02310

main45287-02310-B0iZRE142..VN;ZRE141,142,ZZE141..(16E,16G,18EL,18J)..(IDN,MA,TH)201008-201407

DK.GRAY,TRIM4#

sub45287-02310

main45287-02310-B0iZRE143..MA;ZRE142,143..(18E,18G,20G)..(MA,TH)201008-201311

DK.GRAY,TRIM1#,4#

sub45287-02310

main45287-02310-E0iZZE142..PHL;ZZE141..16E..TH200801-201010

ASH BROWN,TRIM4#

sub45287-02310

main45287-02330-B0iZRE141,142..LHD..(18E,GLI,XLI)201007-201310

DK.GRAY,TRIM1#,4#

main45287-02330-B0iZZE141..TAIW200712-201310

DK.GRAY,TRIM1#

main45287-02330-B1iZZE14#..GCC200901-201007

MD.GRAY,TRIM1#

main45287-02330-E0iZRE143,ZZE14#..LHD..(18E,18J,20E,GLI,XLI)200712-201007

ASH BROWN,TRIM4#

main45287-02340-B0iZZE142..(18G,18V)..TAIW200712-201007

DK.GRAY,TRIM1#

main45287-02340-B0iZRE143..TAIW201007-201310

DK.GRAY,TRIM1#,4#

main45287-02340-B0iZZE142..18E..TAIW200712-200811

Z AEROTOURER&WIRELESS DOOR LOCK-WITH(SMART ENTRY),DK.GRAY,TRIM1#

main45287-02340-E0iZZE142..(18G,18V)..TAIW200712-200811

Z AEROTOURER&WIRELESS DOOR LOCK-WITH(SMART ENTRY),ASH BROWN,TRIM4#

main45287-02340-E0iZRE143..(20G,20V)..TAIW200712-201007

ASH BROWN,TRIM4#

main45287-02350-B0iCE140,NZE140,ZRE141..PKN201104-201406

DK.GRAY,TRIM4#

main45287-02350-E0iZZE142..PKN200808-201104

ASH BROWN,TRIM4#

main45287-02360-B0iNDE140;ZRE142..(18G,18J,E)..IND201105-201312

DK.GRAY,TRIM4#

main45287-02360-E0iNDE140,ZZE142..IND200808-201105

ASH BROWN,TRIM4#

45832CABLE, TILT STEERING SUPPORT BOND

main45832-02020iCE140,NDE140,NZE140,ZRE14#,ZZE141..IDN,IND,MA,PHL,PKN,TH,VN201305

main45832-21010iZRE14#..GCC,TAIW¥460201302-201310

45874BPROTECTOR, STEERING COLUMN, NO.1

main45874-02030iNDE140,ZZE142..MTM..IND200801-201105

45897BOLT, STEERING LOCK SET

main45897-12020iZRE142..HTWCF;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;ZRE142,ZZE141..(16G,18E,LIMO)..TH..HTWC;CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,¥210200712-201211

45897ABOLT, TILT STEERING PAWL SET

main45897-42010iZRE142..HTWCF;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;ZRE142,ZZE141..(16G,18E,LIMO)..TH..HTWC;CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,¥540200712-201211

8401

9011908560

main90119-08560¥110

90119T0168

main90119-T0168

90119T0314

main90119-T0314

90178T0019

main90178-T0019

9046706188

main90467-06188¥160

9167380816

main91673-80816¥80

9331915010

main93319-15010¥70

9415180800

main94151-80800¥80

22 parts on this diagram · 3 diagrams in section
