Toyota COROLLA/ALTIS — REFLEX REFLECTOR

81910REFLECTOR ASSY, REFLEX, RH

main81910-02050iZZE142..PKN200801-201104

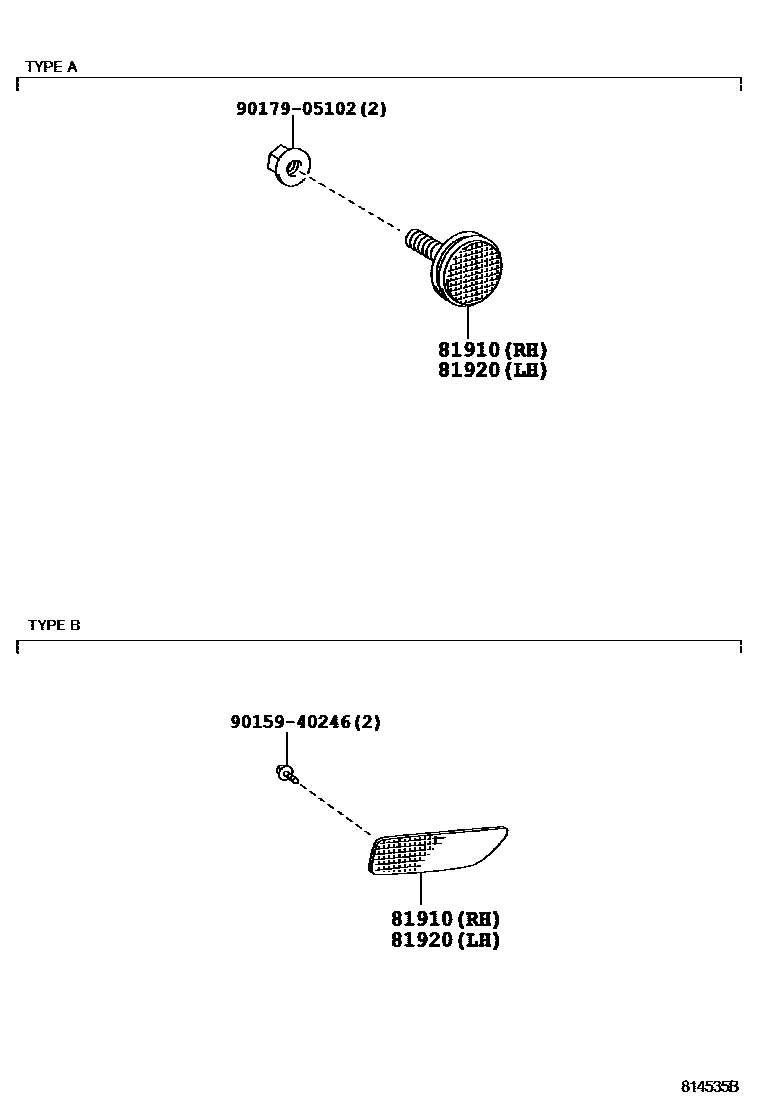

TYPE A:REFER ILLUST.

main81910-02060iZZE14#..(16J,18G,18V)..TAIW200712-201007

TYPE A:REFER ILLUST.

main81910-02140iZRE14#..GCC,TAIW201007-201310

TYPE B:REFER ILLUST.

main81910-02230iZRE143..CVFC..VN;CE140,NZE140,ZRE141,142..PKN,VN201008-201310

TYPE B:REFER ILLUST.

main81910-02240iNDE140,ZRE142..IND201105-201312

TYPE B:REFER ILLUST.

main81910-12100iNDE140,ZZE142..IND¥1,120200808-201105

TYPE A:REFER ILLUST.

81920REFLECTOR ASSY, REFLEX, LH

main81910-02050iZRE143,ZZE142..VN200801-201104

TYPE A:REFER ILLUST.

main81910-02060iZZE14#..(16J,18G,18V)..TAIW200712-201007

TYPE A:REFER ILLUST.

main81910-12100iNDE140,ZZE142..IND¥1,120200808-201105

TYPE A:REFER ILLUST.

main81920-02040iZRE14#..GCC,TAIW201007-201310

TYPE B:REFER ILLUST.

main81920-02070iZRE141,142..ATM..(16J,18G)..TH201008-201310

TYPE B:REFER ILLUST.

main81920-02080iNDE140,ZRE142..IND201105-201312

TYPE B:REFER ILLUST.

9015940246

main90159-40246¥70

9017905102

main90179-05102¥90

4 parts on this diagram · 1 diagram in section
