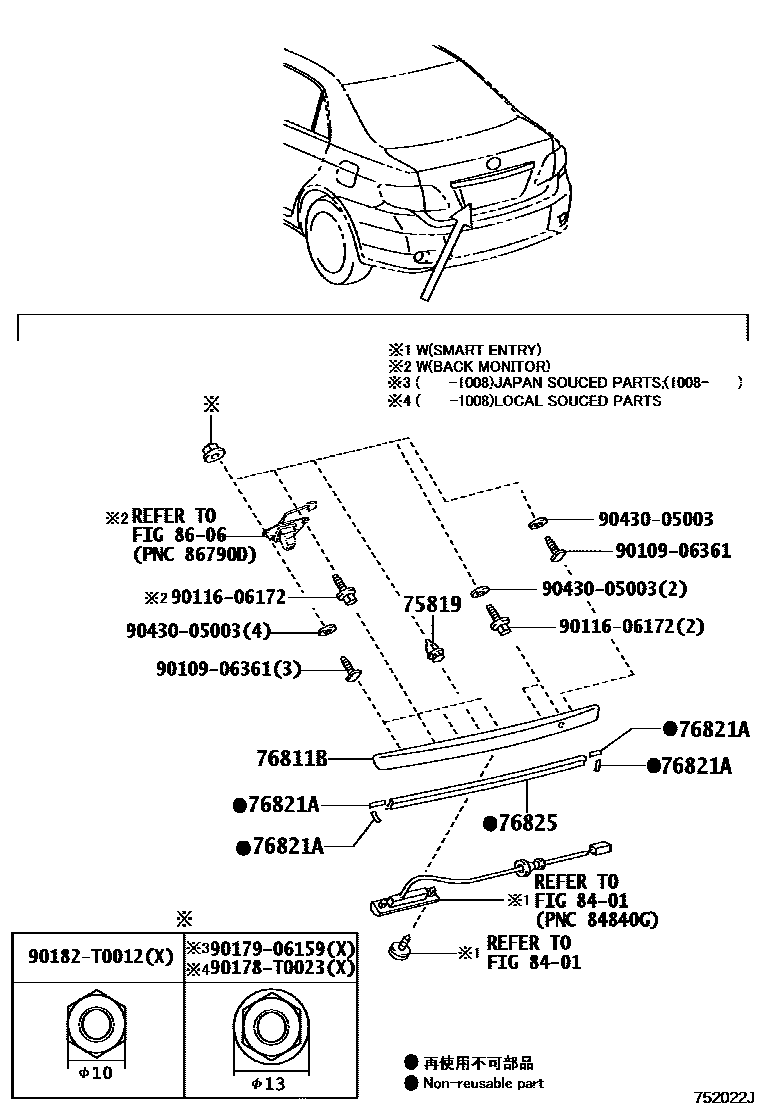

Toyota COROLLA/ALTIS — REAR MOULDING

0001 1 0006 1 0007 1

75819CLIP, LUGGAGE COMPARTMENT DOOR MOULDING

main75819-33010iZZE141..16E..(MA,PHL);ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20G,20V,LIMO)..(IDN,MA,PHL,TH)¥130200712-201211

76811BGARNISH, LUGGAGE COMPARTMENT DOOR, OUTSIDE

main76811-02360iZRE143,ZZE14#..(16G,16V,18E,18G,20G)..(MA,PHL,TH)200801-201105

PLATED

main76811-02370iZZE142..18V..TAIW200712-201007

PLATED

main76811-02380iZZE142..18G..IDN;ZRE143..20V..(IDN,PHL,TH)200801-201008

PLATED

main76811-02430iZZE142..18E..TAIW200712-200811

PLATED,Z AEROTOURER

main76811-02430iZRE143..20G..TAIW200712-201007

PLATED

main76811-02450iZRE143,ZZE142..LHD..(18E,20E,GLI,XLI)200712-201007

PLATED

main76811-02710iZRE142..LHD..(18E,GLI,XLI)201007-201310

PLATED,BACK DOOR GARNISH-WITH(PLATING),W/O(PROTECTOR)

main76811-02710iZRE141..GCC201007-201310

PLATED,W/O(PROTECTOR)

main76811-02720iZRE143..TAIW201007-201310

PLATED,W/O(PROTECTOR)

main76811-02917iZZE141..TAIW200712-201007

PAINT REQ.

main76811-02919iZZE142..PKN200801-201104

PAINT REQ.

main76811-02919iZZE141..16E..(MA,PHL);ZZE14#..(16J,18J,LIMO)..(IDN,TH)200801-201008

PAINT REQ.,GRADE MARK : 1.6E OR 1.8E(TAIWAN)

main76811-02925iZZE142..18J..IND200808-201105

PAINT REQ.

main76811-02927iZRE141..GCC;ZRE142..18J..TAIW201007-201310

PAINT REQ.

main76811-12A90iZRE141..GCC201007-201310

PLATED,W/(PROTECTOR)

main76811-12A90iZRE141..GCC201007-201310

PLATED,BACK DOOR GARNISH-WITH(PLATING),W/(PROTECTOR)

main76811-12B00iZRE143..TAIW201007-201310

PLATED,W/(PROTECTOR)

76821APROTECTOR, LUGGAGE COMPARTMENT DOOR OUTSIDE GARNISH

main76821-02110iZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)200712-201105

76825PROTECTOR, BACK DOOR OUTSIDE GARNISH

main76825-02070iZZE14#..(16J,18G,18V)..TAIW200712-201105

main76825-02120iZRE141,142..ATM..(16J,18G)..TH201007-201211

8401

8606

9010906361

main90109-06361¥60

9011606172

main90116-06172¥100

90178T0023

main90178-T0023¥70

9017906159

main90179-06159¥70

90182T0012

main90182-T0012

9043005003

main90430-05003¥60

12 parts on this diagram · 3 diagrams in section
