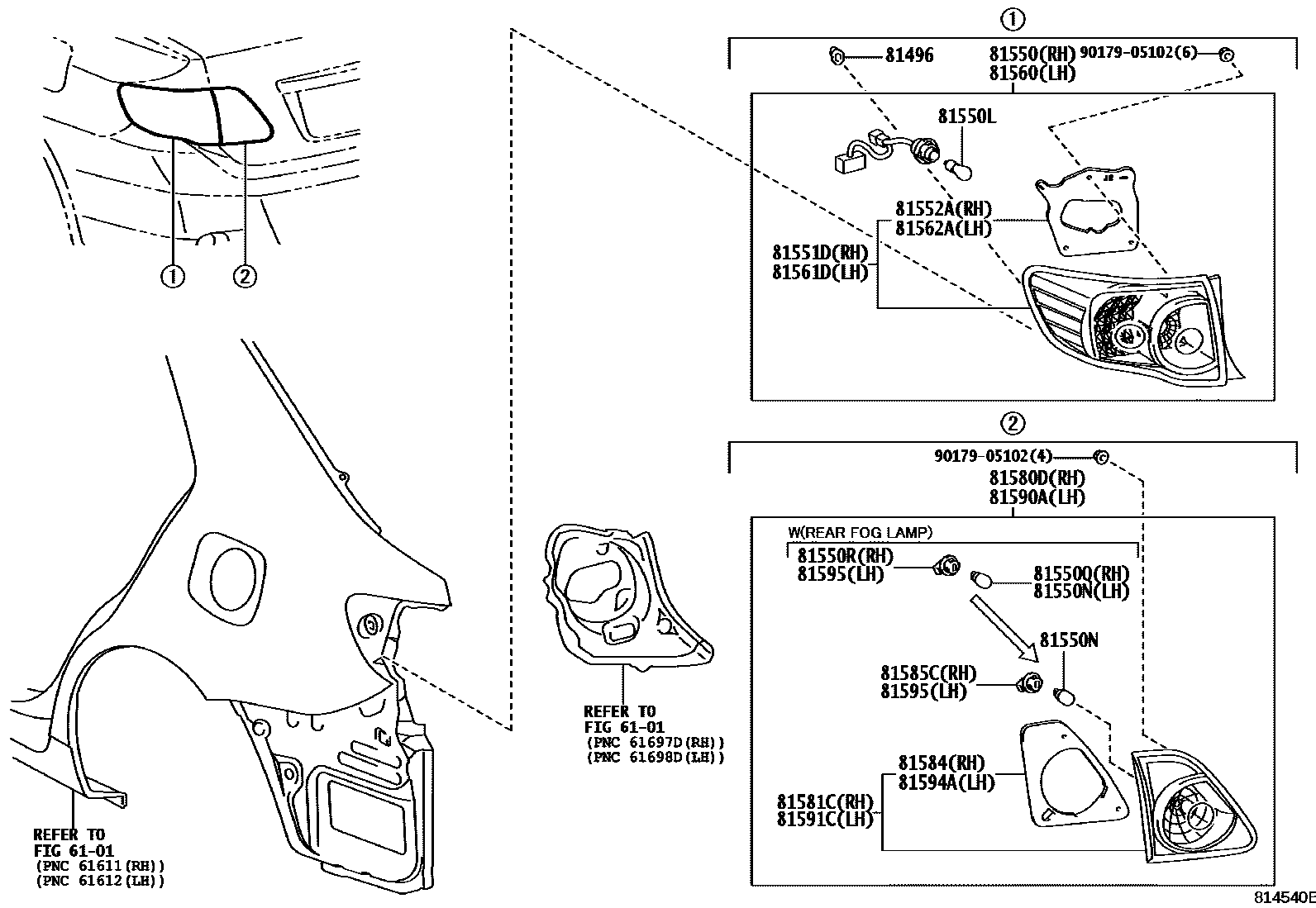

Toyota COROLLA/ALTIS — REAR COMBINATION LAMP

0001 1 0005 1 0008 1 0009 1 0010 1 0011 1

6101

81496GUIDE, REAR COMBINATION LAMP

main81496-52020iZRE143,ZZE142..VN¥70200712-201010

main81496-52020iCE140,NZE140¥70200712-201104

main81496-52020iNDE140,ZZE142..IND¥70200712-201105

main81496-52020iZZE14#..(16J,18G,18V)..TAIW¥70200712-200811

main81496-52020iZZE142..PKN¥70200712

main81496-52020iZRE141,142..ATM..(16J,18G)..TH¥70201007-201211

main81496-52020iZRE142..HTWCF;ZRE142..18G..(IDN,MA);ZZE141..(16G,LIMO)..TH;ZRE141,143..(6F,CVFC)..(16J,20G)..TH;ZRE141,142..(16E,16G,16V,18E,18J)..(IDN,MA,PHL,TH)..HTWC¥70201007-201310

main81496-52020iZRE143..20G..TAIW;ZRE143..CVFC..(20V,G);CE140,NDE140,NZE140,ZRE141,142..GCC,IND,PKN,TAIW,VN¥70201007

main81496-52020iZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)¥70200712-201007

main81496-52020iZZE141..16E..(MA,PHL);ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20G,20V,LIMO)..(IDN,MA,PHL,TH)¥70200712-201008

main81496-52020iZZE141..16E..TH;ZZE142..18V..(IDN,PHL)¥70200712-200812

81550LAMP ASSY, REAR COMBINATION, RH

main81550-02470iZZE141..16E..TH;ZZE142..18V..(IDN,PHL)200801-200812

main81550-02470iZZE141..16E..(MA,PHL);ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20G,20V,LIMO)..(IDN,MA,PHL,TH)200801-201008

main81550-02470iZRE143,ZZE142..VN200801-201010

main81550-02470iNDE140,ZZE142..IND200801-201105

main81550-02480iZZE14#..(16J,18G,18V)..TAIW200712-200811

main81550-02480iZRE143,ZZE142..(18E,18J,20E,20G,20V)..TAIW200712-201007

main81550-02500iZZE142..PKN200808

main81550-02500iCE140,NZE140200808-201104

main81550-02620iZRE142..HTWCF;ZRE141..6F..TH;ZRE142..18G..(IDN,MA);ZRE14#,ZZE141..(16E,16G,16V,18E,18J,20G,LIMO)..(IDN,MA,PHL,TH)..HTWC201008-201310

main81550-02620iZRE141,142..ATM..(16J,18G)..TH201008-201211

main81550-02620iNDE140,ZRE142..IND,VN201008

main81550-02630iZRE142,143..TAIW201007-201310

main81550-02640iCE140,NZE140,ZRE141..PKN201104

main81550-02670iZRE143..CVFC..20V201008

81550LBULB, REAR TURN SIGNAL LAMP

main90981-15021iZRE143..20G..TAIW;ZRE143..CVFC..(20V,G);CE140,NDE140,NZE140,ZRE141,142..GCC,IND,PKN,TAIW,VN¥300201007

main90981-15021iZRE141,142..ATM..(16J,18G)..TH¥300201007-201211

main90981-15021iZRE142..HTWCF;ZRE142..18G..(IDN,MA);ZZE141..(16G,LIMO)..TH;ZRE141,143..(6F,CVFC)..(16J,20G)..TH;ZRE141,142..(16E,16G,16V,18E,18J)..(IDN,MA,PHL,TH)..HTWC¥300201007-201310

main99132-11210iNDE140,ZZE142..IND¥170200712-201105

main99132-11210iZZE14#..(16J,18G,18V)..TAIW¥170200712-200811

main99132-11210iZZE141..16E..TH;ZZE142..18V..(IDN,PHL)¥170200712-200812

main99132-11210iZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)¥170200712-201007

main99132-11210iZZE141..16E..(MA,PHL);ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20G,20V,LIMO)..(IDN,MA,PHL,TH)¥170200712-201008

main99132-11210iZRE143,ZZE142..VN¥170200712-201010

main99132-11210iCE140,NZE140¥170200712-201104

main99132-11210iZZE142..PKN¥170200712

81550NBULB, BACK UP LAMP

main90981-11059iZZE14#..(16J,18G,18V)..TAIW¥200200712-200811

main90981-11059iZZE142..18V..IDN¥200200712-200812

main90981-11059iZZE142..PHL;ZZE141..16E..TH¥200200801-200812

main90981-11059iZRE143,ZZE142..(18E,18J,20E,20G,20V)..TAIW¥200200712-201007

main90981-11059iZZE14#..GCC¥200200801-201007

main90981-11059iZRE143,ZZE142..(18G,20V)..IDN¥200200712-201008

main90981-11059iZZE14#..(16E,18J)..(IDN,MA,PHL);ZRE143,ZZE14#..(16G,16J,16V,18E,18G,20G,20V,LIMO)..(MA,PHL,TH)¥200200801-201008

main90981-11059iZRE143,ZZE142..VN¥200200801-201010

main90981-11059iCE140,NZE140¥200200801-201104

main90981-11059iNDE140,ZZE142..IND¥200200801-201105

main90981-11059iZZE142..PKN¥200200801

main90981-11059iZRE141,142..ATM..(16J,18G)..TH¥200201007-201211

main90981-11059iZRE142,143..TAIW¥200201007-201310

main90981-11059iZRE143..CVFC..20V;CE140,NDE140,NZE140,ZRE141,142..GCC,IND,PKN,VN¥200201007

81550QBULB, REAR FOG LAMP, NO.1

main90981-13043iZRE143,ZZE142..(18G,20V)..IDN¥220200712-201008

main90981-13043iZZE14#..(16J,18G,18V)..TAIW¥220200712-200811

main90981-13043iZZE142..18V..IDN¥220200712-200812

main90981-13043iZRE143,ZZE142..(18E,18J,20E,20G,20V)..TAIW¥220200712-201007

main90981-13043iZRE142,143..TAIW¥220201007-201310

81550RSOCKET, REAR FOG LAMP

main90075-60042iZZE142..18V..IDN¥980200801-200812

main90075-60042iZRE143,ZZE142..(18G,20V)..IDN¥980200801-201008

main90075-8C013iZZE14#..(16J,18G,18V)..TAIW200712-200811

main90075-8C013iZRE143,ZZE142..(18E,18J,20E,20G,20V)..TAIW200712-201007

main90075-8C013iZRE142,143..TAIW201007-201310

81551DLENS & BODY, REAR COMBINATION LAMP, RH

main81551-02470iNDE140,ZZE142..IND200801-201105

main81551-02470iZZE141..16E..TH;ZZE142..18V..(IDN,PHL)200801-200812

main81551-02470iZZE141..16E..(MA,PHL);ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20G,20V,LIMO)..(IDN,MA,PHL,TH)200801-201008

main81551-02470iZRE143,ZZE142..VN200801-201010

main81551-02480iZZE14#..(16J,18G,18V)..TAIW200712-200811

main81551-02480iZRE143,ZZE142..(18E,18J,20E,20G,20V)..TAIW200712-201007

main81551-02510iZZE14#..GCC200901-201007

main81551-02620iZRE141,142..ATM..(16J,18G)..TH201008-201211

main81551-02620iZRE142..HTWCF;ZRE141..6F..TH;ZRE142..18G..(IDN,MA);ZRE14#,ZZE141..(16E,16G,16V,18E,18J,20G,LIMO)..(IDN,MA,PHL,TH)..HTWC201008-201310

main81551-02620iNDE140,ZRE142..IND,VN201008

main81551-02630iZRE142,143..TAIW201007-201310

main81551-02650iZRE141,142..GCC201007-201310

main81551-02670iZRE143..CVFC..20V201008

81552AGASKET, REAR COMBINATION LAMP, RH

main81552-02470iZRE143,ZZE142..VN200801-201010

main81552-02470iNDE140,ZZE142..IND200801-201105

main81552-02470iZZE141..16E..TH;ZZE142..18V..(IDN,PHL)200801-200812

main81552-02470iZZE141..16E..(MA,PHL);ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20G,20V,LIMO)..(IDN,MA,PHL,TH)200801-201008

main81552-02480iZZE14#..(16J,18G,18V)..TAIW200712-200811

main81552-02480iZRE143,ZZE142..(18E,18J,20E,20G,20V)..TAIW200712-201007

main81552-02510iZZE14#..GCC200901-201007

main81552-02620iZRE142..HTWCF;ZRE141..6F..TH;ZRE142..18G..(IDN,MA);ZRE14#,ZZE141..(16E,16G,16V,18E,18J,20G,LIMO)..(IDN,MA,PHL,TH)..HTWC201008-201310

main81552-02620iZRE141,142..ATM..(16J,18G)..TH201008-201211

main81552-02620iZRE143..CVFC..20V;NDE140,ZRE142..IND,VN201008

main81552-02630iZRE142,143..TAIW201007-201310

main81552-02650iZRE141,142..GCC201007-201310

81560LAMP ASSY, REAR COMBINATION, LH

main81560-02470iZZE141..16E..TH;ZZE142..18V..(IDN,PHL)200801-200812

main81560-02470iZZE141..16E..(MA,PHL);ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20G,20V,LIMO)..(IDN,MA,PHL,TH)200801-201008

main81560-02470iZRE143,ZZE142..VN200801-201010

main81560-02470iNDE140,ZZE142..IND200801-201105

main81560-02480iZZE14#..(16J,18G,18V)..TAIW200712-200811

main81560-02480iZRE143,ZZE142..(18E,18J,20E,20G,20V)..TAIW200712-201007

main81560-02500iZZE142..PKN200808

main81560-02500iCE140,NZE140200808-201104

main81560-02620iZRE141,142..ATM..(16J,18G)..TH201008-201211

main81560-02620iZRE142..HTWCF;ZRE141..6F..TH;ZRE142..18G..(IDN,MA);ZRE14#,ZZE141..(16E,16G,16V,18E,18J,20G,LIMO)..(IDN,MA,PHL,TH)..HTWC201008-201310

main81560-02620iNDE140,ZRE142..IND,VN201008

main81560-02630iZRE142,143..TAIW201007-201310

main81560-02640iCE140,NZE140,ZRE141..PKN201104

main81560-02670iZRE143..CVFC..20V201008

81561DLENS & BODY, REAR COMBINATION LAMP, LH

main81561-02470iNDE140,ZZE142..IND200801-201105

main81561-02470iZZE141..16E..TH;ZZE142..18V..(IDN,PHL)200801-200812

main81561-02470iZZE141..16E..(MA,PHL);ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20G,20V,LIMO)..(IDN,MA,PHL,TH)200801-201008

main81561-02470iZRE143,ZZE142..VN200801-201010

main81561-02480iZZE14#..(16J,18G,18V)..TAIW200712-200811

main81561-02480iZRE143,ZZE142..(18E,18J,20E,20G,20V)..TAIW200712-201007

main81561-02510iZZE14#..GCC200901-201007

main81561-02620iZRE142..HTWCF;ZRE141..6F..TH;ZRE142..18G..(IDN,MA);ZRE14#,ZZE141..(16E,16G,16V,18E,18J,20G,LIMO)..(IDN,MA,PHL,TH)..HTWC201008-201310

main81561-02620iZRE141,142..ATM..(16J,18G)..TH201008-201211

main81561-02620iNDE140,ZRE142..IND,VN201008

main81561-02630iZRE142,143..TAIW201007-201310

main81561-02650iZRE141,142..GCC201007-201310

main81561-02670iZRE143..CVFC..20V201008

81562AGASKET, REAR COMBINATION LAMP, LH

main81552-02470iNDE140,ZZE142..IND200801-201105

main81552-02470iZZE141..16E..TH;ZZE142..18V..(IDN,PHL)200801-200812

main81552-02470iZZE141..16E..(MA,PHL);ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20G,20V,LIMO)..(IDN,MA,PHL,TH)200801-201008

main81552-02470iZRE143,ZZE142..VN200801-201010

main81552-02480iZZE14#..(16J,18G,18V)..TAIW200712-200811

main81552-02480iZRE143,ZZE142..(18E,18J,20E,20G,20V)..TAIW200712-201007

main81552-02510iZZE14#..GCC200901-201007

main81552-02620iZRE141,142..ATM..(16J,18G)..TH201008-201211

main81552-02620iZRE142..HTWCF;ZRE141..6F..TH;ZRE142..18G..(IDN,MA);ZRE14#,ZZE141..(16E,16G,16V,18E,18J,20G,LIMO)..(IDN,MA,PHL,TH)..HTWC201008-201310

main81552-02620iZRE143..CVFC..20V;NDE140,ZRE142..IND,VN201008

main81552-02630iZRE142,143..TAIW201007-201310

main81552-02650iZRE141,142..GCC201007-201310

81580DLAMP ASSY, REAR, RH

main81580-02200iNDE140,ZZE142..IND200801-201105

main81580-02200iZZE142..PHL;ZZE141..16E..TH200801-200812

main81580-02200iZZE14#..(16E,18J)..(IDN,MA,PHL);ZRE143,ZZE14#..(16G,16J,16V,18E,18G,20G,20V,LIMO)..(MA,PHL,TH)200801-201008

main81580-02200iZRE143,ZZE142..VN200801-201010

main81580-02220iZZE14#..(16J,18G,18V)..TAIW200712-200811

main81580-02220iZRE143,ZZE142..(18E,18J,20E,20G,20V)..TAIW200712-201007

main81580-02250iCE140,NZE140200808-201104

main81580-02250iZZE142..PKN200808

main81580-02330iZRE141,142..ATM..(16J,18G)..TH201008-201211

main81580-02330iZRE142..HTWCF;ZRE141..6F..TH;ZRE142..18G..(IDN,MA);ZRE14#,ZZE141..(16E,16G,16V,18E,18J,20G,LIMO)..(IDN,MA,PHL,TH)..HTWC201008-201310

main81580-02330iNDE140,ZRE142..IND,VN201008

main81580-02340iZRE142,143..TAIW201007-201310

main81580-02350iCE140,NZE140,ZRE141..PKN201104

main81580-02390iZRE143..CVFC..20V201008

main81580-12100iZZE142..18V..IDN200801-200812

main81580-12100iZRE143,ZZE142..(18G,20V)..IDN200801-201008

81581CLENS AND BODY, REAR LAMP, RH

main81581-02200iNDE140,ZZE142..IND200801-201105

main81581-02200iZZE14#..(16E,18J)..(IDN,MA,PHL);ZRE143,ZZE14#..(16G,16J,16V,18E,18G,20G,20V,LIMO)..(MA,PHL,TH)200801-201008

main81581-02200iZZE142..PHL;ZZE141..16E..TH200801-200812

main81581-02200iZRE143,ZZE142..VN200801-201010

main81581-02220iZRE143,ZZE142..(18E,18J,20E,20G,20V)..TAIW200712-201007

main81581-02220iZZE14#..(16J,18G,18V)..TAIW200712-200811

main81581-02260iZZE14#..GCC200901-201007

main81581-02330iNDE140,ZRE142..IND,VN201008

main81581-02330iZRE141,142..ATM..(16J,18G)..TH201008-201211

main81581-02330iZRE142..HTWCF;ZRE141..6F..TH;ZRE142..18G..(IDN,MA);ZRE14#,ZZE141..(16E,16G,16V,18E,18J,20G,LIMO)..(IDN,MA,PHL,TH)..HTWC201008-201310

main81581-02340iZRE14#..GCC,TAIW201007-201310

main81581-02390iZRE143..CVFC..20V201008

main81581-12100iZRE143,ZZE142..(18G,20V)..IDN200801-201008

main81581-12100iZZE142..18V..IDN200801-200812

81584PACKING, REAR LAMP RH

main81584-02200iNDE140,ZZE142..IND200801-201105

main81584-02200iZZE142..PHL;ZZE141..16E..TH200801-200812

main81584-02200iZZE14#..(16E,18J)..(IDN,MA,PHL);ZRE143,ZZE14#..(16G,16J,16V,18E,18G,20G,20V,LIMO)..(MA,PHL,TH)200801-201008

main81584-02200iZRE143,ZZE142..VN200801-201010

main81584-02220iZZE14#..(16J,18G,18V)..TAIW200712-200811

main81584-02220iZRE143,ZZE142..(18E,18J,20E,20G,20V)..TAIW200712-201007

main81584-02260iZZE14#..GCC200901-201007

main81584-02330iZRE142..HTWCF;ZRE141..6F..TH;ZRE142..18G..(IDN,MA);ZRE14#,ZZE141..(16E,16G,16V,18E,18J,20G,LIMO)..(IDN,MA,PHL,TH)..HTWC201008-201310

main81584-02330iZRE141,142..ATM..(16J,18G)..TH201008-201211

main81584-02330iZRE143..CVFC..20V;NDE140,ZRE142..IND,VN201008

main81584-02340iZRE14#..GCC,TAIW201007-201310

main81584-12100iZZE142..18V..IDN¥670200801-200812

main81584-12100iZRE143,ZZE142..(18G,20V)..IDN¥670200801-201008

81585CSOCKET & WIRE, REAR LAMP, RH

main90075-8C012iZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)200712-201007

main90075-8C012iZZE14#..(16J,18G,18V)..TAIW200712-200811

main90075-8C012iZRE14#..GCC,TAIW201007-201310

main90075-99005iZRE141,142..ATM..(16J,18G)..TH¥610201008-201211

main90075-99005iZRE142..HTWCF;ZRE141..6F..TH;ZRE142..18G..(IDN,MA);ZRE14#,ZZE141..(16E,16G,16V,18E,18J,20G,LIMO)..(IDN,MA,PHL,TH)..HTWC¥610201008-201310

main90075-99005iZRE143..CVFC..20V;NDE140,ZRE142..IND,VN¥610201008

main90075-99005iZZE142..PHL;ZZE141..16E..TH¥610200801-200812

main90075-99005iZZE14#..(16E,18J)..(IDN,MA,PHL);ZRE143,ZZE14#..(16G,16J,16V,18E,18G,20G,20V,LIMO)..(MA,PHL,TH)¥610200801-201008

main90075-99005iZRE143,ZZE142..VN¥610200801-201010

main90075-99005iNDE140,ZZE142..IND¥610200801-201105

81590ALAMP ASSY, REAR, LH

main81590-02200iZZE141..16E..TH;ZZE142..18V..(IDN,PHL)200801-200812

main81590-02200iZZE141..16E..(MA,PHL);ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20G,20V,LIMO)..(IDN,MA,PHL,TH)200801-201008

main81590-02200iZRE143,ZZE142..VN200801-201010

main81590-02200iNDE140,ZZE142..IND200801-201105

main81590-02210iZRE143,ZZE142..(18E,18J,20E,20G,20V)..TAIW200712-201007

main81590-02210iZZE14#..(16J,18G,18V)..TAIW200712-200811

main81590-02240iZZE142..PKN200808

main81590-02240iCE140,NZE140200808-201104

main81590-02330iZRE141,142..ATM..(16J,18G)..TH201008-201211

main81590-02330iNDE140,ZRE142..IND,VN201008

main81590-02330iZRE142..HTWCF;ZRE141..6F..TH;ZRE142..18G..(IDN,MA);ZRE14#,ZZE141..(16E,16G,16V,18E,18J,20G,LIMO)..(IDN,MA,PHL,TH)..HTWC201008-201310

main81590-02340iZRE142,143..TAIW201007-201310

main81590-02350iCE140,NZE140,ZRE141..PKN201104

main81590-02390iZRE143..CVFC..20V201008

81591CLENS, REAR LAMP, LH

main81591-02200iZRE143,ZZE142..VN200801-201010

main81591-02200iZZE141..16E..TH;ZZE142..18V..(IDN,PHL)200801-200812

main81591-02200iZZE141..16E..(MA,PHL);ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20G,20V,LIMO)..(IDN,MA,PHL,TH)200801-201008

main81591-02200iNDE140,ZZE142..IND200801-201105

main81591-02210iZRE143,ZZE142..(18E,18J,20E,20G,20V)..TAIW200712-201007

main81591-02210iZZE14#..(16J,18G,18V)..TAIW200712-200811

main81591-02260iZZE14#..GCC200901-201007

main81591-02330iZRE141,142..ATM..(16J,18G)..TH201008-201211

main81591-02330iZRE142..HTWCF;ZRE141..6F..TH;ZRE142..18G..(IDN,MA);ZRE14#,ZZE141..(16E,16G,16V,18E,18J,20G,LIMO)..(IDN,MA,PHL,TH)..HTWC201008-201310

main81591-02330iNDE140,ZRE142..IND,VN201008

main81591-02340iZRE142,143..TAIW201007-201310

main81591-02360iZRE141,142..GCC201007-201310

main81591-02390iZRE143..CVFC..20V201008

81594AGASKET, REAR LAMP LH

main81584-02210iZZE14#..(16J,18G,18V)..TAIW200712-200811

main81584-02210iZRE143,ZZE142..(18E,18J,20E,20G,20V)..TAIW200712-201007

main81594-02200iNDE140,ZZE142..IND200801-201105

main81594-02200iZZE141..16E..(MA,PHL);ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20G,20V,LIMO)..(IDN,MA,PHL,TH)200801-201008

main81594-02200iZRE143,ZZE142..VN200801-201010

main81594-02200iZZE141..16E..TH;ZZE142..18V..(IDN,PHL)200801-200812

main81594-02260iZZE14#..GCC200901-201007

main81594-02330iZRE141,142..ATM..(16J,18G)..TH201008-201211

main81594-02330iZRE142..HTWCF;ZRE141..6F..TH;ZRE142..18G..(IDN,MA);ZRE14#,ZZE141..(16E,16G,16V,18E,18J,20G,LIMO)..(IDN,MA,PHL,TH)..HTWC201008-201310

main81594-02330iZRE143..CVFC..20V;NDE140,ZRE142..IND,VN201008

main81594-02340iZRE14#..GCC,TAIW201007-201310

81595SOCKET & WIRE, REAR LAMP, LH

main90075-8C012iZRE141,142..GCC201007-201310

main90075-8C012iZZE14#..GCC200901-201007

main90075-99005iZRE143,ZZE142..VN¥610200801-201010

main90075-99005iNDE140,ZZE142..IND¥610200801-201105

main90075-99005iZRE141,142..ATM..(16J,18G)..TH¥610201008-201211

main90075-99005iZRE143..CVFC..20V;NDE140,ZRE142..IND,VN¥610201008

main90075-99005iZRE142..HTWCF;ZRE141..6F..TH;ZRE142..18G..(IDN,MA);ZRE14#,ZZE141..(16E,16G,16V,18E,18J,20G,LIMO)..(IDN,MA,PHL,TH)..HTWC¥610201008-201310

main90075-99005iZZE141..16E..TH;ZZE142..18V..(IDN,PHL)¥610200801-200812

main90075-99005iZZE141..16E..(MA,PHL);ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20G,20V,LIMO)..(IDN,MA,PHL,TH)¥610200801-201008

9017905102

main90179-05102¥90

21 parts on this diagram · 6 diagrams in section
