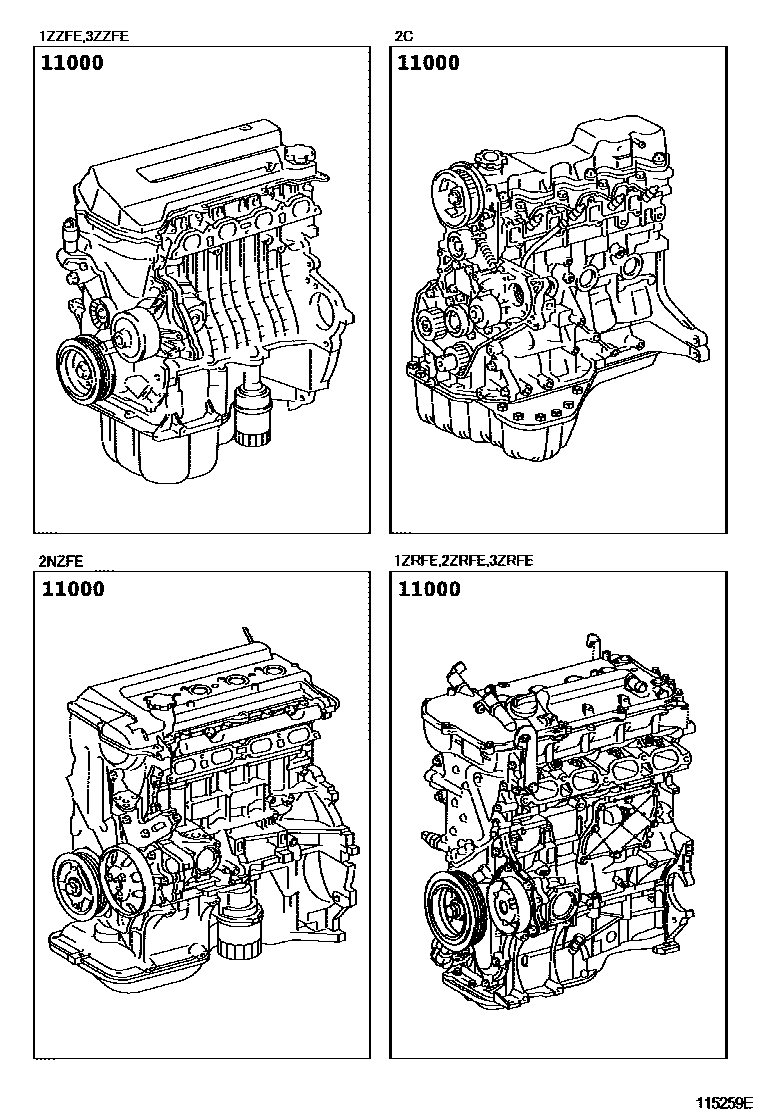

Toyota COROLLA/ALTIS — PARTIAL ENGINE ASSEMBLY

0001 1 0002 1

11000ENGINE ASSY, PARTIAL

main19000-0D261i3ZZFE..ZZE141..TAIW200712-200808

sub19000-0D262

sub16258-28030¥370

sub16268-0D091

sub16268-22101¥6,500

main19000-0D262i3ZZFE..ZZE141..16G..TH200910-201008

SINGAPORE SPEC

sub19000-22221

main19000-0D262i3ZZFE..ZZE141..GCC,TAIW200808-201007

sub19000-22221

main19000-0D262i3ZZFE..ZZE141..5F..PHL200911-201008

sub19000-22221

main19000-0D350i1ZZFE..ZZE142..TAIW200712-200808

sub19000-0D351

sub16258-28030¥370

sub16268-0D091

main19000-0D351i1ZZFE..ZZE142..GCC,TAIW200808-201007

sub19000-22292¥673,000

main19000-0D390i3ZZFE..ZZE141..TH200801-200808

sub19000-0D391

sub16258-28030¥370

sub16268-0D091

main19000-0D391i3ZZFE..ZZE141..(16E,16G,16J)..TH200808-201008

main19000-0D391i3ZZFE..ZZE141..4FC..(MA,PHL)200810-200910

main19000-0D391i3ZZFE..ZZE141..5F..PHL200810-200911

main19000-0D400i3ZZFE..ZZE141..MA,PHL200801-200808

SINGAPORE SPEC

sub19000-0D401

sub16258-28030¥370

sub16268-0D091

main19000-0D401i3ZZFE..ZZE141..MA,PHL200808-200810

SINGAPORE SPEC

sub19000-0D391

main19000-0D410i1ZZFE..ZZE142..TH200801-200808

sub19000-0D411

sub16258-28030¥370

sub16268-0D091

main19000-0D411i1ZZFE..ZZE142..TH200808-201008

main19000-0D411i1ZZFE..ZZE142..(18G,18J)..(IDN,MA,VN)200810-200912

main19000-0D411i1ZZFE..ZZE142..18V..(IDN,PHL)200810-200812

main19000-0D420i1ZZFE..ZZE142..IDN,MA,PHL200801-200808

SINGAPORE SPEC

sub19000-0D421

sub16258-28030¥370

sub16268-0D091

main19000-0D421i1ZZFE..ZZE142..IDN,MA,PHL,VN200808-200810

SINGAPORE SPEC

sub19000-0D411

main19000-0D422i1ZZFE..ZZE142..IDN,MA,VN200912-201004

SINGAPORE SPEC

sub19000-22292¥673,000

main19000-0D441i3ZZFE..ZZE141..LIMO200811-201008

main19000-0D441i3ZZFE..ZZE141201008-201211

main19000-0D480i3ZZFE..ZZE141201211-201311

sub19000-0D441

main19000-0T200i1ZRFE..ZRE141..TH201008-201311

sub19000-0T230

main19000-0T210i2ZRFE..ZRE142..TH201008-201211

main19000-0T220i3ZRFE..ZRE143..TH201008-201311

sub19000-0T250

main19000-0T230i1ZRFE..ZRE141..4FC..(GCC,MA,PHL)201007-201311

*264

sub19000-0T231

main19000-0T230i1ZRFE..ZRE141..16G..TH201008-201311

SINGAPORE SPEC,*264

sub19000-0T231

main19000-0T240i2ZRFE..ZRE142..18J..IDN;2ZRFE..ZRE142..GCC,IND,TAIW,VN201007-201407

*264

sub19000-0T241

main19000-0T240i2ZRFE..ZRE142..18G..(IDN,MA)201008-201311

sub19000-0T241

main19000-0T240i2ZRFE..ZRE142..TH..HTWC201211-201311

sub19000-0T241

main19000-0T250i3ZRFE..ZRE143..CVFC..(IDN,MA,PHL,TAIW,VN)201007-201407

sub19000-0T251

main19000-0T260i1ZRFE..ZRE141..PKN201104-201405

sub19000-0T262

main19000-0T260i1ZRFE..ZRE141201405-201406

sub19000-0T262

main19000-0T320i2ZRFE..ZRE142..HTWCF201211-201311

sub19000-0T321

main19000-21831i2NZFE..NZE140¥530,000201207-201406

sub19000-21E00¥530,000

main19000-21831i2NZFE..NZE140¥530,000200808-201104

sub19000-21E00¥530,000

main19000-21831i2NZFE..NZE140¥530,000201104-201206

sub19000-21E00¥530,000

main19000-22292i1ZZFE..ZZE142..IDN,MA,VN¥673,000201004

main19000-22292i1ZZFE..ZZE142..IND,PKN¥673,000200910

main19000-22B01i1ZZFE..ZZE142..IND,PKN200808-200910

sub19000-22292¥673,000

main19000-33321i1NDTV..NDE140201006-201009

sub19000-33322

sub16206-33041

sub16263-33030¥720

sub90301-20016¥200

main19000-33322i1NDTV..NDE140201009-201105

sub19000-33323

sub16262-33011¥480

main19000-33322i1NDTV..NDE140201105-201112

sub19000-33323

sub16262-33011¥480

main19000-33323i1NDTV..NDE140201112-201312

main19000-37291i3ZRFE..ZRE143..4FC..(IDN,PHL,TAIW,VN)¥801,000200811-201010

sub19000-37293¥667,000

main19000-37410i1ZRFE..ZRE141..4FC..(GCC,MA,PHL)201105-201311

SINGAPORE SPEC,*119

main19000-37410i1ZRFE..ZRE141..4FC..(GCC,MA,PHL)201105-201311

*119

main19000-37450i2ZRFE..ZRE142..GCC201007-201104

*119

sub19000-37452

main19000-37450i2ZRFE..ZRE142..IND201007-201312

*119

sub19000-37452

main19000-37450i2ZRFE..ZRE142..LHD;2ZRFE..ZRE142..18J..IDN201105-201407

*119

sub19000-37452

main19000-37510i3ZRFE..ZRE143..TH200905-201008

main19000-37570i1ZRFE..ZRE141..4FC..(GCC,MA,PHL)201007-201104

*119

sub19000-37410

main19000-6A300i2C..CE140¥639,000200808-201104

main19000-6A300i2C..CE140¥639,000201104-201406

1 parts on this diagram · 2 diagrams in section
