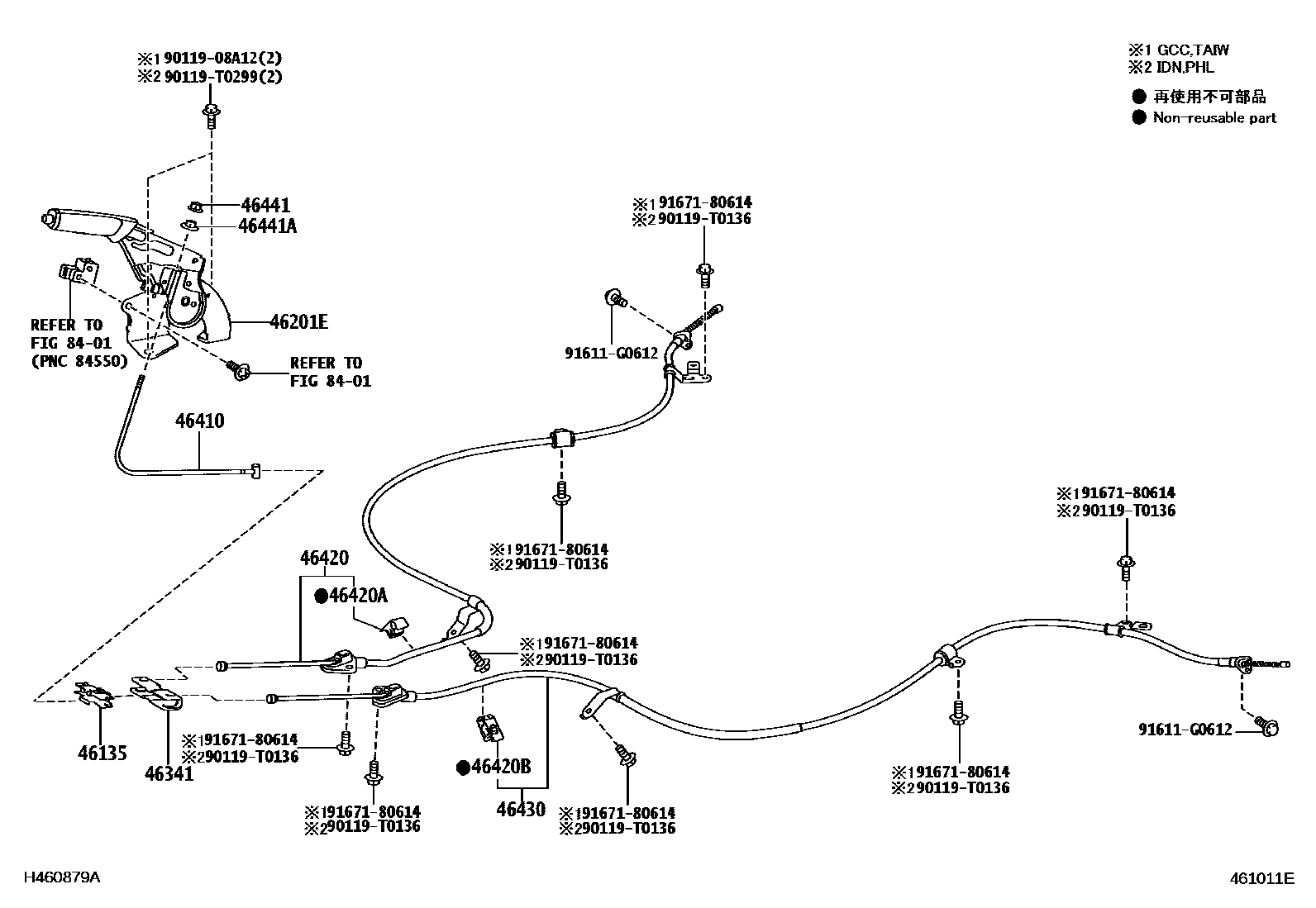

Toyota COROLLA/ALTIS — PARKING BRAKE & CABLE

0001 1DRUM BRAKE 0002 1DISC BRAKE

46135STOPPER, PARKING BRAKE CABLE END

main46135-12010iZZE14#..(16J,18G,18V)..TAIW¥220200712-201211

46201ELEVER SUB-ASSY, PARKING BRAKE

main46201-02370-E0iZZE142..18J..IDN200801-200912

ASH BROWN,TRIM4#

sub46201-02371

main46201-02371-B0iZRE142..18J..IDN201008-201311

DK.GRAY,TRIM4#,(L)

main46201-02371-E0iZZE142..18J..IDN201001-201008

ASH BROWN,TRIM4#

main46201-02380-B0iZZE141..MA;ZZE141..(16J,LIMO)..TH200801-200912

DK.GRAY,TRIM1#

sub46201-02381

main46201-02380-E0iZZE142..18G..IDN;ZZE141..RHD..4FC..(16E,16G)200801-200912

GRADE MARK : 1.6E OR 1.8E(TAIWAN),ASH BROWN,TRIM4#

sub46201-02381

main46201-02380-E0iZZE142..18E..TH200801-200912

ASH BROWN,TRIM4#

sub46201-02381

main46201-02381-B0iZRE141,ZZE141..16J,LIMO201008-201311

DK.GRAY,TRIM1#,4#,(L)

main46201-02381-B0iZRE141,ZZE141..16J,LIMO201008-201311

DK.GRAY,TRIM1#,(L)

main46201-02381-B0iZRE142..18E..HTWCF201008-201311

GRADE MARK : 1.6E OR 1.8E,DK.GRAY,TRIM4#,(L)

main46201-02381-B0iZRE142..18E..HTWCF201008-201311

DK.GRAY,TRIM4#,(L)

main46201-02381-B0iZZE141..16J,LIMO201001-201008

DK.GRAY,TRIM1#

main46201-02381-E0iZZE142..18G..IDN;ZZE14#..RHD..(16E,16G,18E)201001-201008

ASH BROWN,TRIM4#

main46201-02381-E0iZZE142..18G..IDN;ZZE14#..RHD..(16E,16G,18E)201001-201008

GRADE MARK : 1.6E OR 1.8E(TAIWAN),ASH BROWN,TRIM4#

main46201-02390-E0iZZE142..(18E,18V)..(IDN,TH)200801-200912

ASH BROWN,TRIM4#

sub46201-02391

main46201-02391-B0iZRE143..IDN201008-201311

DK.GRAY,TRIM1#,(L)

main46201-02391-B0iZRE143..TH201008-201311

DK.GRAY,TRIM1#,4#,(L)

main46201-02391-B0iZRE143..TH201008-201311

DK.GRAY,TRIM4#,(L)

main46201-02391-E0iZRE143..RHD;ZZE142..18G..(MA,TH)201001-201008

SINGAPORE SPEC,ASH BROWN,TRIM4#

main46201-02391-E0iZZE142..18E..TH201001-201008

ASH BROWN,TRIM4#

main46201-02400-B0iZRE142..18J..TAIW201007-201310

DK.GRAY,TRIM1#,4#

main46201-02400-B0iZZE142..18J..TAIW200712-201310

DK.GRAY,TRIM1#

main46201-02400-B0iZZE142..18J..TAIW200712-201007

GRADE MARK : 1.6E OR 1.8E(TAIWAN),DK.GRAY,TRIM1#

main46201-02400-E0iZZE142..18J..TAIW200712-201007

GRADE MARK : 1.6E OR 1.8E(TAIWAN),ASH BROWN,TRIM4#

main46201-02400-E0iZZE142..18E..TAIW200712-201007

ASH BROWN,TRIM4#

main46201-02410-B0iZRE14#..LHD..(20G,G,GLI,XLI)201007-201310

DK.GRAY,TRIM1#,4#

main46201-02410-B0iZZE142..(18G,18V)..TAIW200712-201007

DK.GRAY,TRIM1#

main46201-02410-E0iZZE142..(18G,18V)..TAIW200712-201007

ASH BROWN,TRIM4#

main46201-12370-B0iZRE141,143..(16V,20V)..PHL201008-201012

DK.GRAY,TRIM4#

sub46201-12370

main46201-12370-C0iZRE141,143..(16V,20V)..PHL201012-201311

BLACK,TRIM4#

sub46201-12370

main46201-12370-E0iZZE142..PHL200802-201008

ASH BROWN,TRIM4#

sub46201-12370

main46201-12380-C0iZRE142,143..(18G,20G,20V)..(MA,TH)201203-201205

SINGAPORE SPEC,BLACK,TRIM4#,(J)

sub46201-12380¥5,800

main46201-12380-C0iZRE142,143..(18G,20G,20V)..(MA,TH)201203-201205

BLACK,TRIM1#,(J)

sub46201-12380¥5,800

main46201-12380-C0iZRE142,143..(18G,20G,20V)..(MA,TH)201203-201205

BLACK,TRIM4#,(J)

sub46201-12380¥5,800

main46201-12380-C0iNDE140,ZRE142..(18G,18V,E,G)..IND201105-201312

BLACK,TRIM4#

sub46201-12380¥5,800

main46201-12380-E0iNDE140,ZZE142..(18G,18V,E,G)..IND200808-201105

ASH BROWN,TRIM4#

sub46201-12380¥5,800

main46201-12390-C0iZRE142..18J..IDN201203-201205

BLACK,TRIM4#,(J)

sub46201-12390¥5,200

main46201-12430-B1iZZE141..(16E,16G)..PHL200712-201012

DK.GRAY,TRIM1#

sub46201-12430

main46201-12430-C0iZRE141..(16E,16G)..PHL201012-201311

BLACK,TRIM1#

sub46201-12430

main46201-12450-B0iZRE142,143..VN201010-201012

DK.GRAY,TRIM4#

sub46201-12450

main46201-12450-C0iZRE142,143..VN201012-201407

BLACK,TRIM4#

sub46201-12450

main46201-12450-E0iZRE143,ZZE142..VN200808-201010

ASH BROWN,TRIM4#

sub46201-12450

main46201-12460-C0iZRE141,ZZE141..16J,LIMO201203-201205

BLACK,TRIM1#,4#,(J)

sub46201-12460

main46201-12460-C0iZRE142..18E..TH201203-201205

GRADE MARK : 1.6E OR 1.8E,BLACK,TRIM4#,(J)

sub46201-12460

main46201-12460-C0iZRE142..18E..TH201203-201205

BLACK,TRIM4#,(J)

sub46201-12460

main46201-12460-C0iZRE142..18E..TH201203-201205

BLACK,TRIM1#,(J)

sub46201-12460

main46201-12460-C0iCE140,NZE140,ZRE141,142..(18J,20D,20DSA,D,GLI,N,XLI)..(IND,PKN)201104-201406

BLACK,TRIM4#

sub46201-12460

main46201-12460-E0iCE140,NZE140200808-201105

ASH BROWN,TRIM4#

sub46201-12460

46341EQUALIZER, PARKING BRAKE

main46341-12040iZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)¥470200712-201211

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-02120iZZE142..18J..IDN200801-201008

main46410-02120iZRE142..18J..IDN201008-201311

(L)

main46410-02130iZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)200712-201310

main46410-02130iZZE141..TAIW200712-200811

GRADE MARK : 1.6J OR WITH OUT MARK

main46410-02160iZZE14#..(16E,18V)..(IDN,TH)200801-201008

main46410-02160iZRE142..HTWCF;ZRE141..6F..TH;ZRE142..18G..(IDN,MA);ZRE14#,ZZE141..RHD..(16E,16G,18E,20G,20V,LIMO)..HTWC201008-201311

(L)

main46410-12300iZZE141..TAIW¥1,780200712-201311

main46410-12300iZRE142..18J..IDN¥1,780201203-201205

(J)

main46410-12320iNDE140,ZZE142..IND¥1,480200802-201105

main46410-12320iZRE14#,ZZE141..(16E,16G,16J,18E,18G,20G,20V,LIMO)..(IDN,MA,TH)¥1,480201203-201205

(J)

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-02200iZRE141,142..ATM..(16J,18G)..TH200801-201211

main46420-02210iZZE142..(18G,18V)..TAIW200712-200811

GRADE MARK : 1.6J OR WITH OUT MARK

main46420-02210iZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)200712-201310

main46420-12670iZZE14#..(16E,16G,18J)..(IDN,PHL)200712-201311

46420ACLAMP, NO.1(FOR PARKING BRAKE CABLE)

main46402-02040iZRE141,142..ATM..(16J,18G)..TH200801-201211

main46402-02050iZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)200712-201310

main46402-02050iZZE142..(18G,18V)..TAIW200712-200811

GRADE MARK : 1.6J OR WITH OUT MARK

main46402-12020iZZE141..TAIW¥570200712-201311

46420BCLAMP, NO.2(FOR PARKING BRAKE CABLE)

main46402-02040iZZE142..PKN200801-201211

main46402-02050iZZE142..(18G,18V)..TAIW200712-200811

GRADE MARK : 1.6J OR WITH OUT MARK

main46402-02050iZRE14#..GCC,TAIW200712-201310

main46402-12020iZRE141,142..(16E,16G,18J)..(IDN,PHL)¥570200712-201311

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-02200iNDE140,ZZE142..IND200801-201211

main46430-02210iZRE14#..GCC,TAIW200712-201310

main46430-02210iZZE141..TAIW200712-200811

GRADE MARK : 1.6J OR WITH OUT MARK

main46430-12560iZZE14#..(16E,16G,18J)..(IDN,PHL)200712-201311

46441NUT, WIRE ADJUSTING, NO.1

main90178-T0004iZZE142..PKN200801-201211

main90179-06299iZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)¥70200712-201310

46441ANUT, WIRE ADJUSTING, NO.2

main46441-02020iZRE142..HTWCF;ZRE141..6F..TH;ZRE142..18G..(IDN,MA);ZRE14#,ZZE141..(16E,16G,18E,18J,20G,20V,G,GLI,LIMO,XLI)..(GCC,IDN,MA,TAIW,TH)..HTWC201106-201311

(L)

main46441-12010iZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)¥160200712-201106

main46441-12010iZRE14#,ZZE141..IDN,MA,TH¥160201106-201311

(J)

8401

9011908A12

main90119-08A12¥80

90119T0136

main90119-T0136

90119T0299

main90119-T0299

91611G0612

main91611-G0612¥70

9167180614

main91671-80614¥60

16 parts on this diagram · 2 diagrams in section
