Toyota COROLLA/ALTIS — MAT & CARPET

0001 1 0002 1

58510DCARPET ASSY, FLOOR, FRONT

main58510-02C40-B0iZRE141,ZZE141..16J,LIMO200801-201311

GRAY,TRIM1#

sub58510-02C40

main58510-02C40-B1iZRE142,143..(18E,18G,20G,20V)..(MA,TH)201008-201311

DK.GRAY,TRIM1#

sub58510-02C40

main58510-02C40-E0iZRE14#,ZZE141..(16E,16G,18E,18EL,18G,18J,20G,20V)..(IDN,MA,TH)200801-201311

GREGE,TRIM4#

sub58510-02C40

main58510-02C60-B0iZZE14#..(16J,18E,18J)..TAIW200712-200802

GRAY,TRIM1#

sub58510-02C61

main58510-02C60-E0iZZE14#..(16J,18E,18J)..TAIW200712-200802

GREGE,TRIM4#

sub58510-02C61

main58510-02C61-B0iZRE143,ZZE142..(18E,18J,20E,20G)..TAIW200811-201007

GRAY,TRIM11

sub58510-02C62

sub55214-02081

main58510-02C61-B0iZRE142..18J..TAIW200803-201102

GRAY,TRIM1#

sub58510-02C62

sub55214-02081

main58510-02C61-B1iZRE143,ZZE142..(18E,18J,20E,20G)..TAIW200811-201007

DK.GRAY,TRIM12

sub58510-02C62

sub55214-02081

main58510-02C61-B1iZRE142,143..(18E,20G,G)..TAIW201007-201102

DK.GRAY,TRIM1#

sub58510-02C62

sub55214-02081

main58510-02C61-E0iZRE142,143..(18E,20G,G)..TAIW200803-201102

GREGE,TRIM4#

sub58510-02C62

sub55214-02081

main58510-02C62-B0iZRE142..18J..TAIW201102-201310

GRAY,TRIM1#

main58510-02C62-B1iZRE142,143..(18E,20G,G)..TAIW201102-201310

DK. GREY,TRIM1#

main58510-02C62-E0iZRE142,143..(18E,20G,G)..TAIW201102-201310

GREGE,TRIM4#

main58510-02C70-B0iZZE142..18E..TAIW200712-200802

GRADE MARK : 1.6J OR WITH OUT MARK,GRAY,TRIM11

sub58510-02C71

main58510-02C70-B0iZZE142..(18G,18V)..TAIW200712-200802

GRAY,TRIM1#

sub58510-02C71

main58510-02C70-B0iZZE142..(18G,18V)..TAIW200712-200802

Z AEROTOURER,GRAY,TRIM11

sub58510-02C71

main58510-02C70-E0iZZE142..18E..TAIW200712-200802

Z AEROTOURER,GREGE,TRIM4#

sub58510-02C71

main58510-02C70-E0iZZE142..18E..TAIW200712-200802

GRADE MARK : 1.6J OR WITH OUT MARK,GREGE,TRIM4#

sub58510-02C71

main58510-02C70-E0iZZE142..18E..TAIW200712-200802

GREGE,TRIM4#

sub58510-02C71

main58510-02C71-B0iZZE142..18E..TAIW200803-200811

Z AEROTOURER,GRAY,TRIM11

main58510-02C71-B0iZZE142..18E..TAIW200803-200811

GRADE MARK : 1.6J OR WITH OUT MARK,GRAY,TRIM11

main58510-02C71-B0iZZE142..(18G,18V)..TAIW200803-200811

GRAY,TRIM11

main58510-02C71-B1iZZE142..18E..TAIW200803-200811

Z AEROTOURER,DK.GRAY,TRIM12

main58510-02C71-B1iZZE142..(18G,18V)..TAIW200803-200811

DK.GRAY,TRIM12

main58510-02C71-B1iZZE142..(18G,18V)..TAIW200803-200811

GRADE MARK : 1.6J OR WITH OUT MARK,DK.GRAY,TRIM12

main58510-02C71-B1iZRE143..20V..TAIW200811-201007

DK.GRAY,TRIM1#

main58510-02C71-E0iZZE142..18E..TAIW200803-201007

GREGE,TRIM4#

main58510-02C71-E0iZZE142..18E..TAIW200803-200811

Z AEROTOURER,GREGE,TRIM4#

main58510-02C71-E0iZZE142..(18G,18V)..TAIW200803-200811

GRADE MARK : 1.6J OR WITH OUT MARK,GREGE,TRIM4#

main58510-02C80-E1iNDE140,ZZE142..IND200808-201312

GREGE,TRIM4#

main58510-02C90-E0iZZE142..PKN200808-201406

GREGE,TRIM4#

main58510-02D00-E0iZRE142..6F..VN200808-201101

GREGE,TRIM4#

sub58510-02D01

sub55214-02081

main58510-02D01-E0iZRE142..6F..VN201101-201407

GREGE,TRIM4#

main58510-02D10-B0iZZE141..5F..PHL200802-201101

GRAY,TRIM1#

sub58510-02D11

sub55214-02081

main58510-02D11-B0iZRE141..6F..PHL201101-201311

GRAY,TRIM1#

main58510-02E00-B0iZZE141..4FC..16G..PHL200802-201101

GRAY,TRIM1#

sub58510-02E01

sub55214-02081

main58510-02E00-E0iZRE143,ZZE141..(16V,20V)..PHL200802-201101

GREGE,TRIM4#

sub58510-02E01

sub55214-02081

main58510-02E01-B0iZRE141..4FC..16G..PHL201101-201311

GRAY,TRIM1#

sub58510-02E01

main58510-02E01-E0iZRE141,143..(16V,20V)..PHL201101-201311

GREGE,TRIM4#

sub58510-02E01

main58510-02E10-E0iZRE142,143..CVFC..VN200808-201101

GREGE,TRIM4#

sub58510-02E11

sub55214-02081

main58510-02E11-E0iZRE142,143..CVFC..VN201101-201407

GREGE,TRIM4#

main58510-02E20-B0iZZE14#..GCC200901-201007

DK.GRAY,TRIM1#

sub58510-02E21

sub55214-02081

main58510-02E20-B1iZRE141,142..GCC201007-201102

GRAY,TRIM1#

sub58510-02E21

sub55214-02081

main58510-02E20-E0iZRE141,142..GCC200901-201102

GREGE,TRIM4#

sub58510-02E21

sub55214-02081

main58510-02E21-B1iZRE141,142..GCC201102-201310

DK. GREY,TRIM1#

main58510-02E21-E0iZRE141,142..GCC201102-201310

GREGE,TRIM4#

58520CCLIP(FOR FRONT FLOOR CARPET)

main90467-07049-C0iZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)200712-201407

BLACK

sub90467-07049¥90

58521BHOOK, FLOOR CARPET

main58521-02090iZRE142..HTWCF;ZRE142..IDN,IND,MA,VN;CE140,ZRE141,142..RHD..(5F,6F,CVFC)..(16J,18E,20D,20DSA)..(DSL,HTWC);NDE140,NZE140,ZRE141,143,ZZE141..(16E,16G,16V,20G,20V,D,E,G201112-201211

(L)

main58521-02090iZRE143..CVFC..(IDN,MA,PHL,TH,VN);CE140,NDE140,NZE140,ZRE141,142,ZZE141..IDN,IND,MA,PHL,PKN,TH,VN200801-201112

main58521-02100iZZE14#..(16J,18G,18V)..TAIW200712-201310

main58521-12140iZRE142..HTWCF;ZRE142..IDN,IND,MA,VN;CE140,ZRE141,142..RHD..(5F,6F,CVFC)..(16J,18E,20D,20DSA)..(DSL,HTWC);NDE140,NZE140,ZRE141,143,ZZE141..(16E,16G,16V,20G,20V,D,E,G¥470201112-201211

(J)

58561CSILENCER, FRONT FLOOR, NO.1

main58561-02180iZZE142..PKN200801-201211

main58561-02190iZZE14#..(16J,18G,18V)..TAIW200712-201310

main58561-02200iNDE140,ZRE142..IND200808-201312

58561GCLIP(FOR FRONT FLOOR SILENCER)

main90467-05164-B2iZRE14#..GCC,TAIW200712-201310

DK.GRAY

sub90467-05164¥110

main90467-T0004-C1iCE140,NZE140200801-201407

BLACK

58569DCOVER, FRONT FLOOR CAUTION PLATE

main58569-02040-B0iZRE141..16G..PHL;ZRE141,ZZE141..(16E,16J,LIMO)..(PHL,TH)200801-201311

GRAY,TRIM1#

sub58569-02040

main58569-02040-B1iZRE142,143..(18E,18G,20G,20V)..(MA,TH)201008-201311

DK.GRAY,TRIM1#

sub58569-02040

main58569-02040-E0iZRE141..16V;ZRE143..CVFC..(IDN,MA,PHL,TH,VN);CE140,NZE140,ZRE141,142,ZZE141..(16E,16G,18E,18EL,18G,18J,20D,20DSA,D,GLI,N,XLI)..(IDN,MA,PKN,TH,VN)200801-201407

GREGE,TRIM4#

sub58569-02040

main58569-02050-B0iZZE14#..(16J,18E,18J)..TAIW200712-201310

GRAY,TRIM1#

main58569-02050-B0iZZE142..(18G,18V)..TAIW200712-201007

GRAY,TRIM11

main58569-02050-B1iZRE143..(20E,20G)..TAIW200712-201007

DK.GRAY,TRIM12

main58569-02050-B1iZRE142,143..(18E,20G,G)..TAIW201007-201310

DK.GRAY

main58569-02050-B1iZRE142,143..(18E,20G,G)..TAIW200811-201310

DK.GRAY,TRIM1#

main58569-02050-B1iZZE142..(18G,18V)..TAIW200712-200811

Z AEROTOURER,DK.GRAY,TRIM12

main58569-02050-B1iZZE142..(18G,18V)..TAIW200712-200811

GRADE MARK : 1.6J OR WITH OUT MARK,DK.GRAY,TRIM12

main58569-02050-E0iZRE143,ZZE142..(18E,18J,20E,20G,20V)..TAIW200712-201310

GREGE,TRIM4#

main58569-02060-E0iNDE140,ZRE142..IND200808-201312

GREGE,TRIM4#

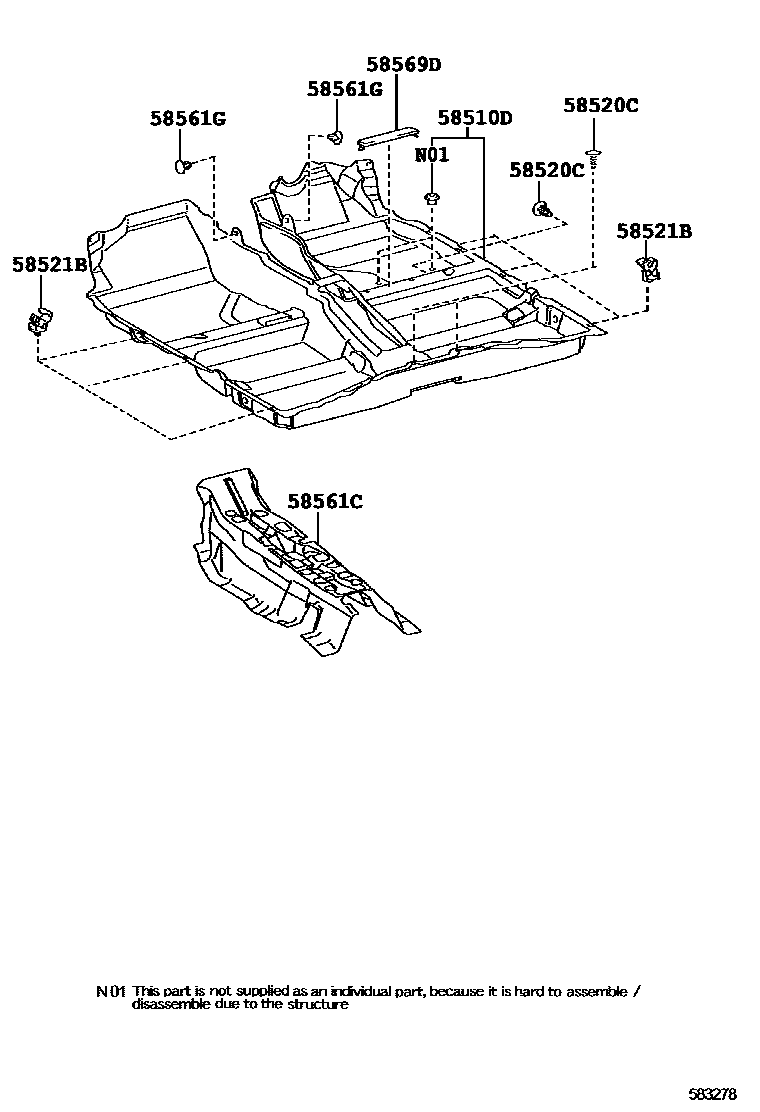

6 parts on this diagram · 2 diagrams in section
