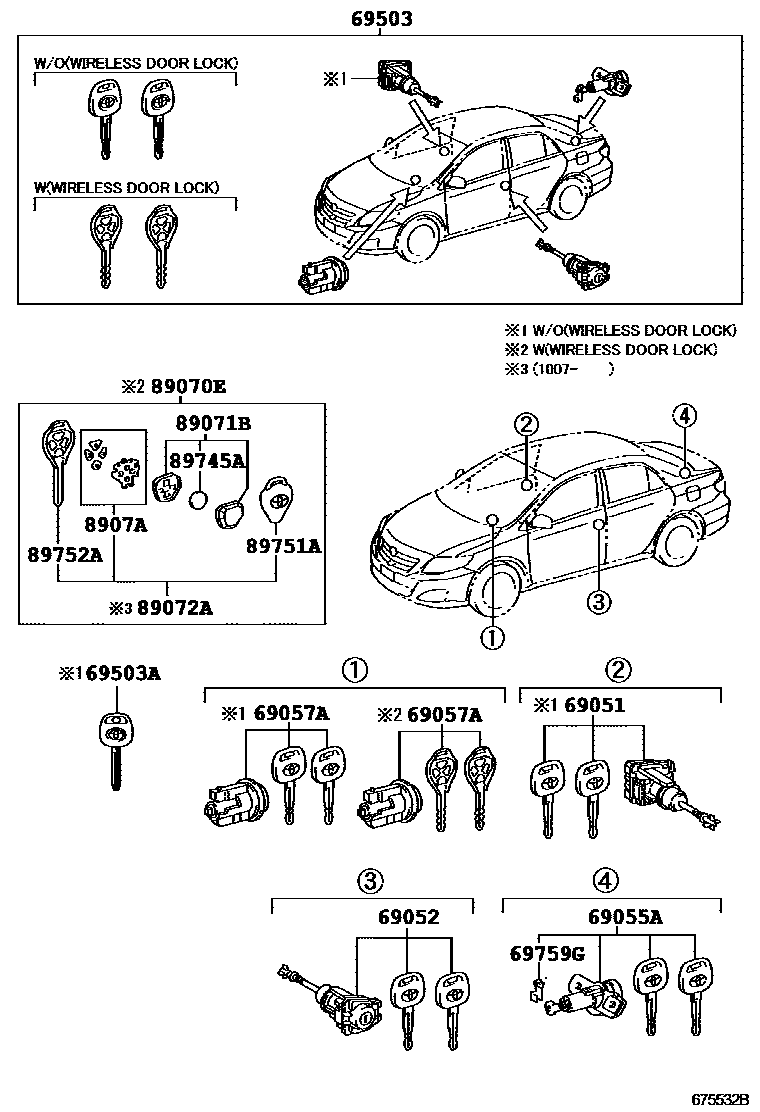

Toyota COROLLA/ALTIS — LOCK CYLINDER SET

0001 1W/O(SMART ENTRY) 0002 1W/O(SMART ENTRY) 0003 1W/O(SMART ENTRY) 0004 1W/O(SMART ENTRY) 0005 1W(SMART ENTRY)

69051CYLINDER & KEY SET, DOOR LOCK, RH

main69051-02170iZRE142..HTWCF;ZRE142,143..(18G,18J,20V,E)..(IND,MA);ZRE141,142..(6F,CVFC)..(16E,16J,18E,18J)..(IDN,PHL,TH)..HTWC;CE140,NDE140,NZE140,ZRE141,143,ZZE141..RHD..(16E,16200801-201211

main69051-02180iZRE141,142..GCC200712-201310

main69051-12680iZZE142..18V..IDN200801-201312

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-02170iZRE143..MA;ZRE141,ZZE141..MTM..TH;CE140,NZE140,ZRE141,142..(16E,16G,18G,20D,D,GLI,XLI)..(MA,PHL,PKN,VN)200801-201301

main69052-02180iZRE143,ZZE14#..LHD..(18E,18J,20E,GLI,XLI)200712-201310

main69052-12630iZRE143..(20G,20V)..TAIW200712-201008

main69052-12630iZZE142..(18G,18V)..TAIW200712-200811

Z AEROTOURER&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&STARTING SYSTEM-PUSH BUTTON

69055ACYLINDER & KEY SET, LUGGAGE COMPARTMENT LOCK

main69055-02210iZZE142..PKN200801-201211

main69055-02220iZZE141..TAIW200712-201310

main69055-02250iZZE14#..GCC200901-201310

main69055-12A30iZZE142..18G..IDN;ZRE143..20V..(IDN,PHL,TH)200712-201008

main69055-12A30iZZE142..(18G,18V)..TAIW200712-200811

Z AEROTOURER&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&STARTING SYSTEM-PUSH BUTTON

69057ACYLINDER & KEY SET, IGNITION SWITCH LOCK

main69057-02150iZRE143,ZZE142..(18E,18G,20G)..TH200801-201008

main69057-02360iNDE140,ZZE142..(18G,18V,E,G)..IND200801-201105

main69057-02400iZRE142..18J..IDN;CE140,ZRE141,142..(16G,18G,20DSA,N)..(PHL,PKN,VN)200801-201104

main69057-02440iZRE142..TAIW200712-201310

main69057-02480iZRE141..6F..TH;CE140,NZE140,ZRE141,ZZE141..(16E,20D,D,GLI,LIMO,XLI)..(PHL,PKN,TH)200801-201301

main69057-02490iZZE141..TAIW200712-200811

main69057-02510iZZE14#..GCC200901-201007

main69057-02610iZRE142..HTWCF;ZRE14#,ZZE141..(16G,18E,20G)..TH..HTWC201008-201311

main69057-02650iZRE141,142..GCC201007-201310

main69057-0D220iNDE140,ZRE141,143..IND,MA;ZRE142..(18G,E)..(IND,MA)201008-201312

69503CYLINDER SET, LOCK

main69005-02430iZZE141..16E..PHL;ZZE141..5F..(16J,LIMO)200801-201104

main69005-02440iZZE141..16E..TH200801-201008

main69005-02450iZRE143,ZZE142..(18E,18G,20G)..TH200801-201008

main69005-02460iZZE142..PHL200802-201010

main69005-02490iZZE141..TAIW200712-200811

main69005-02500iZRE142..TAIW200712-201310

main69005-02550iZZE142..18J..IDN200801-201104

main69005-02560iZZE142..18J..IND200808-201301

main69005-02570iNDE140,ZZE142..(18G,18V,E,G)..IND200808-201105

main69005-02580iZZE14#..GCC200901-201007

main69005-02750iZRE141,142..ATM..(16J,18G)..TH201008-201311

main69005-02770iZRE14#..MA201008-201311

main69005-02780iNDE140;ZRE142..(18G,E)..IND201105-201312

main69005-02790iZRE141,142..GCC201007-201310

main69005-12C00iZRE143..PHL200712-201008

main69005-12C00iZZE142..18E..TAIW200712-200811

Z AEROTOURER&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&STARTING SYSTEM-PUSH BUTTON

main69005-12C50iZRE143..RHD..20V;ZZE142..18G..IDN200801-201312

69503AKEY, BLANK

main69515-52120iZRE14#..(16V,18G,20G)..(IDN,PHL,TAIW);ZRE142,143..(6F,CVFC)..(18V,20V,G)..(IDN,IND,PHL,TAIW,TH,VN)¥7,800200712-201407

MASTER KEY,W(*68),FOR SMART KEY

main90999-00188iZRE141,142..LHD..(16G,18G)¥1,720200801-201407

SUB KEY

main90999-00199iZRE141..6F..TH;CE140,NZE140,ZRE141,ZZE141..(16E,20D,D,GLI,LIMO,XLI)..(PHL,PKN,TH)¥2,140200712-201406

MASTER KEY,W(*68)

69759GSNAP, LUGGAGE DOOR LOCK CYLINDER

main69759-24080iZZE14#..(16J,18G,18V)..TAIW¥200200712-201211

89070ETRANSMITTER ASSY, DOOR CONTROL

main89070-02350iZZE142..TH200801-200804

WIRELESS DOOR LOCK-WITH(SMART ENTRY)

sub89070-02351¥18,200

main89070-02351iZRE143,ZZE142..(18E,18G,20G)..TH¥18,200200805-201008

WIRELESS DOOR LOCK-WITH(SMART ENTRY)

sub89070-02352¥18,200

main89070-02360iZZE142..PHL;ZZE14#..(16G,16V,18J)..(IDN,PHL)200801-200804

sub89070-02361

main89070-02361iZZE14#..(16G,16V,18J)..(IDN,PHL);CE140,ZRE143,ZZE142..(18G,20DSA,20V,ALT)..(PKN,VN)200805-200908

sub89070-0K500

main89070-02370iZRE143,ZZE142..(18E,18J,20E)..TAIW200712-200908

WIRELESS DOOR LOCK-WITH(SMART ENTRY)&STARTING SYSTEM-PUSH BUTTON

sub89070-0K550

main89070-02370iZZE142..18E..TAIW200712-200908

Z AEROTOURER&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&STARTING SYSTEM-PUSH BUTTON

sub89070-0K550

main89070-02700iZRE142..TH..HTWC201211-201311

sub89070-02701

main89070-02770iCE140..20DSA201004-201104

main89070-0K480iZRE141,142..ATM..(16J,18E,18G)..TH201008-201311

sub89070-0K485

main89070-0K500iZZE14#..(16G,16V,18J)..(IDN,PHL)200909-201010

sub89070-0K501

main89070-0K550iZZE142..18E..TAIW200909-201007

Z AEROTOURER

main89070-0K550iZRE143,ZZE142..(18E,18J,20E)..TAIW200909-201007

WIRELESS DOOR LOCK-WITH(SMART ENTRY)&STARTING SYSTEM-PUSH BUTTON

main89070-0K550iZZE142..18E..TAIW200909-201007

Z AEROTOURER&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&STARTING SYSTEM-PUSH BUTTON

main89070-0K550iZRE142..TAIW201007-201310

89071BMODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL

main89071-12120iZZE142..18E..TAIW200712-201007

Z AEROTOURER&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&STARTING SYSTEM-PUSH BUTTON

main89071-12120iZRE143,ZZE142..(18E,18J,20E)..TAIW200712-201007

WIRELESS DOOR LOCK-WITH(SMART ENTRY)&STARTING SYSTEM-PUSH BUTTON

main89071-12120iZRE142..TAIW201007-201310

main89071-12190iCE140..20DSA201004-201104

main89071-71040iZZE142..PHL,TH;ZZE14#..(16G,16V,18J)..(IDN,PHL)200801-200804

WIRELESS DOOR LOCK-WITH(SMART ENTRY)

sub89071-71041

main89071-71041iZRE143,ZZE142..VN200804-201211

sub89071-71042

main89071-71041iZRE143,ZZE142..(18E,18G,20G)..TH;ZZE14#..(16G,16V,18J)..(IDN,PHL)200804-201008

WIRELESS DOOR LOCK-WITH(SMART ENTRY)

sub89071-71042

89072AHOUSING SET, DOOR CONTROL TRANSMITTER

main89072-02440iZRE142..TH..HTWC201211-201311

sub89072-02441

main89072-0K210iZRE141,142..ATM..(16J,18E,18G)..TH201008-201311

main89072-0K270iZRE142..TAIW201007-201310

main89072-0K280iZRE142..18J..IDN;CE140,ZRE141,142..(16G,18G,20DSA,N)..(PHL,PKN,VN)201008

8907ASWITCH SET, TRANSMITTER

main8907A-71020iZRE143,ZZE142..VN200712-201211

main8907A-71020iZRE143,ZZE142..(18E,18J,20E)..TAIW200712-201007

Z AEROTOURER&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&STARTING SYSTEM-PUSH BUTTON

main8907A-71020iZRE143,ZZE142..(18E,18J,20E)..TAIW200712-201007

WIRELESS DOOR LOCK-WITH(SMART ENTRY)&STARTING SYSTEM-PUSH BUTTON

89745ABATTERY, TRANSMITTER

main89745-50020iZRE142..18J..IND¥440200808-201312

main89745-50020iNDE140..E¥440201105-201312

GRADE MARK : J

main89745-71010iZRE141,142..ATM..(16J,18G)..TH¥440200712-201211

main89745-71010iZRE143,ZZE142..(18E,18J,20E)..TAIW¥440200712-201007

Z AEROTOURER&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&STARTING SYSTEM-PUSH BUTTON

main89745-71010iZRE143,ZZE142..(18E,18J,20E)..TAIW¥440200712-201007

WIRELESS DOOR LOCK-WITH(SMART ENTRY)&STARTING SYSTEM-PUSH BUTTON

89751ACOVER, TRANSMITTER HOUSING

main89751-02060iZRE143,ZZE142..(18E,18J,20E)..TAIW200712-200909

Z AEROTOURER&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&STARTING SYSTEM-PUSH BUTTON

sub89751-0M010

main89751-02060iZZE142..18E..TAIW200712-200909

WIRELESS DOOR LOCK-WITH(SMART ENTRY)&STARTING SYSTEM-PUSH BUTTON

sub89751-0M010

main89751-02090iZZE142..PHL200801-200909

main89751-02090iZRE143,ZZE142..(18E,18G,20G)..TH200801-200908

WIRELESS DOOR LOCK-WITH(SMART ENTRY)

main89751-0K040iZRE142..TH..HTWC201211-201311

sub89751-0K041

main89751-0K080iZRE142..HTWCF;ZRE142..18J..IDN;CE140,ZRE14#,ZZE141..(16G,18G,20DSA,20G,N)..(PHL,PKN,TH,VN)..(DSL,HTWC)201308

main89751-0M010iZZE142..18E..TAIW200909-201007

Z AEROTOURER

main89751-0M010iZRE143,ZZE142..(18E,18J,20E)..TAIW200909-201007

Z AEROTOURER&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&STARTING SYSTEM-PUSH BUTTON

main89751-0M010iZRE143,ZZE142..(18E,18J,20E)..TAIW200909-201007

WIRELESS DOOR LOCK-WITH(SMART ENTRY)&STARTING SYSTEM-PUSH BUTTON

main89751-0M010iZRE142..TAIW201007-201310

main89751-52140iCE140..20DSA¥780200909-201307

main89751-52140iZRE143,ZZE142..(18E,18G,20G)..TH;ZZE14#..(16G,16V,18J)..(IDN,PHL)¥780200909-201008

WIRELESS DOOR LOCK-WITH(SMART ENTRY)

89752ACASE, TRANSMITTER HOUSING

main89752-02210iZRE143,ZZE142..(18E,18G,20G)..TH200801-201008

WIRELESS DOOR LOCK-WITH(SMART ENTRY)

main89752-02220iCE140..20DSA200801-201104

main89752-0K080iZRE141,142..ATM..(16J,18G)..TH201008-201311

main89752-71080iZRE143,ZZE142..(18E,18J,20E)..TAIW¥1,840200712-201007

WIRELESS DOOR LOCK-WITH(SMART ENTRY)&STARTING SYSTEM-PUSH BUTTON

main89752-71080iZRE143,ZZE142..(18E,18J,20E)..TAIW¥1,840200712-201007

Z AEROTOURER&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&STARTING SYSTEM-PUSH BUTTON

main89752-71080iZRE142..TAIW¥1,840201007-201310

14 parts on this diagram · 5 diagrams in section
