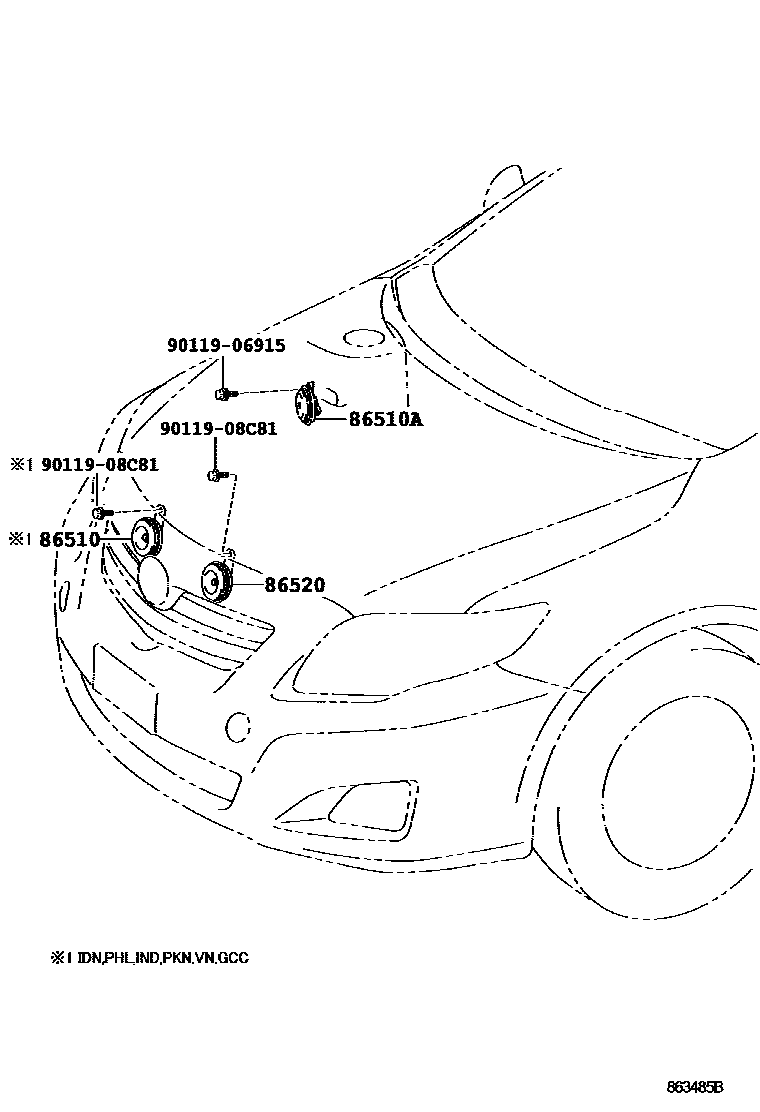

Toyota COROLLA/ALTIS — HORN

86510HORN ASSY, HIGH PITCHED

main86510-02010iZZE142..IND200808-200902

sub86510-02011

main86510-02011iNDE140,ZZE142..IND200903-201010

sub86510-02012

main86510-02012iNDE140201011-201105

main86510-02012iNDE140201105-201312

main86510-02040iZZE142..IND201011-201105

main86510-02040iZRE142..IND201105-201312

main86510-02080iZRE141,142..GCC201307-201310

main86510-06041iZRE141,142..GCC201007-201307

main86510-06110iZZE142..18V..(IDN,PHL)200801-200812

main86510-06110iZRE143,ZZE14#..(16E,16G,16V,18G,18J,20V)..(IDN,PHL)200801-201008

main86510-06110iZRE14#..IDN,PHL201008-201311

main86510-12370iCE140,NZE140¥2,410200808-201104

sub86510-42090

main86510-12370iCE140,NZE140,ZRE141..PKN¥2,410201104

sub86510-42090

main86510-12370iZZE142..PKN¥2,410200808

sub86510-42090

main86510-12610iZRE143,ZZE142..VN¥2,410200808-201010

main86510-12610iZRE142,143..VN¥2,410201010

main86510-48070iZZE14#..GCC¥2,020200901-201007

86510AHORN ASSY, SECURITY

main86560-02030iZRE142..HTWCF;NDE140,ZRE141,ZZE141..16G,16V,E,G;ZRE142..(18G,18V,E,G)..(IDN,IND,VN);ZRE142,143..(6F,CVFC)..(18E,18J,20G,20V)..(IDN,PHL,TH,VN)..HTWC201008

main86560-02030iZZE142..18V..(IDN,PHL)200801-200812

main86560-02030iZRE142..18J..IND201301

main86560-02030iZZE141..(16G,16V)..PHL;ZRE143,ZZE142..(18E,18G,18J,20G,20V)..(IDN,PHL,TH)200801-201008

main86560-02030iZRE143,ZZE142..VN200801-201010

main86560-02030iZRE141,142..ATM..(16J,18G)..TH201008-201211

main86560-02030iNDE140,ZZE142..(18G,18V,E,G)..IND200801-201105

main86560-02040iZRE142,143..TAIW201007-201310

main86560-02040iZZE142..(18G,18V)..TAIW200712-200811

main86560-02040iZRE143,ZZE142..(18E,18J,20E,20G,20V)..TAIW200712-201007

86520HORN ASSY, LOW PITCHED

main86520-02030iZRE14#..GCC,TAIW201007-201307

main86520-02030iZZE14#..(16J,18G,18V)..TAIW200712-200811

main86520-02030iZRE143,ZZE142..(18E,18J,20E,20G,20V)..TAIW200712-201007

main86520-02080iZZE142..IND200808-200902

sub86520-02081

main86520-02081iNDE140,ZZE142..IND200903-201010

sub86520-02082

main86520-02082iNDE140201011-201105

main86520-02082iNDE140201105-201312

main86520-02160iZZE142..IND201011-201105

main86520-02160iZRE142..IND201105-201312

main86520-02210iZRE14#..GCC,TAIW201307-201310

main86520-06100iZRE143,ZZE14#..(16E,16G,16V,18G,18J,20V)..(IDN,PHL)200801-201008

main86520-06100iZRE141,142..ATM..(16J,18G)..TH201008-201211

main86520-06100iZZE142..18V..(IDN,PHL)200801-200812

main86520-06100iZRE142..HTWCF;ZRE141..6F..TH;ZRE142..18G..(IDN,MA);ZRE14#,ZZE141..(16E,16G,16V,18E,18J,20G,20V,LIMO)..(IDN,MA,PHL,TH)..HTWC201008-201311

main86520-12690iZRE143,ZZE142..VN¥2,410200808-201010

main86520-12690iZRE142,143..VN¥2,410201010

main86520-12710iZZE142..PKN¥2,410200808

main86520-12710iCE140,NZE140,ZRE141..PKN¥2,410201104

main86520-12710iCE140,NZE140¥2,410200808-201104

main86520-47010iZZE14#..GCC¥2,190200901-201007

main86520-52170iZZE141..16E..TH200801-200812

main86520-52170iZZE141..MA;ZRE143,ZZE14#..(16G,16J,18E,18G,20G,20V,LIMO)..(MA,TH)200801-201008

9011906915

main90119-06915¥60

9011908C81

main90119-08C81¥80

5 parts on this diagram · 1 diagram in section
