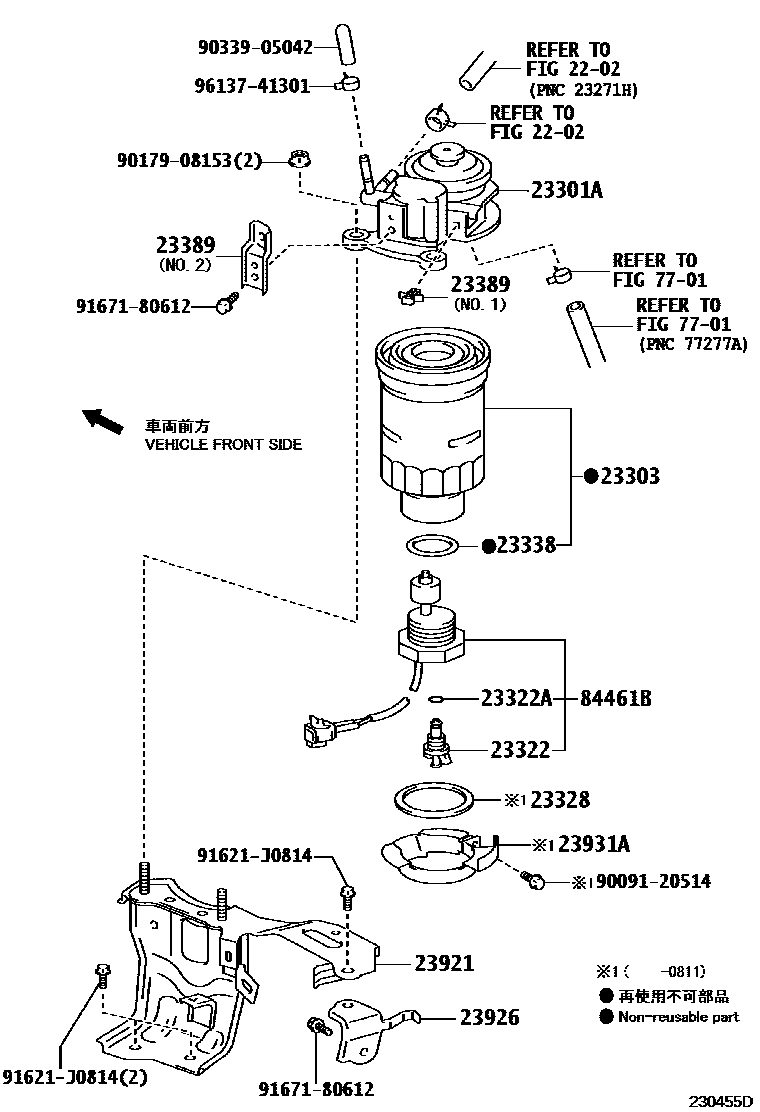

Toyota COROLLA/ALTIS — FUEL FILTER

0001 1 0002 1

2202

23301ACAP ASSY, FUEL FILTER

main23380-33090i1NDTV..NDE140201006-201312

main23380-64570i2C..CE140200808-200811

sub23380-64571

main23380-64571i2C..CE140200811-201211

23303ELEMENT SUB-ASSY, FUEL FILTER

main23390-26140i2C..CE140¥0200808-201104

sub23390-26160¥3,540

main23390-26280i1NDTV..NDE140¥4,700201006-201312

23322PLUG, DRAIN(FOR FUEL FILTER)

main23388-64470i2C..CE140¥390200808-201105

23322ARING, O(FOR DRAIN PLUG)

main23344-54010i2C..CE140¥0200808-201105

23328GASKET(FOR FUEL FILTER)

main23385-30160i2C..CE140¥220200808-200811

23338GASKET(FOR WARNING SWITCH)

main23344-64010i1NDTV..NDE140¥0200808-201312

23389CLAMP, FUEL FILTER

main23389-27130i2C..CE140¥250200808-201104

NO.1

main23389-64570i2C..CE140200808-201104

NO.2

23921SUPPORT, FUEL FILTER

main23904-0N010i1NDTV..NDE140201006-201312

main23904-64040i2C..CE140200808-201104

23926STAY, FUEL FILTER SUPPORT, NO.2

main23926-33010i1NDTV..NDE140201006-201312

main23926-64010i2C..CE140200808-200810

sub23926-64011

main23926-64011i2C..CE140200811-201104

23931ACOVER, FUEL FILTER

main23931-26010i2C..CE140200808-200811

sub23931-26031¥1,240

7701

84461BSWITCH, LEVEL WARNING

main84461-28040iNDE140¥8,400201006-201202

sub84461-28041¥5,200

main84461-28041iNDE140¥5,200201203-201312

main84461-60080iCE140¥5,400200808-201109

sub84461-60081¥4,430

main84461-60081iCE140¥4,430201110-201406

sub84461-60082¥4,430

9009120514

main90091-20514

9017908153

main90179-08153¥90

9033905042

main90339-05042¥100

91621J0814

main91621-J0814¥60

9167180612

main91671-80612¥60

9613741301

main96137-41301¥120

19 parts on this diagram · 2 diagrams in section
