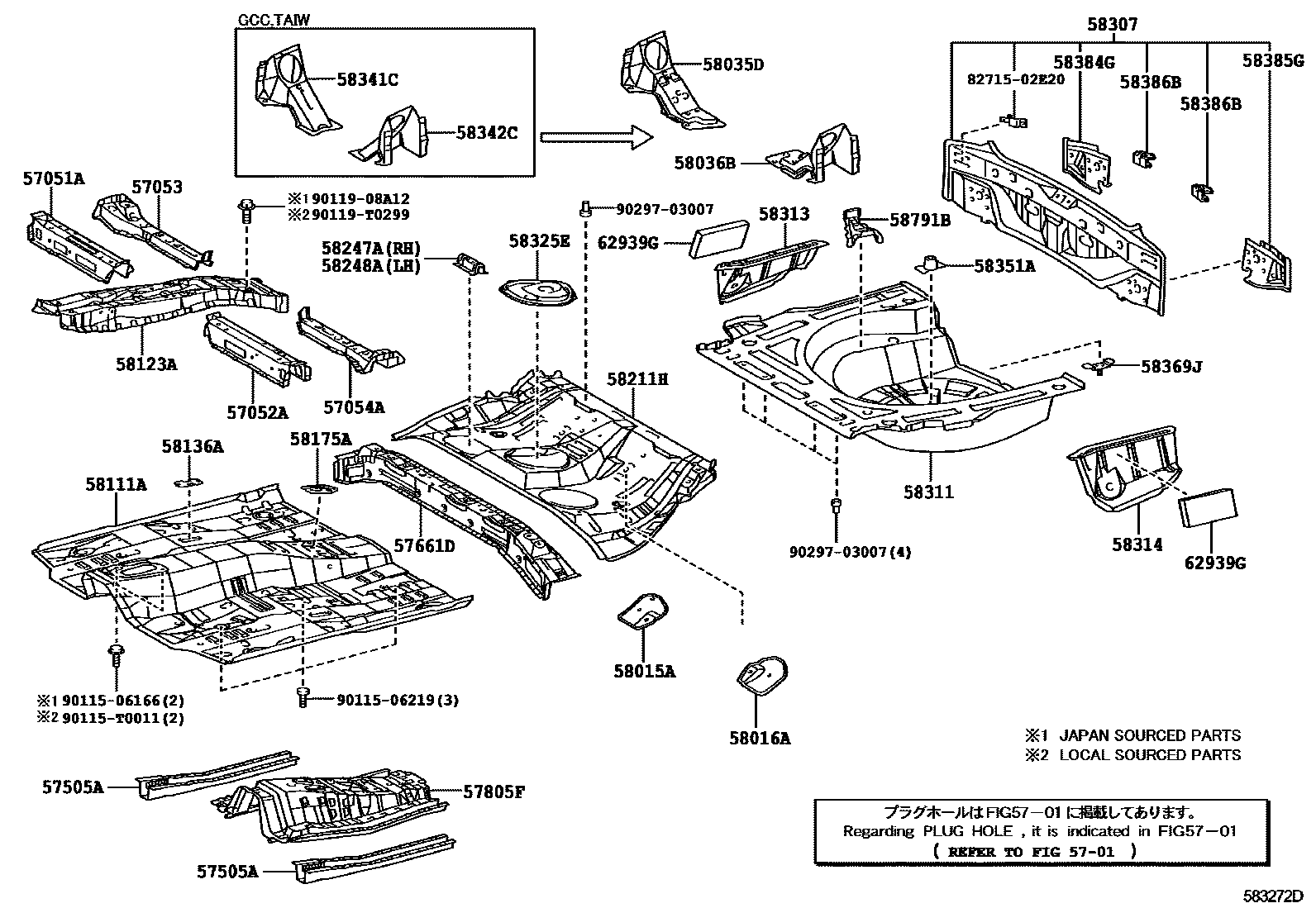

Toyota COROLLA/ALTIS — FLOOR PAN & LOWER BACK PANEL

0001 1 0002 1

5701

57051AMEMBER SUB-ASSY, FRONT FLOOR CROSS, RH

main57051-02060iZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)200712-201311

main57051-02070iCE140,NZE140200808-201105

57052AMEMBER SUB-ASSY, FRONT FLOOR CROSS, LH

main57052-02050iZZE14#..(16J,18G,18V)..TAIW200712-201311

main57052-02060iNDE140,ZZE142..IND200808-201105

57053REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, RH

main57053-02060iZZE14#..(16J,18G,18V)..TAIW200712-201311

57054AREINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, LH

main57054-02040iZZE14#..(16J,18G,18V)..TAIW200712-201311

57505AREINFORCEMENT SUB-ASSY, FRONT FLOOR UNDER

main57417-02120iZRE143,ZZE14#..GCC,TAIW200901-201310

main57505-02030iZZE14#..(16J,18G,18V)..TAIW200712-201211

57661DMEMBER, REAR FLOOR CROSS, FRONT

main57407-02140iZRE143,ZZE14#..GCC,TAIW200901-201310

main57661-02130iCE140,NZE140200712-201211

57805FREINFORCEMENT SUB-ASSY, BELT ANCHOR, NO.1

main57805-02070iZZE14#..(16J,18G,18V)..TAIW200712-201211

58015AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 RH

main58015-02090iZZE141..TAIW200712-201211

main58015-02100iZRE143,ZZE142..VN200712-201105

main58015-02100iZRE142..18G..TH201008-201211

SINGAPORE SPEC

main58015-02150iZRE14#..GCC,TAIW200901-201310

58016AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 LH

main58016-02100iZRE143,ZZE142..(18E,18J,20E,20G,20V)..TAIW200712-201211

main58016-02130iZRE143,ZZE14#..GCC,TAIW200901-201310

58035DEXTENSION SUB-ASSY, REAR FLOOR SIDE PANEL, RH

main58035-02020iZRE142..HTWCF;ZRE141..6F..TH;ZRE142..18G..(IDN,MA);ZRE14#..(16E,16G,16V,18E,18J,20G,20V)..(IDN,MA,PHL,TH)..HTWC200801-201311

main58035-02020iZZE141..16E..(MA,PHL);ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20G,20V)..(IDN,MA,PHL,TH)200801-201008

FFV SPEC

58036BEXTENSION SUB-ASSY, REAR FLOOR SIDE PANEL, LH

main58036-02020iZZE141..16G..TH200801-201008

FFV SPEC

main58036-02020iZRE141,142..ATM..(16J,18G)..TH200801-201311

58111APAN, FRONT FLOOR, RH

main58111-02922iZZE141..16E..(MA,PHL);ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20G,20V)..(IDN,MA,PHL,TH)200712-201211

main58111-02926iZRE14#..GCC,TAIW200901-201310

58123ASUPPORT, SHIFT & SELECT LEVER

main58013-02150iZRE141,142..ATM..(16J,18G)..TH200712-201211

58136ACOVER, FRONT FLOOR SERVICE HOLE

main58136-02050iZZE142..PKN200808-201407

(L)

main58136-33010iZRE143,ZZE142..VN¥230200808-201407

(J)

main58136-33010iZRE141,142..GCC,IDN,MA,PHL,TAIW,TH;ZRE143..CVFC..(IDN,MA,PHL,TAIW,TH)¥230200712-201311

58175AREINFORCEMENT, PARKING BRAKE BASE, NO.1

main58176-02040iZZE14#..(16J,18G,18V)..TAIW200712-201211

58211HPAN, CENTER FLOOR

main58211-02280iZZE142..18J..IND200712-201211

main58211-02290iZRE142..TH..HTWC200712-201105

main58211-02290iZRE142..18G..TH201008-201211

SINGAPORE SPEC

main58211-02340iZRE141,142..ATM..(18J,XLI)200901-201310

main58211-02350iZRE141..GCC200901-201310

SEAT COVER MATERIAL-FABRIC

main58211-02350iZZE142..XLI200901-201007

REAR SEAT-6:4 FOLDING

main58211-02350iZRE142,143..LHD..(18E,20G,G,GLI)201007-201310

REAR SEAT-6:4 FOLDING TYPE

58247AREINFORCEMENT, REAR SEAT CUSHION HINGE, RH

main58247-02080iZRE142..HTWCF;ZRE142..18E..TH..HTWC;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,200712-201211

58248AREINFORCEMENT, REAR SEAT CUSHION HINGE, LH

main58247-02080iZZE14#..(16J,18G,18V)..TAIW200712-201211

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-02210iCE140,NZE140,ZRE141..PKN200808-201105

main58307-02230iZRE141,142..ATM..(16J,18G)..TH200801-201211

main58307-02240iZZE14#..TAIW200712-200811

main58307-02250iZZE14#..GCC200901-201007

main58307-02260iZRE143,ZZE142..TAIW200811-201007

main58307-02300iZRE142,143..TAIW201007-201310

58311PAN, REAR FLOOR

main58311-02190iZRE143..20V..TH201008-201103

SINGAPORE SPEC

main58311-02190iNDE140,ZRE142..18V,G200808-201312

main58311-12270iZZE142..(18J,G)..IND;NDE140,ZZE142..(4FC,6F)..(18G,E)..IND¥32,500200712-201211

58313PANEL, REAR FLOOR SIDE, RH

main58313-12300iZZE141..16E..TH;ZZE142..18V..(IDN,PHL)200712-201211

58314PANEL, REAR FLOOR SIDE, LH

main58314-12300iZZE14#..(16J,18G,18V)..TAIW200712-201211

58325ECOVER, REAR FLOOR SERVICE HOLE

main58325-02130iZRE143,ZZE142..VN200712-201211

58341CBRACKET, REAR ABSORBER MOUNTING, NO.1 RH

main58341-12020iCE140,NZE140¥5,100200712-201105

58342CBRACKET, REAR ABSORBER MOUNTING, NO.1 LH

main58342-02010iZRE14#..GCC,TAIW200712-201310

main58342-12020iCE140,NZE140¥5,100200808-201105

58351ABRACKET, SPARE WHEEL CARRIER

main58351-33010iZRE143,ZZE142..VN¥410200712-201211

58369JBRACKET, REAR FLOOR BRACE

main58369-12020iZZE14#..(16J,18G,18V)..TAIW¥220200712-201211

58384GGUSSET, LOWER BACK, UPPER RH

main58384-02110iZZE14#..(16J,18G,18V)..TAIW200712-201310

main58384-02140iZRE142..HTWCF;ZZE141..(16G,LIMO)..TH;ZRE142..GCC,IDN,IND,MA,VN;ZRE14#..(6F,CVFC)..(16J,18E,20G,20V)..(IDN,MA,PHL,TH,VN)..HTWC;CE140,NDE140,NZE140,ZRE141..16E,16G,16200801-201211

58385GGUSSET, LOWER BACK, UPPER LH

main58385-02100iZZE14#..(16J,18G,18V)..TAIW200712-201310

main58385-02120iZRE143,ZZE142..VN200801-201211

58386BBRACKET, REAR BUMPER COVER, NO.2

main58386-02040iZZE14#..(16J,18G,18V)..TAIW200712-201211

58791BCARRIER, JACK

main58791-12200iCE140,NZE140¥1,430200712-201211

62939GSILENCER, QUARTER VENT

main62939-02050iZZE14#..(16J,18G,18V)..TAIW200712-201211

8271502E20BRACKET,WIRING HARNESS CLAMP

main82715-02E20

9011506166

main90115-06166¥90

9011506219

main90115-06219¥80

90115T0011

main90115-T0011

9011908A12

main90119-08A12¥80

90119T0299

main90119-T0299

9029703007

main90297-03007¥60
