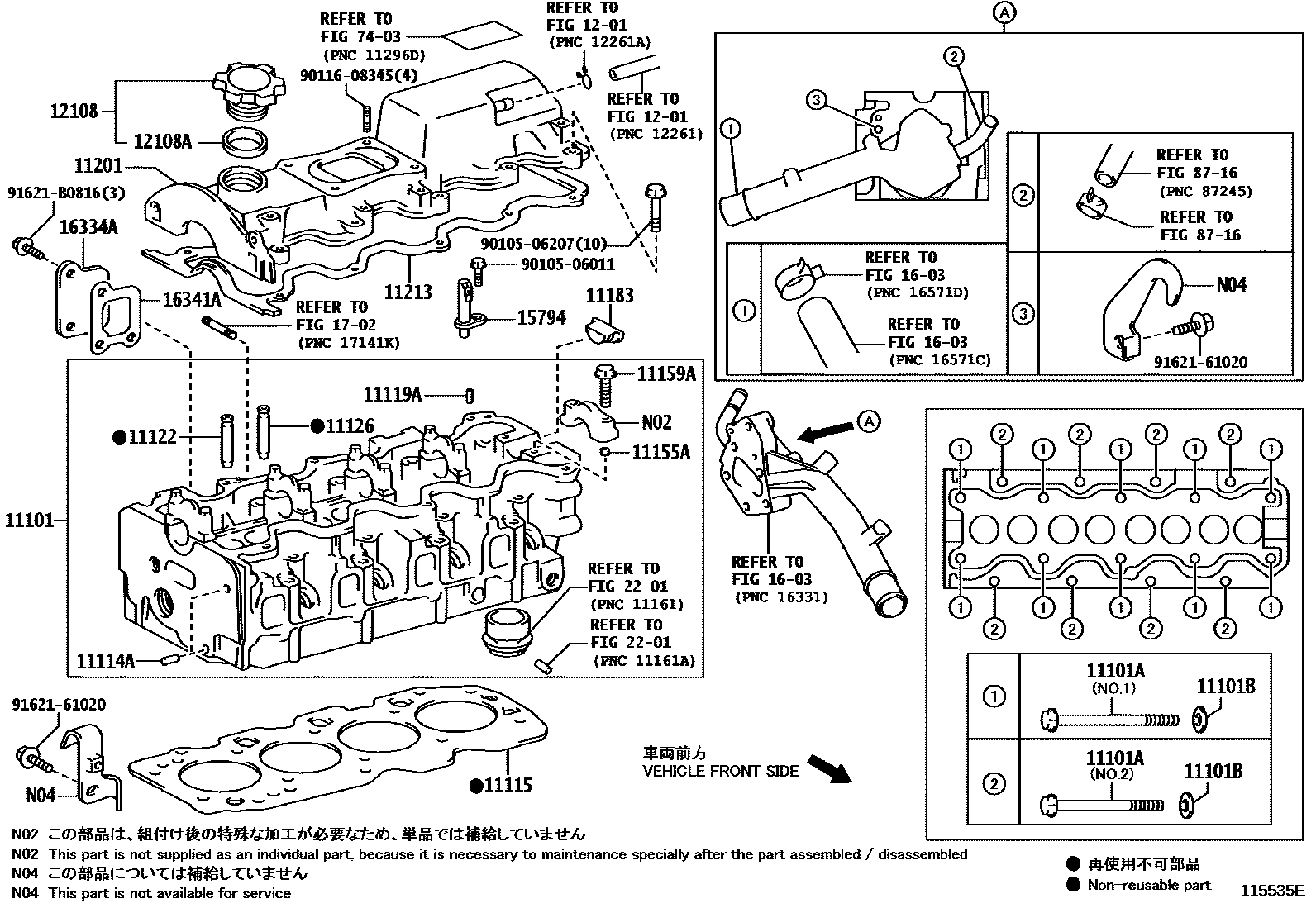

Toyota COROLLA/ALTIS — CYLINDER HEAD

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

11101HEAD SUB-ASSY, CYLINDER

main11101-09510i2ZRFE,3ZRFE..ZRE142,143201401-201407

(L)

main11101-21033i2NZFE..NZE140¥113,000200808-201112

sub11101-21034¥93,600

main11101-21034i2NZFE..NZE140¥93,600201112

main11101-22071i1ZZFE,3ZZFE..ZZE14#..16E,16G,16J,16V,18E,18G,18J,18V,ALT,G,GLI,XLI¥133,000200712-201008

sub11101-22111¥133,000

sub13711-22040¥1,610

main11101-22111i1ZZFE..ZZE142¥133,000201008-201105

sub11101-22071¥133,000

main11101-22150i3ZZFE..ZZE141..LIMO200811-201311

main11101-33060i1NDTV..NDE140¥107,000201006-201012

sub11101-33061¥88,700

main11101-33061i1NDTV..NDE140¥88,700201012-201312

main11101-39686i3ZRFE..ZRE143..4FC¥78,100200811-201406

main11101-39686i2ZRFE,3ZRFE..ZRE142,143¥78,100201401-201407

(J)

main11101-39735i2ZRFE..ZRE142..HTWCF201211-201304

sub11101-39736

main11101-39736i2ZRFE..ZRE142..HTWCF201304-201311

sub11101-09520

main11101-64303i2C..CE140¥119,000200808-201104

11101ABOLT(FOR CYLINDER HEAD SET)

main90910-02097i2C..CE140¥460200808-201104

NO.2

main90910-02099i2C..CE140¥510200808-201104

NO.1

main90910-02152i1ZZFE..ZZE142..VN¥390200712-201311

main90910-02166i3ZRFE..ZRE143..TAIW¥240200811-201211

main90910-02170i2NZFE..NZE140¥240200808-201104

main90910-02171i1NDTV..NDE140¥490201006-201312

11101BWASHER, PLATE(FOR CYLINDER HEAD SET)

main90201-09024i2NZFE..NZE140¥110200808-201104

main90201-10344i3ZZFE..ZZE141..16E..(MA,PHL);1ZZFE,3Z#..ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20G,20V,LIMO)..(IDN,MA,PHL,TH)¥110200712-201211

main90201-12222i2C..CE140¥220200808-201104

main90201-13042i1NDTV..NDE140¥110201006-201312

11114APIN, STRAIGHT

main90250-06001i1ZRFE,2ZRFE..ZRE141,142..ATM..(16J,18G)..TH¥100200811-201211

L=14,OD=6

main90250-06068i2C..CE140¥260200808-201104

L=11,OD=6

main90250-10030i1NDTV..NDE140¥160201006-201312

L=36,OD=10

11115GASKET, CYLINDER HEAD

main11115-21050i2NZFE..NZE140¥4,800200808-201110

sub11115-21080¥4,800

main11115-21080i2NZFE..NZE140¥4,800201110-201204

sub11115-21090¥4,800

main11115-21090i2NZFE..NZE140¥4,800201204

sub11115-21091¥3,030

main11115-22050i1ZZFE..ZZE142..VN¥6,400200712-201311

main11115-33040-A0i1NDTV..NDE140201006-201312

MARKA,REFER REPAIR MANUAL

sub11115-33041¥4,000

main11115-33040-B0i1NDTV..NDE140201006-201312

MARKB,REFER REPAIR MANUAL

sub11115-33041¥4,000

main11115-33040-C0i1NDTV..NDE140201006-201312

MARKC,REFER REPAIR MANUAL

sub11115-33041¥4,000

main11115-33040-D0i1NDTV..NDE140201006-201312

MARKD,REFER REPAIR MANUAL

sub11115-33041¥4,000

main11115-33040-E0i1NDTV..NDE140201006-201312

MARKE,REFER REPAIR MANUAL

sub11115-33041¥4,000

main11115-37040i3ZRFE..ZRE143¥7,100200811-200903

sub11115-37051¥7,100

main11115-37051i3ZRFE..ZRE143..IDN,PHL,TH¥7,100200903-201110

sub11115-37060¥7,100

main11115-37060i1ZRFE,2ZRFE,3ZRFE..ZRE14#¥7,100201110-201406

sub11115-37061¥4,820

main11115-64141-01i2C..CE140200808-201104

MARK 1

main11115-64141-02i2C..CE140200808-201104

MARK 2

main11115-64141-03i2C..CE140200808-201104

MARK 3

11119APIN, STRAIGHT, NO.1

main90250-06013i2C..CE140¥80200808-201104

L=16,OD=6

11122BUSH, INTAKE VALVE GUIDE

main11122-20020i1ZZFE,3ZZFE..ZZE14#..(16G,16J,18E,18G)..TH¥530200712-201007

STD

sub11122-22040

main11122-21010i2NZFE..NZE140¥500200808-201104

STD

main11122-22040i3ZZFE..ZZE141..LIMO200811-201311

STD

main11122-31050i3ZRFE..ZRE143..4FC¥610200811-201211

STD

sub11122-31090¥550

main11122-33030i1NDTV..NDE140¥750201006-201312

STD

main11122-64010i2C..CE140¥900200808-201104

STD

main11123-20020i1ZZFE,3ZZFE..ZZE14#..(16G,16J,18E,18G)..TH¥530200712-201007

O/S 0.05

main11123-21010i2NZFE..NZE140¥500200808-201104

O/S 0.05

main11123-22040i3ZZFE..ZZE141..LIMO200811-201311

O/S 0.05

main11123-31050i1ZRFE,2ZRFE..ZRE141,142..ATM..(16J,18G)..TH¥610200811-201211

O/S 0.05

main11123-33030i1NDTV..NDE140¥750201006-201312

O/S 0.05

main11123-64010i2C..CE140¥900200808-201104

O/S 0.05

11126BUSH, EXHAUST VALVE GUIDE

main11122-20020i1ZZFE,3ZZFE..ZZE14#..(16G,16J,18E,18G)..TH¥530200712-201007

STD

sub11122-22040

main11122-21010i2NZFE..NZE140¥500200808-201104

STD

main11122-22040i3ZZFE..ZZE141..LIMO200811-201311

STD

main11122-33030i1NDTV..NDE140¥750201006-201312

STD

main11123-20020i1ZZFE,3ZZFE..ZZE14#..(16G,16J,18E,18G)..TH¥530200712-201007

O/S 0.05

main11123-21010i2NZFE..NZE140¥500200808-201104

O/S 0.05

main11123-22040i3ZZFE..ZZE141200811-201311

O/S 0.05

main11123-33030i1NDTV..NDE140¥750201006-201312

O/S 0.05

main11126-31030i1ZRFE,2ZRFE..ZRE141,142..ATM..(16J,18G)..TH¥610200811-201211

STD

sub11126-31040¥550

main11126-64030i2C..CE140¥770200808-201104

STD

main11127-31030i2ZRFE..ZRE142..HTWCF;2ZRFE..ZRE142..18E..TH..HTWC;1ZRFE..ZRE141..16E,16G,16V,D,N,XLI;2ZRFE..ZRE142..GCC,IDN,IND,MA,TAIW,VN;1ZRFE,3ZRFE..ZRE141,143..(6F,CVFC)..(16J,¥610200811-201211

O/S 0.05

sub11127-31040¥550

main11127-64030i2C..CE140¥770200808-201104

O/S 0.05

11155APIN, RING W/HEAD

main90250-06001i1ZZFE,3ZZFE..ZZE14#¥100200712-201311

main90253-11021i2C..CE140¥120200808-201104

main90253-12002i2ZRFE..ZRE142..HTWCF;2ZRFE..ZRE142..18E..TH..HTWC;1ZRFE..ZRE141..16E,16G,16V,D,N,XLI;2ZRFE..ZRE142..GCC,IDN,IND,MA,TAIW,VN;1ZRFE,3ZRFE..ZRE141,143..(6F,CVFC)..(16J,¥50200811-201211

11159ABOLT(FOR HEAD TO CAMSHAFT BEARING CAP)

main90109-06080i3ZZFE..ZZE141¥140200712-201311

NO.2

main90119-07008i1NDTV..NDE140¥90201006-201312

NO.1

main90119-07009i1NDTV..NDE140¥90201006-201312

NO.2

main90119-08A29i2NZFE..NZE140¥100200712-201311

NO.1

main91621-60840i2C..CE140¥160200808-201104

11183PLUG, SEMICIRCULAR

main11183-64010i2C..CE140¥670200808-201104

11201COVER SUB-ASSY, CYLINDER HEAD

main11201-0D041i1ZZFE..ZZE142..VN200712-201010

(L)

main11201-0D120i3ZZFE..ZZE141200811-201311

(L)

main11201-0T070i1ZRFE,2ZRFE..ZRE141,142..ATM..(16J,18G)..TH201203-201211

(L)

main11201-21050i2NZFE..NZE140¥23,900200808-201211

sub11201-21051¥19,900

main11201-21051i2NZFE..NZE140¥19,900201211

main11201-22060i1ZZFE,3ZZFE..ZZE14#..LHD..(18E,18J,GLI,XLI)¥20,000200712-201010

(J)

main11201-22060i1ZZFE..ZZE142..IND¥20,000200808-201105

main11201-33040i1NDTV..NDE140¥20,000201006-201103

sub11201-33041¥16,700

sub90126-06029¥60

main11201-33041i1NDTV..NDE140¥16,700201103-201312

main11201-37022i3ZRFE..ZRE143..IDN,PHL,TH¥16,600200811-201010

main11201-37022i1ZRFE,2ZRFE..ZRE141,142..ATM..(16J,18G)..TH¥16,600201007-201211

(J)

main11201-64141i2C..CE140¥21,600200808-201104

11213GASKET, CYLINDER HEAD COVER

main11213-0D020i3ZZFE..ZZE141..16E..(MA,PHL);1ZZFE,3ZZFE..ZZE14#..(16G,16J,16V,18E,18G,18J,LIMO)..(IDN,MA,PHL,TH)200712-201311

(L)

main11213-21011i2NZFE..NZE140¥1,030200808-201104

main11213-22050i3ZZFE..ZZE141..16E..(MA,PHL);1ZZFE,3ZZFE..ZZE14#..(16G,16J,16V,18E,18G,18J,LIMO)..(IDN,MA,PHL,TH)¥1,980200712-201311

(J)

main11213-22050i1ZZFE..ZZE142..IND¥1,980200808-201105

main11213-33030i1NDTV..NDE140¥1,280201006-201312

sub11213-33031¥1,060

main11213-37020i3ZRFE..ZRE143..IDN,PHL,TH¥1,450200811-201407

sub11213-37021¥900

main11213-64061i2C..CE140¥1,460200808-201104

1201

12108CAP SUB-ASSY, OIL FILLER

main12180-0H020i1ZZFE..ZZE142..VN200712-201211

(L)

main12180-21010i3ZZFE..ZZE141..16E..TH;1ZZFE..ZZE142..18V..(IDN,PHL)¥1,020200712-201311

(J)

main12180-21010i2NZFE..NZE140¥1,020200808-201105

main12180-28010i1NDTV..NDE140¥640201006-201312

main12180-38010i3ZRFE..ZRE143..TAIW¥640200811-201104

main12180-38010i1ZRFE,2ZRFE..ZRE141,142..ATM..(16J,18G)..TH¥640201007-201211

(J)

main12180-38010i2ZRFE..ZRE142..HTWCF;2ZRFE..ZRE142..18G..(IDN,MA,VN);1ZRFE,3ZRFE..ZRE141,143..(6F,CVFC)..(16J,20G,20V,G);1ZRFE,2ZRFE..ZRE141,142..(16E,16G,16V,18E,18J,GLI,XLI)..(GC¥640201007

TYPE A:REFER ILLUST.

main12180-55010i2C..CE140¥630200808-201104

12108AGASKET(FOR OIL FILLER CAP)

main90080-43027i1ZZFE..ZZE142..VN200712-201211

(L)

main90430-35001i2NZFE..NZE140¥120200811-201104

main90430-35001i1ZRFE,2ZRFE..ZRE141,142..ATM..(16J,18G)..TH¥120201007-201211

(J)

main90430-35001i2ZRFE..ZRE142..TAIW¥120201007

TYPE A:REFER ILLUST.

main90430-37004i1NDTV..NDE140¥130201006-201312

main90430-37140i1ZZFE,3ZZFE..ZZE14#..(16J,18G,18V)..TAIW¥210200712-201311

(J)

main90430-37140i2NZFE..NZE140¥210200808-201105

15794NOZZLE, CYLINDER HEAD OIL

main15794-64011i2C..CE140¥780200808-201104

1603

16334ACOVER, WATER OUTLET HOUSING

main16334-64010i2C..CE140¥1,430200808-201104

16341AGASKET, WATER OUTLET

main16341-64021i2C..CE140¥360200808-201104

1702

2201

7403

8716

9010506011

main90105-06011¥60

9010506207

main90105-06207¥120

9011608345

main90116-08345¥170

9162161020

main91621-61020¥180

91621B0816

main91621-B0816¥90

29 parts on this diagram · 6 diagrams in section
