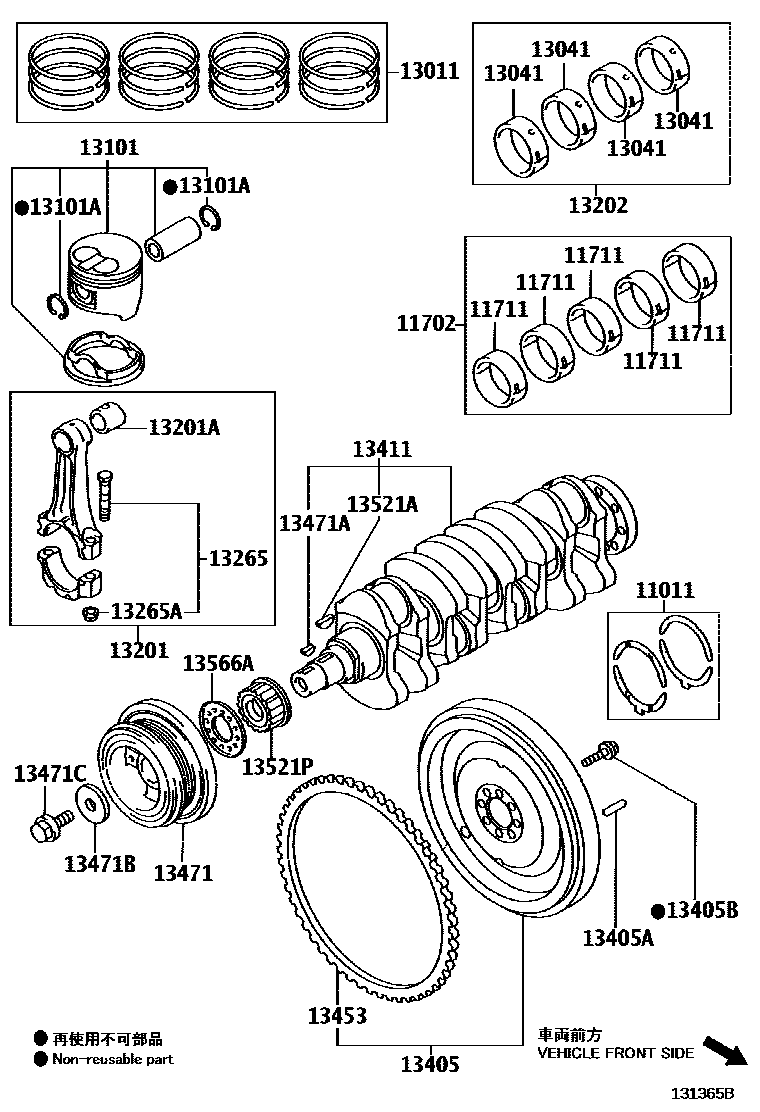

Toyota COROLLA/ALTIS — CRANKSHAFT & PISTON

0001 1 0002 1 0003 1 0004 1 0005 1

11011WASHER SET, CRANKSHAFT THRUST

main11011-64010i2C..CE140¥2,270200808-201104

STD

main11012-64010i2C..CE140¥2,780200808-201104

O/S 0.125

main11013-64010i2C..CE140¥2,780200808-201104

O/S 0.250

11702BEARING SET, CRANKSHAFT

main11704-0D031i1ZZFE,3ZZFE..ZZE14#..IDN,MA,PHL,TAIW,TH,VN200712-200811

U/S 0.25,(L)

sub11704-22011¥20,600

main11704-21031i1NDTV..NDE140¥18,600200808-201309

U/S 0.25

sub11704-21032¥18,600

main11704-21032i1NDTV..NDE140¥18,600201308-201401

U/S 0.25

main11704-21033i2NZFE..NZE140¥11,700201401

U/S 0.25

main11704-22011i1ZZFE,3ZZFE..ZZE14#..(16J,18G,18V)..TAIW¥20,600200712-201010

U/S 0.25,(J)

main11704-22011i1ZZFE..ZZE142..VN¥20,600200811-201010

U/S 0.25,(L)

main11704-22011i1ZZFE..ZZE142..IND¥20,600200808-201105

U/S 0.25

main11704-22011i3ZZFE..ZZE141¥20,600201008-201311

U/S 0.25,(J),(L)

main11704-27023i2C..CE140¥22,300200808-201104

U/S 0.25

11711BEARING, CRANKSHAFT

main11701-0D031-01i3ZZFE..ZZE141..16E..(MA,PHL);1ZZFE,3ZZFE..ZZE14#..(16G,16J,16V,18E,18G,18J,LIMO)..(IDN,MA,PHL,TH)200712-201311

MARK1,(L):REFER R/M

sub11701-22011¥3,420

main11701-0D031-02i1ZZFE..ZZE142..VN200712-201311

MARK2,(L):REFER R/M

sub11701-22011¥3,420

main11701-0D031-03i3ZZFE..ZZE141200712-201311

MARK3,(L):REFER R/M

sub11701-22011¥3,420

main11701-0D031-04i1ZZFE..ZZE142..VN200712-201311

MARK4,(L):REFER R/M

sub11701-22011¥3,420

main11701-0T040-01i1ZRFE,2ZRFE..ZRE141,142..ATM..(16J,18G)..TH201206-201304

MARK1,(L),REFER R/M

sub11701-0T041

main11701-0T040-02i1ZRFE,2ZRFE..ZRE141,142..ATM..(16J,18G)..TH201206-201304

MARK2,(L),REFER R/M

sub11701-0T041

main11701-0T040-03i2ZRFE..ZRE142..HTWCF;1ZRFE..ZRE141..6F..TH;2ZRFE..ZRE142..18G..(IDN,MA,VN);1ZRFE,2ZRFE,3ZRFE..ZRE14#..(16E,16G,16V,18E,18J,20G,20V,G,GLI,XLI)..(GCC,IDN,MA,PHL,TAIW,201206-201304

MARK3,(L),REFER R/M

sub11701-0T041

main11701-0T040-04i2ZRFE..ZRE142..HTWCF;1ZRFE..ZRE141..6F..TH;2ZRFE..ZRE142..18G..(IDN,MA,VN);1ZRFE,2ZRFE,3ZRFE..ZRE14#..(16E,16G,16V,18E,18J,20G,20V,G,GLI,XLI)..(GCC,IDN,MA,PHL,TAIW,201206-201304

MARK4,(L),REFER R/M

sub11701-0T041

main11701-0T041-01i1ZRFE,2ZRFE,3ZRFE..ZRE14#..GCC,IDN,MA,PHL,TAIW,TH,VN201304

MARK1,(L),REFER R/M

main11701-0T041-02i1ZRFE,2ZRFE,3ZRFE..ZRE14#..GCC,IDN,MA,PHL,TAIW,TH,VN201304

MARK2,(L),REFER R/M

main11701-0T041-03i1ZRFE,2ZRFE,3ZRFE..ZRE14#..GCC,IDN,MA,PHL,TAIW,TH,VN201304

MARK3,(L),REFER R/M

main11701-0T041-04i1ZRFE,2ZRFE,3ZRFE..ZRE14#..GCC,IDN,MA,PHL,TAIW,TH,VN201304

MARK4,(L),REFER R/M

main11701-21031-01i2NZFE..NZE140200808-201310

MARK1,REFER REPAIR MANUAL

sub11701-21032¥3,110

main11701-21031-02i1NDTV..NDE140200808-201310

MARK2,REFER REPAIR MANUAL

sub11701-21032¥3,110

main11701-21031-03i2NZFE..NZE140200808-201310

MARK3,REFER REPAIR MANUAL

sub11701-21032¥3,110

main11701-21031-04i2NZFE..NZE140200808-201310

MARK4,REFER REPAIR MANUAL

sub11701-21032¥3,110

main11701-21032-01i1NDTV..NDE140201308-201312

MARK 1,REFER REPAIR MANUAL

main11701-21032-02i1NDTV..NDE140201308-201312

MARK 2,REFER REPAIR MANUAL

main11701-21032-03i1NDTV..NDE140201308-201312

MAKR 3,REFER REPAIR MANUAL

main11701-21032-04i2NZFE..NZE140201308-201312

MARK 4,REFER REPAIR MANUAL

main11701-21033-01i2NZFE..NZE140201401

MARK 1,REFER REPAIR MANUAL

main11701-21033-02i2NZFE..NZE140201401

MARK 2,REFER REPAIR MANUAL

main11701-21033-03i2NZFE..NZE140201401

MARK 3,REFER REPAIR MANUAL

main11701-21033-04i2NZFE..NZE140201401

MARK 4,REFER REPAIR MANUAL

main11701-22011-01i3ZZFE..ZZE141..16E..(MA,PHL);1ZZFE,3ZZFE..ZZE14#..(16G,16J,16V,18E,18G,18J,LIMO)..(IDN,MA,PHL,TH)200712-201311

MARK1,(J):REFER R/M

main11701-22011-01i1ZZFE..ZZE142..PKN200808-201105

MARK1,REFER REPAIR MANUAL

main11701-22011-02i3ZZFE..ZZE141..16E..TH;1ZZFE..ZZE142..18V..(IDN,PHL)200712-201311

MARK2,(J):REFER R/M

main11701-22011-02i1ZZFE..ZZE142..IND200808-201105

MARK2,REFER REPAIR MANUAL

main11701-22011-03i1ZZFE,3ZZFE..ZZE14#..(16J,18G,18V)..TAIW200712-201311

MARK3,(J):REFER R/M

main11701-22011-03i1ZZFE..ZZE142..PKN200808-201105

MARK3,REFER REPAIR MANUAL

main11701-22011-04i3ZZFE..ZZE141200712-201311

MARK4,(J):REFER R/M

main11701-22011-04i1ZZFE..ZZE142..PKN200808-201105

MARK4,REFER REPAIR MANUAL

main11701-27013-01i2C..CE140200808-201104

MARK1,REFER REPAIR MANUAL

main11701-27013-02i2C..CE140200808-201104

MARK2,REFER REPAIR MANUAL

main11701-27013-03i2C..CE140200808-201104

MARK3,REFER REPAIR MANUAL

main11701-27013-04i2C..CE140200808-201104

MARK4,REFER REPAIR MANUAL

main11701-27013-05i2C..CE140200808-201104

MARK5,REFER REPAIR MANUAL

main11701-27013-A0i2C..CE140200808-201104

MARKA,REFER REPAIR MANUAL

main11701-27013-B0i2C..CE140200808-201104

MARKB,REFER REPAIR MANUAL

main11701-37020-01i1ZRFE,2ZRFE..ZRE141,142..ATM..(16J,18G)..TH201007-201304

MARK1,(J),REFER R/M

sub11701-37021¥1,960

main11701-37020-01i1ZRFE..ZRE141..PKN200811-201304

MARK1,REFER REPAIR MANUAL

sub11701-37021¥1,960

main11701-37020-02i1ZRFE..ZRE141..PKN200811-201304

MARK2,REFER REPAIR MANUAL

sub11701-37021¥1,960

main11701-37020-02i2ZRFE..ZRE142..HTWCF;2ZRFE..ZRE142..18E..TH..HTWC;1ZRFE..ZRE141..16E,16G,16V,XLI;2ZRFE..ZRE142..GCC,IDN,IND,MA,TAIW,VN;1ZRFE,3ZRFE..ZRE141,143..(6F,CVFC)..(16J,20G,201007-201304

MARK2,(J),REFER R/M

sub11701-37021¥1,960

main11701-37020-03i1ZRFE,2ZRFE..ZRE141,142..ATM..(16J,18G)..TH201007-201304

MARK3,(J),REFER R/M

sub11701-37021¥1,960

main11701-37020-03i1ZRFE..ZRE141..PKN200811-201304

MARK3,REFER REPAIR MANUAL

sub11701-37021¥1,960

main11701-37020-04i3ZRFE..ZRE143..IDN,PHL,TH200811-201304

MARK4,REFER REPAIR MANUAL

sub11701-37021¥1,960

main11701-37020-04i2ZRFE..ZRE142..HTWCF;2ZRFE..ZRE142..18E..TH..HTWC;1ZRFE..ZRE141..16E,16G,16V,XLI;2ZRFE..ZRE142..GCC,IDN,IND,MA,TAIW,VN;1ZRFE,3ZRFE..ZRE141,143..(6F,CVFC)..(16J,20G,201007-201304

MARK4,(J),REFER R/M

sub11701-37021¥1,960

main11701-37021-01i1ZRFE..ZRE141..PKN201304

MARK1,REFER REPAIR MANUAL

main11701-37021-01i1ZRFE..ZRE141..PKN201304

MARK1,(J),REFER R/M

main11701-37021-02i1ZRFE..ZRE141..PKN201304

MARK2,REFER REPAIR MANUAL

main11701-37021-02i1ZRFE..ZRE141..PKN201304

MARK2,(J),REFER R/M

main11701-37021-03i1ZRFE..ZRE141..PKN201304

MARK3,REFER REPAIR MANUAL

main11701-37021-03i1ZRFE..ZRE141..PKN201304

MARK3,(J),REFER R/M

main11701-37021-04i1ZRFE,2ZRFE,3ZRFE..ZRE14#..GCC,IDN,IND,MA,PHL,TAIW,TH,VN201304

MARK4,(J),REFER R/M

main11701-37021-04i1ZRFE,2ZRFE,3ZRFE..ZRE14#..GCC,IDN,IND,MA,PHL,TAIW,TH,VN201304

MARK4,REFER REPAIR MANUAL

13011RING SET, PISTON

main13011-21050i2NZFE..NZE140¥12,900200808-201104

STD

main13011-22140i3ZZFE..ZZE141..MA200801-201311

STD

main13011-22220i1ZZFE,3ZZFE..ZZE14#..(16J,18E,18G,18J,18V)..(IDN,MA,TAIW)¥16,800200712-200802

STD

sub13011-22221¥16,800

main13011-22221i1ZZFE..ZZE142..IDN,MA,PHL¥16,800200802-200804

STD,SINGAPORE SPEC

main13011-22221i1ZZFE..ZZE142..IDN,MA,PHL¥16,800200802-200804

STD

main13011-22240i1ZZFE..ZZE142..(18G,18J)..(IDN,MA)200801-201008

STD

main13011-33050i1NDTV..NDE140201006-201009

STD

sub13011-33051¥17,100

main13011-33051i1NDTV..NDE140¥17,100201009-201103

STD

sub13011-33052¥17,100

main13011-33052i1NDTV..NDE140¥17,100201103-201205

STD

main13011-33053i1NDTV..NDE140¥17,100201205-201308

STD

main13011-33054i1NDTV..NDE140¥14,200201308-201312

STD

main13011-37090i1ZRFE,2ZRFE..ZRE141,142..GCC,IDN,IND,MA,PHL,PKN,TAIW,VN¥16,800201007-201407

STD

main13011-37130i3ZRFE..ZRE143..CVFC..(IDN,MA,PHL,TAIW,VN)¥18,200200905-201407

STD

main13011-37140i3ZRFE..ZRE143..TH200905-201311

STD

main13011-37150i2ZRFE..ZRE142..HTWCF201211-201311

STD

main13011-37160i1ZRFE,2ZRFE..ZRE141,142..(16G,16J,18G)..TH..HTWC201008-201311

STD

main13011-64213i2C..CE140¥20,100200808-201104

STD

main13013-64213i2C..CE140¥24,000200808-201104

O/S 0.50

13041BEARING, CONNECTING ROD

main13041-0D021-01i1ZZFE,3ZZFE..ZZE14#..(16J,18G,18V)..TAIW200712-201311

MARK1,(L):REFER R/M

sub13041-22024¥2,190

main13041-0D021-02i1ZZFE,3ZZFE..ZZE14#..LHD..(18E,18J,GLI,XLI)200712-201311

MARK2,(L):REFER R/M

sub13041-22024¥2,190

main13041-0D021-03i3ZZFE..ZZE141..16E..(MA,PHL);1ZZFE,3ZZFE..ZZE14#..(16G,16J,16V,18E,18G,18J,LIMO)..(IDN,MA,PHL,TH)200712-201311

MARK3,(L):REFER R/M

sub13041-22024¥2,190

main13041-21022-01i2NZFE..NZE140200808-201308

MARK1,REFER REPAIR MANUAL

sub13041-21023¥2,210

main13041-21022-02i2NZFE..NZE140200808-201308

MARK2,REFER REPAIR MANUAL

sub13041-21023¥2,210

main13041-21022-03i2NZFE..NZE140200808-201308

MARK3,REFER REPAIR MANUAL

sub13041-21023¥2,210

main13041-21033-01i2NZFE..NZE140201308

MARK 1,REFER REPAIR MANUAL

main13041-21033-02i2NZFE..NZE140201308

MARK 2,REFER REPAIR MANUAL

main13041-21033-03i2NZFE..NZE140201308

MARK 3,REFER REPAIR MANUAL

main13041-22024-01i3ZZFE..ZZE141200712-201311

MARK1,(J):REFER R/M

main13041-22024-01i1ZZFE..ZZE142..IND200808-201105

MARK1,REFER REPAIR MANUAL

main13041-22024-02i1ZZFE,3ZZFE..ZZE14#..LHD..(18E,18J,GLI,XLI)200712-201311

MARK2,(J):REFER R/M

main13041-22024-02i1ZZFE..ZZE142..PKN200808-201105

MARK2,REFER REPAIR MANUAL

main13041-22024-03i1ZZFE..ZZE142..PKN200808-201105

MARK3,REFER REPAIR MANUAL

main13041-22024-03i3ZZFE..ZZE141..16E..TH;1ZZFE..ZZE142..18V..(IDN,PHL)200712-201311

MARK3,(J):REFER R/M

main13041-33041-01i1NDTV..NDE140201006-201312

MARK1,REFER REPAIR MANUAL

main13041-33041-02i1NDTV..NDE140201006-201312

MARK2,REFER REPAIR MANUAL

main13041-33041-03i1NDTV..NDE140201006-201312

MARK3,REFER REPAIR MANUAL

main13041-37010-01i1ZRFE,2ZRFE..ZRE141,142..ATM..(16J,18G)..TH201007-201211

MARK1,REFER REPAIR MANUAL

main13041-37010-02i1ZRFE,2ZRFE..ZRE141,142..ATM..(16J,18G)..TH201007-201211

MARK2,REFER REPAIR MANUAL

main13041-37010-03i2ZRFE..ZRE142..HTWCF;1ZRFE..ZRE141..16E,16G,16V,D,N,XLI;2ZRFE..ZRE142..GCC,IDN,IND,MA,TAIW,VN;1ZRFE,2ZRFE..ZRE141,142..(6F,CVFC)..(16J,18E)..TH..HTWC201007-201211

MARK3,REFER REPAIR MANUAL

main13041-37030-01i3ZRFE..ZRE143..CVFC200811-201010

MARK1,REFER REPAIR MANUAL

main13041-37030-02i3ZRFE..ZRE143..IDN,PHL,TH200811-201010

MARK2,REFER REPAIR MANUAL

main13041-37030-03i3ZRFE..ZRE143..TAIW200811-201010

MARK3,REFER REPAIR MANUAL

main13041-64073-01i2C..CE140200808-201104

MARK1,REFER REPAIR MANUAL

main13041-64073-02i2C..CE140200808-201104

MARK2,REFER REPAIR MANUAL

main13041-64073-03i2C..CE140200808-201104

MARK3,REFER REPAIR MANUAL

main13041-64073-04i2C..CE140200808-201104

MARK4,REFER REPAIR MANUAL

main13041-64073-05i2C..CE140200808-201104

MARK5,REFER REPAIR MANUAL

13101PISTON SUB-ASSY, W/PIN

main13101-0D071i3ZZFE..ZZE141200712-201008

STD

main13101-0D071i3ZZFE..ZZE141201008-201311

STD,NO MARK

main13101-0D130i1ZZFE..ZZE142..IDN,MA,VN200801-201010

STD,(L)

main13101-0D130i1ZZFE..ZZE142..IDN,MA,PHL200801-200804

STD,SINGAPORE SPEC,(L)

main13101-0D140i1ZZFE..ZZE142..(18G,18J)..(IDN,MA)200801-201008

STD,(L)

sub13101-22200

main13101-0N060-A0i1NDTV..NDE140201006-201205

STD,MARKA,REFER REPAIR MANUAL

main13101-0N060-B0i1NDTV..NDE140201006-201205

STD,MARKB,REFER REPAIR MANUAL

main13101-0N060-C0i1NDTV..NDE140201006-201205

STD,MARKC,REFER REPAIR MANUAL

main13101-0N061-A0i1NDTV..NDE140201205-201308

STD,MARK A,REFER REPAIR MANUAL

main13101-0N061-B0i1NDTV..NDE140201205-201308

STD,MARK B,REFER REPAIR MANUAL

main13101-0N061-C0i1NDTV..NDE140201205-201308

STD,MARK C,REFER REPAIR MANUAL

main13101-0N062-A0i1NDTV..NDE140201308-201312

STD,MARK A,REFER REPAIR MANUAL

main13101-0N062-B0i1NDTV..NDE140201308-201312

STD,MARK B,REFER REPAIR MANUAL

main13101-0N062-C0i1NDTV..NDE140201308-201312

STD,MARK C,REFER REPAIR MANUAL

main13101-0T120i1ZRFE..ZRE141..GCC,MA,PHL,TH201009-201311

STD,(L)

main13101-0T150i2ZRFE..ZRE142..HTWCF201211-201311

STD

main13101-0T180i2ZRFE..ZRE142..(GCC,IDN,MA,TAIW,TH,VN)..HTWC201306-201407

STD,(L),*264

main13101-21080i2NZFE..NZE140¥5,200200808-201104

STD

main13101-22170i1ZZFE..ZZE142..GCC,IND,PKN,TAIW¥6,700200712

STD

main13101-22170i1ZZFE..ZZE142..18E..TH¥6,700200801-201010

STD,(J)

main13101-22170i1ZZFE..ZZE142..IDN,MA,PHL¥6,700200801-200804

STD,SINGAPORE SPEC,(J)

main13101-22200i1ZZFE..ZZE142..VN200801-201008

STD,(J)

main13101-37071i2ZRFE..ZRE142..(GCC,IDN,MA,TAIW,TH,VN)..HTWC¥6,300201007-201306

STD,*264

main13101-37071i2ZRFE..ZRE142..(GCC,IDN,MA,TAIW,TH,VN)..HTWC¥6,300201306-201407

STD,(J),*264

main13101-37071i2ZRFE..ZRE142..GCC,IND¥6,300201007-201312

STD,*119

main13101-37081i1ZRFE..ZRE141..GCC,MA,PHL,TH¥6,300201009-201206

STD,(J)

main13101-37081i1ZRFE..ZRE141..MA,PHL,TH¥6,300201007-201406

STD

main13101-37090i3ZRFE..ZRE143..4FC¥6,700200811-201407

STD

main13101-64190-01i2C..CE140200808-201104

STD,MARK 1,REFER REPAIR MANUAL

main13101-64190-02i2C..CE140200808-201104

STD,MARK 2,REFER REPAIR MANUAL

main13101-64190-03i2C..CE140200808-201104

STD,MARK 3,REFER REPAIR MANUAL

main13103-64190i2C..CE140¥13,500200808-201104

O/S 0.50

13101ARING, HOLE SNAP(FOR PISTON PIN)

main90080-52139i1NDTV..NDE140¥120201006-201312

main90520-20064i3ZRFE..ZRE143..CVFC;1ZRFE,2ZRFE..ZRE141,142;3ZZFE..ZZE141..(16G,LIMO)..TH¥100200712-201407

main90521-29003i2C..CE140¥230200808-201104

13201ROD SUB-ASSY, CONNECTING

main13201-09491i3ZZFE..ZZE141..16E..TH200712-200911

(L)

main13201-09A30i2ZRFE..ZRE142..TAIW¥12,800201101-201312

MADE IN EUROPE

main13201-09B40i2ZRFE..ZRE142201401

(L)

main13201-29177i1ZZFE..ZZE142..VN¥13,000200712-201105

main13201-29645i3ZZFE..ZZE141..16E..(MA,PHL);3ZZFE..ZZE141..(16G,16J,16V,LIMO,XLI)..(GCC,PHL,TH)200712-201007

(J)

main13201-29645i3ZZFE..ZZE141201008-201311

main13201-29715i2NZFE..NZE140¥10,100200808-201308

sub13201-29716¥9,300

main13201-29716i2NZFE..NZE140¥9,300201308-201401

sub13201-29717¥7,700

main13201-29717i2NZFE..NZE140¥7,700201401

main13201-39055i1NDTV..NDE140¥11,700201006-201312

main13201-39185i2ZRFE..ZRE142..VN¥8,000201007-201401

main13201-39185i1ZRFE,2ZRFE..ZRE141,142..GCC,IND¥8,000201101-201312

MADE IN JAPAN

main13201-39185i2ZRFE..ZRE142¥8,000201401

(J)

main13201-39205i3ZRFE..ZRE143..IDN,PHL,TH¥9,400200811-201010

main13201-64032i2C..CE140¥14,500200808-201104

13201ABUSH(FOR CONNECTING ROD SMALL END)

main90999-73138i2C..CE140¥840200808-201104

main90999-73147i1NDTV..NDE140¥1,200201006-201312

main90999-73151i3ZZFE..ZZE141..16E..(MA,PHL);3ZZFE..ZZE141..(16G,16J,16V,LIMO,XLI)..(GCC,PHL,TH);1ZZFE,3ZRFE..ZRE143,ZZE142..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)¥2,270200712-201211

13202BEARING SET, CONNECTING ROD

main13204-21022i2NZFE..NZE140¥9,800200808-201308

U/S 0.25

sub13204-21023¥9,800

main13204-21033i2NZFE..NZE140¥6,100201308

U/S 0.25

main13204-22024i3ZZFE..ZZE141..16E..(MA,PHL);1ZZFE,3ZZFE..ZZE14#..(16G,16J,16V,18E,18G,18J,LIMO)..(IDN,MA,PHL,TH)¥11,600200712-201311

U/S 0.25

main13204-33041i1NDTV..NDE140¥7,700201006-201312

U/S 0.25

main13204-64073i2C..CE140¥9,800200808-201104

U/S 0.25

13265BOLT, CONNECTING ROD

main13265-21020i1NDTV..NDE140¥300200808-201105

main13265-22020i2ZRFE..ZRE142..HTWCF;1ZRFE..ZRE141..16E,16G,16V,D,N,XLI;2ZRFE..ZRE142..GCC,IDN,IND,MA,TAIW,VN;1ZRFE,3ZRFE..ZRE141,143..(6F,CVFC)..(16J,20G,20V,G);2ZRFE,3ZZFE..ZRE14¥390200712-201211

sub13265-22040¥300

main13265-49045i2C..CE140¥810200808-201104

13265ANUT, HEXAGON(FOR CONNECTING ROD BOLT)

main90179-10042i2C..CE140¥160200808-201104

13405FLYWHEEL SUB-ASSY

main13405-0D031i3ZZFE..ZZE141..16E..PHL;1ZZFE,3ZZFE..ZZE14#..5F..(16G,16J,18J,LIMO)..(IDN,PHL,TH)200801-201311

(L)

main13405-0D080i1ZZFE..ZZE142..5F..PKN200808

(L)

main13405-0T020i1ZRFE,2ZRFE..ZRE141,142..6F..(IDN,PHL,TH,VN)201203

(L)

main13405-21020i2NZFE..NZE140¥19,800200808-201104

main13405-22020i1ZZFE..ZZE142..5F..PKN¥23,800200801-201311

(J)

main13405-22020i1ZZFE..ZZE142..5F..IND¥23,800200808-201105

main13405-33030i1NDTV..NDE140¥31,700201006-201312

main13405-37050i1ZRFE,2ZRFE..ZRE141,142..6F¥23,800201008-201402

(J)

sub13405-37051¥13,800

main13405-37051i1ZRFE,2ZRFE..ZRE141,142..6F¥13,800201403

(J)

main13405-64070i2C..CE140¥41,800200808-201104

13405APIN, STRAIGHT(FOR FLYWHEEL)

main90250-08054i3ZZFE..ZZE141..16E..PHL;1ZZFE,3ZZFE..ZZE14#..5F..(16G,16J,18J,LIMO)..(IDN,PHL,TH)¥120200801-201311

L=23,OD=8

main90250-08120i1ZRFE,2ZRFE,3ZZFE..ZRE141,142,ZZE141..MTM..(18J,E,G,LIMO,N)..(IND,PKN,TH)¥140200801-201105

L=18,OD=8

main90250-08120i1ZRFE,2ZRFE..ZRE141,142..6F..(IDN,PHL,TH,VN)¥140201008

L=18,OD=8,(J)

main90250-T0007i1ZRFE,2ZRFE..ZRE141,142..6F..(IDN,PHL,TH,VN)201008

L=18,OD=8,(L)

13405BBOLT, FLYWHEEL SETTING

main90105-10071i2C..CE140¥380200808-201104

main90910-02103i1ZZFE..ZZE142..5F..VN¥260200801-201311

main90913-01024i1NDTV,2NZFE..NDE140,NZE140¥100200808-201105

main90913-01027i1ZRFE,2ZRFE..ZRE141,142..6F¥100201008-201407

13411CRANKSHAFT

main13401-0T071i2ZRFE..ZRE142201401

(L)

main13401-21030i2NZFE..NZE140¥63,300200808-201104

main13401-22010i1ZZFE..ZZE142..IND¥93,100200712-201105

main13401-22030i3ZZFE..ZZE141..16E..TH200712-201311

main13401-33020i1NDTV..NDE140¥107,000201006-201312

sub13401-33021¥88,800

main13401-37010i1ZRFE..ZRE141..PKN¥86,100201007-201310

sub13401-37011

main13401-37011i1ZRFE..ZRE141..GCC201309-201310

*119

main13401-37011i1ZRFE..ZRE141..MA,PHL,TH201310-201311

MADE IN JAPAN

main13401-37011i1ZRFE..ZRE141..PKN201309

main13401-37020i2ZRFE..ZRE142..GCC,IND¥93,100201101-201309

(J),*119

sub13401-37021¥58,700

main13401-37020i2ZRFE..ZRE142..GCC¥93,100201007-201101

*119

sub13401-37021¥58,700

main13401-37020i2ZRFE..ZRE142..18G..TH¥93,100201007-201310

*264

sub13401-37021¥58,700

main13401-37021i2ZRFE..ZRE142..IDN,MA,TH,VN¥58,700201310

(J)

main13401-37021i2ZRFE..ZRE142..GCC,IND,TAIW¥58,700201309-201312

(J),*119

main13401-37031i3ZRFE..ZRE143..CVFC¥100,000200811-201309

sub13401-37032¥69,400

main13401-37032i3ZRFE..ZRE143¥69,400201309

main13401-64010i2C..CE140¥127,000200808-200901

main13401-64020i2C..CE140200901-201104

sub13401-64010¥127,000

13453GEAR, FLYWHEEL RING

main13453-0D020i3ZZFE..ZZE141..16E..TH¥5,500200801-201311

(L)

main13453-0M010i1ZRFE,2ZRFE..ZRE141,142..6F..(IDN,PHL,TH,VN)201203

*299

main13453-0T010i1ZRFE,2ZRFE..ZRE141,142..6F¥5,500201008

*302

main13453-10010i2NZFE..NZE140¥4,560200808-201105

main13453-10010i3ZZFE..ZZE141..16E..TH¥4,560200801-201311

(J)

main13453-10010i1ZRFE,2ZRFE..ZRE141,142..6F¥4,560201008

*300

main13453-55010i1NDTV..NDE140¥10,900201006-201312

main13453-64050i2C..CE140¥11,600200808-201104

13471PULLEY, CRANKSHAFT

main13408-64060i2C..CE140¥20,600200808-201104

main13470-0D020i1ZZFE..ZZE142..(18G,18V)..TAIW200712-201010

(L)

main13470-0D030i3ZZFE..ZZE141..16E..(MA,PHL);3ZZFE..ZZE141..(16G,16J,16V,LIMO)..(PHL,TH)200712-201311

(L)

main13470-22021i1ZZFE..ZZE142..(18G,18V)..TAIW¥15,900200712-201010

(J)

main13470-22021i1ZZFE..ZZE142..IND¥15,900200808-201105

main13470-22041i3ZZFE..ZZE141..TAIW¥15,900200712-201008

(J)

main13470-37020i2ZRFE..ZRE142..TAIW¥16,700201007-201203

*119,NO PINK PAINTED

main13470-37020i1ZRFE,2ZRFE..ZRE141,142..ATM..(16J,18G)..TH¥16,700201007-201310

*264

main13470-37020i3ZRFE..ZRE143..VN¥16,700200811-201310

main13470-37040i2ZRFE..ZRE142..HTWCF201211-201310

*264

sub13470-37041¥13,900

main13470-37041i1ZRFE,2ZRFE..ZRE141,142..IND,PKN¥13,900201310

*264

sub13470-37042¥10,400

main13470-37050i2ZRFE..ZRE142..TAIW¥16,700201110-201310

*119,PINK PAINTED

sub13470-37041¥13,900

13471AKEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)

main90280-05007i2C..CE140¥130200808-201104

main95161-30416i1NDTV..NDE140¥190201006-201312

13471BWASHER, PLATE(FOR CRANKSHAFT PULLEY SET)

main90560-16025i2C..CE140¥590200808-201104

13471CBOLT(FOR CRANKSHAFT PULLEY SET)

main90105-16079i2C..CE140¥500200808-201104

main90119-12127i3ZZFE..ZZE141..16E..(MA,PHL);1ZZFE,3ZZFE..ZZE14#..(16G,16J,16V,18E,18G,18J,LIMO)..(IDN,MA,PHL,TH)¥240200712-201311

main90119-12345i2NZFE..NZE140¥240200808-201104

main90119-14106i3ZRFE..ZRE143..IDN,PHL,TH¥360200811-201211

main90119-16004i1NDTV..NDE140¥540201006-201312

13521GEAR OR SPROCKET, CRANKSHAFT TIMING

main13521-0D030i3ZZFE..ZZE141200712-201311

(L)

main13521-0T050i1ZRFE,2ZRFE..ZRE141,142..GCC,IDN,MA,PHL,TAIW,TH,VN201203-201407

(L)

main13521-0T060i3ZRFE..ZRE143201203-201407

(L)

main13521-22020i3ZZFE..ZZE141¥1,290200712-201311

(J)

main13521-22020i1ZZFE..ZZE142..PKN¥1,290200808-201105

main13521-33030i1NDTV..NDE140¥1,800201006-201312

main13521-37010i1ZRFE,2ZRFE..ZRE141,142¥1,290201007-201406

(J)

sub13521-37011¥800

main13521-37020i3ZRFE..ZRE143..VN¥890200811-201010

main13521-37020i3ZRFE..ZRE143..CVFC¥890201007-201407

(J)

13521AKEY(FOR CRANKSHAFT TIMING GEAR)

main90280-04003i1ZRFE,2ZRFE..ZRE141,142..ATM..(16J,18G)..TH¥50200811-201211

main90280-06001i2C..CE140¥310200808-201104

main95161-30416i3ZZFE..ZZE141¥190200712-201311

13521PPULLEY, CRANKSHAFT TIMING

main13521-64011i2C..CE140¥2,440200808-201104

13566AGUIDE, TIMING BELT

main13566-64011i2C..CE140¥590200808-201104

25 parts on this diagram · 5 diagrams in section
