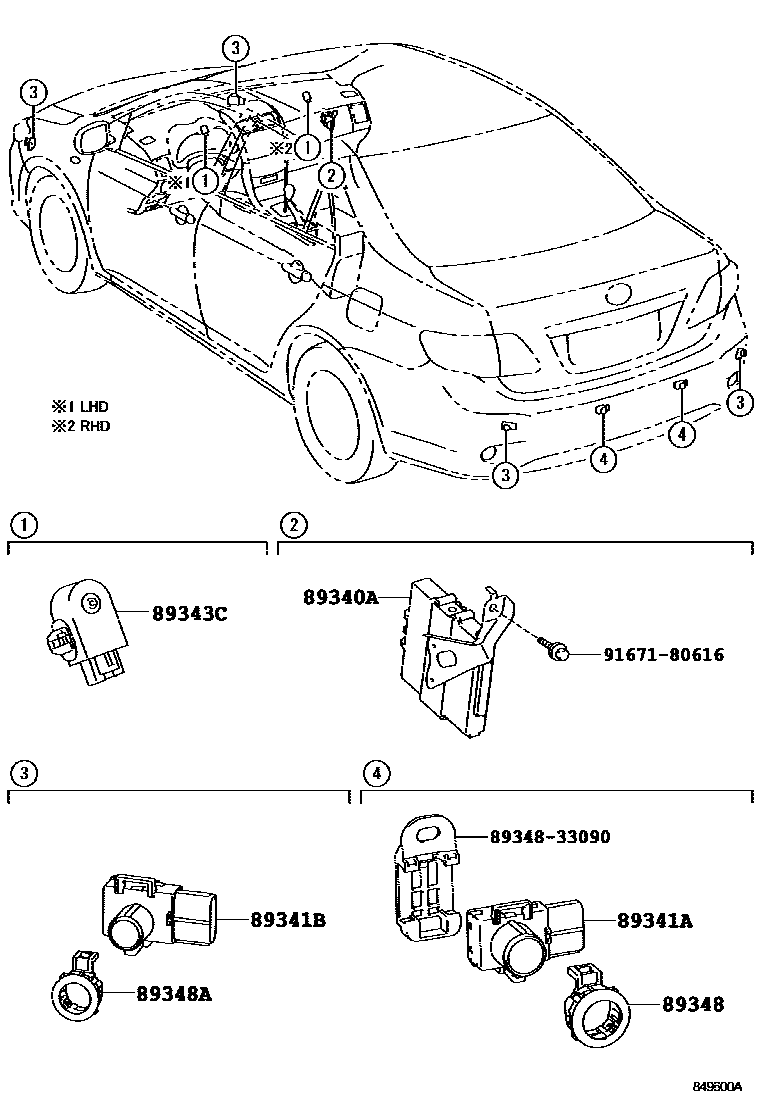

Toyota COROLLA/ALTIS — CLEARANCE & BACK SONAR

89340ACOMPUTER ASSY, CLEARANCE WARNING

main89340-12060iZZE142..(18G,18V)..TAIW200712-200811

main89340-12060iZRE143..(20G,20V)..TAIW200712-201007

main89340-12060iZRE143,ZZE141..(16V,20V)..PHL200712-201008

main89340-12060iZRE141,143..(16V,20V)..PHL201008-201311

main89340-12060iZZE142..PHL200712-200812

main89340-12080iZRE143,ZZE142..(18E,18J,20E)..TAIW200712-201007

GRADE MARK : 1.8J,1.8G OR 1.8E(THAILAND)

main89340-12080iZRE143,ZZE142..VN200712-201010

main89340-12080iZRE142,143..VN201010

main89340-12090iZZE142..MA;ZRE143,ZZE141..IDN,MA200801-201008

main89340-12090iZZE142..18V..IDN200801-200812

main89340-12090iZRE141,142..MA;ZRE143..IDN,MA201008-201311

main89340-12100iZZE142..18G..IDN200801-201008

main89340-12100iZRE143..TH201008-201211

WITH(BACK MONITOR)

main89340-12100iZRE142..18V,E,G;ZRE142..18G..IDN201008-201312

89341ASENSOR, ULTRASONIC, NO.1

main89341-33130-A0iZRE142..18V,E,G201105-201311

WHITE PEARL CS.,040 ,057

main89341-33130-A0iZRE143,ZZE142..(18E,18J,20E,20G,20V)..TAIW200712-201007

WHITE PEARL CS.,040

main89341-33130-A0iZRE143,ZZE142..(18E,18J,20E,20G,20V)..TAIW200712-201007

GRADE MARK : 1.8J,1.8G OR 1.8E(THAILAND),WHITE PEARL CS.,040

main89341-33130-A0iZZE141..16V200802-201008

WHITE PEARL CS.,040 ,070

main89341-33130-A0iZRE143..PHL200812-201008

WHITE PEARL CS.,070

main89341-33130-A0iZRE143..IDN200905-201008

WHITE PEARL CS.,070

main89341-33130-A0iZRE143..IDN200905-201008

WHITE PEARL CS.,040 ,070

main89341-33130-A0iZRE143..TH201008-201211

WHITE PEARL CS.,070

main89341-33130-A0iZRE143..TH201008-201211

WITH(BACK MONITOR),WHITE PEARL CS.,070

main89341-33130-A0iZRE14#..ATM..(16E,16V,18G,20V)..(IDN,MA,PHL)201008-201311

WHITE PEARL CS.,070

main89341-33130-A0iZZE142..(18G,18V)..TAIW200712-200811

WHITE PEARL CS.,040

main89341-33130-A0iZZE142..PHL200712-200812

WHITE PEARL CS.,040

main89341-33130-B0iZRE143,ZZE142..(18E,18J,20E,20G,20V)..TAIW200712-201007

GRADE MARK : 1.8J,1.8G OR 1.8E(THAILAND),SILVER ME.,1D4 ,1F7

main89341-33130-B0iZRE143,ZZE142..(18E,18J,20E,20G,20V)..TAIW200712-201007

SILVER ME.,1D4 ,1F7

main89341-33130-B0iZRE141..4FC..(16E,16V);ZRE142,143..(6F,CVFC)..(18G,20V)..(IDN,MA,PHL,VN)201008-201407

SILVER ME.,1D4 ,1F8 ,4R0

main89341-33130-B0iZRE142..18V,E,G201105-201311

SILVER ME.,1E7 ,587 ,8U6

main89341-33130-B0iZRE143..20V..TH201008-201211

WITH(BACK MONITOR),SILVER ME.,1D4 ,1F8 ,4R0

main89341-33130-B0iZRE143,ZZE14#..4FC..(16E,16V,18G,20V)..(IDN,MA,PHL)200801-201008

SILVER ME.,1D4 ,1F8 ,4R0

main89341-33130-B0iZZE142..(18G,18V)..TAIW200712-200811

SILVER ME.,1D4 ,1F7

main89341-33130-B0iZRE143..20V..TH201008-201211

SILVER ME.,1D4 ,1F8 ,4R0

main89341-33130-B0iZZE142..18V..(IDN,PHL)200801-200812

SILVER ME.,1D4 ,1F8 ,4R0

main89341-33130-C0iZRE142,143..CVFC..IDN201008-201311

DUMMY-MAT BLACK,209 ,218 ,4T4 ,8R3

main89341-33130-C0iZZE142..(18G,18V)..TAIW200712-200811

DUMMY-MAT BLACK,1G3 ,209 ,3E5 ,776 ,8T7

main89341-33130-C0iZZE142..18V..IDN200801-200812

DUMMY-MAT BLACK,1G3 ,209 ,8R3

main89341-33130-C0iZZE142..18V..IDN200801-200812

DUMMY-MAT BLACK,1G3 ,209 ,4R0 ,8R3

main89341-33130-C0iZZE142..(18E,18J)..TAIW200712-201007

DUMMY-MAT BLACK,1G3 ,209 ,3E5 ,776 ,8T7

main89341-33130-C0iZZE142..(18E,18J)..TAIW200712-201007

GRADE MARK : 1.8J,1.8G OR 1.8E(THAILAND),DUMMY-MAT BLACK,1G3 ,209 ,3E5 ,776 ,8T7

main89341-33130-C0iZZE142..VN200808-201007

DUMMY-MAT BLACK

main89341-33130-C0iZRE143..TAIW200811-201007

DUMMY-MAT BLACK,1G3 ,209 ,776 ,8T7

main89341-33130-C0iZZE142..18G..IDN200801-201008

DUMMY-MAT BLACK,1G3 ,209 ,4R0 ,8R3

main89341-33130-C0iZZE142..18G..IDN200801-201008

DUMMY-MAT BLACK,1G3 ,209 ,8R3

main89341-33130-C0iZRE143..PHL200812-201008

DUMMY-MAT BLACK,1G3 ,209

main89341-33130-C0iZRE143..TH201008-201211

DUMMY-MAT BLACK,209 ,218 ,4T4 ,8R3

main89341-33130-C0iZRE143..TH201008-201211

WITH(BACK MONITOR),DUMMY-MAT BLACK,209 ,218 ,4T4 ,8R3

main89341-33130-C0iZRE142..18V,E,G201105-201312

DUMMY-MAT BLACK,040 ,057 ,1E7 ,209 ,3Q3 ,587 ,8U6

main89341-33130-C0iZRE141..4FC..(16E,16V);ZRE142,143..(6F,CVFC)..(MA,PHL,VN)201008-201407

DUMMY-MAT BLACK,209 ,218

89341BSENSOR, ULTRASONIC, NO.2

main89341-33180-A0iZRE143..IDN200905-201008

WHITE PEARL CS.,070

main89341-33180-A0iZZE14#..MA200905-201008

WHITE PEARL CS.,040 ,070

main89341-33180-A0iZZE142..(18G,18V)..TAIW200712-200811

WHITE PEARL CS.,040

main89341-33180-A0iZZE142..PHL200712-200812

WHITE PEARL CS.,040

main89341-33180-A0iZRE143..IDN,MA,PHL;ZRE141,142..ATM..(16E,16V,18G)..(MA,PHL)201008-201311

WHITE PEARL CS.,070

main89341-33180-A0iZRE143..(20G,20V)..TAIW200712-201007

WHITE PEARL CS.,040

main89341-33180-A0iZZE141..16V200802-201008

WHITE PEARL CS.,040 ,070

main89341-33180-A0iZRE143..PHL200812-201008

WHITE PEARL CS.,070

main89341-33180-B0iZZE142..(18G,18V)..TAIW200712-200811

SILVER ME.,1D4 ,1F7

main89341-33180-B0iZRE143..(20G,20V)..TAIW200712-201007

SILVER ME.,1D4 ,1F7

main89341-33180-B0iZZE142..MA;ZRE143,ZZE141..4FC..(16E,16V,20V)..(IDN,MA,PHL)200801-201008

SILVER ME.,1D4 ,1F8 ,4R0

main89341-33180-B0iZZE142..18V..(IDN,PHL)200801-200812

SILVER ME.,1D4 ,1F8 ,4R0

main89341-33180-B0iZRE143..IDN,MA,PHL;ZRE141,142..ATM..(16E,16V,18G)..(MA,PHL)201008-201311

SILVER ME.,1D4 ,1F8 ,4R0

main89341-33180-C0iZZE142..(18G,18V)..TAIW200712-200811

DUMMY-MAT BLACK,1G3 ,209 ,3E5 ,776 ,8T7

main89341-33180-C0iZZE142..18V..IDN200801-200812

DUMMY-MAT BLACK,1G3 ,209 ,8R3

main89341-33180-C0iZZE142..PHL200802-200812

DUMMY-MAT BLACK,1G3 ,209 ,4R0 ,8R3

main89341-33180-C0iZRE143..(20G,20V)..TAIW200811-201007

DUMMY-MAT BLACK,1G3 ,209 ,776 ,8T7

main89341-33180-C0iZRE143..IDN;ZZE14#..4FC..(16E,16V,18G)..(MA,PHL)200801-201008

DUMMY-MAT BLACK,1G3 ,209 ,8R3

main89341-33180-C0iZRE143..PHL200812-201008

DUMMY-MAT BLACK,1G3 ,209

main89341-33180-C0iZRE143..IDN201008-201311

DUMMY-MAT BLACK,209 ,218 ,4T4 ,8R3

main89341-33180-C0iZRE143..IDN201008-201311

DUMMY-MAT BLACK,209 ,218

89343CBUZZER, CLEARANCE WARNING, NO.1

main89343-30010iZRE143,ZZE142..VN¥1,850200712-201010

main89343-30010iZRE142..18V,E,G;ZRE141..4FC..(16E,16V);ZRE142,143..(6F,CVFC)..(18G,20V)..(IDN,MA,PHL,VN)¥1,850201008

main89343-30010iZRE143,ZZE14#..4FC..(16E,16V,18G,20V)..(IDN,MA,PHL)¥1,850200712-201008

main89343-30010iZZE142..18J..TAIW¥1,850200712-201007

GRADE MARK : 1.8J,1.8G OR 1.8E(THAILAND)

main89343-30010iZZE142..(18G,18V)..TAIW¥1,850200712-200811

main89343-30010iZRE143..20V..TH¥1,850201008-201211

WITH(BACK MONITOR)

main89343-30010iZZE142..18V..(IDN,PHL)¥1,850200712-200812

89348RETAINER, ULTRASONIC SENSOR, NO.1

main89348-33030-A0iZRE143..IDN200905-201008

WHITE PEARL CS.,040 ,070

main89348-33030-A0iZRE143,ZZE142..(18E,18J,20E,20G,20V)..TAIW200712-201007

GRADE MARK : 1.8J,1.8G OR 1.8E(THAILAND),WHITE PEARL CS.,040

main89348-33030-A0iZRE143..TH201008-201211

WHITE PEARL CS.,070

main89348-33030-A0iZRE143..TH201008-201211

WITH(BACK MONITOR),WHITE PEARL CS.,070

main89348-33030-A0iZRE14#..ATM..(16E,16V,18G,20V)..(IDN,MA,PHL)201008-201311

WHITE PEARL CS.,070

main89348-33030-A0iZRE142..18V,E,G201105-201311

WHITE PEARL CS.,040 ,057

main89348-33030-A0iZZE14#..4FC..(IDN,MA)200905-201008

WHITE PEARL CS.,070

main89348-33030-A0iZZE141..16V200802-201008

WHITE PEARL CS.,040 ,070

main89348-33030-A0iZRE143..PHL200812-201008

WHITE PEARL CS.,070

main89348-33030-A0iZZE142..18J..TAIW200712-201007

WHITE PEARL CS.,040

main89348-33030-A0iZZE142..PHL200712-200812

WHITE PEARL CS.,040

main89348-33030-A0iZZE142..(18G,18V)..TAIW200712-200811

WHITE PEARL CS.,040

main89348-33030-B0iZRE142..18V,E,G201105-201311

SILVER ME.,1E7 ,587 ,8U6

main89348-33030-B0iZRE143..TH201008-201211

SILVER ME.,1D4 ,1F8 ,4R0

main89348-33030-B0iZZE142..18V..(IDN,PHL)200801-200812

SILVER ME.,1D4 ,1F8 ,4R0

main89348-33030-B0iZZE142..18J..TAIW200712-201007

SILVER ME.,1D4 ,1F7

main89348-33030-B0iZRE143,ZZE142..(18E,18J,20E,20G,20V)..TAIW200712-201007

GRADE MARK : 1.8J,1.8G OR 1.8E(THAILAND),SILVER ME.,1D4 ,1F7

main89348-33030-B0iZRE143,ZZE14#..4FC..(16E,16V,18G,20V)..(IDN,MA,PHL)200801-201008

SILVER ME.,1D4 ,1F8 ,4R0

main89348-33030-B0iZRE143..20V..TH201008-201211

WITH(BACK MONITOR),SILVER ME.,1D4 ,1F8 ,4R0

main89348-33030-B0iZRE141..4FC..(16E,16V);ZRE142,143..(6F,CVFC)..(18G,20V)..(IDN,MA,PHL,VN)201008-201407

SILVER ME.,1D4 ,1F8 ,4R0

main89348-33030-B0iZZE142..(18G,18V)..TAIW200712-200811

SILVER ME.,1D4 ,1F7

main89348-33030-C0iZRE143..20V..TH201008-201211

WITH(BACK MONITOR),DUMMY-MAT BLACK,209 ,218 ,4T4 ,8R3

main89348-33030-C0iZZE142..(18G,18V)..TAIW200712-200811

DUMMY-MAT BLACK,1G3 ,209 ,3E5 ,776 ,8T7

main89348-33030-C0iZZE142..18V..IDN200801-200812

DUMMY-MAT BLACK,1G3 ,209 ,8R3

main89348-33030-C0iZZE142..18V..IDN200801-200812

DUMMY-MAT BLACK,1G3 ,209 ,4R0 ,8R3

main89348-33030-C0iZZE142..(18E,18J)..TAIW200712-201007

DUMMY-MAT BLACK,1G3 ,209 ,3E5 ,776 ,8T7

main89348-33030-C0iZZE142..(18E,18J)..TAIW200712-201007

GRADE MARK : 1.8J,1.8G OR 1.8E(THAILAND),DUMMY-MAT BLACK,1G3 ,209 ,3E5 ,776 ,8T7

main89348-33030-C0iZZE142..VN200808-201007

DUMMY-MAT BLACK

main89348-33030-C0iZRE143..TAIW200811-201007

DUMMY-MAT BLACK,1G3 ,209 ,776 ,8T7

main89348-33030-C0iZZE142..18G..IDN200801-201008

DUMMY-MAT BLACK,1G3 ,209 ,4R0 ,8R3

main89348-33030-C0iZZE142..18G..IDN200801-201008

DUMMY-MAT BLACK,1G3 ,209 ,8R3

main89348-33030-C0iZRE143..PHL200812-201008

DUMMY-MAT BLACK,1G3 ,209

main89348-33030-C0iZRE143..TH201008-201211

DUMMY-MAT BLACK,209 ,218 ,4T4 ,8R3

main89348-33030-C0iZRE142,143..CVFC..IDN201008-201311

DUMMY-MAT BLACK,209 ,218 ,4T4 ,8R3

main89348-33030-C0iZRE142..18V,E,G201105-201312

DUMMY-MAT BLACK,040 ,057 ,1E7 ,209 ,3Q3 ,587 ,8U6

main89348-33030-C0iZRE141..4FC..(16E,16V);ZRE142,143..(6F,CVFC)..(MA,PHL,VN)201008-201407

DUMMY-MAT BLACK,209 ,218

89348ARETAINER, ULTRASONIC SENSOR, NO.2

main89348-33080-A0iZZE142..(18G,18V)..TAIW200712-200811

WHITE PEARL CS.,040

main89348-33080-A0iZZE142..PHL200712-200812

WHITE PEARL CS.,040

main89348-33080-A0iZRE143..(20G,20V)..TAIW200712-201007

WHITE PEARL CS.,040

main89348-33080-A0iZZE141..16V200802-201008

WHITE PEARL CS.,040 ,070

main89348-33080-A0iZRE143..PHL200812-201008

WHITE PEARL CS.,070

main89348-33080-A0iZZE14#..MA200905-201008

WHITE PEARL CS.,040 ,070

main89348-33080-A0iZZE14#..MA200905-201008

WHITE PEARL CS.,070

main89348-33080-A0iZRE143..IDN,MA,PHL;ZRE141,142..ATM..(16E,16V,18G)..(MA,PHL)201008-201311

WHITE PEARL CS.,070

main89348-33080-B0iZRE143..IDN,MA,PHL;ZRE141,142..ATM..(16E,16V,18G)..(MA,PHL)201008-201311

SILVER ME.,1D4 ,1F8 ,4R0

main89348-33080-B0iZZE142..MA;ZRE143,ZZE141..4FC..(16E,16V,20V)..(IDN,MA,PHL)200801-201008

SILVER ME.,1D4 ,1F8 ,4R0

main89348-33080-B0iZZE142..(18G,18V)..TAIW200712-200811

SILVER ME.,1D4 ,1F7

main89348-33080-B0iZZE142..18V..(IDN,PHL)200801-200812

SILVER ME.,1D4 ,1F8 ,4R0

main89348-33080-B0iZRE143..(20G,20V)..TAIW200712-201007

SILVER ME.,1D4 ,1F7

main89348-33080-C0iZZE142..(18G,18V)..TAIW200712-200811

DUMMY-MAT BLACK,1G3 ,209 ,3E5 ,776 ,8T7

main89348-33080-C0iZRE143..IDN201008-201311

DUMMY-MAT BLACK,209 ,218 ,4T4 ,8R3

main89348-33080-C0iZZE142..18V..IDN200801-200812

DUMMY-MAT BLACK,1G3 ,209 ,8R3

main89348-33080-C0iZZE142..PHL200802-200812

DUMMY-MAT BLACK,1G3 ,209 ,4R0 ,8R3

main89348-33080-C0iZRE143..IDN201008-201311

DUMMY-MAT BLACK,209 ,218

main89348-33080-C0iZRE143..(20G,20V)..TAIW200811-201007

DUMMY-MAT BLACK,1G3 ,209 ,776 ,8T7

main89348-33080-C0iZRE143..IDN;ZZE14#..4FC..(16E,16V,18G)..(MA,PHL)200801-201008

DUMMY-MAT BLACK,1G3 ,209 ,8R3

main89348-33080-C0iZRE143..PHL200812-201008

DUMMY-MAT BLACK,1G3 ,209

8934833090RETAINER, ULTRASONIC SENSOR, NO.1

main89348-33090¥0

9167180616

main91671-80616¥60

8 parts on this diagram · 1 diagram in section
