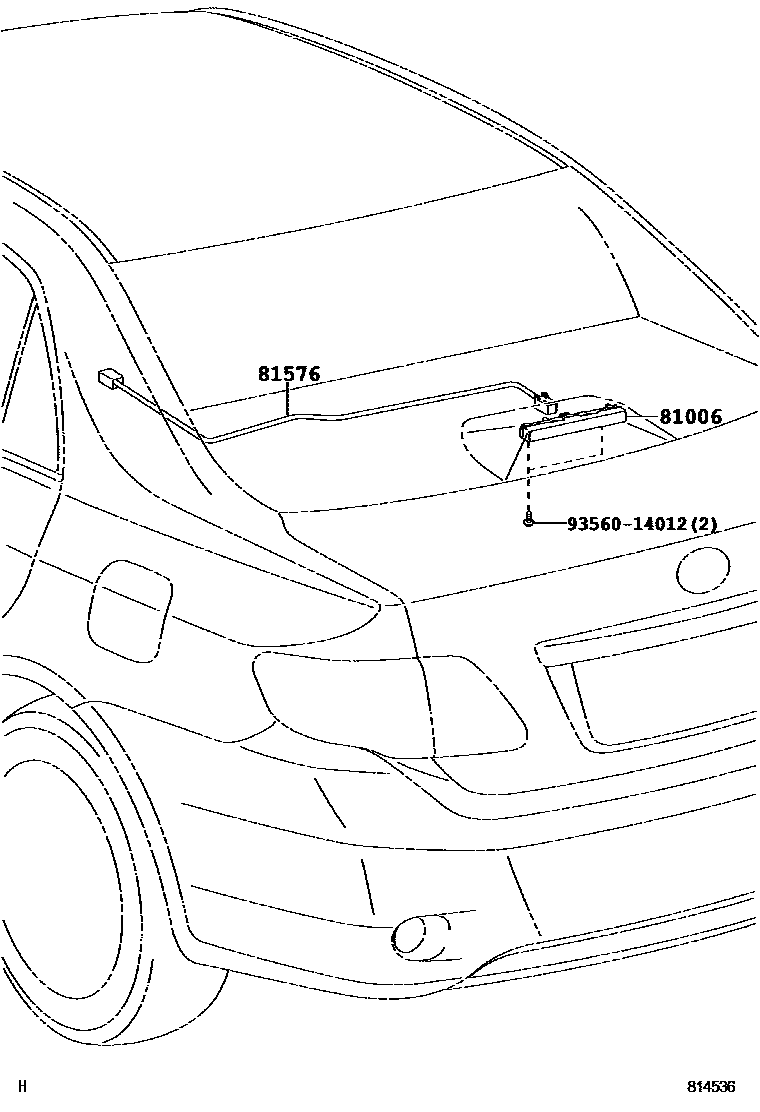

Toyota COROLLA/ALTIS — CENTER STOP LAMP

0001 1 0002 1W(REAR SPOILER)

81006LAMP SET, STOP CENTER

main81006-02070iZRE14#..GCC,TAIW201007-201310

HIGH MOUNT STOP LAMP-WITHOUT

main81006-02070iZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)200712-201007

main81006-02070iZZE14#..(16J,18G,18V)..TAIW200712-200811

main81006-33010iNDE140,ZZE142..IND¥9,800200801-201105

main81006-33010iZZE142..PKN¥9,800200801

main81006-33010iZRE142..HTWCF;ZRE141..6F..TH;ZRE142,143..CVFC..(IDN,MA,PHL);ZRE141,142,ZZE141..(16E,16G,16V,18E,18J)..(IDN,MA,PHL,TH)..HTWC¥9,800201008-201310

main81006-33010iZZE141..16E..TH;ZZE142..18V..(IDN,PHL)¥9,800200801-200812

main81006-33010iZRE143..CVFC..VN;ZRE141..4FC..(16J,D,N);CE140,NDE140,NZE140,ZRE141,142..(5F,6F,CVFC)..(18G,18J,18V,20DSA,E,G,GLI,N)..(IND,PKN,TH,VN)..(DCR,DSL,HTWC)¥9,800201008-201407

main81006-33010iZRE143,ZZE141..(16E,20V)..(IDN,MA,PHL);ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20G)..(IDN,MA,PHL,TH)¥9,800200801-201008

main81006-33010iZRE143,ZZE142..VN¥9,800200801-201010

main81006-33010iCE140,NZE140..20DSA,GLI¥9,800200801-201104

81576SOCKET & WIRE, CENTER STOP LAMP

main81935-02060iZZE14#..(16J,18G,18V)..TAIW200712-200811

main81935-02060iZZE141..16E..TH;ZZE142..18V..(IDN,PHL)200712-200812

main81935-02060iZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)200712-201007

main81935-02060iZRE143,ZZE141..(16E,20V)..(IDN,MA,PHL);ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20G)..(IDN,MA,PHL,TH)200712-201008

main81935-02060iZRE143,ZZE142..VN200712-201010

main81935-02060iCE140,NZE140..20DSA,GLI200712-201104

main81935-02060iNDE140,ZZE142..IND200712-201105

main81935-02060iZZE142..PKN200712

main81935-02060iZRE142..HTWCF;ZRE141..6F..TH;ZZE141..16G..TH;ZRE142,143..CVFC..(IDN,MA,PHL);ZRE141,142..(16E,16G,16V,18E,18J)..(IDN,MA,PHL,TH)..HTWC201007-201310

HIGH MOUNT STOP LAMP-WITHOUT

main81935-02060iZRE142..18E..TAIW;ZRE141..4FC..(16J,D,N,XLI);ZRE142..(18G,18J,18V,E,G,GLI,XLI)..(GCC,IND,TAIW,TH,VN)..HTWC;CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(20DSA,20G,201007-201407

9356014012

main93560-14012¥70

3 parts on this diagram · 2 diagrams in section
