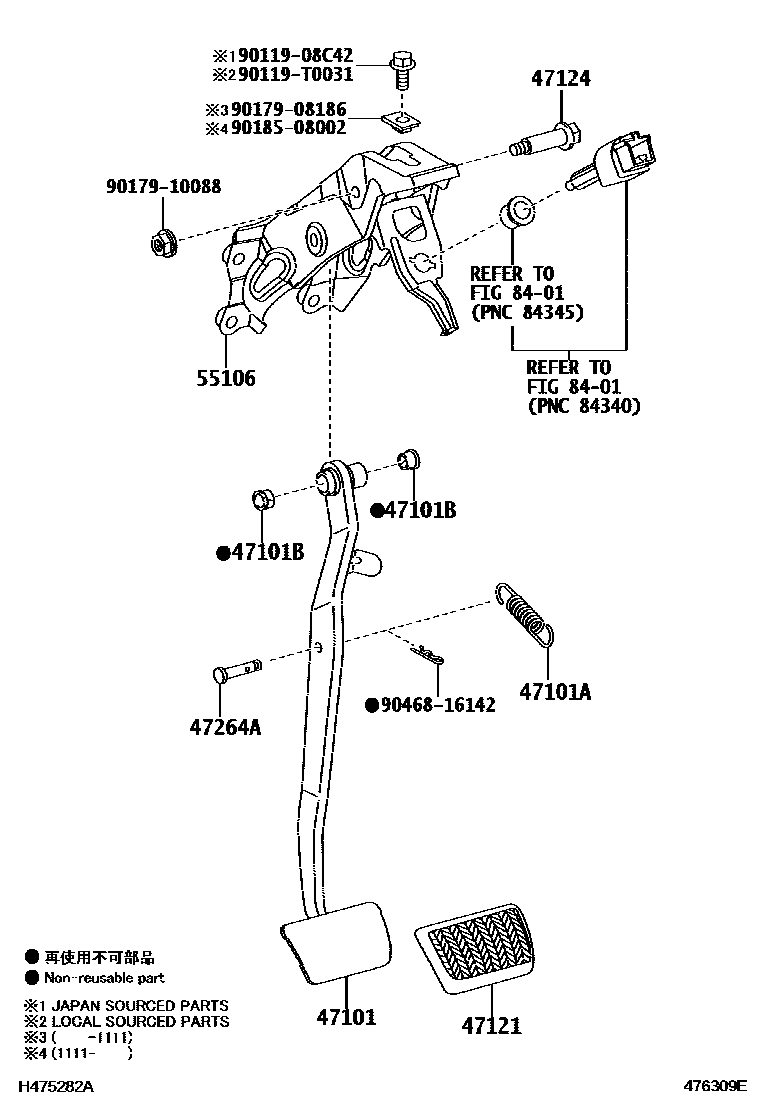

Toyota COROLLA/ALTIS — BRAKE PEDAL & BRACKET

47101PEDAL SUB-ASSY, BRAKE

main47101-02320iZZE141..16E..TH200801-200812

main47101-02320iZZE14#..5F..(16J,18J,LIMO)..(IDN,TH)200801-201008

main47101-02320iNDE140,ZZE142..MTM..IND200801-201105

main47101-02320iNDE140,ZRE141,142,ZZE141..MTM..(IDN,IND,TH)201008-201312

main47101-02330iZRE141,142..ATM..(16J,18G)..TH201008-201211

main47101-02330iZZE142..4FC..IND200801-201105

main47101-02330iZRE143,ZZE14#..4FC..(16E,16G,16J,18E,18G,20G,20V)..(IDN,MA,TH)200801-201008

main47101-02330iZZE142..18V..IDN200801-200812

main47101-02330iZRE142..HTWCF;ZRE142..CVFC..(IDN,IND,MA);ZRE14#,ZZE141..RHD..(16E,16G,18E,20G,20V)..HTWC201008-201312

main47101-02340iZZE142..5F..PKN200808

main47101-02340iCE140,NZE140200808-201104

main47101-02340iCE140,NZE140,ZRE141..MTM..PKN201104

main47101-02350iZRE141..4FC..PKN201104

main47101-02350iZZE142..4FC..PKN200808

main47101-02380iZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)200712-201007

main47101-02380iZZE14#..(16J,18G,18V)..TAIW200712-200811

main47101-02380iZRE14#..GCC,TAIW201007-201310

main47101-02390iZRE141,142..LHD..6F201008

main47101-02390iZZE142..5F..VN200802-201010

main47101-02390iZZE141..5F..PHL200802-201008

main47101-02400iZRE143..LHD..CVFC..20V;ZRE141,142..ATM..(PHL,VN)201008

main47101-02400iZRE143,ZZE142..4FC..VN200802-201010

main47101-02400iZZE142..PHL200802-200812

main47101-02400iZRE143,ZZE141..4FC..PHL200802-201008

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-15005iNDE140,ZZE142..IND¥200200712-201105

main90507-15005iZZE14#..(16J,18G,18V)..TAIW¥200200712-200811

main90507-15005iZZE141..16E..TH;ZZE142..18V..(IDN,PHL)¥200200712-200812

main90507-15005iZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)¥200200712-201007

main90507-15005iZZE141..16E..(MA,PHL);ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20G,20V,LIMO)..(IDN,MA,PHL,TH)¥200200712-201008

main90507-15005iZRE143,ZZE142..VN¥200200712-201010

main90507-15005iCE140,NZE140¥200200712-201104

main90507-15005iZZE142..PKN¥200200712

main90507-15005iZRE141,142..ATM..(16J,18G)..TH¥200201007-201211

main90507-15005iZRE142..HTWCF;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;ZRE142,ZZE141..(16G,18E,LIMO)..TH..HTWC;CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,¥200201007

47101BBUSH(FOR BRAKE PEDAL)

main90386-13015iZZE14#..(16J,18G,18V)..TAIW¥120200712-200811

main90386-13015iZZE141..16E..TH;ZZE142..18V..(IDN,PHL)¥120200712-200812

main90386-13015iZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)¥120200712-201007

main90386-13015iZZE141..16E..(MA,PHL);ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20G,20V,LIMO)..(IDN,MA,PHL,TH)¥120200712-201008

main90386-13015iZRE143,ZZE142..VN¥120200712-201010

main90386-13015iCE140,NZE140¥120200712-201104

main90386-13015iNDE140,ZZE142..IND¥120200712-201105

main90386-13015iZZE142..PKN¥120200712

main90386-13015iZRE141,142..ATM..(16J,18G)..TH¥120201007-201211

main90386-13015iZRE142..HTWCF;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;ZRE142,ZZE141..(16G,18E,LIMO)..TH..HTWC;CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,¥120201007

47121PAD, BRAKE PEDAL

main31321-02020iZZE142..5F..VN200801-201010

main31321-02020iZZE141..16E..TH200801-200812

main31321-02020iNDE140,ZRE141,142,ZZE141..MTM..(IDN,IND,PHL,TH,VN)201008

main31321-02020iNDE140,ZZE142..MTM..IND200801-201105

main31321-02020iZZE141..16E..PHL;ZZE14#..5F..(16G,16J,18J,LIMO)..(IDN,PHL,TH)200801-201008

main31321-02030iCE140,NZE140,ZRE141..MTM..PKN201104

main31321-02030iCE140,NZE140200808-201104

main31321-02030iZZE142..5F..PKN200808

main47121-02030iZRE143,ZZE14#..4FC..(16E,16G,16J,16V,18E,18G,20G,20V)..(IDN,MA,PHL,TH)200801-201008

main47121-02030iZRE143,ZZE142..4FC..VN200801-201010

main47121-02030iZZE142..18V..(IDN,PHL)200801-200812

main47121-02030iZRE142..HTWCF;ZRE142..CVFC..(IDN,IND,MA,VN);ZRE143..CVFC..(IDN,MA,PHL,TH,VN);ZRE141,142,ZZE141..ATM..(16E,16G,16V,18E)..(MA,PHL,TH)..HTWC201008

main47121-02030iZRE141,142..ATM..(16J,18G)..TH201008-201211

main47121-02030iZZE142..4FC..IND200801-201105

main47121-02040iZRE141..4FC..PKN201104

main47121-02040iZZE142..4FC..PKN200808

main47121-02060iZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)200712-201007

main47121-02060iZRE14#..GCC,TAIW201007-201310

main47121-02060iZZE14#..(16J,18G,18V)..TAIW200712-200811

47124SHAFT, BRAKE PEDAL

main90109-10174iZZE14#..(16J,18G,18V)..TAIW¥190200712-200811

main90109-10174iZZE141..16E..TH;ZZE142..18V..(IDN,PHL)¥190200712-200812

main90109-10174iZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)¥190200712-201007

main90109-10174iZZE141..16E..(MA,PHL);ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20G,20V,LIMO)..(IDN,MA,PHL,TH)¥190200712-201008

main90109-10174iZRE143,ZZE142..VN¥190200712-201010

main90109-10174iCE140,NZE140¥190200712-201104

main90109-10174iNDE140,ZZE142..IND¥190200712-201105

main90109-10174iZZE142..PKN¥190200712

main90109-10174iZRE141,142..ATM..(16J,18G)..TH¥190201007-201211

main90109-10174iZRE142..HTWCF;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;ZRE142,ZZE141..(16G,18E,LIMO)..TH..HTWC;CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,¥190201007

47264APIN(FOR PUSH ROD)

main90249-08256iZZE142..PKN¥130200712

main90249-08256iZZE14#..(16J,18G,18V)..TAIW¥130200712-200811

main90249-08256iZZE141..16E..TH;ZZE142..18V..(IDN,PHL)¥130200712-200812

main90249-08256iZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)¥130200712-201007

main90249-08256iZZE141..16E..(MA,PHL);ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20G,20V,LIMO)..(IDN,MA,PHL,TH)¥130200712-201008

main90249-08256iZRE143,ZZE142..VN¥130200712-201010

main90249-08256iCE140,NZE140¥130200712-201104

main90249-08256iNDE140,ZZE142..IND¥130200712-201105

main90249-08256iZRE141,142..ATM..(16J,18G)..TH¥130201007-201211

main90249-08256iZRE142..HTWCF;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;ZRE142,ZZE141..(16G,18E,LIMO)..TH..HTWC;CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,¥130201007

55106SUPPORT SUB-ASSY, BRAKE PEDAL

main55106-02170iNDE140,ZZE142..IND200801-201105

main55106-02170iZZE14#..(16E,18V)..(IDN,TH)200801-200812

main55106-02170iZRE142..HTWCF;ZRE142..IDN,IND,MA;ZRE141,142..(6F,CVFC)..(16J,18E)..TH..HTWC;NDE140,ZRE141,143,ZZE141..RHD..(16E,16G,20G,20V,E,G,LIMO)201008-201312

main55106-02170iZRE141,142..ATM..(16J,18G)..TH201008-201211

main55106-02170iZZE141..MA;ZRE143,ZZE14#..(16G,16J,18E,18G,18J,20G,20V,LIMO)..(IDN,MA,TH)200801-201008

main55106-02180iCE140,NZE140,ZRE141..PKN201104

main55106-02180iCE140,NZE140200808-201104

main55106-02180iZZE142..PKN200808

main55106-02200iZRE14#..GCC,TAIW201007-201310

main55106-02200iZZE14#..(16J,18G,18V)..TAIW200712-200811

main55106-02200iZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)200712-201007

main55106-02210iZRE143,ZZE141..PHL200802-201008

main55106-02210iZZE142..PHL200802-200812

main55106-02210iZRE143,ZZE142..VN200802-201010

main55106-02210iZRE141,142..PHL,VN;ZRE143..LHD..CVFC..20V201008

8401

9011908C42

main90119-08C42¥80

90119T0031

main90119-T0031

9017908186

main90179-08186¥210

9017910088

main90179-10088¥100

9018508002

main90185-08002¥200

9046816142

main90468-16142¥70

14 parts on this diagram · 1 diagram in section
