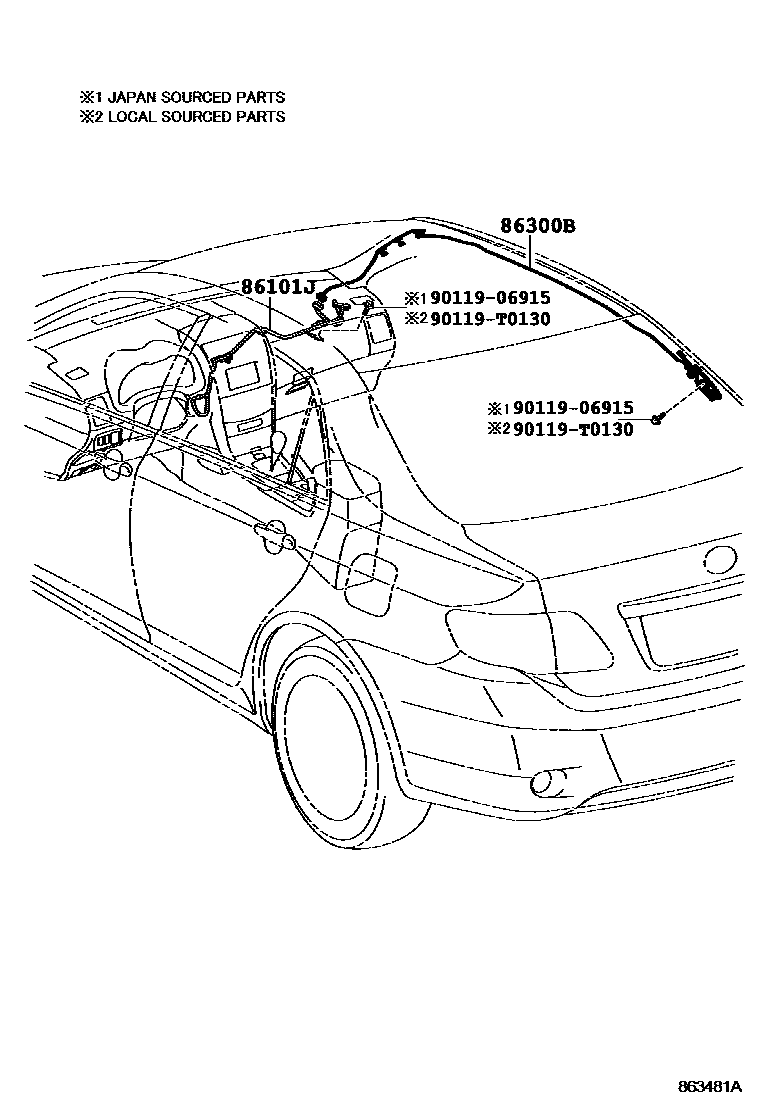

Toyota COROLLA/ALTIS — ANTENNA

0001 1 0002 1

86101JCORD SUB-ASSY, ANTENNA, NO.2

main86101-02240iZRE142,143..VN200808-201010

main86101-02250iZZE142..PHL200802-201311

main86101-02270iZRE141,142..ATM..(16J,18G)..TH200801-201211

main86101-12540iZZE14#..(16J,18G,18V)..TAIW200712-201310

86300BANTENNA ASSY, AMPLIFIER, NO.1

main86300-02250iZRE142..HTWCF;ZRE142..IDN,IND,MA;ZRE141,142..(6F,CVFC)..(16J,18E)..TH..HTWC;NDE140,ZRE141,143,ZZE141..(16E,16G,16V,20G,20V,E,G,LIMO)..(IDN,IND,MA,PHL,TH)200801-201312

main86300-02260iCE140,NZE140,ZRE14#..PKN,VN200808-201104

main86300-12A00iZRE14#..GCC,TAIW200712-201310

9011906915

main90119-06915¥60

90119T0130

main90119-T0130

4 parts on this diagram · 2 diagrams in section
