Toyota COROLLA/ALTIS — ALTERNATOR

0001 112V 80A 0002 112V 80A 0003 112V 80A 0004 112V 80A 0005 112V 80A 0006 112V 80A 0008 112V 100A 0009 112V 80A

27020ALTERNATOR ASSY

main27060-0D250i1ZZFE..ZZE142..VN200801-201311

12V 80A

main27060-0D260i1ZZFE,3ZZFE..ZZE14#..(16J,18G,18V)..TAIW200712-201007

12V 80A

main27060-0D270i1ZZFE..ZZE142..IND200808-200910

12V 80A

sub27060-0D271

main27060-0D271i1ZZFE..ZZE142..IND200911-201105

12V 80A

main27060-0M040i2NZFE..NZE140201207

12V 80A

main27060-0T100i3ZRFE..ZRE143..IDN,PHL,TH200812-201010

12V 80A

main27060-0T110i3ZRFE..ZRE143..TAIW200811-201007

12V 80A

main27060-0T120i1ZRFE,2ZRFE..ZRE141,142..GCC201007-201209

12V 80A

sub27060-0T121

main27060-0T121i1ZRFE,2ZRFE,3ZRFE..ZRE14#..GCC,TAIW201210-201310

12V 80A

main27060-0T140i3ZRFE..ZRE143..CVFC..(IDN,MA,PHL,TH,VN);1ZRFE,2ZRFE..ZRE141,142..IDN,MA,PHL,TH,VN201008-201209

12V 80A

sub27060-0T141

main27060-0T141i2ZRFE..ZRE142..HTWCF;1ZRFE..ZRE141..6F..TH;2ZRFE..ZRE142..18G..(IDN,MA,VN);1ZRFE,2ZRFE,3ZRFE..ZRE14#..(16E,16G,16V,18E,18J,20G,20V,D,N)..(IDN,MA,PHL,PKN,TH,VN)..HTW201210-201211

12V 80A

main27060-0T150i2ZRFE..ZRE142..IND201105-201312

12V 80A

main27060-21150i2NZFE..NZE140¥122,000200808-200906

12V 80A

sub27060-21151¥123,000

main27060-21151i2NZFE..NZE140¥123,000200907-201207

12V 80A

main27060-22230i1ZZFE..ZZE142..PKN¥122,000200808-200910

12V 80A

sub27060-22231¥122,000

main27060-22231i1ZZFE..ZZE142..PKN¥122,000200911

12V 80A

main27060-33130i1NDTV..NDE140201006-201312

12V 100A

main27060-37090i1ZRFE..ZRE141..PKN201104-201207

12V 80A

main27060-64450i2C..CE140200808-201104

12V 80A

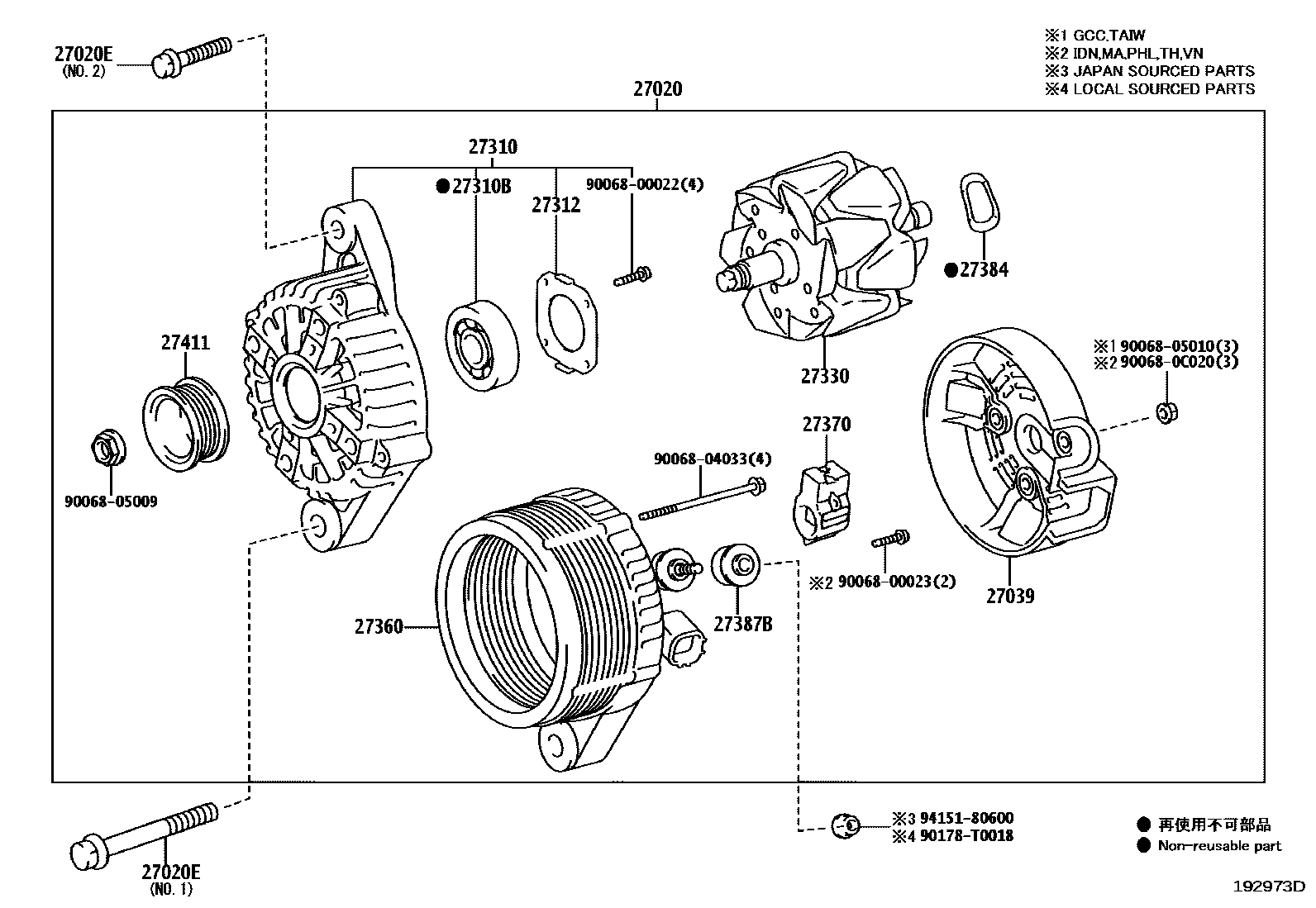

27020EBOLT(FOR ALTERNATOR)

main90105-10075i1ZZFE..ZZE142..IND¥180200712-201311

NO.1

main90105-10075i2NZFE..NZE140¥180200808-201104

main90105-10307i3ZRFE..ZRE143..VN¥1,200200811-201211

main90105-T0012i3ZZFE..ZZE141201008-201311

NO.2

main90901-05004i2C..CE140¥610200808-201104

main91511-80830i1ZZFE..ZZE142..PKN¥160200712-201105

NO.2

27039COVER, ALTERNATOR REAR END

main27039-0C020i2NZFE,1ZRFE..NZE140,ZRE141..PKN200801-201211

main27039-0H080i1ZZFE,3ZZFE..ZZE14#..(16J,18G,18V)..TAIW200712-201007

sub27039-0C020

main27039-31390i1NDTV..NDE140201006-201312

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-0D200i1ZZFE,3ZZFE..ZZE14#..(16J,18G,18V)..TAIW200712-201311

main27310-0M040i2NZFE..NZE140201207

main27310-0T090i3ZRFE..ZRE143..TAIW200811-201010

sub27310-0T091

sub27310-0T100

sub27310-0T160

main27310-0T100i3ZRFE..ZRE143..TAIW200902-201007

sub27310-0T091

main27310-0T110i1ZRFE..ZRE141..PKN201007-201210

sub27310-0T111

main27310-0T111i1ZRFE,2ZRFE..ZRE141,142..ATM..(16J,18G)..TH201210-201211

main27310-33180i1NDTV..NDE140201006-201312

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90068-10029i1ZRFE..ZRE141..PKN200801-201210

main90068-10036i3ZZFE..ZZE141;2ZRFE..ZRE142..HTWCF200712-201211

main90099-10231i1NDTV..NDE140¥1,370201006-201312

27312PLATE, RETAINER

main27312-0C020i3ZZFE..ZZE141..16E..TH;1ZZFE..ZZE142..18V..(IDN,PHL)200801-201211

main27312-0H080i1ZZFE,3ZZFE..ZZE14#..(16J,18G,18V)..TAIW200712-201007

main27312-72100i1NDTV..NDE140¥0201006-201312

27330ROTOR ASSY, ALTERNATOR

main27330-0C030i2ZRFE..ZRE142..IND200908-201312

main27330-0H080i1ZRFE,2ZRFE,3ZRFE..ZRE14#..GCC,TAIW200811-201310

sub27330-0M040

main27330-0L070i1ZZFE..ZZE142..IND200808-200908

sub27330-0C030

main27330-0M040i3ZZFE..ZZE141..16E..(MA,PHL);1ZZFE,3Z#..ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20G,20V,LIMO)..(IDN,MA,PHL,TH)200712-201211

main27330-30070i1NDTV..NDE140¥0201006-201312

main27330-30130i1ZZFE..ZZE142..PKN200904-201207

main27330-62220i2C,2NZFE,1ZZFE..CE140,NZE140,ZZE142..PKN200808-200904

sub27330-30130

27360COIL ASSY, ALTERNATOR

main27360-0D200i3ZZFE..ZZE141200712-201311

main27360-0M040i2NZFE..NZE140201207

main27360-0T090i3ZRFE..ZRE143..IDN,PHL,TH200812-201010

sub27360-0T130

main27360-0T100i3ZRFE..ZRE143..TAIW200811-201310

sub27360-0T130

main27360-0T130i1ZRFE,2ZRFE..ZRE141,142..ATM..(16J,18G)..TH201008-201211

main27360-33190i1NDTV..NDE140201006-201312

27370HOLDER ASSY, ALTERNATOR BRUSH

main27370-0M040i2NZFE,1ZRFE..NZE140,ZRE141..PKN200801-201211

main27370-23120i2C,2NZFE..CE140,NZE140¥0200808-201207

main27370-31220i1NDTV..NDE140¥0200712-201312

main27370-75060i1ZZFE..ZZE142..PKN200808

27384WASHER

main27384-0C020i3ZZFE..ZZE141..16E..TH;1ZZFE..ZZE142..18V..(IDN,PHL)200801-201211

main27384-0H080i1ZZFE,3ZZFE..ZZE14#..LHD..(18E,18J,GLI,XLI)200712-201007

sub27384-16380

main27384-16380i1ZRFE,2ZRFE,3ZRFE..ZRE14#..GCC,TAIW200811-201310

main27384-50030i1NDTV..NDE140201006-201312

27387BINSULATOR, ALTERNATOR TERMINAL

main27387-0C020i3ZZFE..ZZE141..16E..TH;1ZZFE..ZZE142..18V..(IDN,PHL)200801-201211

main27387-0H080i1ZZFE,3ZZFE..ZZE14#..(16J,18G,18V)..TAIW200712-201007

sub27387-0C020

main27387-20130i1NDTV..NDE140¥0201006-201312

27411PULLEY, ALTERNATOR

main27411-0D200i3ZZFE..ZZE141200712-201311

main27411-0D220i1ZZFE..ZZE142..IND200808-201105

main27411-0M040i2NZFE..NZE140201207

main27411-0M070i3ZRFE..ZRE143..VN200811-201211

main27411-22080i1ZRFE..ZRE141..PKN201104-201312

main27411-22210i1ZZFE..ZZE142..PKN200808

main27411-64660i2C..CE140200808-201104

main27411-70140i2NZFE..NZE140200808-201207

9006800022

main90068-00022

9006800023

main90068-00023

9006804033

main90068-04033

9006805009

main90068-05009

9006805010

main90068-05010

900680C020

main90068-0C020

90178T0018

main90178-T0018¥70

9415180600

main94151-80600¥60
