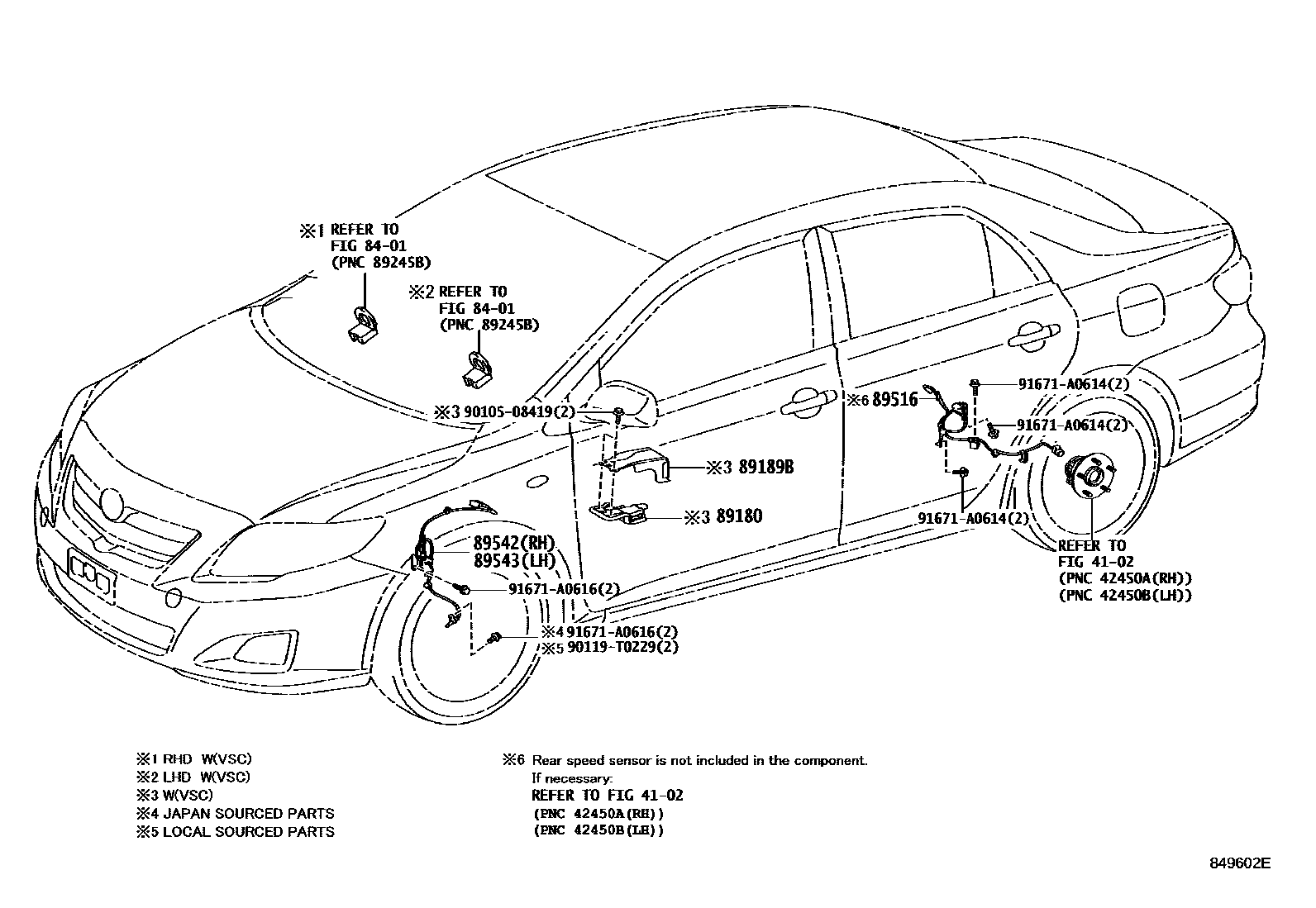

Toyota COROLLA/ALTIS — ABS & VSC

4102

8401

89180SENSOR ASSY, YAWRATE

main89180-12100iZZE142..18G..TH¥120,000200712-201008

main89180-12100iZZE142..18E..TAIW¥120,000200712-200811

Z AEROTOURER

main89180-12100iZZE142..18E..TAIW¥120,000200712-200811

GRADE MARK : 1.6J OR WITH OUT MARK

main89180-12150iZRE142..MA;ZRE143..20V..(MA,TH)¥120,000201008-201311

GRADE MARK : 1.6E OR 1.8E

89189BBRACKET, YAWRATE SENSOR

main89189-12130iZZE142..18G..TH200712-201008

main89189-12130iZZE142..(18G,18V)..TAIW200712-200811

GRADE MARK : 1.6J OR WITH OUT MARK

main89189-12130iZZE142..(18G,18V)..TAIW200712-200811

Z AEROTOURER

main89189-12130iZRE142..MA;ZRE143..20V..(MA,TH)201008-201311

GRADE MARK : 1.6E OR 1.8E

89516WIRE, SKID CONTROL SENSOR

main89516-02210iZZE14#..(16J,18G,18V)..TAIW200712-201304

RH

main89516-02210iZRE141..GCC201007-201304

ABS-WITH,RH

main89516-02220iNDE140,ZZE142..IND200712-201304

LH

main89516-02220iZRE143..CVFC;ZRE142..HTWCF;ZRE142..GCC,IDN,IND,MA,TAIW,VN;ZRE142,ZZE141..(16G,18E)..TH..HTWC;CE140,NDE140,NZE140,ZRE141..16E,16G,16V,20DSA,D,E,G,GLI,N201007-201304

ABS-WITH,LH

89542SENSOR, SPEED, FRONT RH

main89542-02130iZZE141..5F..PHL;ZZE142..(18E,18G,18J)..(IDN,MA,TH);ZRE143,ZZE141..4FC..(16E,16G,16V,20G,20V)..(IDN,MA,PHL,TH)200801-201407

main89542-02140iNDE140,ZZE142..IND200808-201312

main89542-12100iCE140,NZE140..20DSA,GLI¥13,600200712-201406

89543SENSOR, SPEED, FRONT LH

main89543-02130iZRE143..CVFC..(IDN,MA,PHL,TH,VN);ZRE141,142,ZZE141..(16E,16G,16V,18E,18EL,18G,18J)..(IDN,MA,PHL,TH,VN)200801-201407

main89543-02140iNDE140,ZRE142..IND200808-201312

main89543-12100iCE140,NZE140..20DSA,GLI¥13,600200712-201406

main89543-12100iZZE141..TAIW¥13,600200712-200811

GRADE MARK : 1.6J OR WITH OUT MARK

9010508419

main90105-08419¥90

90119T0229

main90119-T0229

91671A0614

main91671-A0614¥60

91671A0616

main91671-A0616¥60

11 parts on this diagram · 1 diagram in section
