Toyota COPEN — WINDSHIELD WIPER

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-B2380iLA400¥18,000201910

85160LINK ASSY, WINDSHIELD WIPER

main85150-B2300iLA400¥6,200201910

85178NUT (FOR FRONT WIPER ARM SETTING)

main81128-87205iLA400¥130201910-202109

main90041-79379iLA400¥120202110

85211BARM, FRONT WIPER, RH

main85211-B2280iLA400¥2,530201910

85212ABLADE, FR WIPER, RH

main85212-B2180iLA400¥1,950201910

85214ARUBBER, WIPER, RH

main85214-B2250iLA400¥490201910

�������S�Q�T

85214BRUBBER, WIPER, LH

main85221-97208iLA400¥560201910

�������S�T�O

85221BARM, FRONT WIPER, LH

main85221-B2280iLA400¥3,150201910

85222ABLADE, FR WIPER, LH

main85222-B2190iLA400¥1,950201910

85241COVER, WINDSHIELD WIPER

main85218-B2080iLA400¥750201910

�E��

main85228-B2040iLA400¥750201910

����

85291ABLADE, FRONT WIPER, WINTER, RH

85291BBLADE, FRONT WIPER, WINTER, LH

85292BCAP, FRONT WIPER ARM HEAD

main85292-12020iLA400¥170201910

85113B2010FRAME, WINDSHIELD WIPER MOTOR END

main85113-B2010¥130

85129B2010COIL, WINDSHIELD WIPER MOTOR FIELD

main85129-B2010¥210

85129B2020COIL, WINDSHIELD WIPER MOTOR FIELD

main85129-B2020¥110

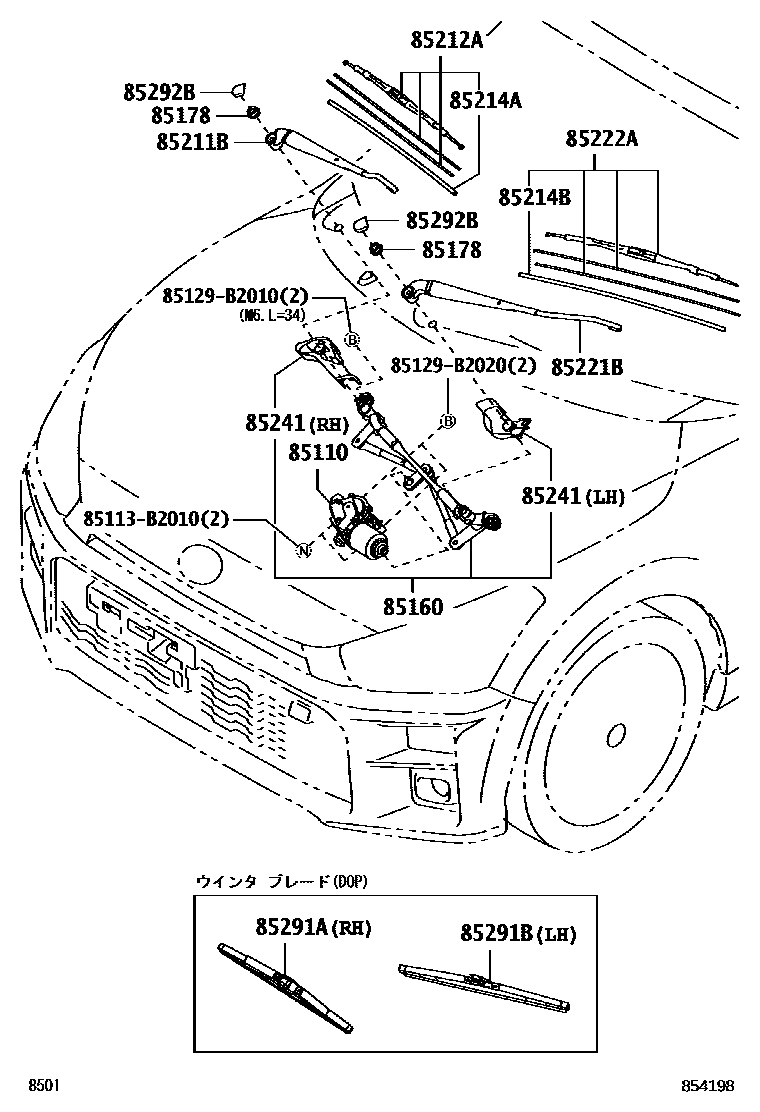

16 parts on this diagram · 1 diagram in section
