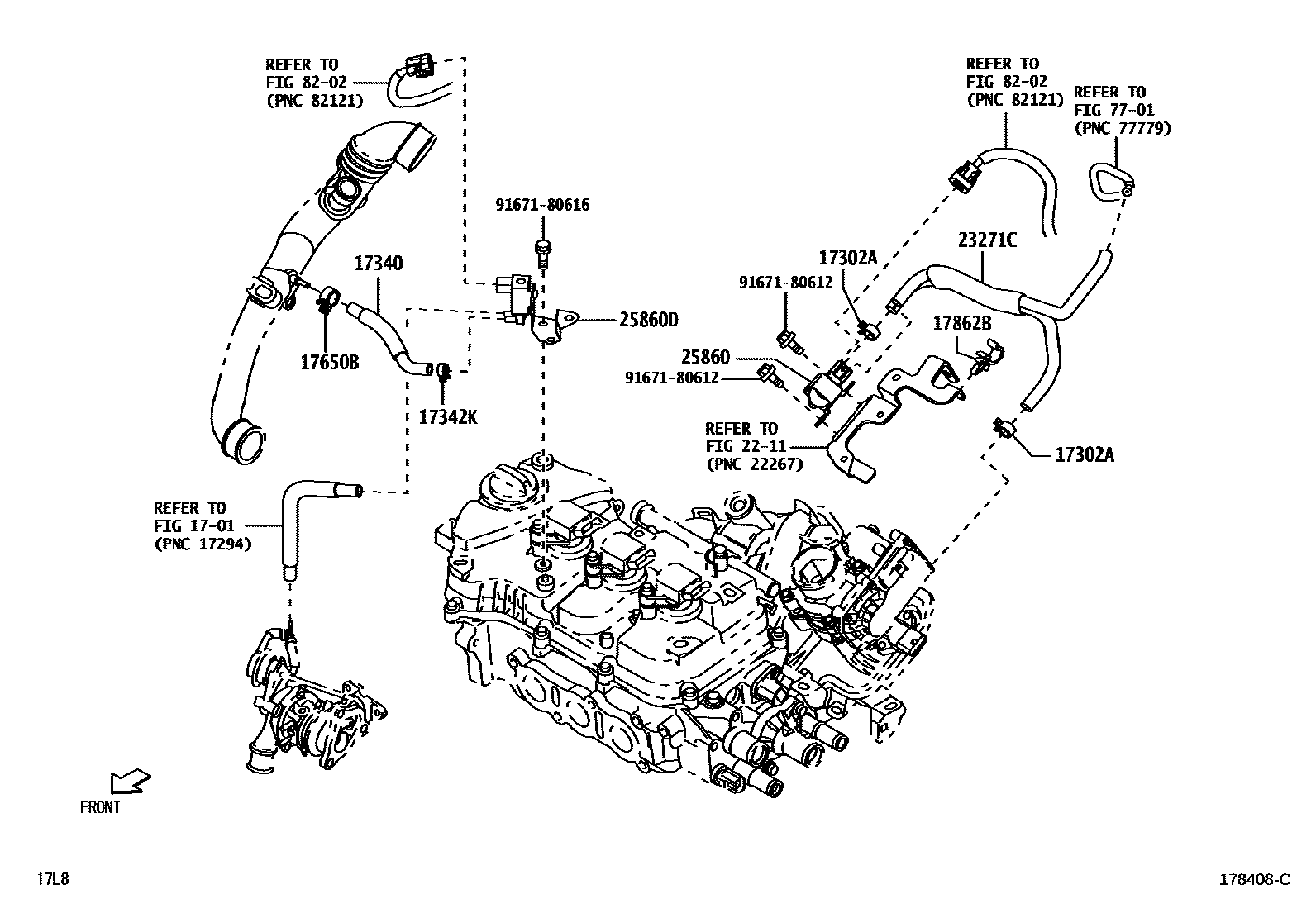

Toyota COPEN — VACUUM PIPING

0001 1 0002 1 0003 1

1701

17302ACLIP, HOSE

main90044-66059iKFVET..LA400¥160202209

�C���e�[�N�}�j�z�[���h��

main96135-41100iKFVET..LA400¥140201910-202209

sub96135-51100¥130

main96138-41501iKFVET..LA400¥120202209

�u�r�u��

17340HOSE ASSY, VACUUM SWITCHING VALVE

main17340-B2011iKFVET..LA400¥740201910

17342KCLIP(FOR VACUUM HOSE)

main90044-67271iKFVET..LA400¥140201910

17650BCLIP(FOR VACUUM SWITCHING VALVE HOSE)

main90044-67510iKFVET..LA400¥250201910

17862BCLAMP, HOSE

main90044-64779iKFVET..LA400¥260201910-202209

main90044-64943iKFVET..LA400¥110202209

2211

23271CHOSE, FUEL

main77795-B2080iKFVET..LA400¥1,200202209

�y�C���g����

main77795-B2090iKFVET..LA400¥1,320201910-202209

�u���[�@�y�C���g

25860VALVE ASSY, VACUUM SWITCHING, NO.1

main25860-B5020iKFVET..LA400¥4,330202309

main89470-B1020iKFVET..LA400¥5,700201910-202209

�^�C�v�@�`

main89470-B2100iKFVET..LA400¥4,330202209-202309

�^�C�v�@�a

sub25860-B5020¥4,330

sub25862-B2030¥600

sub90041-79104¥100

25860DVALVE ASSY, VACUUM SWITCHING, NO.2

main89470-B2010iKFVET..LA400¥4,330201910

7701

8202

9167180612

main91671-80612¥60

9167180616

main91671-80616¥60

14 parts on this diagram · 3 diagrams in section
