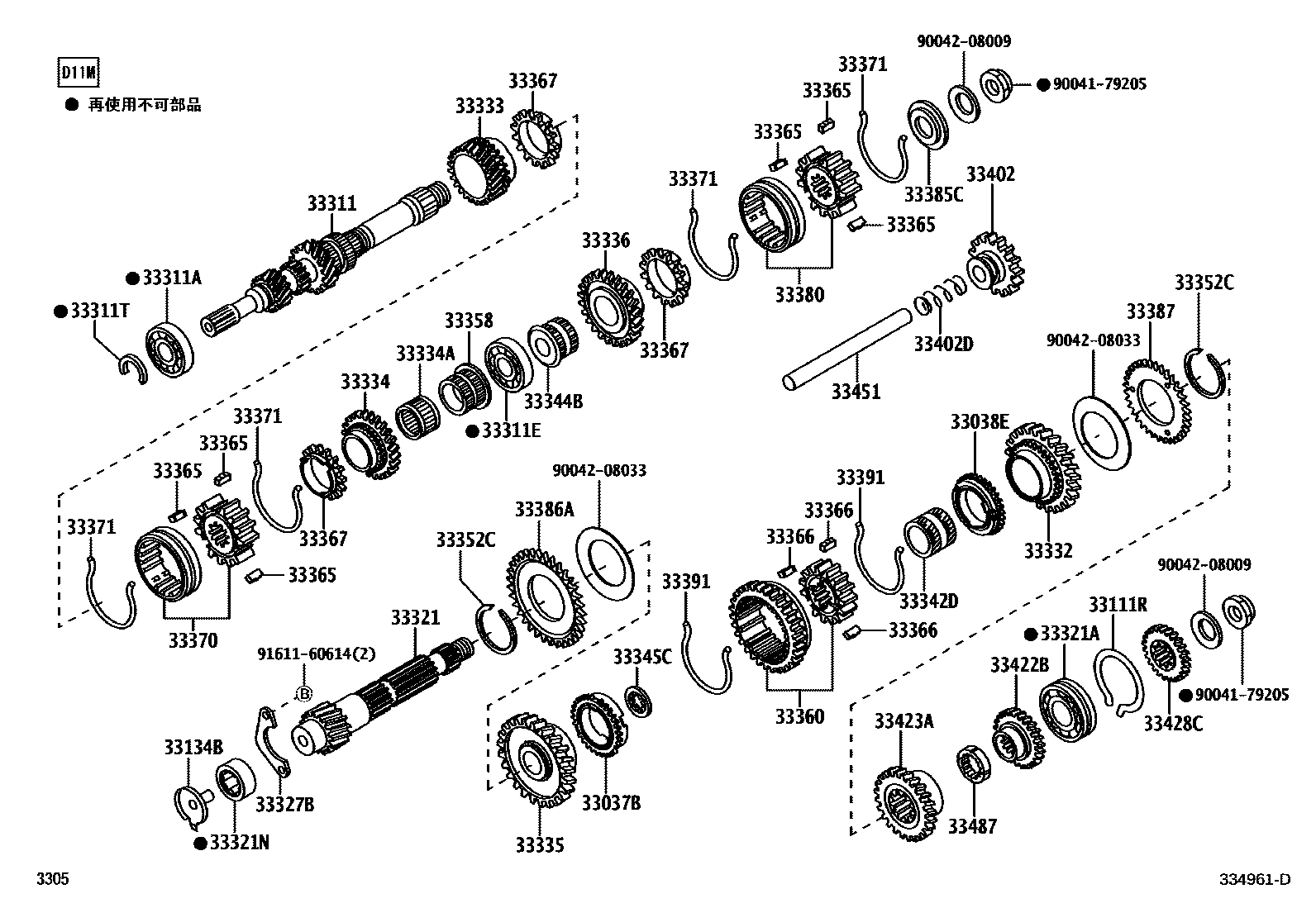

Toyota COPEN — TRANSMISSION GEAR (MTM)
33037BRING SET, SYNCHRONIZER, NO.1
33038ERING SET, SYNCHRONIZER, NO.2
33111RRING, HOLE SNAP(FOR OUTPUT SHAFT REAR BEARING)
33134BCOVER, OUTPUT SHAFT(MTM)
33311SHAFT, INPUT
33311ABEARING (FOR INPUT SHAFT FRONT)
33311EBEARING, RADIAL BALL (FOR INPUT SHAFT REAR)
33311TRING, SHAFT SNAP (FOR INPUT SHAFT)
33321SHAFT, OUTPUT
33321ABEARING (FOR OUTPUT SHAFT REAR)
33321NBEARING (FOR OUTPUT SHAFT FRONT)
33327BPLATE, OUTPUT SHAFT BEARING LOCK
33332GEAR, 2ND
33333GEAR, 3RD
33334GEAR, 4TH
33334ABEARING, NEEDLE ROLLER (FOR 4TH GEAR)
33335GEAR, 1ST
33336GEAR, 5TH
33342DBUSH(FOR 2ND GEAR)
33344BBUSH, 4TH GEAR
33345CWASHER, TRANSMISSION HUB
33352CRING, SHAFT SNAP
33358RACE, 4TH GEAR BEARING INNER
33360HUB ASSY, SYNCHRONIZER, NO.1
33365KEY, SYNCHROMESH SHIFTING, NO.1
33366KEY, SYNCHROMESH SHIFTING, NO.2
33367RING, SYNCHRONIZER, NO.1
33370HUB ASSY, SYNCHRONIZER, NO.2
33371SPRING, SYNCHROMESH SHIFTING KEY, NO.1
33380HUB ASSY, SYNCHRONIZER, NO.3
33385CSTOPPER, HUB SLEEVE
33386ASUB-GEAR, 1ST
33387SUB-GEAR, NO.2
33391SPRING, SYNCHROMESH SHIFTING KEY, NO.2
33402GEAR SUB-ASSY, REVERSE IDLER
33402DSPRING(FOR REVERSE IDLER GEAR)
33422BGEAR, 4TH DRIVEN
33423AGEAR, 3RD DRIVEN
33428CGEAR, 5TH DRIVEN
33451SHAFT, REVERSE IDLER GEAR
33487HUB, SPEEDOMETER DRIVE GEAR
9004179205
9004208009
9004208033
9161160614
45 parts on this diagram · 1 diagram in section
