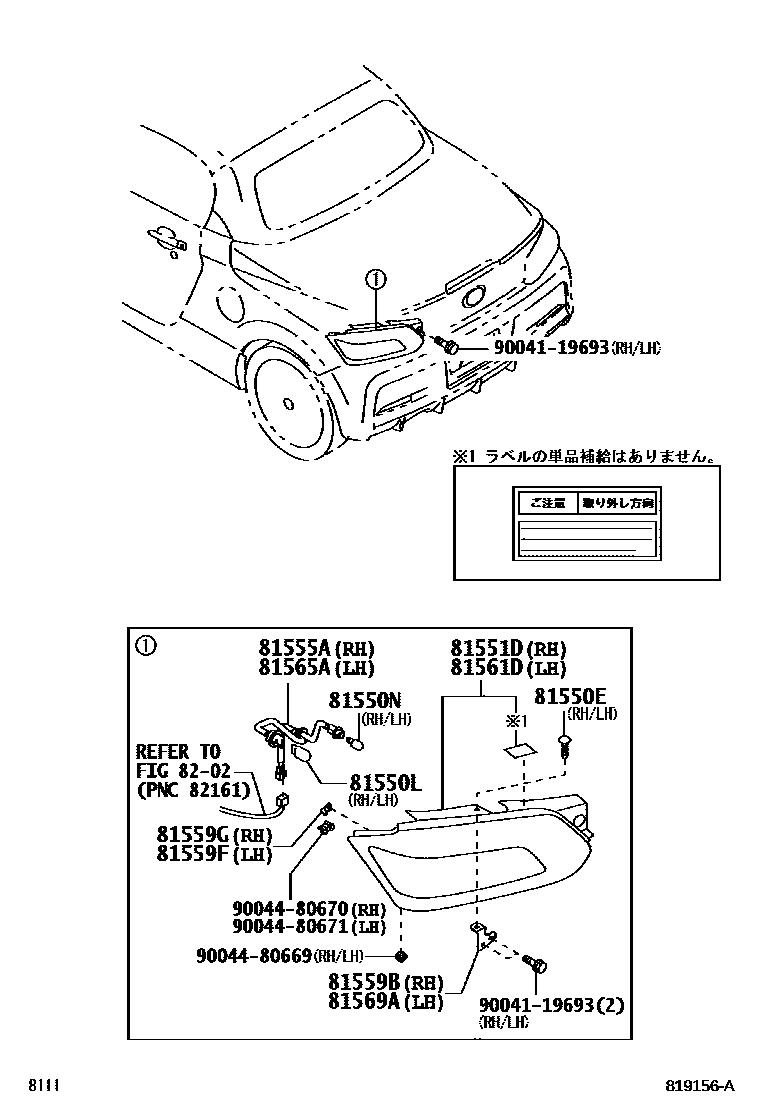

Toyota COPEN — REAR COMBINATION LAMP

81550ECLIP(FOR REAR COMBINATION LAMP)

main90044-68159-N1iLA400201910

BLACK

sub90044-68159¥150

81550LBULB, REAR TURN SIGNAL LAMP

main90049-51179iLA400¥300201910

81550NBULB, BACK UP LAMP

main90049-51194iLA400¥200201910

81551DLENS & BODY, REAR COMBINATION LAMP, RH

main81551-B2450iLA400¥37,600201910

81555ASOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-B2270iLA400¥3,150201910

81559BBRACKET, REAR COMBINATION LAMP, RH

main75135-B2010iLA400¥390201910

81559FCLIP, RR COMBINATION LAMP, LH

main81569-B2020iLA400¥110201910

81559GCLIP, RR COMBINATION LAMP, RH

main81559-B2180iLA400¥120201910

81561DLENS & BODY, REAR COMBINATION LAMP, LH

main81561-B2450iLA400¥37,600201910

81565ASOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81555-B2270iLA400¥3,150201910

81569ABRACKET, REAR COMBINATION LAMP, LH

main75136-B2010iLA400¥390201910

8202

9004119693

main90041-19693¥100

9004480669

main90044-80669¥110

9004480670

main90044-80670¥110

9004480671

main90044-80671¥110

16 parts on this diagram · 1 diagram in section
