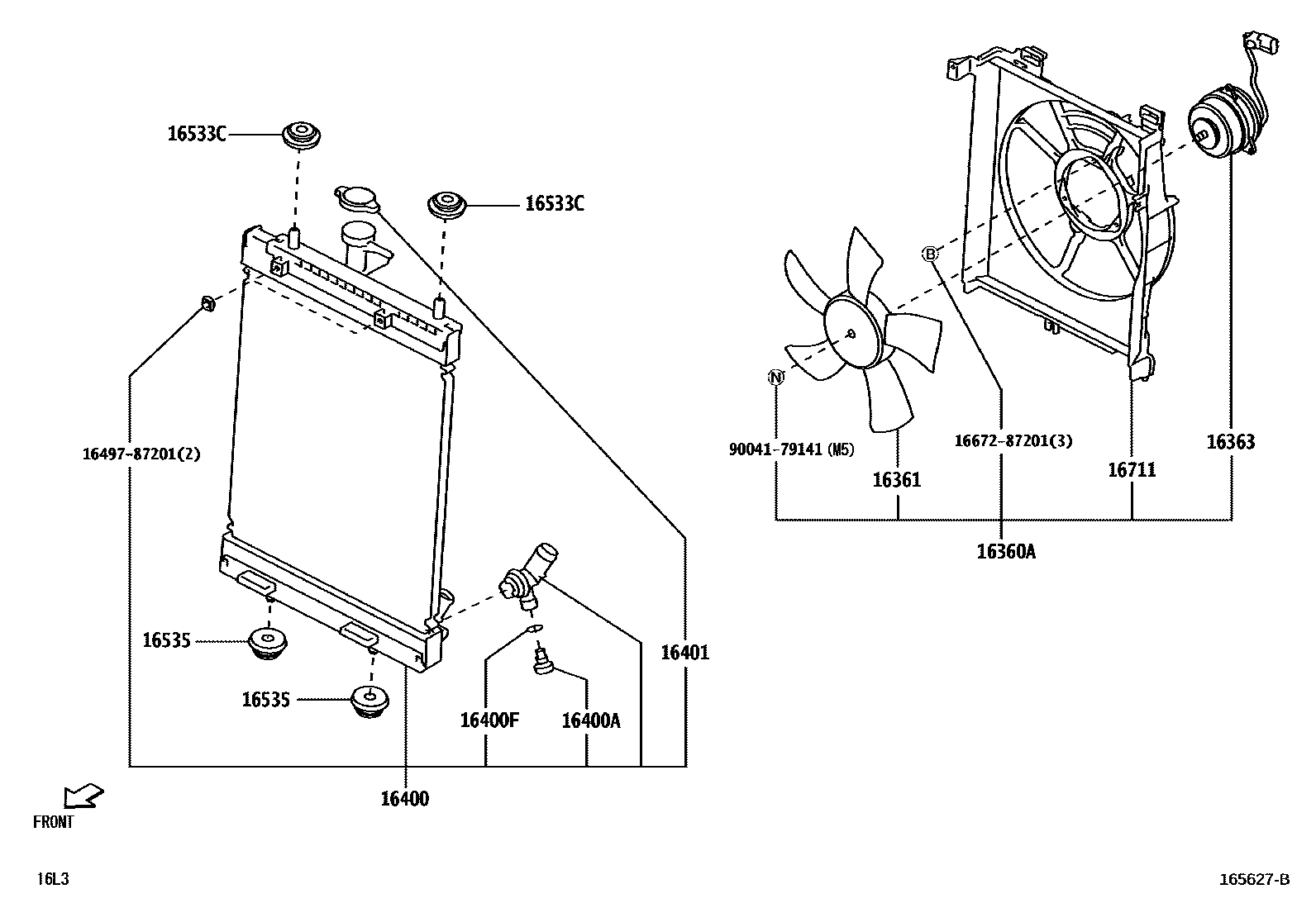

Toyota COPEN — RADIATOR & WATER OUTLET

0001 1������ 0002 1���,�����

16360AFAN ASSY, W/MOTOR

main16360-B2141iKFVET..LA400¥21,900201910-202304

sub16360-B2142¥21,900

main16360-B2142iKFVET..LA400¥21,900202305

16361FAN

main16361-B2060iKFVET..LA400¥2,990201910

16363MOTOR, COOLING FAN

main16363-B2030iKFVET..LA400¥14,300201910

16400RADIATOR ASSY

main16400-B2320iKFVET..LA400..CVT¥26,100201910

main16400-B2340iKFVET..LA400..5FC¥21,800201910

16400ACOCK SUB-ASSY, RADIATOR DRAIN

main16417-B2020iKFVET..LA400¥350201910

16400FPACKING(FOR RADIATOR DRAIN COCK)

main16442-B2010iKFVET..LA400¥120201910

16401CAP SUB-ASSY, RADIATOR

main16401-B2010iKFVET..LA400¥770201910

16533CGROMMET(FOR RADIATOR SUPPORT)

main90044-80621iKFVET..LA400¥250201910

16535SUPPORT, RADIATOR, LOWER

main90044-80592iKFVET..LA400¥260201910

16711SHROUD, FAN

main16711-B2080iKFVET..LA400¥4,330201910

1649787201INLET SUB-ASSY

main16497-87201¥190

1667287201

main16672-87201¥0

9004179141

main90041-79141

13 parts on this diagram · 2 diagrams in section
