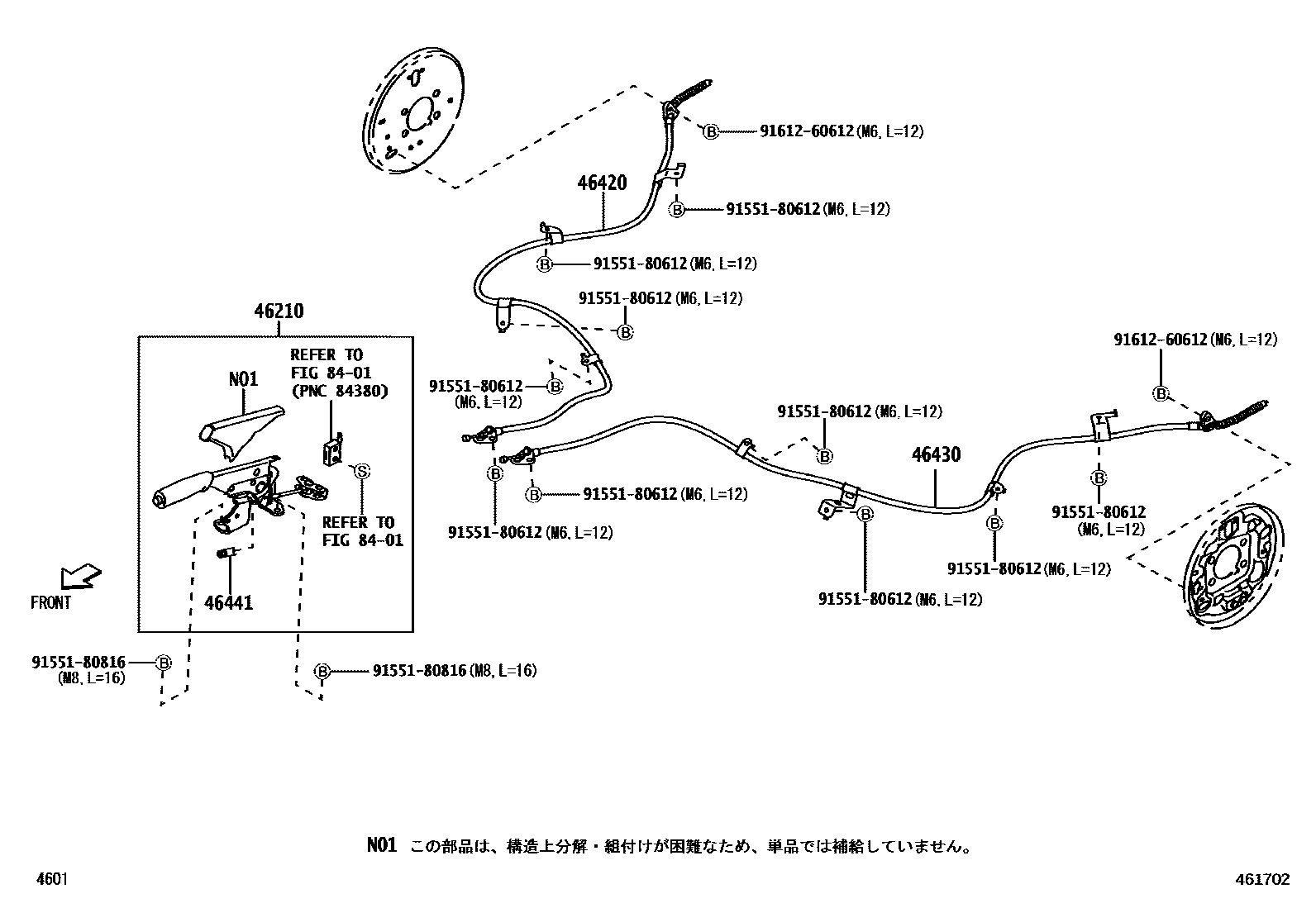

Toyota COPEN — PARKING BRAKE & CABLE

46210LEVER ASSY, PARKING BRAKE

main46210-B2140-B0iLA400201910

DK.GRAY,TRIM2#

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-B2290iLA400¥3,400201910

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-B2290iLA400¥3,400201910

46441NUT, WIRE ADJUSTING, NO.1

main46441-B2010iLA400¥250201910

8401

9155180612

main91551-80612¥60

9155180816

main91551-80816¥80

9161260612

main91612-60612¥200

8 parts on this diagram · 1 diagram in section
