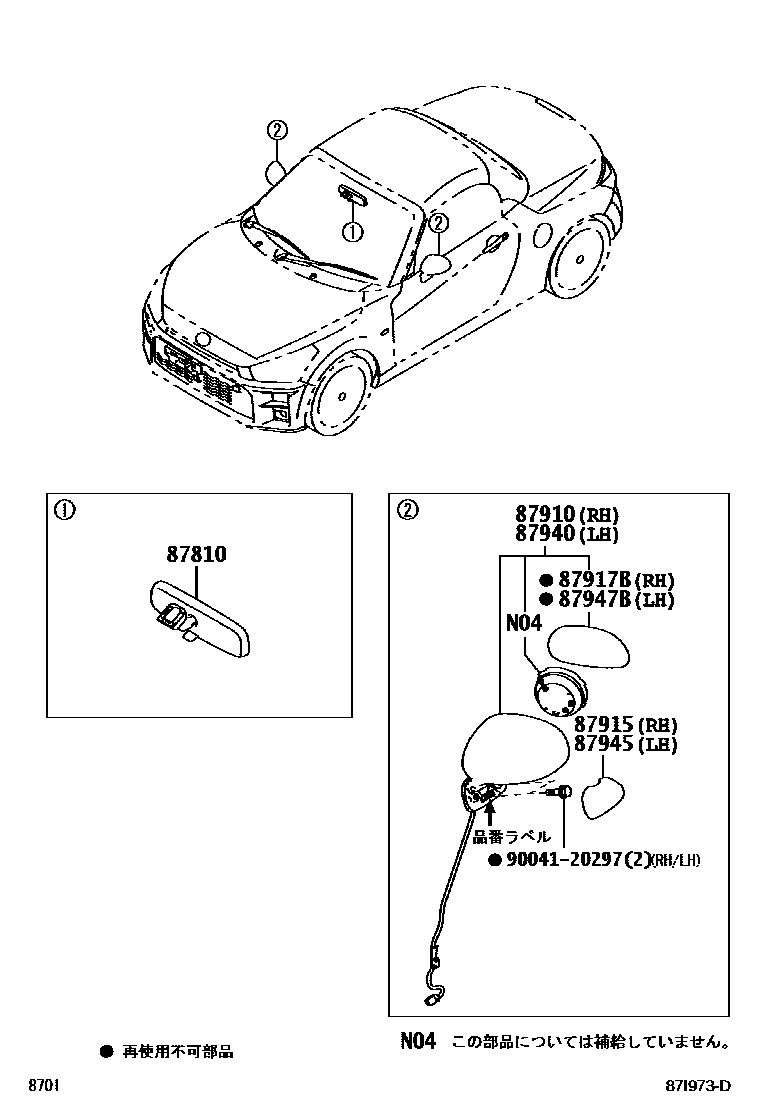

Toyota COPEN — MIRROR

87810MIRROR ASSY, INNER REAR VIEW

main87810-52041iLA400¥6,200201910

87910MIRROR ASSY, OUTER REAR VIEW, RH

main87910-B2G81-C0iLA400201910-202105

BLACK M.M.,B63 ,R70 ,R71 ,S28 ,S39 ,W24 ,X07 ,Y07,�i�����x���L��

main87910-B2G82-C0iLA400202105-202305

BLACK M.M.,B63 ,R70 ,R71 ,S28 ,S39 ,W24 ,X07 ,Y07,�i�����x���L��

sub87910-B2G83¥11,000

main87910-B2G83-C0iLA400202306

BLACK M.M.,B63 ,R70 ,R71 ,S28 ,S39 ,W24 ,X07 ,Y07

87915COVER, OUTER MIRROR, RH

main87915-B2410-C0iLA400201910-202305

BLACK M.M.,B63 ,R70 ,R71 ,S28 ,S39 ,W24 ,X07 ,Y07

sub87915-B2411¥1,730

main87915-B2411-C0iLA400202306

BLACK M.M.,B63 ,R70 ,R71 ,S28 ,S39 ,W24 ,X07 ,Y07

87917BMIRROR, OUTER REAR VIEW, RH

main87917-97202iLA400¥1,440201910-202105

�`�r�r�x�C�m�n�D�W�V�X�P�O�a�Q�f�W�P

main87917-B2270iLA400¥1,440202105-202305

�`�r�r�x�C�m�n�D�W�V�X�P�O�a�Q�f�W�Q

sub87917-B2271¥1,440

main87917-B2271iLA400¥1,440202306

87940MIRROR ASSY, OUTER REAR VIEW, LH

main87940-B2L11-C0iLA400201910-202105

BLACK M.M.,B63 ,R70 ,R71 ,S28 ,S39 ,W24 ,X07 ,Y07,�i�����x���L��

main87940-B2L12-C0iLA400202105-202305

BLACK M.M.,B63 ,R70 ,R71 ,S28 ,S39 ,W24 ,X07 ,Y07,�i�����x���L��

sub87940-B2L13¥11,000

main87940-B2L13-C0iLA400202306

BLACK M.M.,B63 ,R70 ,R71 ,S28 ,S39 ,W24 ,X07 ,Y07

87945COVER, OUTER MIRROR, LH

main87945-B2410-C0iLA400201910-202305

BLACK M.M.,B63 ,R70 ,R71 ,S28 ,S39 ,W24 ,X07 ,Y07

sub87945-B2411¥1,730

main87945-B2411-C0iLA400202306

BLACK M.M.,B63 ,R70 ,R71 ,S28 ,S39 ,W24 ,X07 ,Y07

87947BMIRROR, OUTER REAR VIEW, LH

main87947-97202iLA400¥1,440201910-202105

�`�r�r�x�C�m�n�D�W�V�X�S�O�a�Q�k�P�P

main87947-B2320iLA400¥1,440202105-202305

�`�r�r�x�C�m�n�D�W�V�X�S�O�a�Q�k�P�Q

sub87947-B2321¥1,440

main87947-B2321iLA400¥1,440202306

9004120297

main90041-20297¥180

8 parts on this diagram · 1 diagram in section
