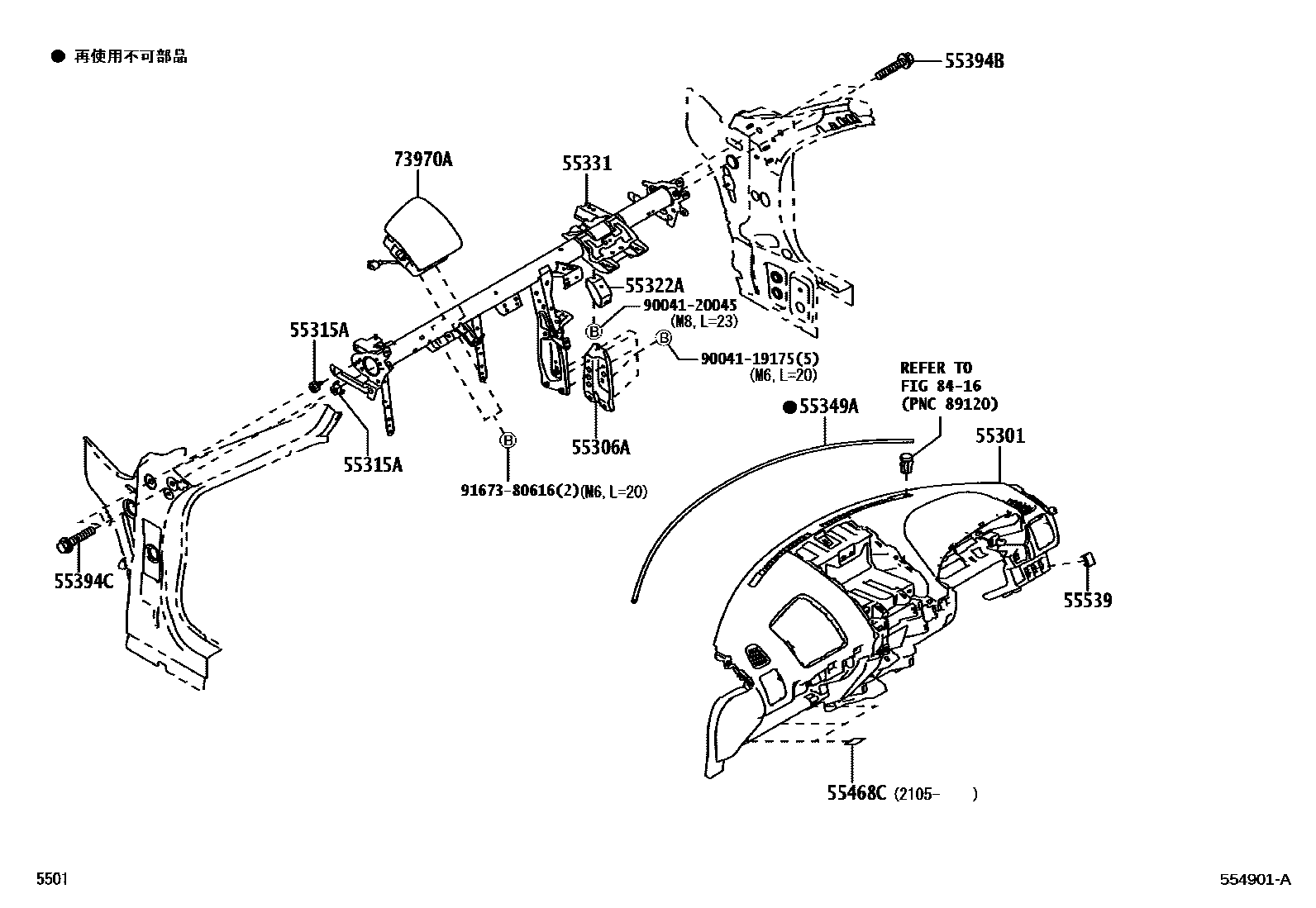

Toyota COPEN — INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1������������,��������� 0002 1 0003 1 0004 1

55301PANEL SUB-ASSY, INSTRUMENT

main55311-B2451-B0iLA400201910-202105

DK.GRAY,TRIM2#

main55311-B2610-B0iLA400202105

DK.GRAY,TRIM2#

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-B2140iLA400¥2,530201910

55315ASPACER, INSTRUMENT PANEL, NO.1

main55315-B2010iLA400¥340201910

55322ABRACKET, INSTRUMENT PANEL, NO.2

main55322-B2150iLA400¥1,260201910

55331REINFORCEMENT, INSTRUMENT PANEL

main55305-B2380iLA400¥14,800201910-202911

55349ACUSHION, INSTRUMENT PANEL

main55349-B2030iLA400¥500201910

55394BBOLT, INSTRUMENT PANEL

main90041-19A22iLA400¥330201910

55394CBOLT, INSTRUMENT PANEL

main90041-19A23iLA400¥370201910

55468CSEAL, INSTRUMENT CLUSTER FINISH PANEL, NO.1

main55468-B2010iLA400¥120202105

55539COVER, SPARE SWITCH HOLE

main55539-B2030-C1iLA400..5FC201910-202412

BLACK,TRIM2#

sub55539-B2030¥210

73970AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER

main73970-B2261-B0iLA400201910

8416

9004119175

main90041-19175¥90

9004120045

main90041-20045¥170

9167380616

main91673-80616¥60

15 parts on this diagram · 4 diagrams in section
