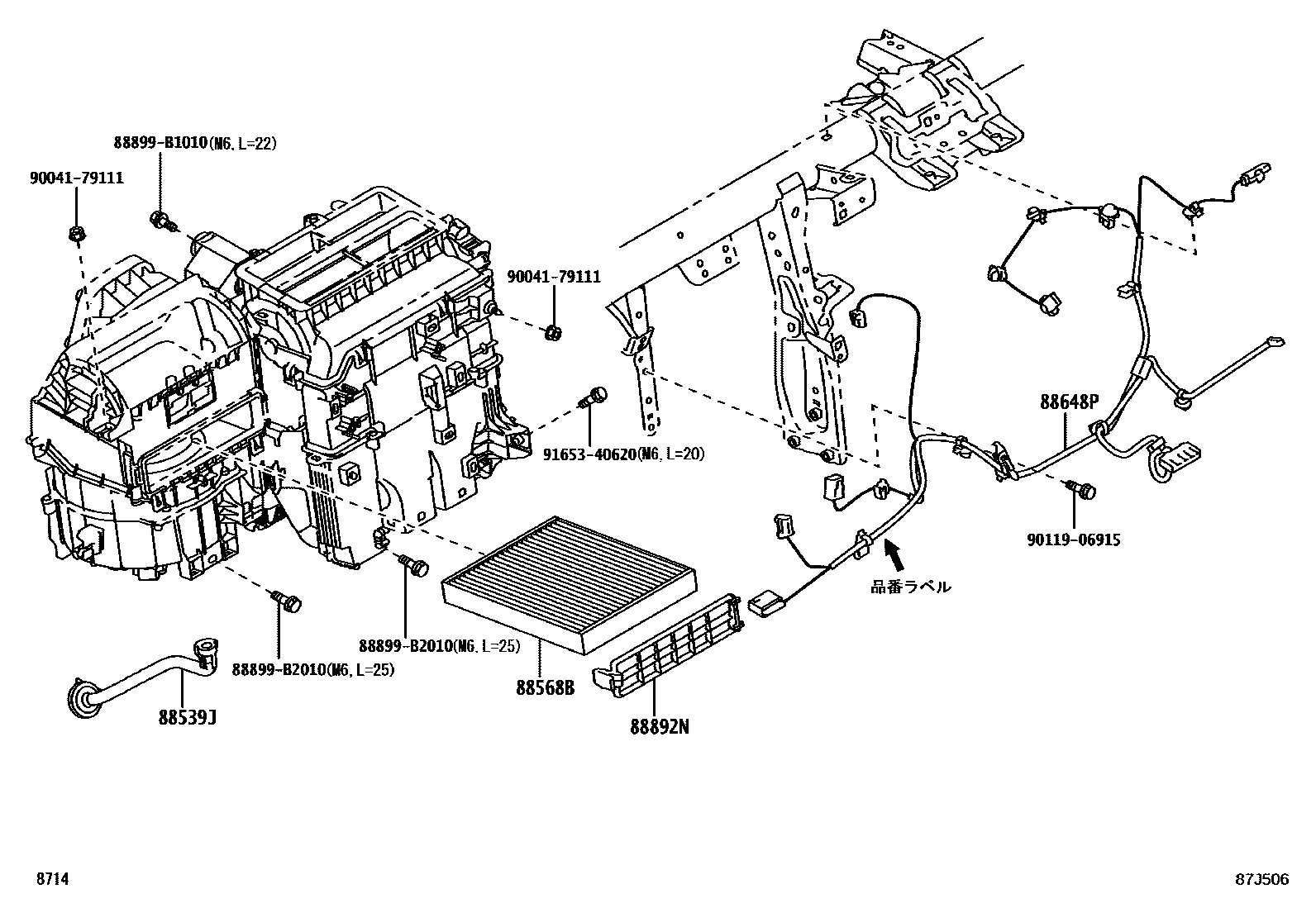

Toyota COPEN — HEATING & AIR CONDITIONING - COOLER UNIT

0001 1 0002 1

88539JHOSE, DRAIN COOLER

main88539-B2050iLA400¥430201910

88568BFILTER, AIR

main88568-B2030iLA400¥2,100201910

88648PWIRE,AIR CONDITIONER,NO.1

main88648-B2300iLA400¥5,200201910-202102

sub88648-B2690¥5,200

main88648-B2301iLA400¥5,200202105

main88648-B2690iLA400¥5,200202102-202105

88892NCOVER, COOLER, NO.2

main88892-B2020iLA400201910

88899B1010COVER, EVAPORATOR

main88899-B1010¥120

88899B2010COVER, EVAPORATOR

main88899-B2010¥150

9004179111

main90041-79111¥230

9011906915

main90119-06915¥60

9165340620

main91653-40620¥60

9 parts on this diagram · 2 diagrams in section
