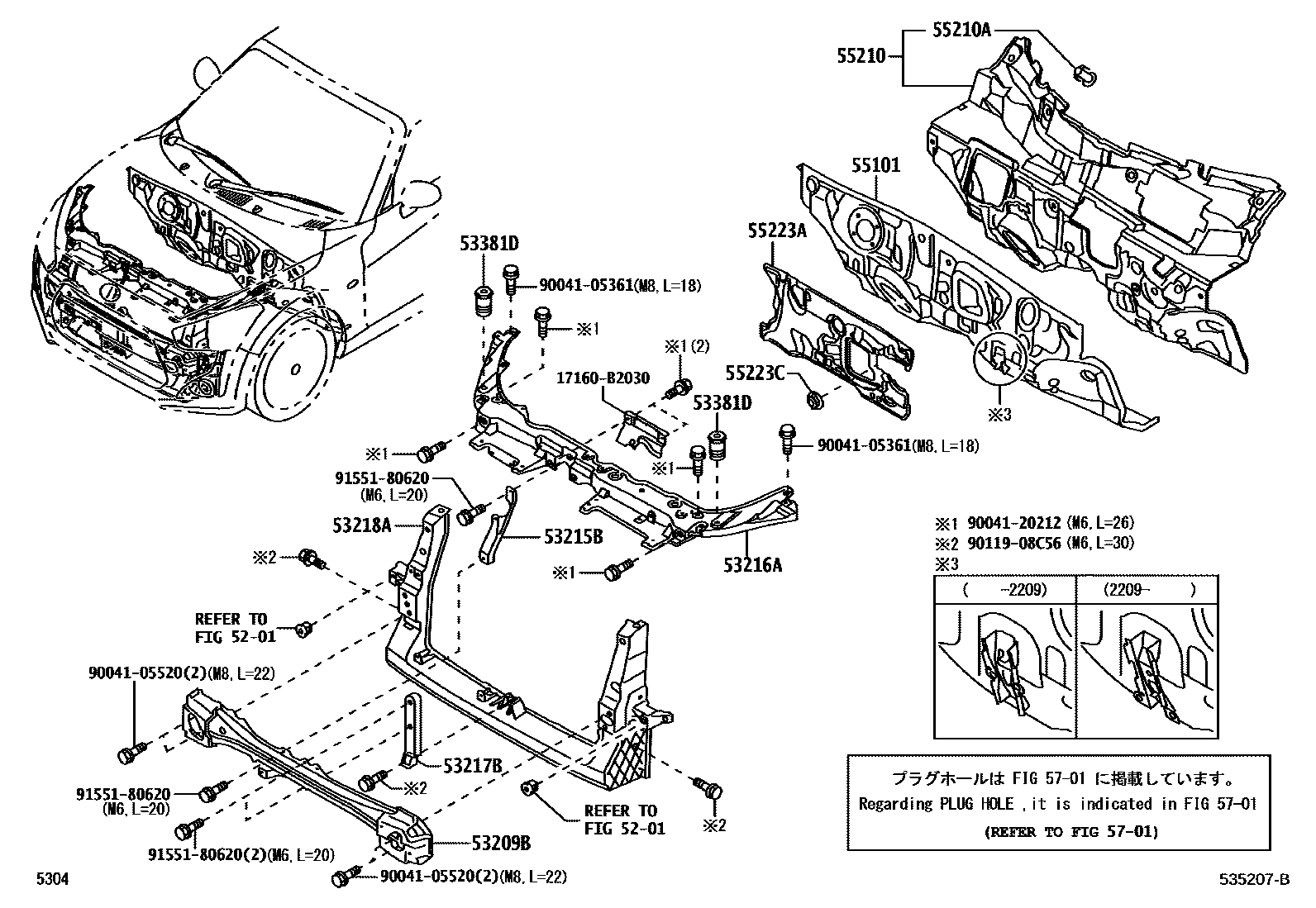

Toyota COPEN — FRONT FENDER APRON & DASH PANEL

0001 1DASH PANEL,RADIATOR SUPPORT 0002 1FENDER APRON

5201

53209BBRACE SUB-ASSY, HOOD LOCK SUPPORT

main53209-B2030iLA400¥10,900201910

53215BSUPPORT, HOOD LOCK

main53215-B2190iLA400¥1,090201910

53216ASUPPORT, RADIATOR, UPPER

main53216-B2220iLA400¥5,700201910

53217BBRACE, RADIATOR SUPPORT TO CROSSMEMBER

main53217-B2050iLA400¥1,270201910

53218ASUPPORT, RADIATOR, LOWER

main53218-B2110iLA400¥8,300201910

53381DBUMPER, HOOD TO FRONT SHROUD

main53381-B2360iLA400¥130201910

55101PANEL SUB-ASSY, DASH

main55101-B2500iLA400..5FC¥25,200201910-202209

main55101-B2750iLA400..CVT¥23,800201910-202209

main55101-B2790iLA400..CVT¥21,700202209

main55101-B2800iLA400..5FC¥22,800202209

55210INSULATOR ASSY, DASH PANEL

main55210-B2310iLA400¥8,700201910

55210ACLIP

main90467-11122iLA400¥100201910

55223AINSULATOR, DASH PANEL, OUTER

main55223-B2130iLA400¥3,040201910

55223CCLIP

main90044-67554iLA400¥110201910

5701

17160B2030

main17160-B2030¥550

9004105361

main90041-05361¥150

9004105520

main90041-05520¥170

9004120212

main90041-20212¥140

9011908C56

main90119-08C56¥100

9155180620

main91551-80620¥60

19 parts on this diagram · 2 diagrams in section
