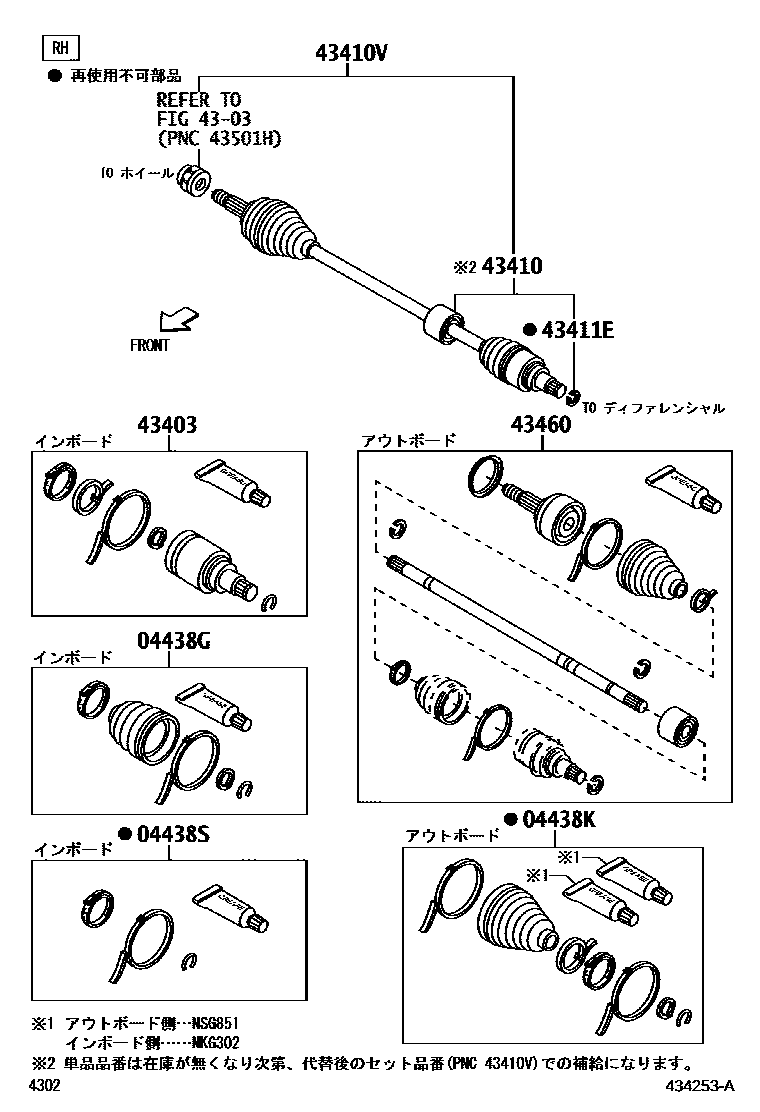

Toyota COPEN — FRONT DRIVE SHAFT

0001 1RH 0002 1LH

04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH

main04437-B2020iLA400¥2,530201910

04438KBOOT KIT, FRONT DRIVE SHAFT OUTBOARD JOINT, RH

main04425-B2220iLA400¥3,450201910

04438SCLAMP KIT, FRONT DRIVE SHAFT, RH

main04435-B2020iLA400¥1,460201910

4303

43403JOINT SET, FRONT AXLE INBOARD, RH

main43408-B9350iLA400¥21,400201910

43410SHAFT ASSY, FRONT DRIVE, RH

main43410-B2440iLA400¥44,900201910

43410VSHAFT SET, FRONT DRIVE, RH

main43410-B9690iLA400¥45,500201910

43411ERING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)

main90045-20298iLA400¥300201910

43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH

main43411-B9480iLA400¥26,200201910

9 parts on this diagram · 2 diagrams in section
