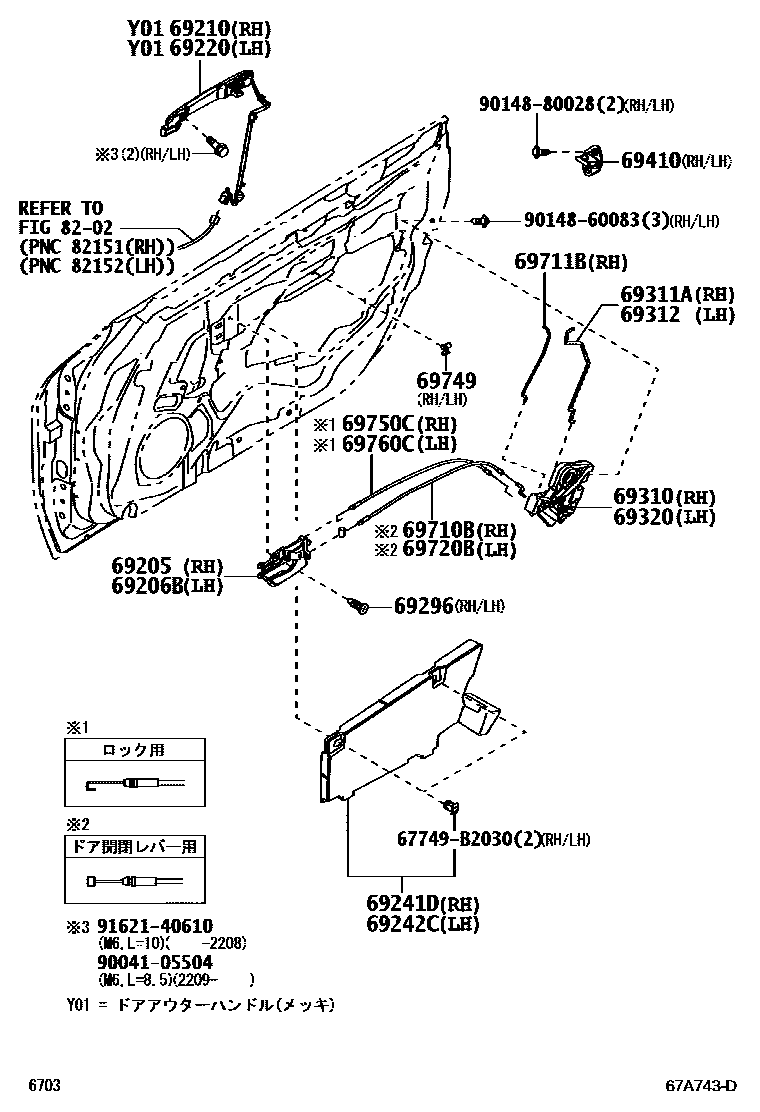

Toyota COPEN — FRONT DOOR LOCK & HANDLE

69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69270-B2112-C0iLA400201910

BLACK,TRIM2#,���b�L

69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69280-B2122-C0iLA400201910

BLACK,TRIM2#,���b�L

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-B2370-B0iLA400201910

SILVER ME.,B63 ,R70 ,R71 ,S28 ,S39 ,W24 ,X07 ,Y07,���N�G�X�g�@�X�C�b�`�t��

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69220-B2340-B0iLA400201910

SILVER ME.,B63 ,R70 ,R71 ,S28 ,S39 ,W24 ,X07 ,Y07,���N�G�X�g�@�X�C�b�`�t��

69241DPAD, FRONT DOOR OUTSIDE HANDLE, RH

main75787-B2140iLA400¥1,570201910

69242CPAD, FRONT DOOR OUTSIDE HANDLE, LH

main75788-B2140iLA400¥1,570201910

69296SCREW, DOOR INSIDE HANDLE

main90041-67041iLA400¥110201910

69310LOCK ASSY, FRONT DOOR, RH

main69310-B2352iLA400¥9,300201910

69311AROD, FRONT DOOR LOCK OPEN, RH

main69311-B2180iLA400¥390201910

69312ROD, FRONT DOOR LOCK OPEN, LH

main69312-B2160iLA400¥390201910

69320LOCK ASSY, FRONT DOOR, LH

main69320-B2382iLA400¥9,300201910

���b�h�����p�N���b�v�t��

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-B2020iLA400¥1,230201910

69710BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH

main69710-B2220iLA400¥1,000201910

�h�A�J�����o�[�p

69711BLINK, FRONT DOOR LOCK REMOTE CONTROL, RH

main69711-B2120iLA400¥330201910

69720BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH

main69710-B2220iLA400¥1,000201910

�h�A�J�����o�[�p

69749CLAMP, FRONT DOOR LOCK LINK

main69749-32040iLA400¥210201910

69750CCABLE ASSY, FRONT DOOR INSIDE LOCKING, RH

main69750-B2210iLA400¥1,000201910

���b�N�{�^���p

69760CCABLE ASSY, FRONT DOOR INSIDE LOCKING LH

main69760-B2210iLA400¥1,000201910

���b�N�{�^���p

8202

67749B2030CLIP, DOOR TRIM MOULDING

main67749-B2030¥120

9004105504

main90041-05504¥110

9014860083

main90148-60083¥60

9014880028

main90148-80028¥60

9162140610

main91621-40610¥70

24 parts on this diagram · 1 diagram in section
